SVS

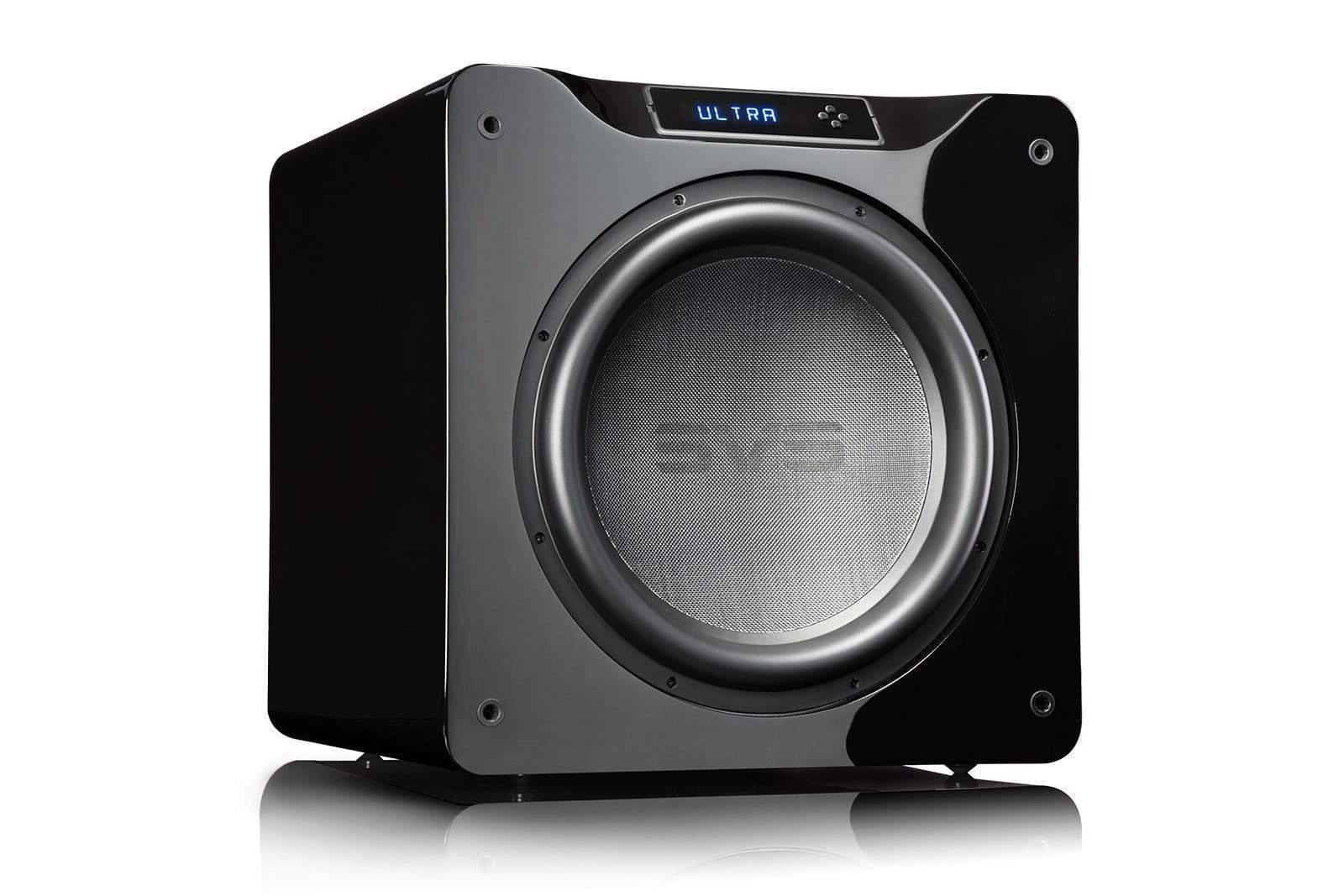

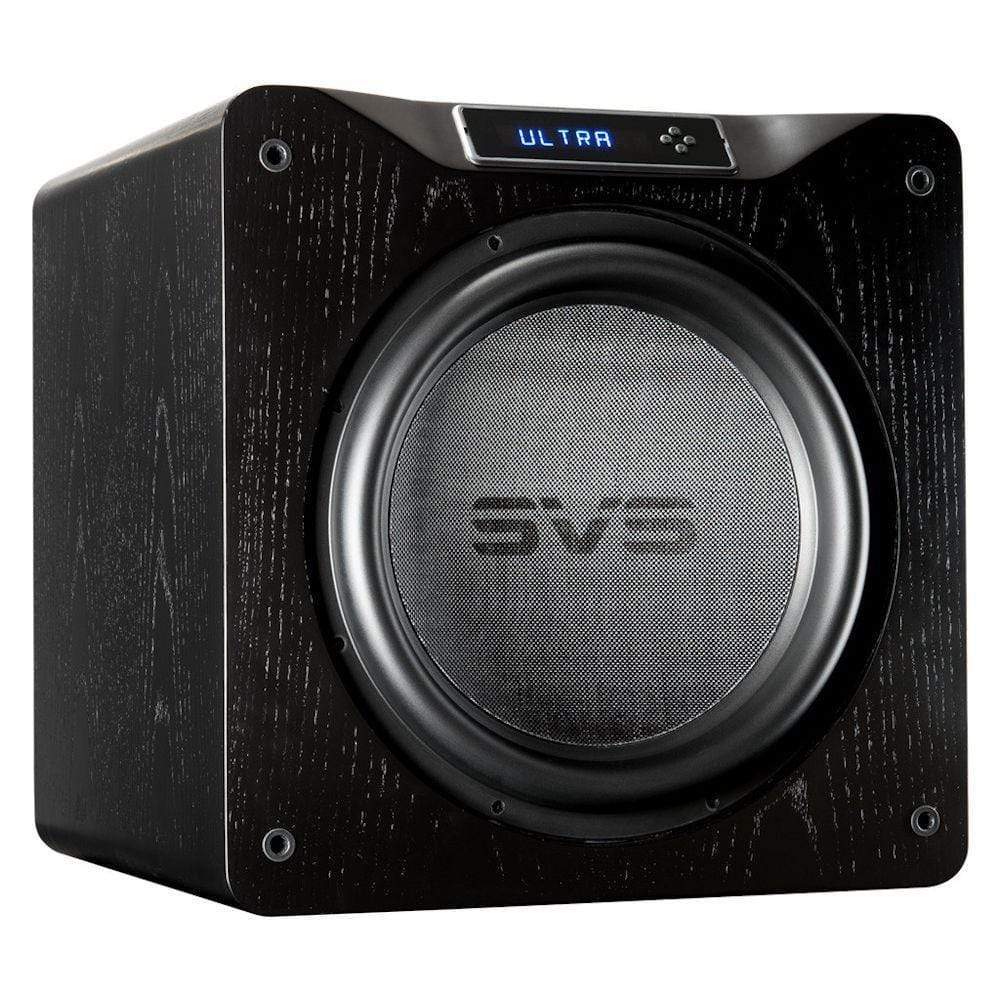

SVS SB16-Ultra Sealed Box Active Subwoofer

  • Sale
  • Regular price $4,890.00


SB16-Ultra features a massive 16" Ultra driver with astonishing 8" edge wound voice coil, a stunningly powerful 1,500 watts continuous, 5,000+ watts peak power Sledge amplifier with fully discrete MOSFET output and an innovative subwoofer control and DSP smartphone app with custom presets for precise tuning. The ultimate sealed box subwoofer.

An unrelenting passion for awesome bass performance and engineering perfection guided every aspect of the SB16-Ultra subwoofer’s design. Groundbreaking technology, rigorous design and extreme testing in real world and laboratory environments allowed SVS to achieve massive output levels, extreme low frequency extension, near-perfect frequency response accuracy, and pinpoint transient response. The culmination of all SVS design advancements, SB16-Ultra represents the greatest leap forward in performance and innovation since the inception of subwoofers.

Specifications

Subwoofer Specs:

  • Black Oak and Piano Gloss Black finish options
  • Protective non-resonant steel mesh grille
  • Front-firing 16" driver
  • Rear-mounted amplifier
  • Screw-in rubber feet
  • Robust Medium Density Fiberboard(MDF) cabinet construction
  • Cabinet Dimensions: 20" (H) x 19.5" (W) x 20.1" (D) (without grille)
  • Cabinet Dimensions (with grille): 20” (H) X 19.5” (W) X 22.9” (D)
  • Shipped Dimensions: 24.9" H X 25.1" W X 30.3" D
  • Weight (unboxed): 122 pounds
  • Shipped Weight: 145.9 pounds

Driver Specs:

  • SVS 16” Ultra-series driver
  • Powder-coated cast aluminum basket
  • Four high-grade ferrite magnets
  • Finite Element Analysis (FEA)-optimized motor structure
  • Dual shorting rings reduce gap induction and lower distortion
  • Extended pole piece improves heat sink and thermal management properties
  • 8” diameter, high-power edge wound voice coil
  • 78mm peak to peak Xmech excursion (65mm Xmax)
  • Upgraded Nomex spider for improved linearity and driver control at extreme drive levels
  • Dual 24-strand copper and Nomex composite high-temperature leads provide a pristine electrical connection from the amplifier to the voice coil
  • Premium glass fiber laminated dustcap and reinforced composite cone sub-structure ensure a light, ridged, and neutral radiating surface
  • Low-creep rubber long-throw surround for excellent durability and longevity

Amplifier Specs:

  • Sledge STA-1500D DSP amplifier
  • 1,500 watts RMS continuous (5,000+ watts peak dynamic)
  • Efficient and cool-running Class D topology
  • High resolution 50Mhz Analog Devices Audio DSP with double precision 56bit filtering is most advanced subwoofer processor available for perfect audio reproduction
  • Active PFC (Power Factor Correction) ensures the cleanest 1500W output regardless of your home mains supply
  • XLR and RCA stereo input/output with ultra-wide input voltage for consumer and professional audio applications
  • Convenient front-mounted display with subwoofer controls and 8 digit LED display
  • Groundbreaking Subwoofer Control and Bass Management Smartphone App for Apple and Android Devices
  • IR Remote Control
  • Three user adjustable parametric EQs
  • Continuously variable volume/gain control
  • Continuously variable (0-180 degrees) phase control
  • Continuously variable (30-200 Hz) 6, 12, 18, or 24 dB/octave low pass filter frequency with disable/LFE setting
  • Main power rocker switch
  • Auto-On / On / Trigger Controls
  • 3-12V trigger with 1/8” (3.5 mm) TRS mini-jack input
  • Green standby mode with > 0.5 watts consumption
  • Input impedance 22kohm (RCA)/ 22kohm (XLR).
  • RoHS compliant, lead-free construction and world-wide safety certifications
  • Detachable power cord
