Monitor Audio Platinum PLIC II In-Ceiling Speaker
Specifications
System Format | 3 Way – 4 Driver |
Frequency Response (-6 dB) | 45 Hz – 60 kHz |
Sensitivity (1W@1M) | 90 dB |
Maximum SPL | 112 dBA |
Nominal Impedance | 4 ohms (3.1 ohms minimum @ 1.1 KHz) |
Power Handling (RMS) | 150 W |
Recommended Amplifier Requirements | 50-150 W |
Recommended Enclosure | PLIC-BOX II or a bespoke sealed enclosure of 24 litres |
Mid / H.F Crossover Frequency | 5.3 KHz 3rd order (18 dB / Octave) |
Bass / Midrange Crossover Frequency (Hz) | 380 Hz 4th Order (24 dB / Octave) |
Drive Unit Complement | 1 x 8" long-throw RDT II bass driver 2 x 2" C-CAMmid-range drivers 1 x MPD high frequency transducer |
Adjustment Controls | HF level switch (+1 dB / 0 dB / -1 dB) MF level switch (+1 dB / 0 dB / -1 dB) |
Connection | High-end ‘Push’ type terminals |
Fixing Type | 3 position Tri-Grip dog fixings |
Overall Diameter - Grille On/Off | 309 mm (123/16") 296.25 mm (1111/16") |
Overall Depth – Grille On/Off | 191.5 mm (71/2") 188 mm (73/8") |
Construction Material | Main chassis - Mineral Filled ABS (RoHS2 compliant) Baffle – Die cast Aluminium |
Grille Type | Low profile trimless grille with magnetic fixings – Paintable (square grille available as a cost option) |
Optional Square Grille - Outer Dimensions | 309 x 309 mm (123/16") |
Cut-Out Hole Diameter | 273 mm (103/4") |
Mounting Depth | 185 mm (75/16") |
Weight | 5.22 kg (11 lb 8 oz) |
Back Box | PLIC-BOX II |
Warranty
Shipping & Returns
We offer free shipping on any order over $150. For full details please see our Shipping Policy.
Our returns policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately, we may not be able to offer you a refund or exchange. For full details please see our Refund Policy.
Platinum PLIC II
The Platinum II range has expanded to include a design and installation friendly in-ceiling speaker that offers unsurpassed levels of performance, delivering sublime audio accuracy. Designed for installation in both new build and retrofit installations, the PLIC II in-ceiling speaker should be the ‘go to’ product for home technology professionals, architects, interior designers and end users.
The latest product to join the Platinum II range, the PLIC II in-ceiling speaker, meets the demands put on speaker manufacturers by providing a winning combination of high quality sound, ease of installation and discreet design.

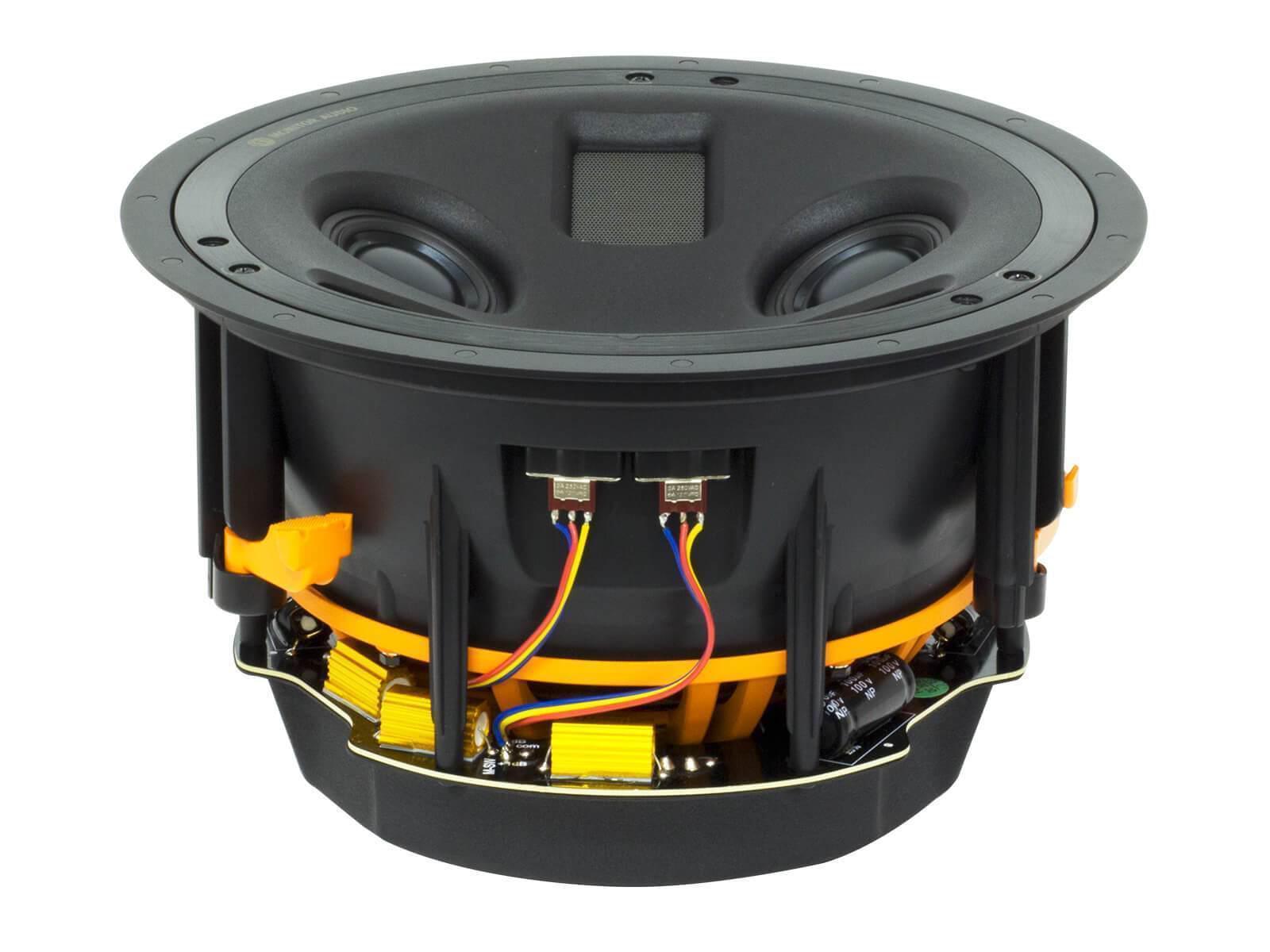

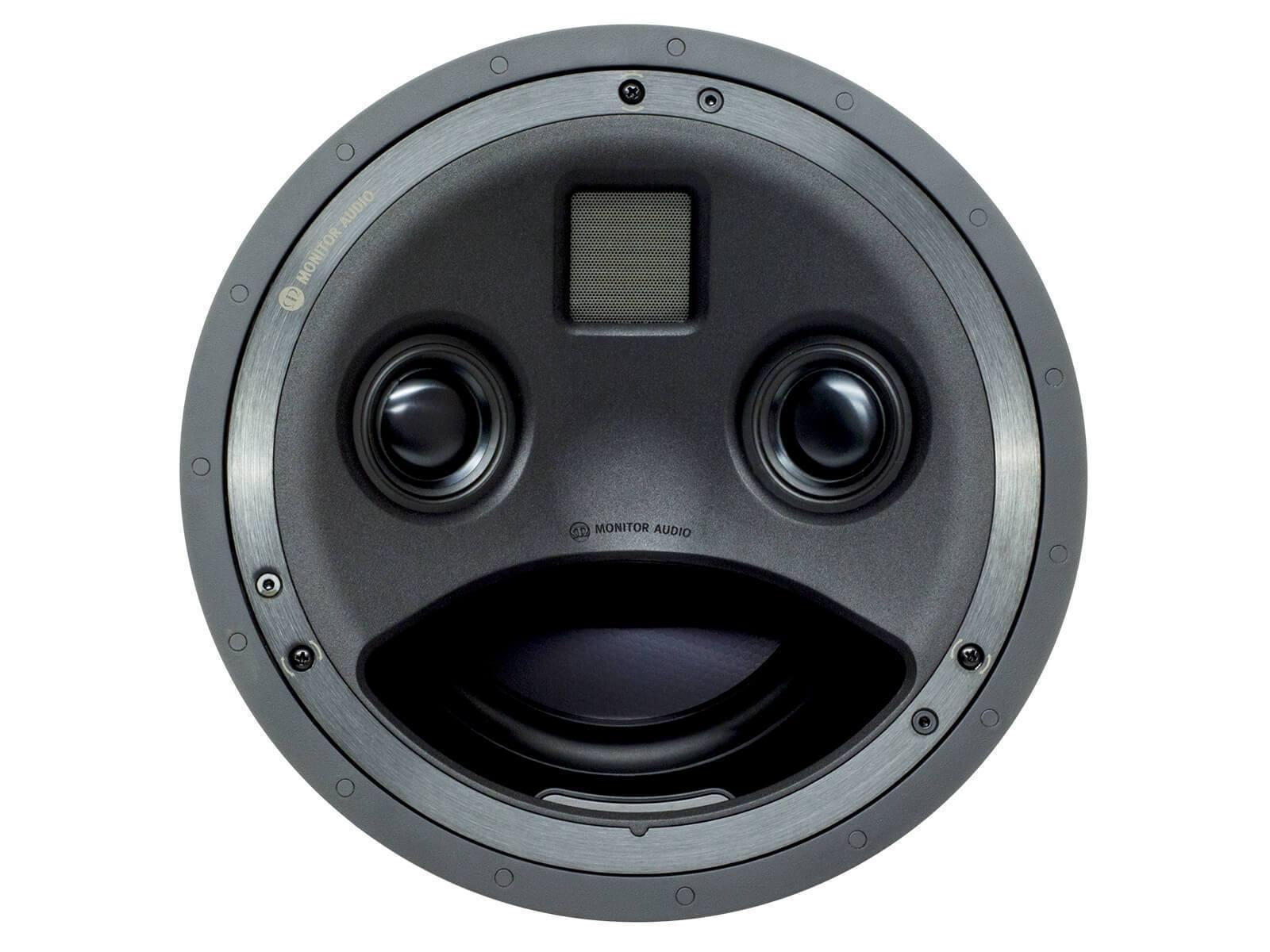

The Monitor Audio PLIC II in-ceiling speaker features an 8" long throw bass driver with Rigid Diaphragm Technology (RDT II) cone technology to provide immensely powerful bass lines. This is achieved by the RDT cone reacting to an audio signal with lightning fast precision without deformation. To provide the listener with a uniform frequency spectrum when the speaker is played at higher frequencies, additional dual mid-range drivers that feature C-CAM cone technology and Monitor Audio’s Micro Pleated Diaphragm (MPD) transducer are mounted on a rigid aluminium baffle and directed towards the listening zone provide uniform mid and high frequency dispersion.
All PLIC II drivers employ a heavy duty motor system, which deploys an under-hung motor assembly to ensure the coil always remains in the gap, even when driven hard. The addition of copper ‘shorting’ rings greatly improves magnetic linearity and lowers intermodulation distortion, resulting in crisp and clear audio delivery. A world first for an in-ceiling speaker!
Designed for installation in both new build and retrofit projects, the PLIC II in-ceiling speaker features Monitor Audio’s unique Tri-Grip fixing system. This 3-position 'dog leg' style fixing provides a greater contact surface area than other types. This system, combined with the magnetic grille, saves the installer both time and money by speeding up the speaker fitting process.

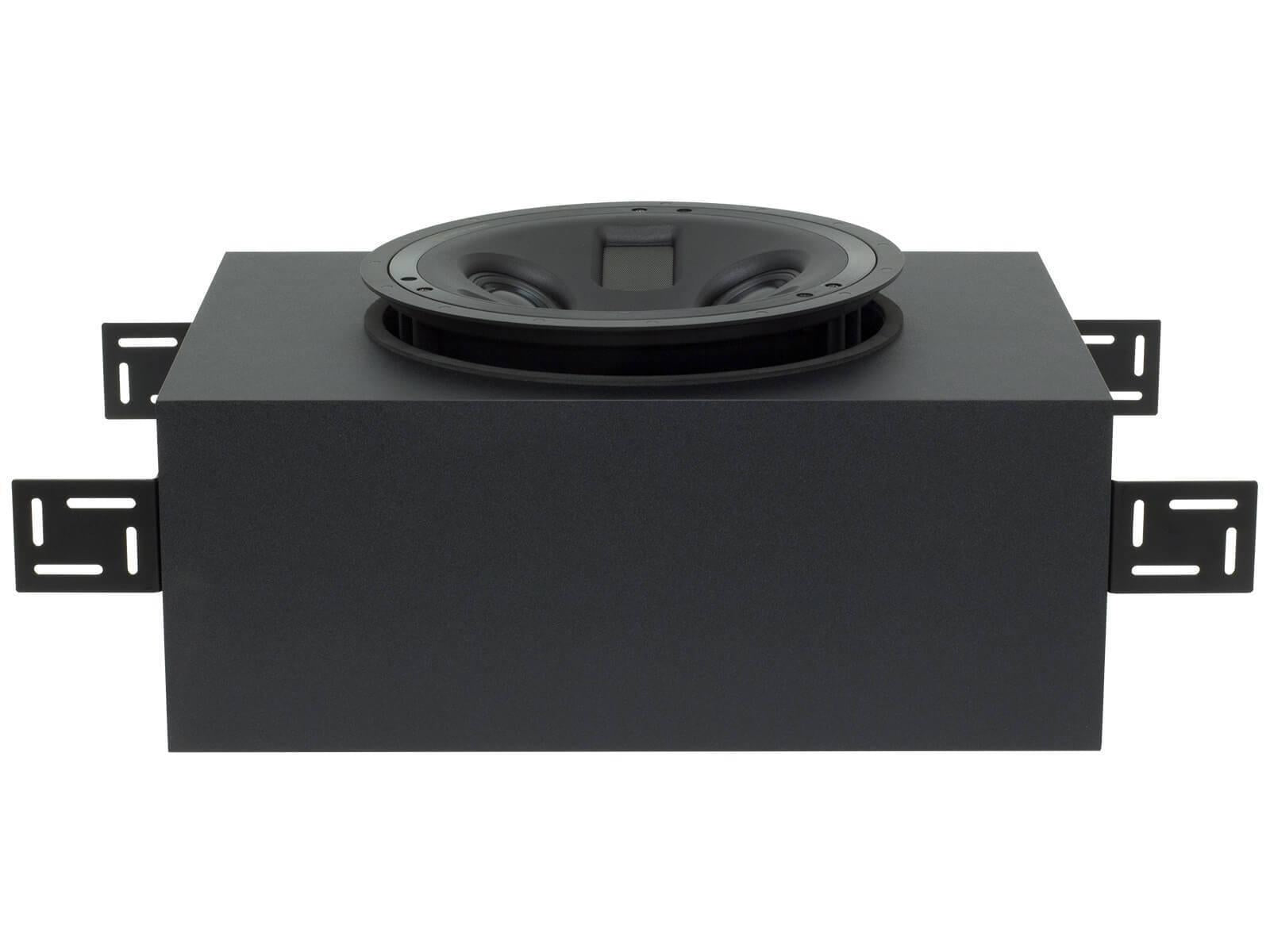

To ensure controlled audio performance, Monitor Audio has designed an MDF back box with pre-determined air volume of 24 L. The rigid box is available with pre-loaded internal damping material to provide the best possible sound absorption and reduce standing waves.
To satisfy the interior designer and end user, the circular grille can appear almost invisible, by being painted to match the room décor. Monitor Audio also offers a square option to match lighting fixtures and ventilation.
Optional square grille can be used with this model.
