Monitor Audio CP-IW260X In-Wall Speaker
Specifications
Frequency Response | 50 Hz - 30 kHz (-6 dB typical in room response) |
Nominal Impedance | 6 ohms |
Sensitivity (1W@1M) | 89 dB |
Maximum SPL | 113.8 dBA |
Power Handling (RMS) | 150 W |
Recommended Amplifier Requirements | 60 - 150 W |
Crossover Frequency | L.F - 500 Hz @ 12 dB/Octave M.F -500 Hz @ 12 dB/Octave. 3 kHz @ 18 dB/Octave H.F - 3 kHz @ 18 dB/Octave |
Drive Unit Complement | 2 x 6.5" C-CAM Bass drivers 2 x 4" C-CAM Mid-range drivers 1 x 25 mm (1") C-CAM Gold Dome tweeter |
Adjustment Controls | Boundary Compensation (On/Off) MF Level: +1/0/-1 (dB) HF Level: +1/0/-1 (dB) |
Overall Dimensions (H x W x D) | 907 x 257 mm (353/4 x 101/8") |
Overall Depth (Including Grille) | 102 mm (4") |
Cut-Out Hole Diameter | 880 x 230 mm (3421/32 x 9") |
Mounting Depth | 96 mm (33/4") |
Fixing Type | 10 x Tri-Grip Dog leg fixings |
Construction Material | Cast Polymer enclosure (RoHS2 Compliant) |
Connection | Gold plated 'push' type terminals |
Weight | 11.98 kg (26 lb 6 oz) |
Warranty
Shipping & Returns
We offer free shipping on any order over $150. For full details please see our Shipping Policy.
Our returns policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately, we may not be able to offer you a refund or exchange. For full details please see our Refund Policy.
Monitor Audio CP-IW260X In-Wall Speaker
The luxury CP-IW260X and CP-IW460X in-wall speakers combine Monitor Audio’s latest drivers in compact three-way, five-driver configurations, built into closed-box designs to deliver optimum audio performance.

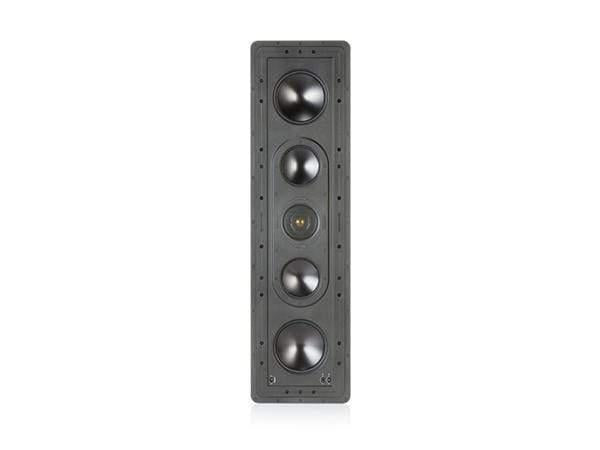

The CP-IW260X features Monitor Audio’s signature C-CAM (Ceramic-Coated Aluminium/Magnesium) cone material deployed in dual 6.5" bass drivers and twin 4" mids astride a Gold Dome tweeter in a symmetrical ‘B-M-T-M-B’ configuration. All within a cast polymer cabinet.
Technology
- Dual 4" C-CAM mid-range drivers – featuring underhung voice coil
- 25 mm (1") C-CAM Gold Dome tweeter
- Portrait or landscape orientation
- Integrated back-box to provide rear sound isolation resulting in ‘controlled performance’
- Cast Polymer enclosure – designed to provide high degree of rigidity and acoustic damping properties
- High overall efficiency and maximum SPL for powerful home theatre installations
- High power handling
- Three-way design in a symmetrical ‘B-M-T-M-B’ configuration
- High-end crossover design – featuring low loss inductors and audiophile grade Polypropylene capacitors
- Patented Tri-Grip fixing system is easier to install than conventional clamping systems providing three times the surface area and improved sealing
- Trim-less, low profile magnetic grilles provide attractive, discreet visual aspect and easy installation and servicing
