Monitor Audio

Monitor Audio Bronze W10 (Gen 6) Subwoofer


  • Sale
  • Regular price $1,499.00

Living Entertainment North Coast

Monitor Audio Bronze W10 (Generation 6) Subwoofer

Check out our Monitor Audio Bronze W10 (Gen 6) Subwoofer Unboxing

The Bronze Series loudspeakers have been carefully designed to offer Monitor  Audio’s British personality with an attractive contemporary touch. Featuring a complete upgrade for superior sound and build quality, everything was created with you in mind.

The Bronze speakers are undoubtedly in a different class. Premium gold-plated terminals and Pureflow silver-plated oxygen-free copper internal cabling offer pure and secure cable connectivity. As you would expect with Monitor Audio, the Bronze Series delivers an industry-leading sound. We have used our five decades of design heritage to ensure that our speakers offer an unforgettable performance wherever they are positioned in the home.

Since its first launch two decades ago, the multi award-winning Bronze Series has set the standard as a class leader and today there are thousands of satisfied owners across the globe.

Manufacturers Details:

If you love deep and refined bass notes, the Bronze W10 is a must-have addition to your speaker set-up as every soundscape is effortlessly reinforced by our beautifully designed subwoofer.

Engineered With Care:

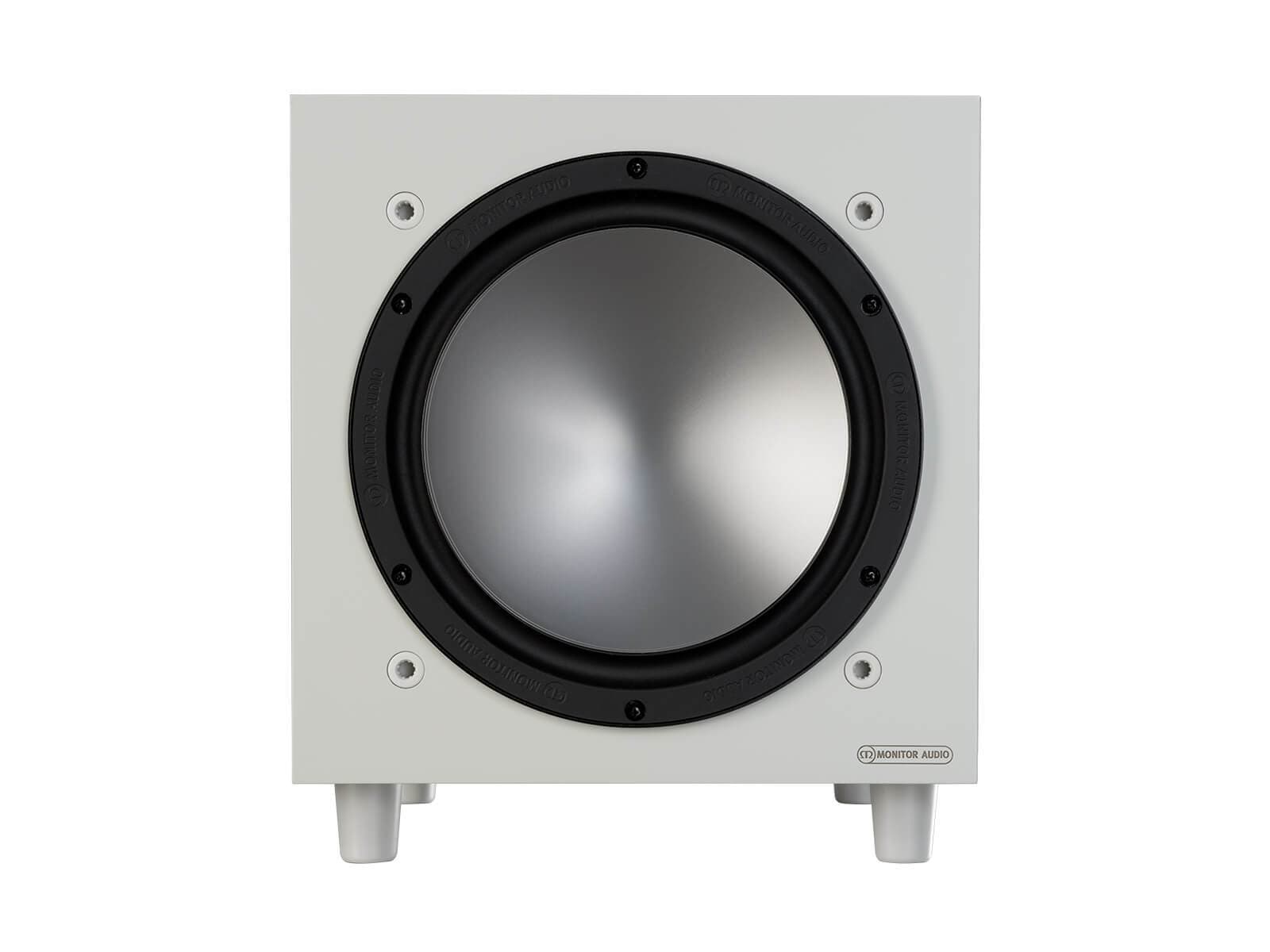

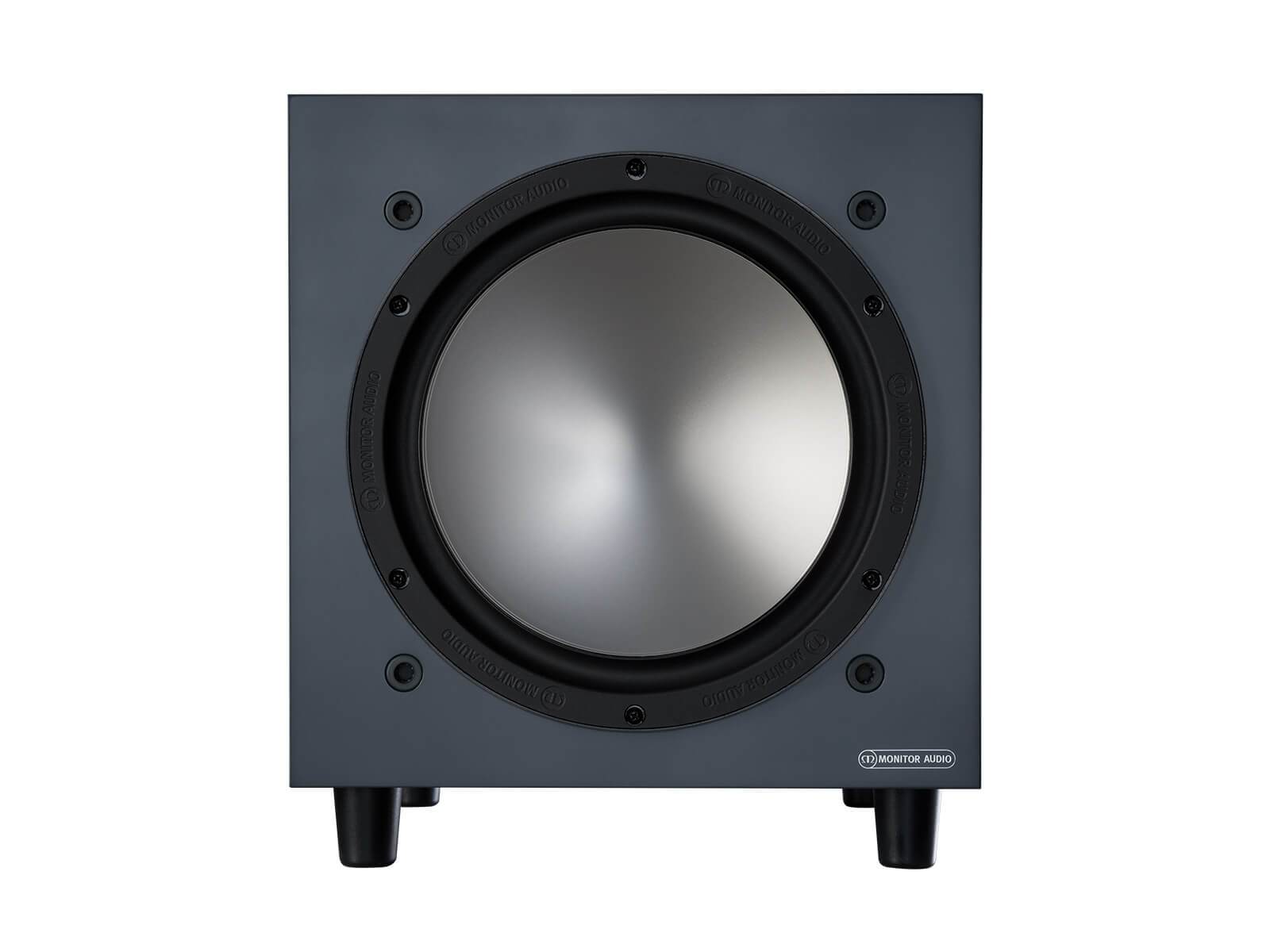

The Bronze W10’s long-throw 10" C-CAM subwoofer driver combines with the 10" auxiliary bass radiator to bring a vivid realism to any performance.

Our engineers have acoustically improved the driver and bass radiator by reducing the moving masses and tuning the compliances in the system to improve the transient response - kick drums and explosions now have much more punch and precision. Reduced moving mass and improved rubber feet allows more energy to be transmitted directly into the room rather than being lost through mechanical vibrations through the floor and walls.

The Bronze W10 is a stunning addition to any room.

Key Features:

  • Long-throw 10" (250 mm) driver featuring ‘dished’ C-CAM

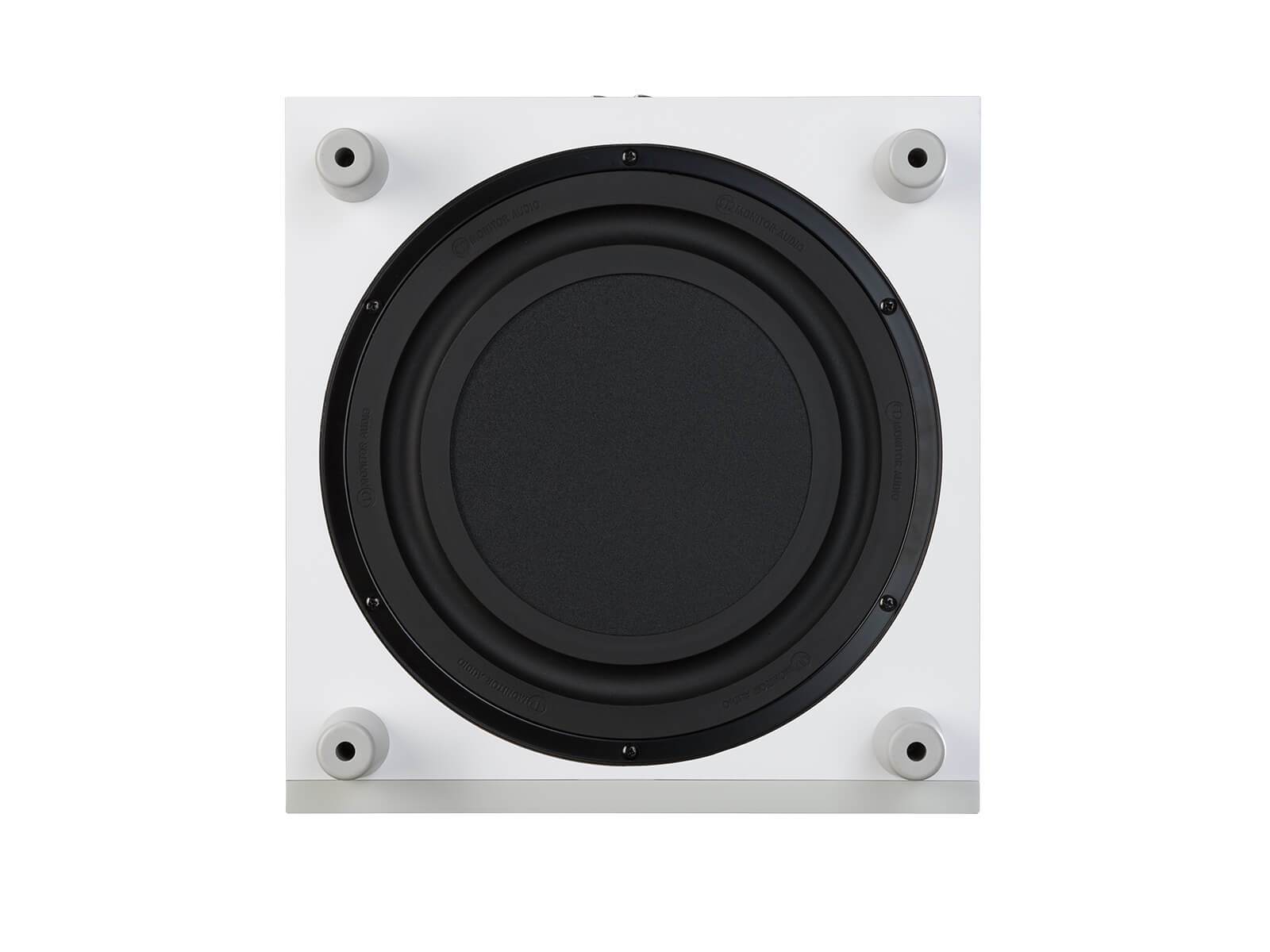

  • 10" (250 mm) flat panel Auxiliary Bass Radiator (ABR) positioned underneath the unit
  • Class D amplifier with high current Switch Mode Power Supply (SMPSU)

Pair this with:

The Bronze W10 (Gen 6) Subwoofer is a perfect addition to any home theater, but they pair especially well with the Bronze 50, Bronze 100, Bronze 200, Bronze 500, Silver 50 or Silver 200.

Manufacturers Warranty & Specifications:

Monitor Audio Warranty - All products, excluding accessories, are covered by warranty for 3 years from the date of purchase. Find out more here.

Specifications:

System Format
Long-throw 10" driver featuring ‘dished’ C-CAM cone.
10" flat panel ABR (Auxiliary Bass Radiator).
18 mm M.D.F. internally braced construction

Drive Unit Complement
1 x 250 mm (10") C-CAM subwoofer driver featuring a 2" long throw voice coil

Amplifier Classification
Class D with high current Switch mode power supply (SMPSU)

Equalisation DSP
3 pre-set modes: Music, Movie, Impact

Input Impedance
20 kOhms input impedance

Mains Input Voltage
100 – 120 Vac 50 – 60 Hz / 220 – 240
Vac 50 – 60 Hz (Manually selected)

Lower Frequency Limit
34 Hz (-6 dB)

Upper Frequency Limit
50 – 120 Hz with 24 dB/Octave

Linear Driver Excursion
17 mm peak to peak

Amplifier Output
220 W

Phase Control
0 Degrees & 180 Degree pure Invert

Low Pass Filter Alignment
2nd order (12 dB/Octave), from 40 Hz to 120 Hz

Auto Sensing
Line Level >3mV. Auto Standby feature after 20 mins

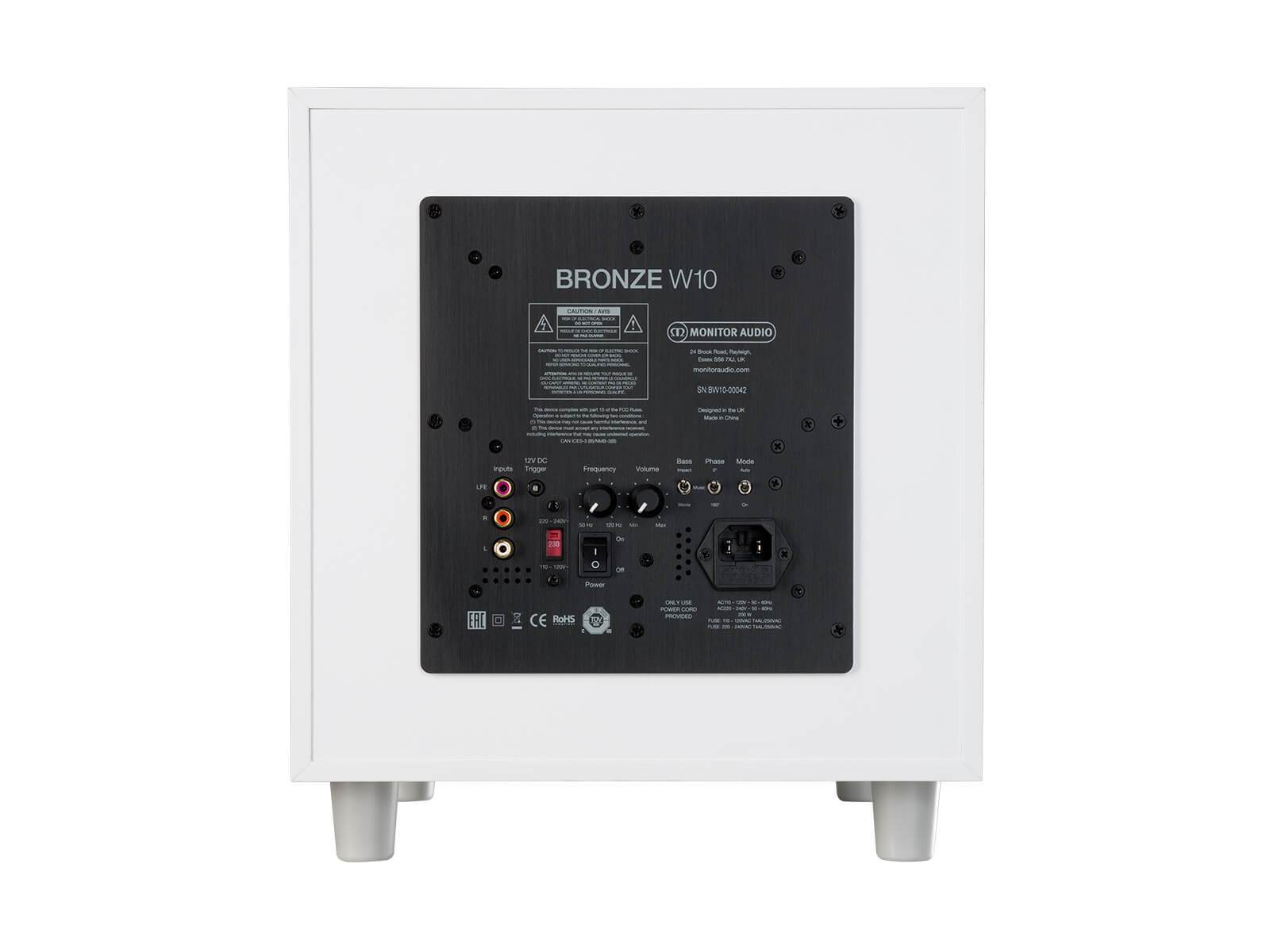

Audio Input/Outputs
LFE unbalanced input RCA
Stereo unbalanced inputs RCA

12 V Trigger
3.5 mm mono mini-jack. 6 V threshold

Electrical Certifications
CE / CB / ETL / Fcc / CCC / ErP (Energy saving compliant)

Power Consumption
Maximum 300 W, Standby <0.5 W (ErP compliance)

Fuse Type
20 mm T4AL 250 VAC

Weight (unpacked)
13.4 kg

External Dimensions (Including Amp, Drivers and Terminals (H x W x D))
321 x 321 x 364 mm

External Dimensions (Including Amp, Drivers, Terminals and Feet (H x W x D))
366.5 x 321 x 364 mm
