Michi M8 Mono-Block Power Amplifier

Michi is a flagship series of products built on the history and heritage of Rotel. Michi represents over 55 years of experience coupled with the passion of a family business and an ever-growing family of satisfied product owners. Acoustic Elevation. Sonic Evolution. Visual Perfection. Michi, because our reputation is personal.

Manufacturers Details:

The Michi M8 Monoblock Amplifier no-compromise Class AB amplifier delivers 1,080 watts into 8 ohms and an astounding 1,800 watts into 4 ohm loads. The design architecture ensures a smooth, accurate and relaxed delivery of the audio to even the most demanding loudspeakers while maintaining critical energy, rhythm and timing.

The stunning control and authoritative power of the Michi M8 Monoblock Amplifier is the result of a perfect balance of science meets art delivering 1,080 watts of Class AB power into 8 ohms and an astounding 1,800 watts to the most demanding 4 ohm loudspeakers. The M8 is powered by a pair of custom engineered, low noise, in-house manufactured toroidal transformers supported by 4 British patented slit foil, high efficiency, low ESR bulk storage capacitors for impactful bass with exceptional control under extreme loading conditions.

Engineered With Care:

To achieve accuracy and its unsurpassed performance, the M8 is equipped with an array of 32 high current output transistors thus reducing the load on individual components and maintaining the crucial energy, rhythm and timing throughout the amplification stages. Musical expression and detailed refinement were further accomplished through acoustic tuning of all critical components and a balanced circuit design.

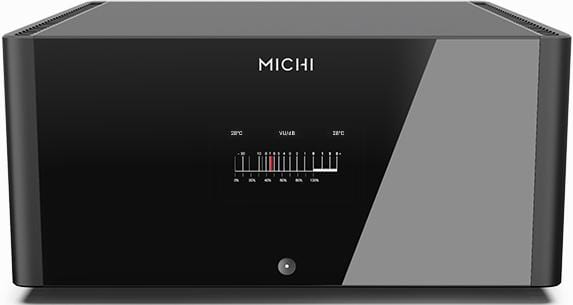

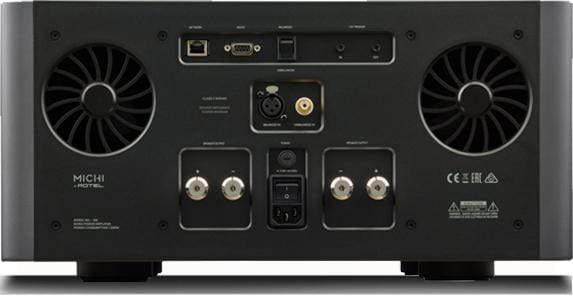

A high resolution display adorns the front panel supporting a peak power meter or spectrum analyzer. With XLR and RCA inputs, 2 sets of custom Michi speaker binding posts, remote control and fully featured RS232 and Ethernet connections the M8 provides ultimate installation flexibility. Power amplification at its best in the most elegant of industrial designs.

Key Features

  • 1080 Watts of robust power
  • Class AB amplifier design
  • Patented British bulk storage capacitors
  • Massive power supply using dual toroidal transformers
  • Balanced XLR inputs

 Specifications

DIMENSIONS (W × H × D) 485 × 238 × 465mm
FRONT PANEL HEIGHT 220mm
POWER REQUIREMENTS 120V, 60Hz
POWER CONSUMPTION 1200W
STANDBY POWER CONSUMPTION
Normal: <0.5W
Network Wakeup: <2W
NET WEIGHT
59.1kg
BTU (4 Ω, 1/8th Power) 3200 BTU/h
CONTINUOUS POWER OUTPUT
1080W/Ch (8Ω)
1800W/Ch (4Ω)
TOTAL HARMONIC DISTORTION <0.018%
FREQUENCY RESPONSE
20Hz - 20kHz (+0dB, -0.15dB)
10Hz - 100kHz (+0dB, -0.5dB)
SIGNAL TO NOISE RATIO (IHF “A” weighted) 120dB
GAIN
Unbalance: 34dB
Balance: 30dB
