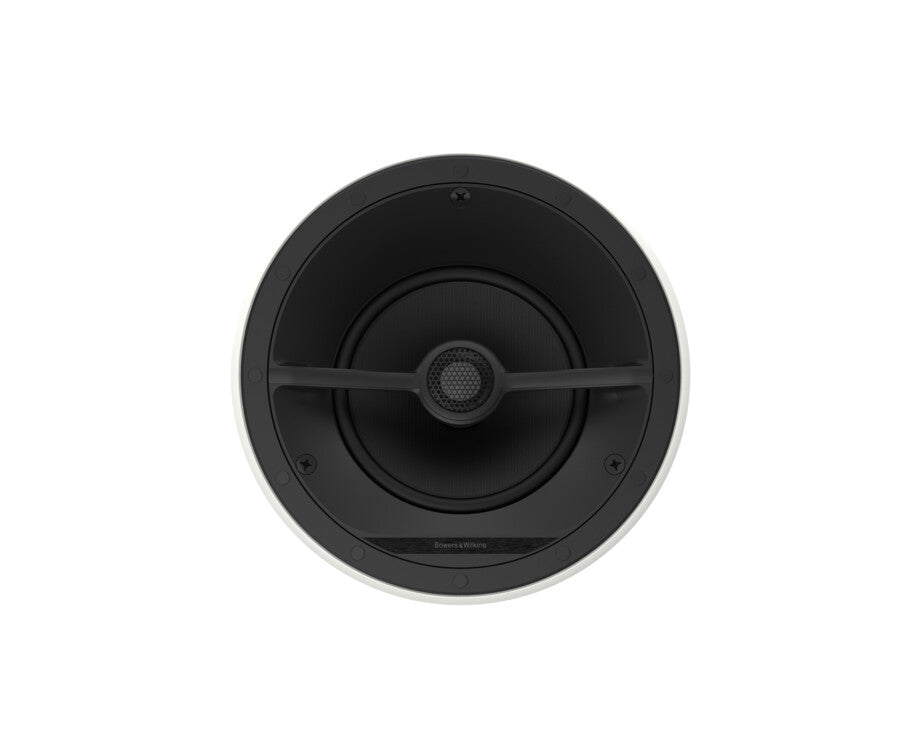

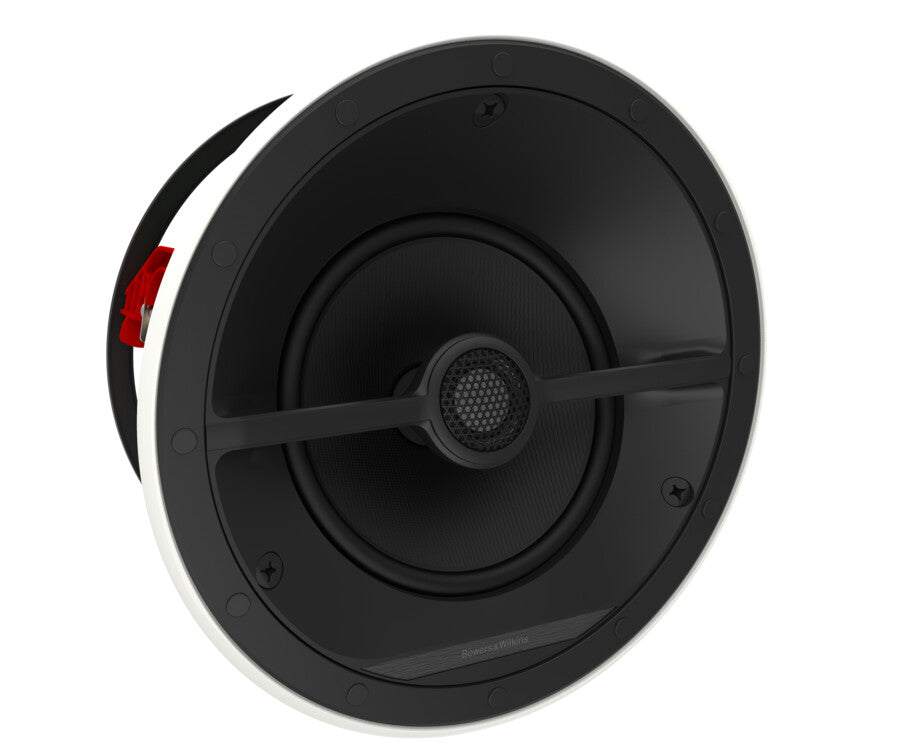

Bowers & Wilkins CCM7.5 S2 2-Way In-Ceiling Speaker
Specifications
Technical Features: | Carbon Dome tweeter Continuum mid/bass |
Description: | 2-way in-ceiling system |
Drive units: | 1x ø25mm (1in) Carbon Dome high-frequency 1x ø180mm (7in) Continuum cone mid/bass |
Frequency range (-6dB): | -6dB at 25Hz - 33kHz |
Frequency Response -3dB: | 32Hz - 28kHz ±3dB |
Sensitivity: | 90dB spl (2.83Vrms, 1m) |
Harmonic distortion: | 2nd and 3rd harmonics (90dB, 1m) <1% 70Hz - 33kHz<0.5% 100Hz - 28kHz |
Nominal impedance: | 8Ω (minimum 4.8Ω) |
Recommended amplifier power: | 25W - 150W into 8Ω on unclipped programme |
Frame Diameter: | 290mm |
Depth (behind surface): | 128mm |
Cut-Out Diameter: | 254mm |
Protrusion: | 8.5mm |
Back Box: | BB 6C |
Square grille option: | GR68SQ |
Net weight: | 3.1kg |
Finishes: | Grille: White |
Warranty: | 5 Years |
Warranty
Shipping & Returns
We offer free shipping on any order over $150. For full details please see our Shipping Policy.
Our returns policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately, we may not be able to offer you a refund or exchange. For full details please see our Refund Policy.
Bowers & Wilkins CCM7.5 S2 2-Way In-Ceiling Speaker
See nothing, hear everything
Designed for down-firing, in-ceiling use, CCM7.5 S2 can be used as the left, centre,
right and rear-channel rear speakers in a discreet home cinema system. Its configuration includes a 25mm (1in) Carbon Dome tweeter and a 180mm (7in) Continuum cone mid/ bass cone angled to the mounting surface, allowing for easy direction of the whole array towards the listener to ensure they hear the correct balance of sound. That way, dialogue is crystal clear and special effects come across accurately. Thanks to Bowers & Wilkins unique QuickDogsTM fixing method, installation is simple and if preferred, the supplied round grille can be replaced with an optional, square grille.
Key Features:
- 25mm (1in) Carbon Dome tweeter
- 180mm (7in) Continuum cone mid/ bass cone
- Easy Installation

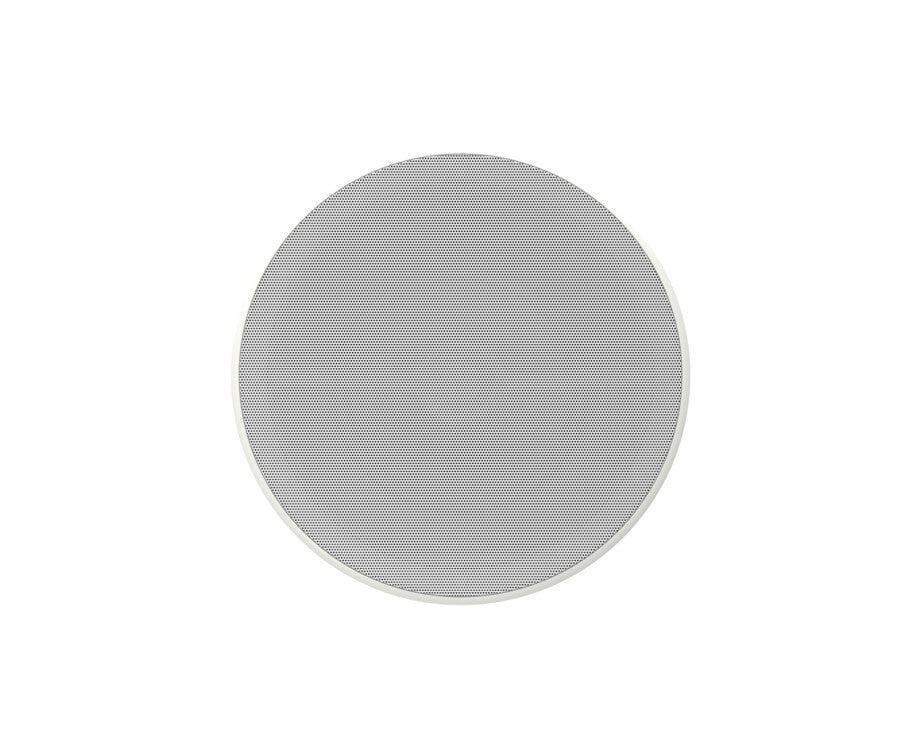

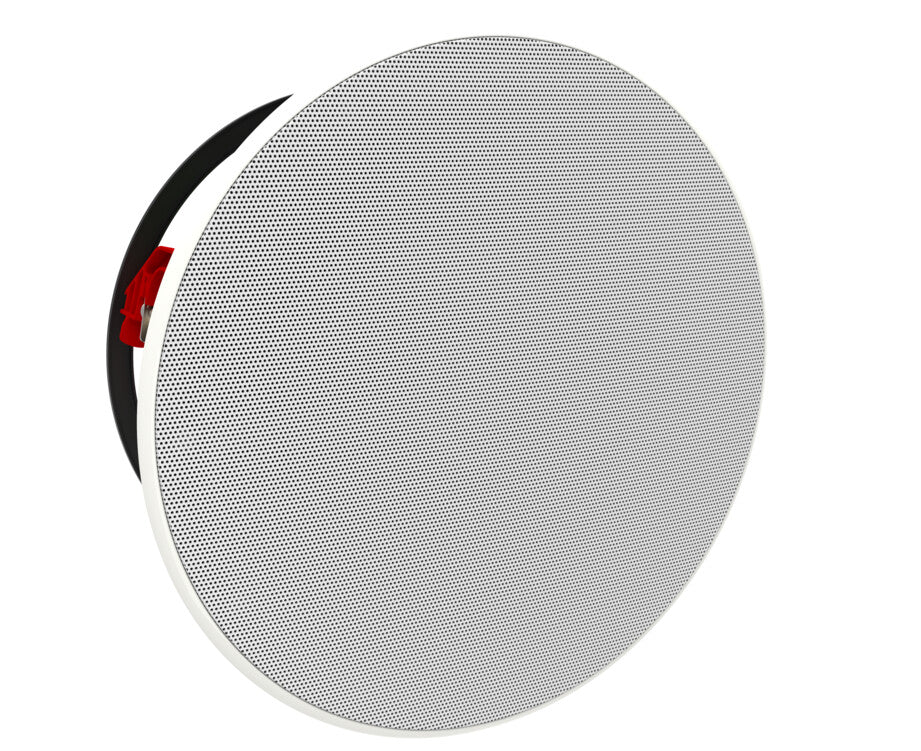

- Replaceable grille
