Audio-Technica AT-XP7/H PNP Cartridge
Specifications
Frequency Response: | 20 - 20,000 Hz |
Channel Separation: | 22 dB (1 kHz) |
Vertical Tracking Angle: | 20° |
Vertical Tracking Force: | 2.0 to 4.0 g (standard 3g) |
Stylus Construction: | Bonded Round Shank |
Recommended Load Impedance: | 47,000 ohms |
Coil Impedance: | 6,700 ohms (1 kHz) |
Coil Inductance: | 1.0 H (1 kHz) |
Output Voltage: | 6.0 mV (mV at 1 kHz, 5 cm/sec) |
Output Channel Balance: | 2.0 dB (1 kHz) |
Stylus Shape: | Elliptical |
Cantilever: | Aluminium tapered Pipe |
Static Compliance: | 20 x 10 – 6 cm / dyne |
Dynamic Compliance: | 8.0 x 10 – 6 cm / dyne (100 Hz) |
Mounting: | Half-inch |
Dimensions (HxWxD): | 21.2 × 21.4 × 62.4 mm |
Model: | AT-XP7/H |
Recommended Load Capacitance: | 100-200 pF |
Replacement Stylus: | ATN-XP7 |
Stylus Size: | 0.3 x 0.7 mil |
Weight: | 15.6g |
Warranty
Shipping & Returns
We offer free shipping on any order over $150. For full details please see our Shipping Policy.
Our returns policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately, we may not be able to offer you a refund or exchange. For full details please see our Refund Policy.

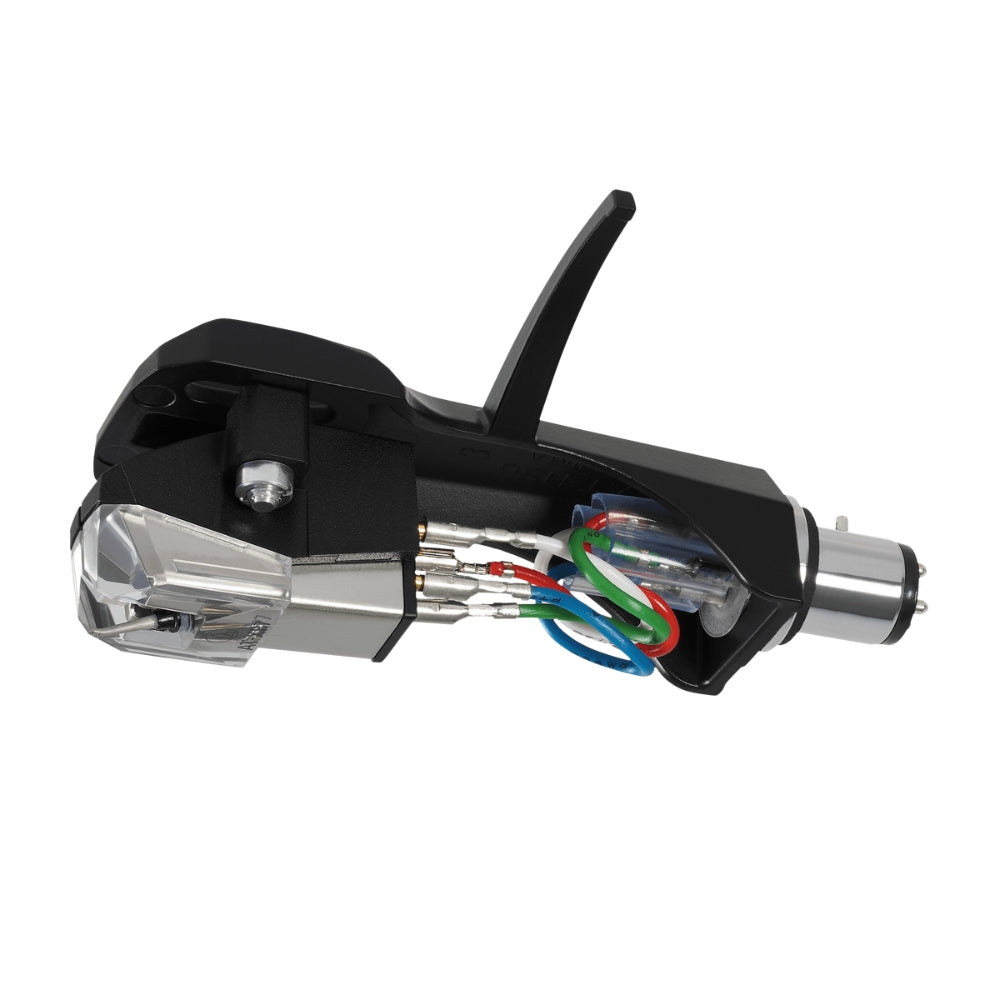

Audio-Technica AT-XP7/H Headshell/Cartridge Combo Kit
The Audio-Technica AT-XP7/H Headshell/Cartridge Combo Kit is a professional-grade turntable accessory designed for DJs and vinyl enthusiasts. It combines the AT-XP7 DJ cartridge and the AT-HS6BK headshell into a convenient package, offering exceptional sound quality and durability.
Manufacturers Details:

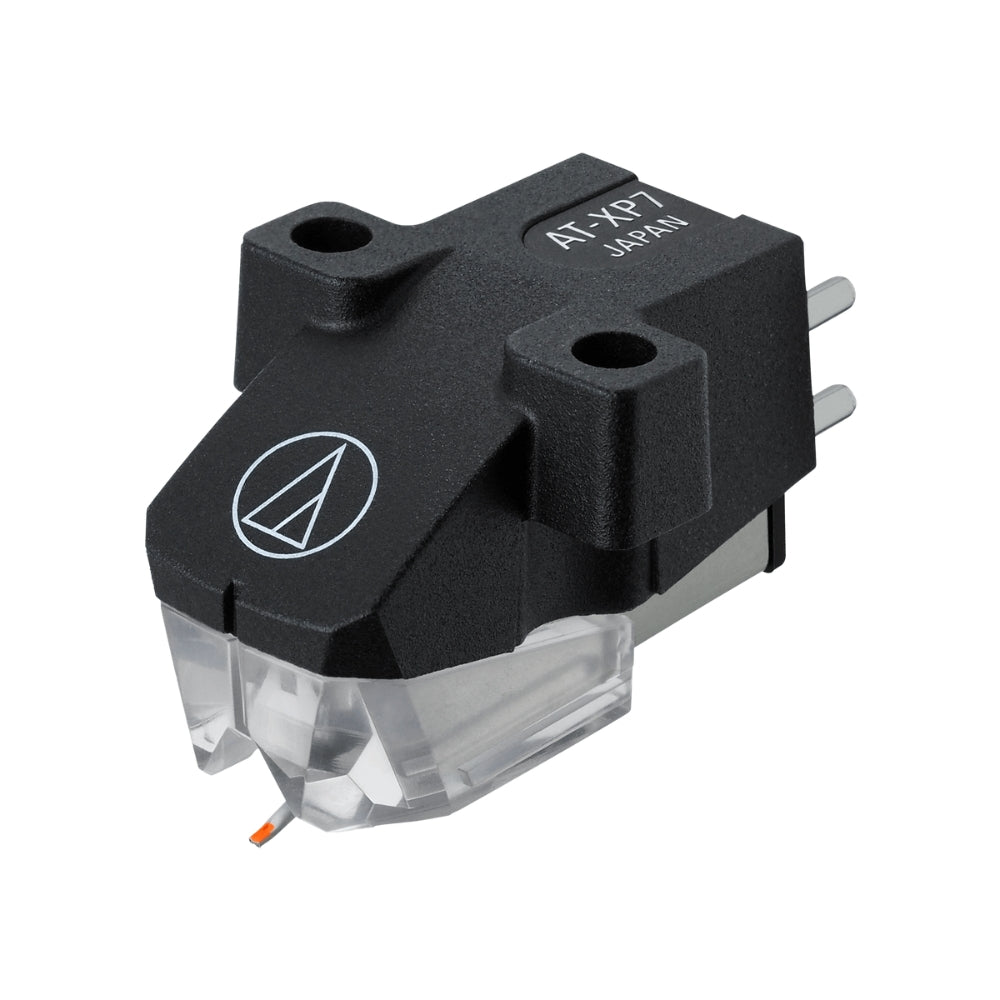

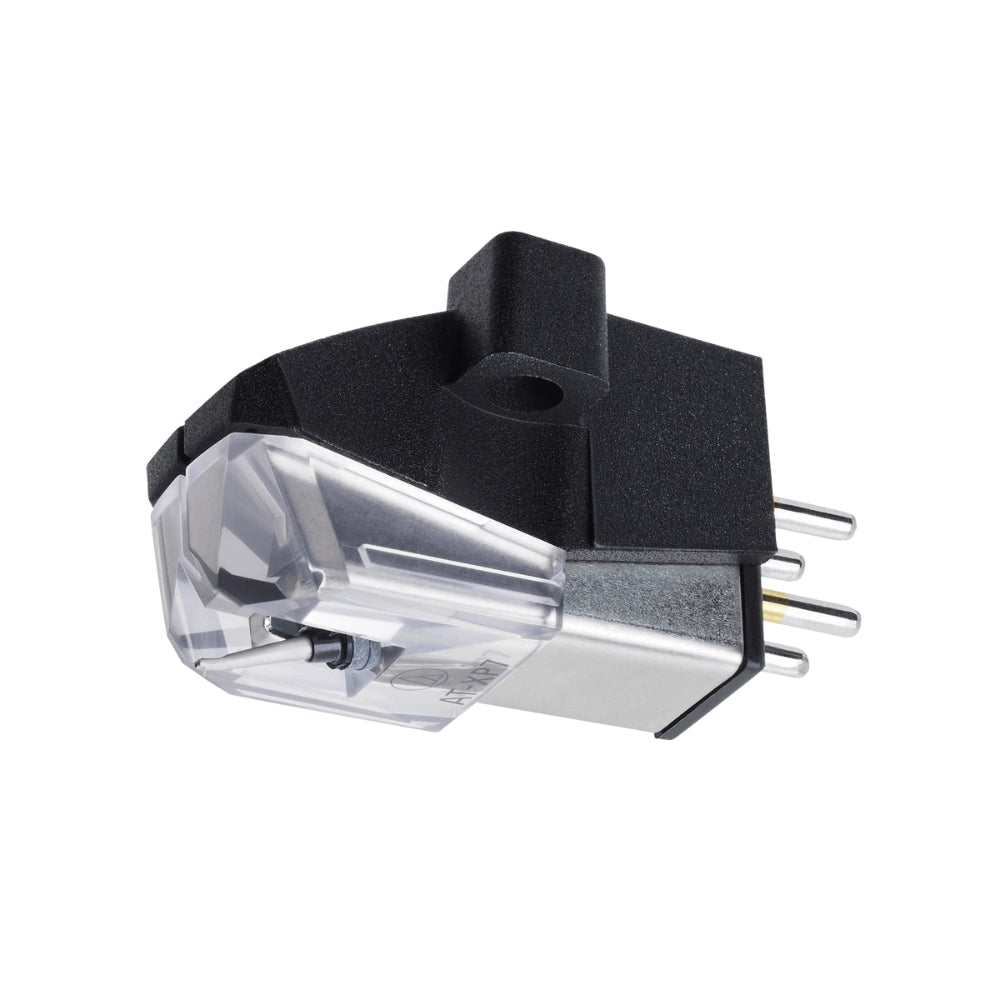

The AT-XP7 DJ cartridge is engineered for high-quality audio reproduction and excellent tracking ability. It features a highly sensitive elliptical bonded stylus that ensures accurate sound reproduction, even in demanding environments such as club settings. The cartridge is also designed to minimise record wear, providing longevity for your vinyl collection.

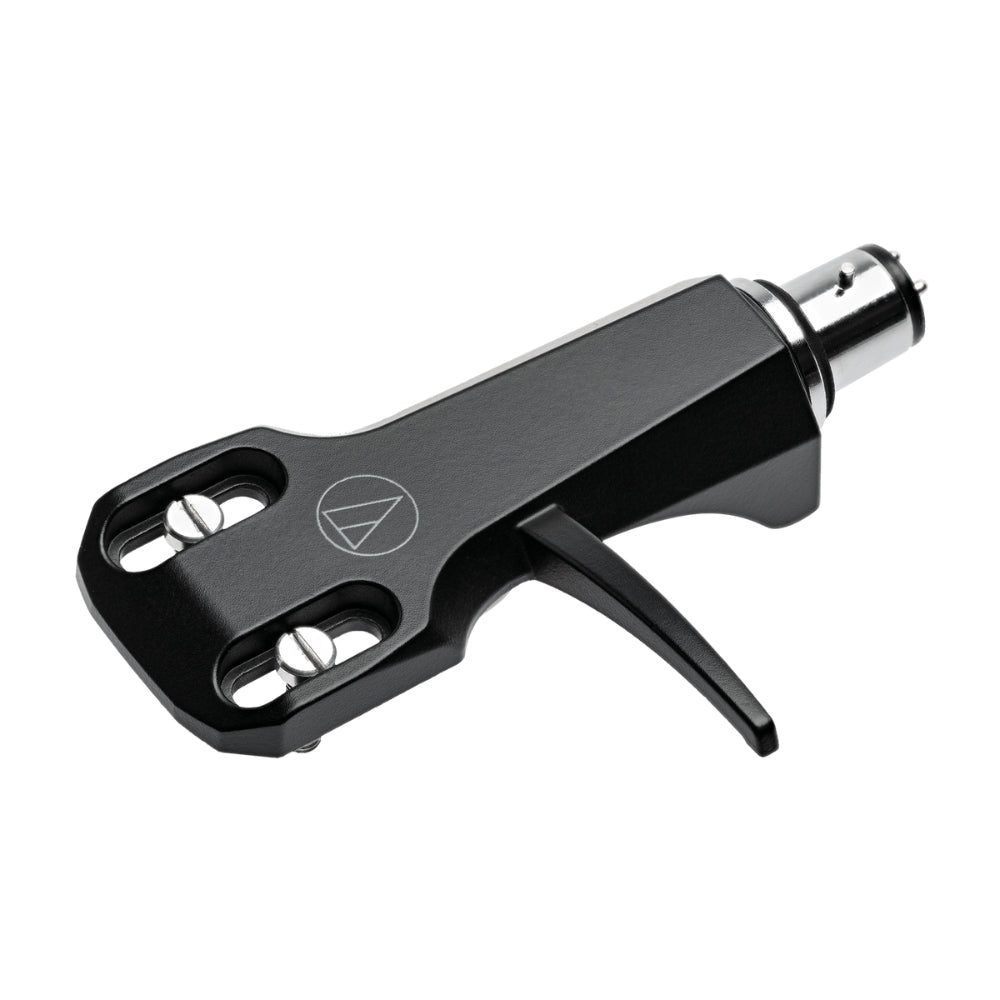

The AT-HS6BK headshell is a lightweight, aluminium construction that provides stability and secure mounting for the cartridge. It features an adjustable overhang and vertical tracking angle (VTA), allowing you to achieve optimal alignment with your turntable tonearm. The headshell's black finish adds a sleek aesthetic touch to your setup.
Key Features:
High-Quality Sound Reproduction: The Audio-Technica AT-XP7/H Headshell/Cartridge Combo Kit is designed to deliver exceptional audio quality. The AT-XP7 DJ cartridge utilises a sensitive elliptical bonded stylus that accurately reproduces the nuances and details of your vinyl records. This ensures a clear, balanced, and dynamic sound output, allowing you to fully appreciate your music.
Durability and Tracking Ability: The AT-XP7 cartridge is built to withstand the rigours of DJing and frequent use. It offers excellent tracking ability, allowing it to stay in the groove even under demanding conditions such as scratching and back-cueing. The cartridge is designed to minimise record wear, ensuring the longevity of your vinyl collection.
Adjustable Headshell: The AT-HS6BK headshell included in the kit provides a secure and stable platform for mounting the cartridge. It features an adjustable overhang and vertical tracking angle (VTA), allowing you to achieve precise alignment with your turntable's tonearm. This adjustability ensures optimal tracking and playback performance, optimising the sound quality of your vinyl records.
