Audio-Technica AT-OC9XSH Moving Coil Cartridge
Specifications
| Frequency Response | 20 - 47,000 Hz |
| Channel Separation | 27 dB (1 kHz) |
| Vertical Tracking Angle | 20 degrees |
| Vertical Tracking Force | 1.8 to 2.2 g (standard 2.0 g) |
| Stylus Construction | Nude square shank |
| Recommended Load Impedance | Min 100 Ohms |
| Coil Impedance | 12 Ohms (1 kHz) |
| DC Resistance | 12 Ohms |
| Coil Inductance | 25 μH (1 kHz) |
| Output Voltage | 0.4 mV (@ 1 kHz, 5 cm/sec) |
| Output Channel Balance | 1.0 dB (1 kHz) |
| Stylus Shape | Shibata |
| Cantilever | 0.28 mm Ø nude boron |
| Static Compliance | 20 x 10 – 6 cm / dyne |
| Dynamic Compliance | 16 x 10 – 6 cm / dyne (100 Hz) |
| Mounting | 1/2” centers / Threaded inserts |
| Cartridge Weight | 7.6 g |
| Dimensions | 17.3 (H) x 16.8 (W) x 25.7 (L) mm |

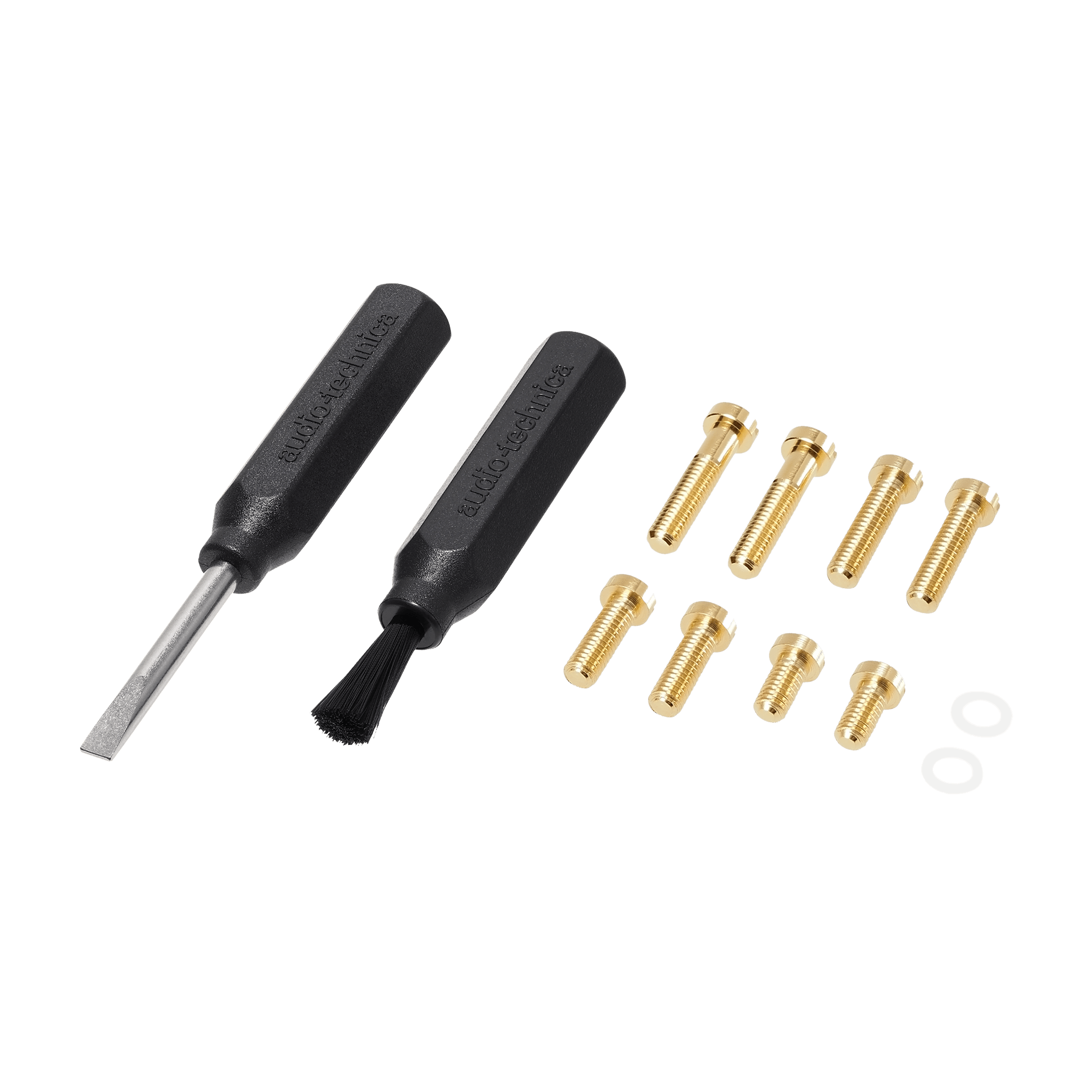

| Accessories Included | 1 non magnetic screw driver 1 brush 2 washers 4 pairs of mounting screws: 5mm, 8mm, 10mm, 12mm 1 plastic protector |
| Body Material | Aluminium |
| Model | AT-OC9XSH |
| Stylus Size | 2.7 x 0.26 mil |
| Terminal Pins | Brass |
| Wire Used for Coil | PCOCC (Copper by Ohno Continuous Casting process.) |
Warranty
Shipping & Returns
We offer free shipping on any product over $99. For full details please see our Shipping Policy.
Our returns policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately, we may not be able to offer you a refund or exchange. For full details please see our Refund Policy.
Audio-Technica AT-OC9XSH Series
The AT-OC9XSH Dual Moving Coil cartridge with Shibata stylus is designed to provide outstanding channel separation. The Pure Copper by Ohno Continuous Casting (PCOCC) coils ensure pure audio transmission and are aligned in a reverse V-shaped formation to exert less pressure on the stylus, thereby minimising distortion. Audio quality is further enhanced by a rigid aluminium body that reduces resonance, a neodymium magnet and premium permendur yoke that increase the magnetic energy, and the nude Shibata stylus on a boron cantilever that tracks the record groove with incredible accuracy, delivering rich, full-range audio and high transient response. The cartridge body has been pre-threaded, enabling it to be mounted to a headshell or integral tonearm with just two screws – no nuts required.
Features
The AT-OC9XSH Dual Moving Coil cartridge with Shibata stylus is designed to provide outstanding channel separation. The Pure Copper by Ohno Continuous Casting (PCOCC) coils ensure pure audio transmission and are aligned in a reverse V-shaped formation to exert less pressure on the stylus, thereby minimising distortion. Audio quality is further enhanced by a rigid aluminium body that reduces resonance, a neodymium magnet and premium permendur yoke that increase the magnetic energy, and the nude Shibata stylus on a boron cantilever that tracks the record groove with incredible accuracy, delivering rich, full-range audio and high transient response. The cartridge body has been pre-threaded, enabling it to be mounted to a headshell or integral tonearm with just two screws – no nuts required.
