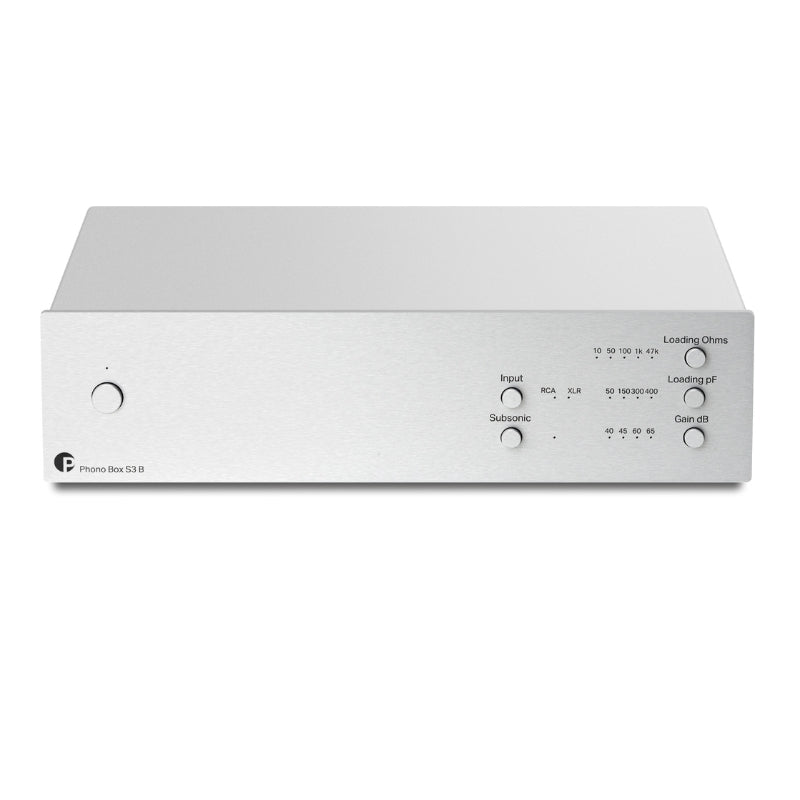

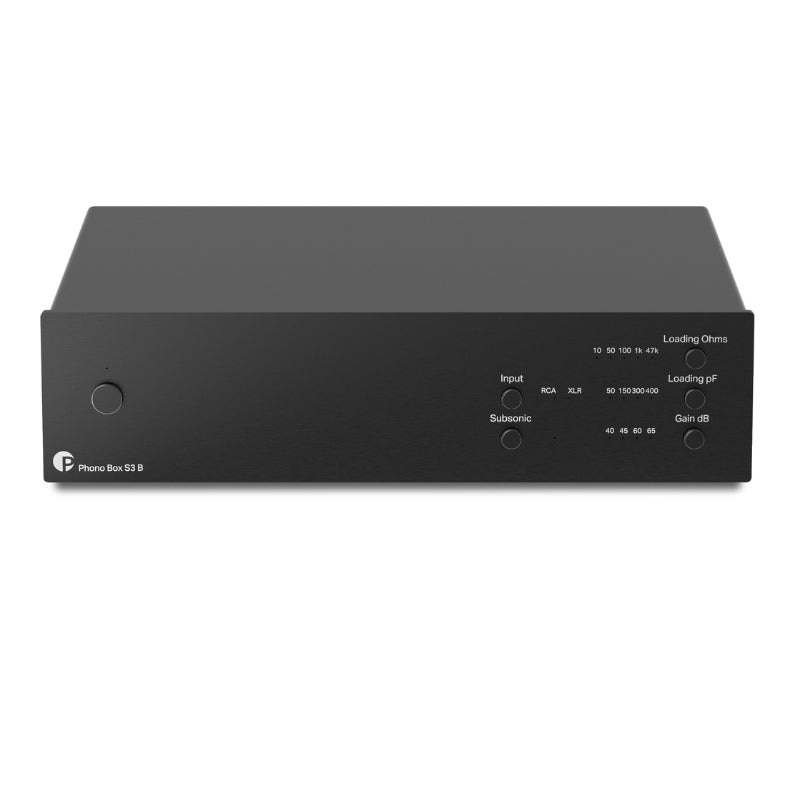

Pro-Ject Phono Box S3 B Balanced Phono Preamplifier
Specifications
| Input impedance: | 10, 50, 100, 1k, 47k ohms |
| Input capacitance: | 50, 150, 300, 400 pF |
| Gain (+ 6dB using XLR Out sockets): | 40, 45, 60, 65 dB |
| Signal / Noise ratio MM (40dB): | 103dBV, 110dBV - 'A' weighted |
| Signal / Noise ratio MC (60dB): | 85dBV, 90dBV - 'A' weighted |
| THD at 1 kHz: | <0,001% MM, < 0,005% MC |
| THD (20Hz-20kHz): | <0,008% MM, < 0,01% MC |
| RIAA-equalization curve accuracy: | <0,3dB / 20Hz - 20kHz |
| Subsonic filter: | at 20Hz with 18dB/octave |

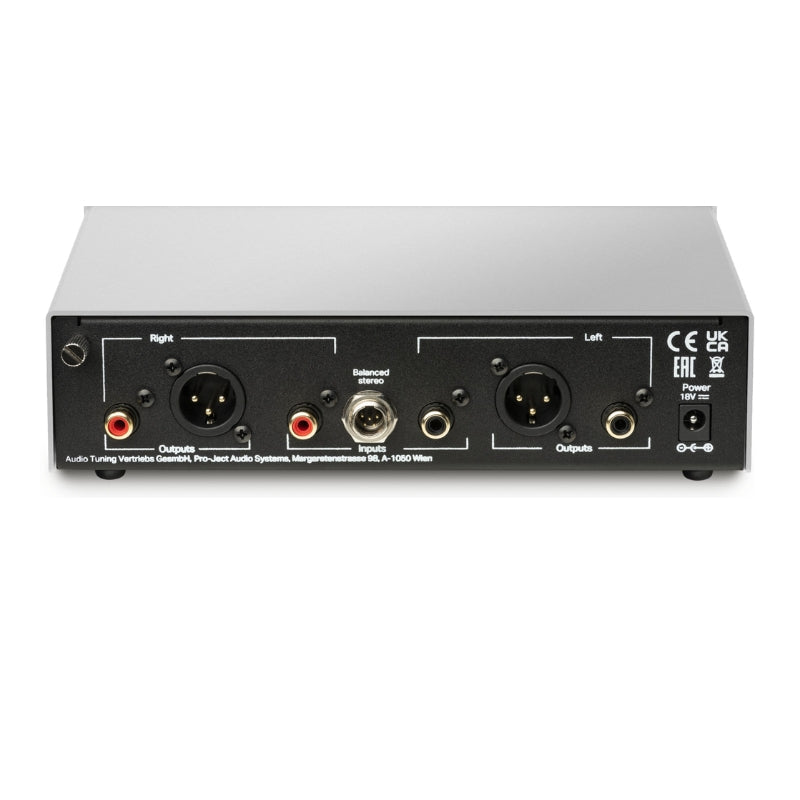

| Input: | 1x 5-pin mini XLR / 1x pair RCA phono sockets |
| Line-level output: | 1x pair RCA, 1x pair XLR |
| Power supply DC: | 18V/500mA |
| Power consumption: | 18V/170mA DC, <0.5 W in standby |
| Dimensions: | 206 x 55 x 153 (164 with sockets) mm (W x H x D) |
| Weight: | 930g without power supply |
Warranty
Shipping & Returns
We offer free shipping on any product over $99. For full details please see our Shipping Policy.
Our returns policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately, we may not be able to offer you a refund or exchange. For full details please see our Refund Policy.
Pro-Ject Phono Box S3 B Balanced Phono Preamplifier
The Phono Box S3 B is a phono preamplifier that offers a fully balanced design in a neat, small package. Pro-Ject have packed this tiny chassis to the brim with high-end features. One of those is their new True Balanced Connection. When used in combination with a Pro-Ject turntable with a 5-pin balanced output like the Xtension 9 or Signature 10 Turntable and 5P to XLR cable, you can achieve a totally balanced connection, minimising noise and delivering a breathtaking analogue signal.
Until now, balanced connections were exclusive to the RS range of products. The Phono Box S3 B brings those features to more affordable products.
An award winner:
Manufacturer Details:
True Balanced
Unleash the full power
Connect your Phono Box S3 B Balanced Phono Preamplifier with a True Balanced Phono Cable to your X2 B Turntable and benefit from an interference-free signal with increased dynamics & lower noise level.
Mini XLR Output
One cable connects it all
We offer a wide range of balanced phono cables with different connectors to fit all our phono preamps. If you want to use your X2 B with a Phono Box S3 B you need a Connect it Phono Mini XLR / Mini XLR.
Balanced Preamps
A perfect match!

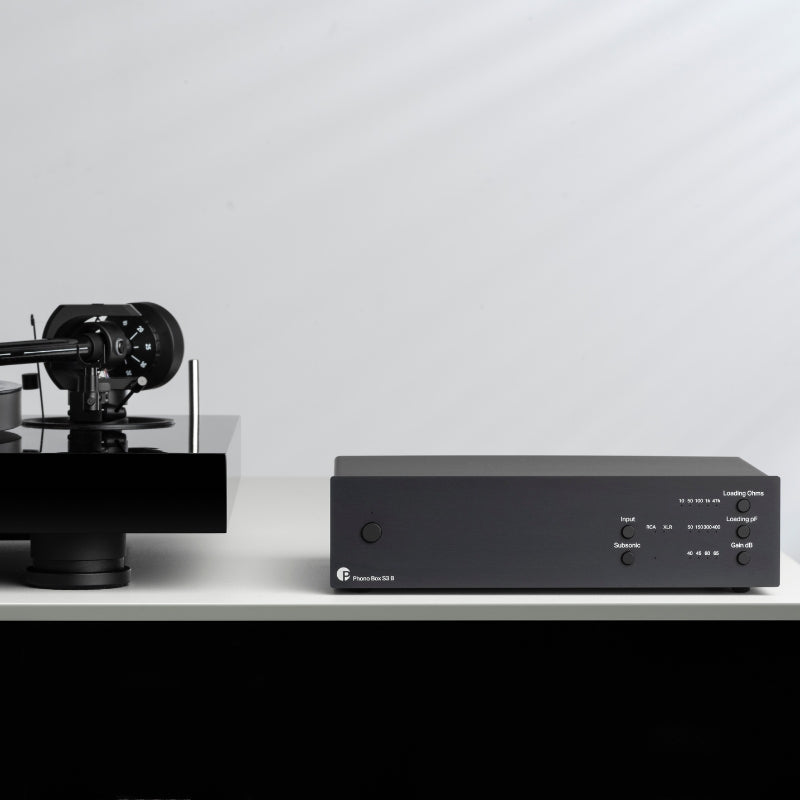

Pair your True Balanced Phono Box with the X2 B Turntable and benefit from a fully balanced signal transmission to your phono preamplifier.
Fully Discrete and Symmetrical Gain Stage
The new Phono Box S3 B gain stage uses a fully discrete layout. A discrete circuit is composed of disparate electronic components, and individual devices. The amplifier section is built of single parts and doesn‘t use any integrated circuits! That makes for an extended and more costly design process but results in the best sound quality. The fully symmetrical gain stage can optimise the signal-to-noise ratios, feeding the semi-passive, RIAA equalisation stage with a clean signal to work on.
Gabi Recommends:
Are you wondering what cables you should get with your new True Balanced phono stage? Here's a simplified rundown of what I recommend.
Connecting the Pro-Ject X2 B or X1 B turntable
The Connect It S Mini XLR > Mini XLR cable or the Connect It DS Mini XLR > XLR will both work in this connection. With the Mini XLR connection at the turntable and the Mini XLR or XLR connection at the phono stage.
Connecting a regular turntable
The Connect It E RCA > Mini XLR cable is ideal for connecting a regular turntable to the Pro-Ject Phono Box DS3 B or the Phono Box S3 B. With the RCA connection at the turntable and the Mini XLR connection at the phono stage.
Connection to an amplifier
If the amplifier has XLR inputs, we highly recommending using this connection (XLR > XLR). Check our our full range of XLR cables to choose the right level of product for you.
Get the most from this product as well as heaps of great tips and tricks from our article - '5 Tips For Getting The Best Out Of Your Turntable'
