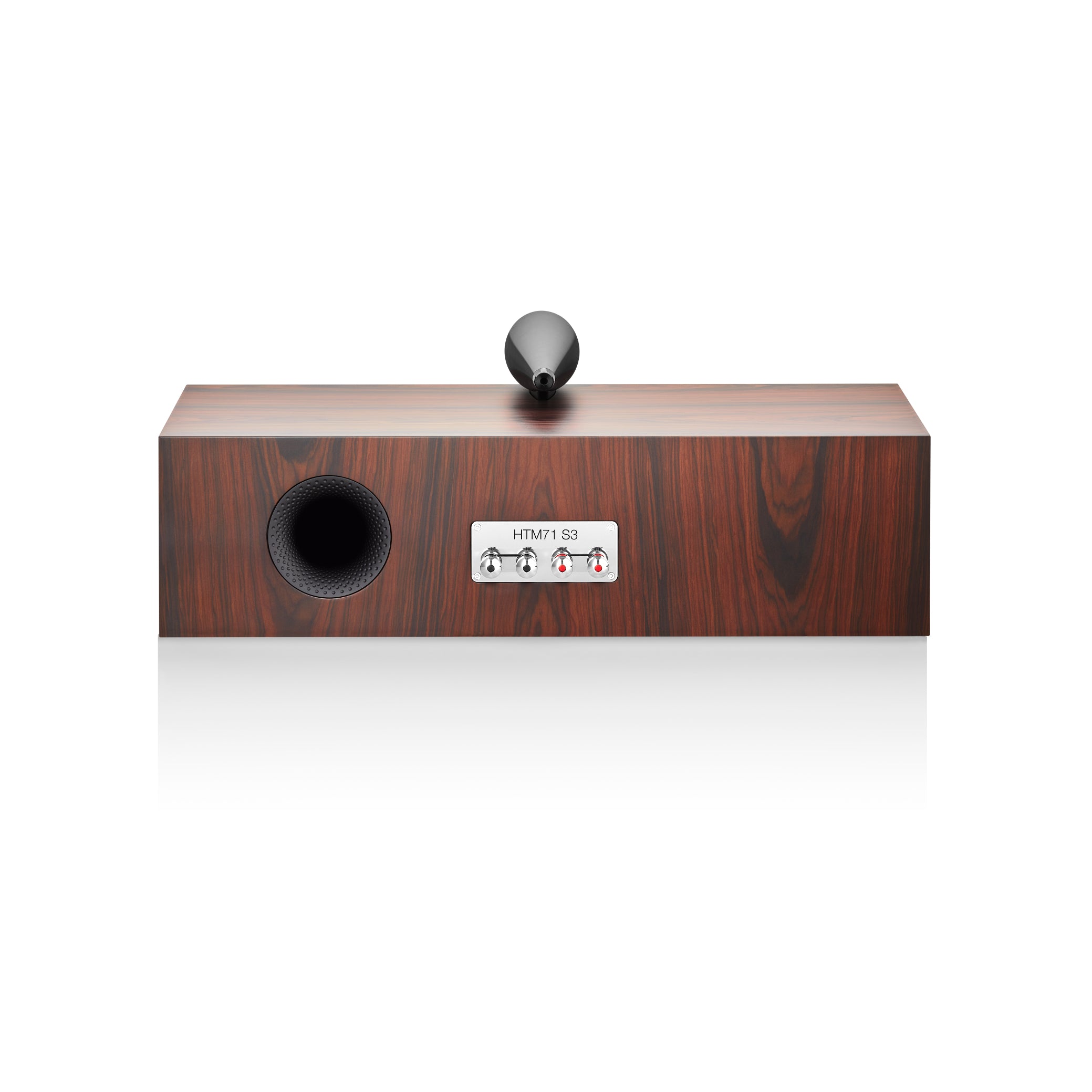

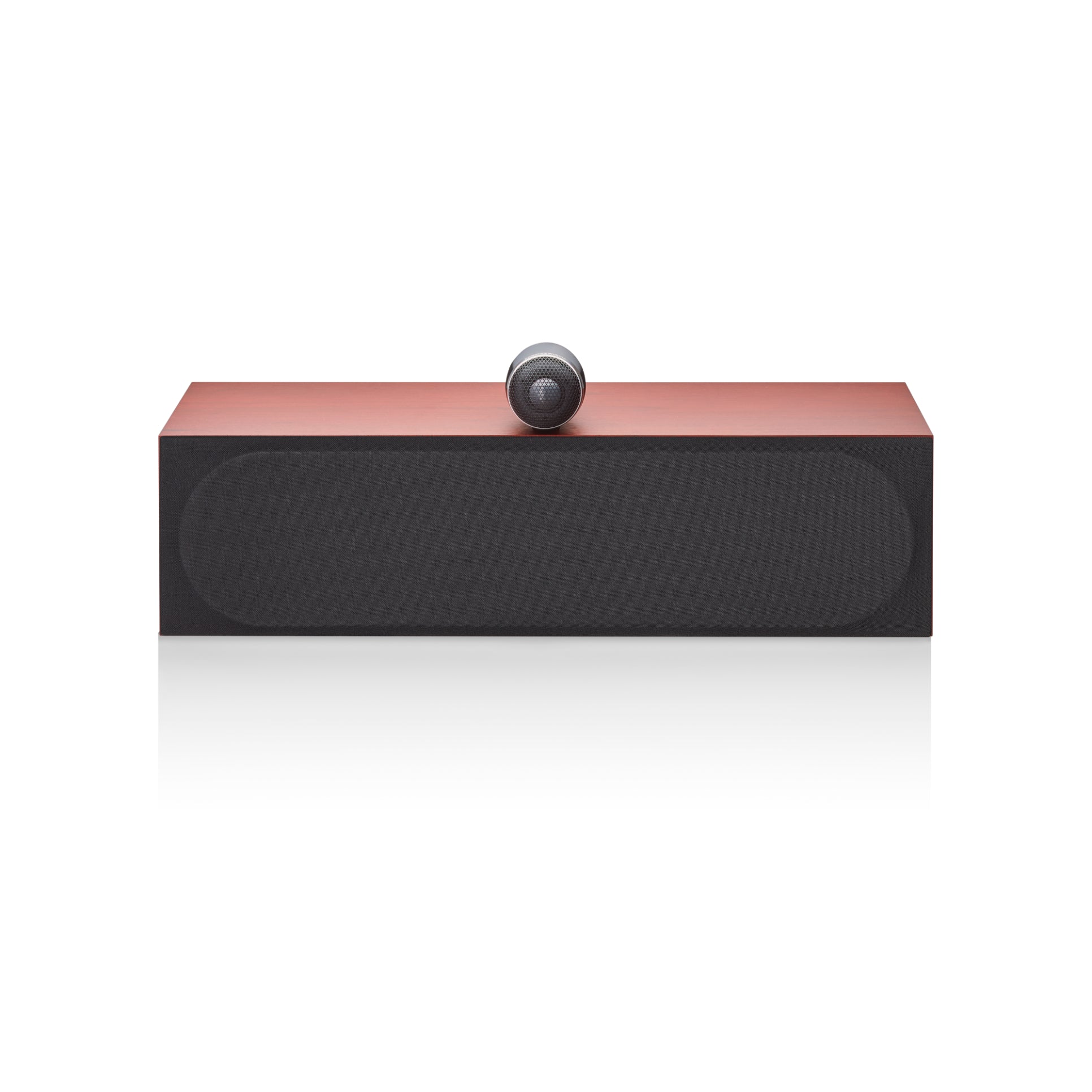

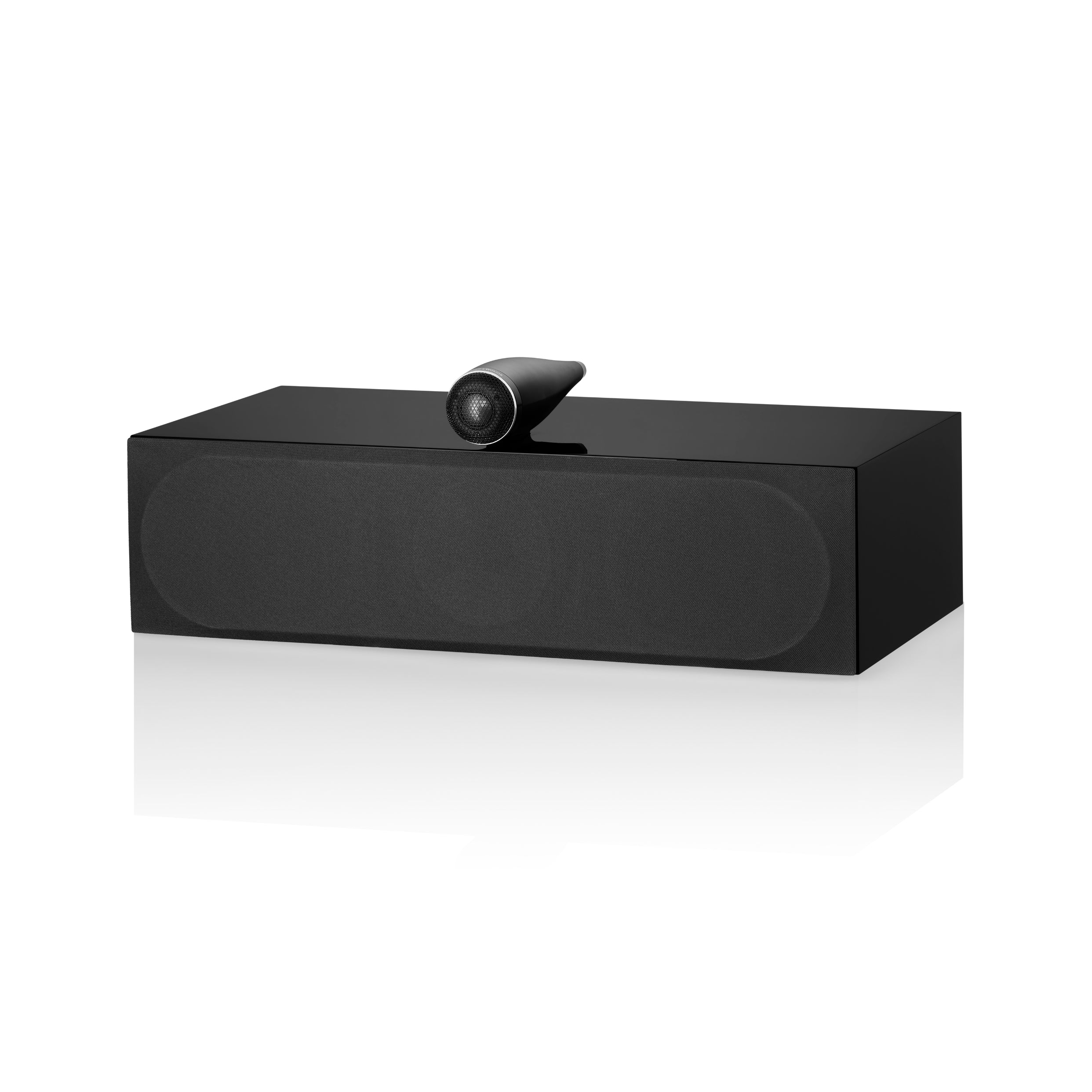

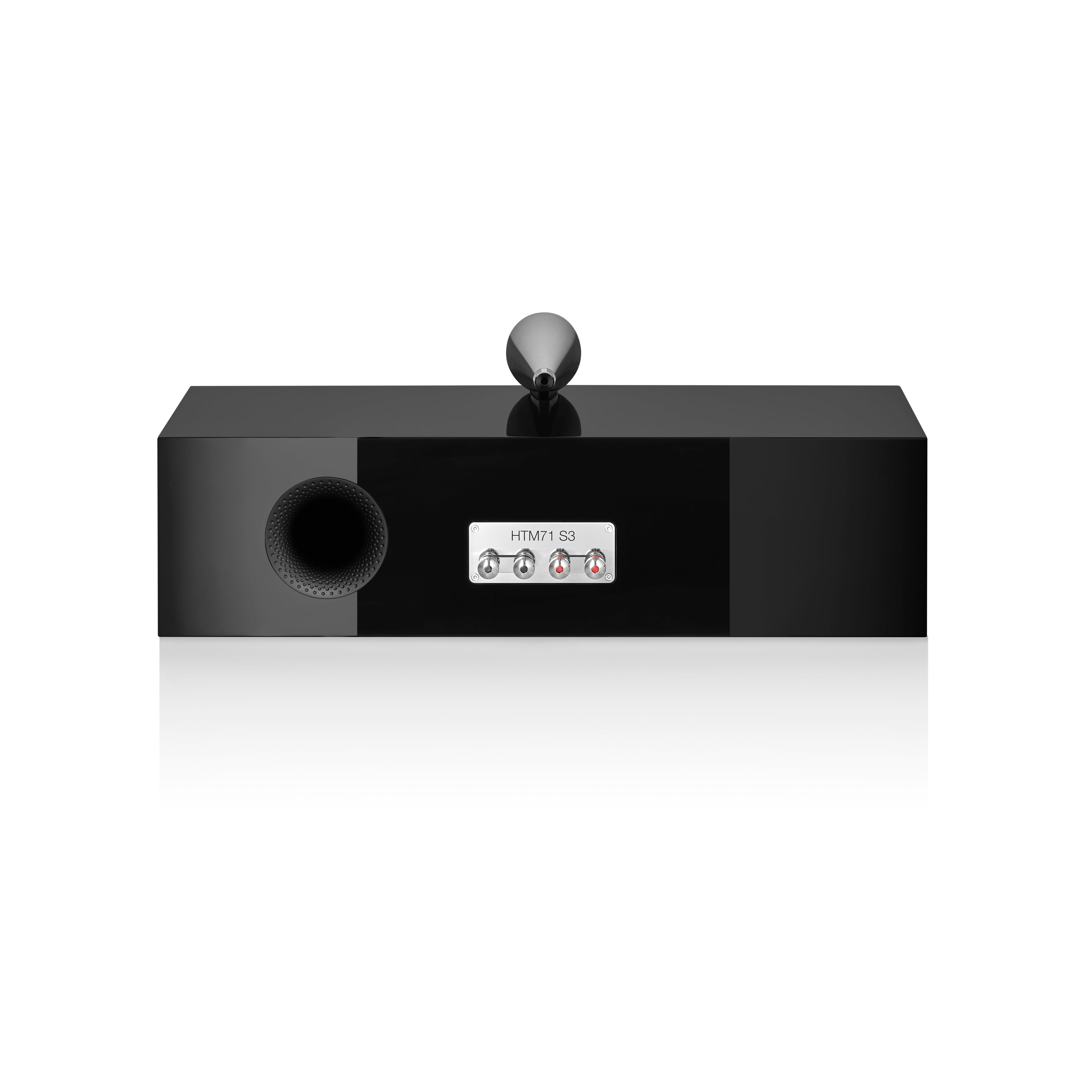

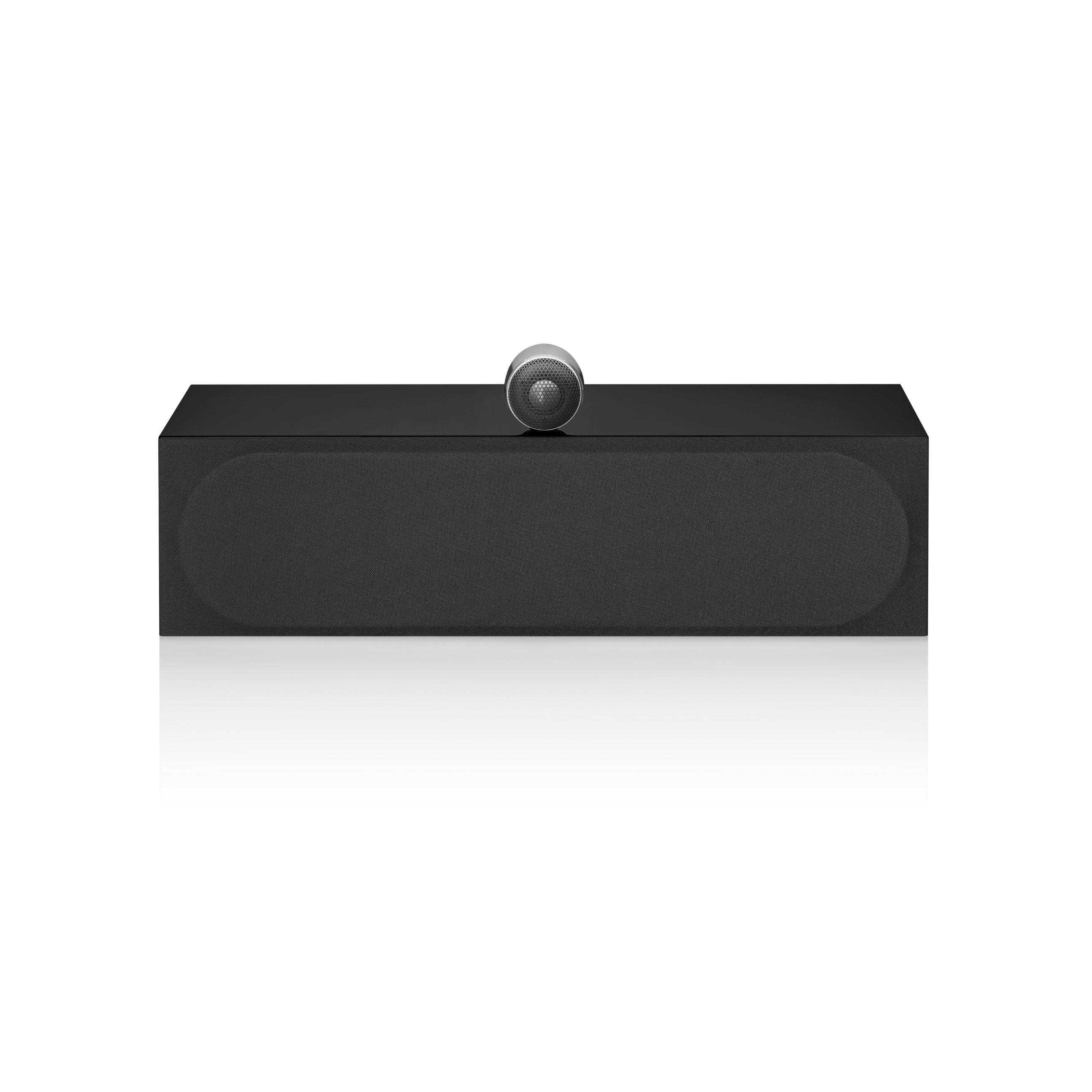

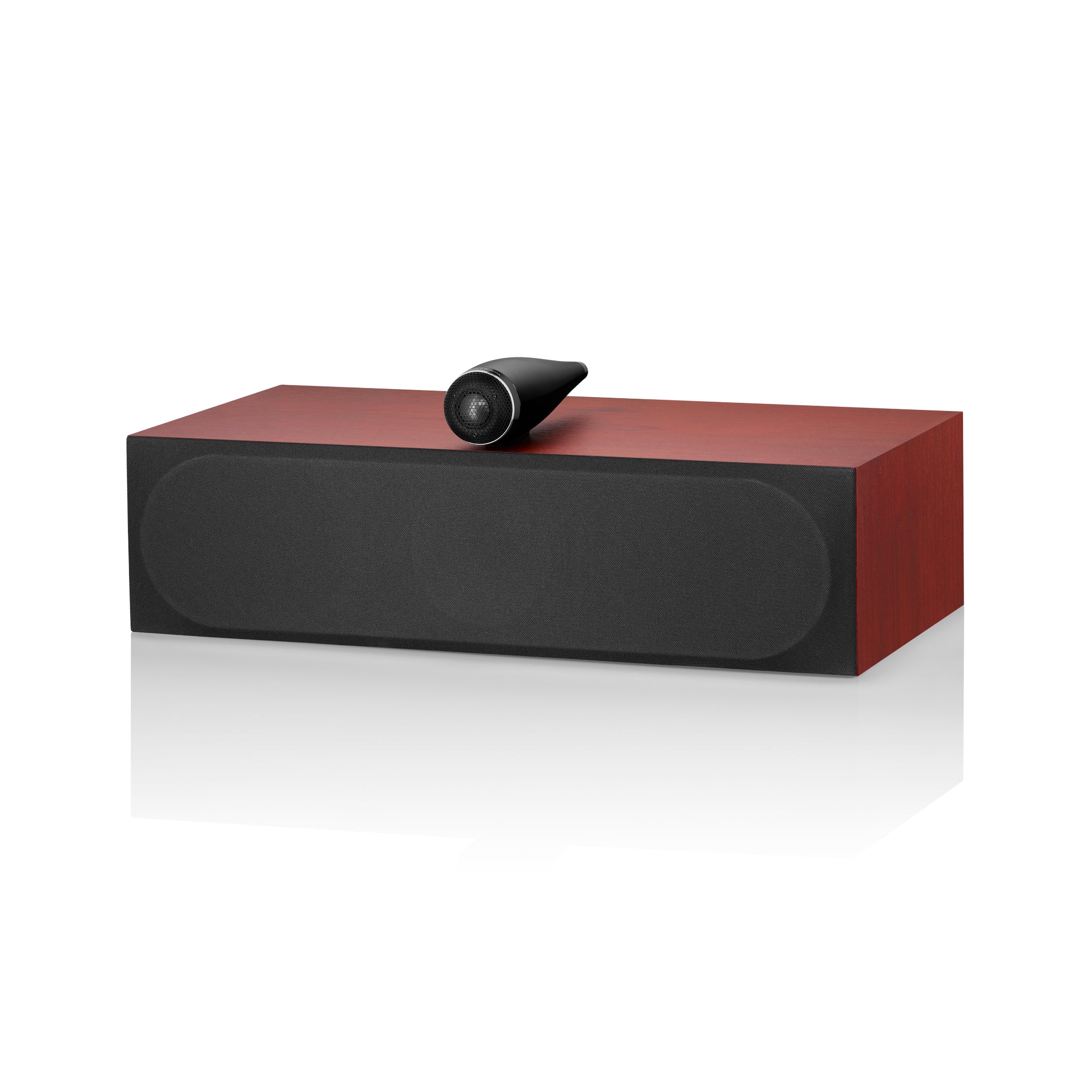

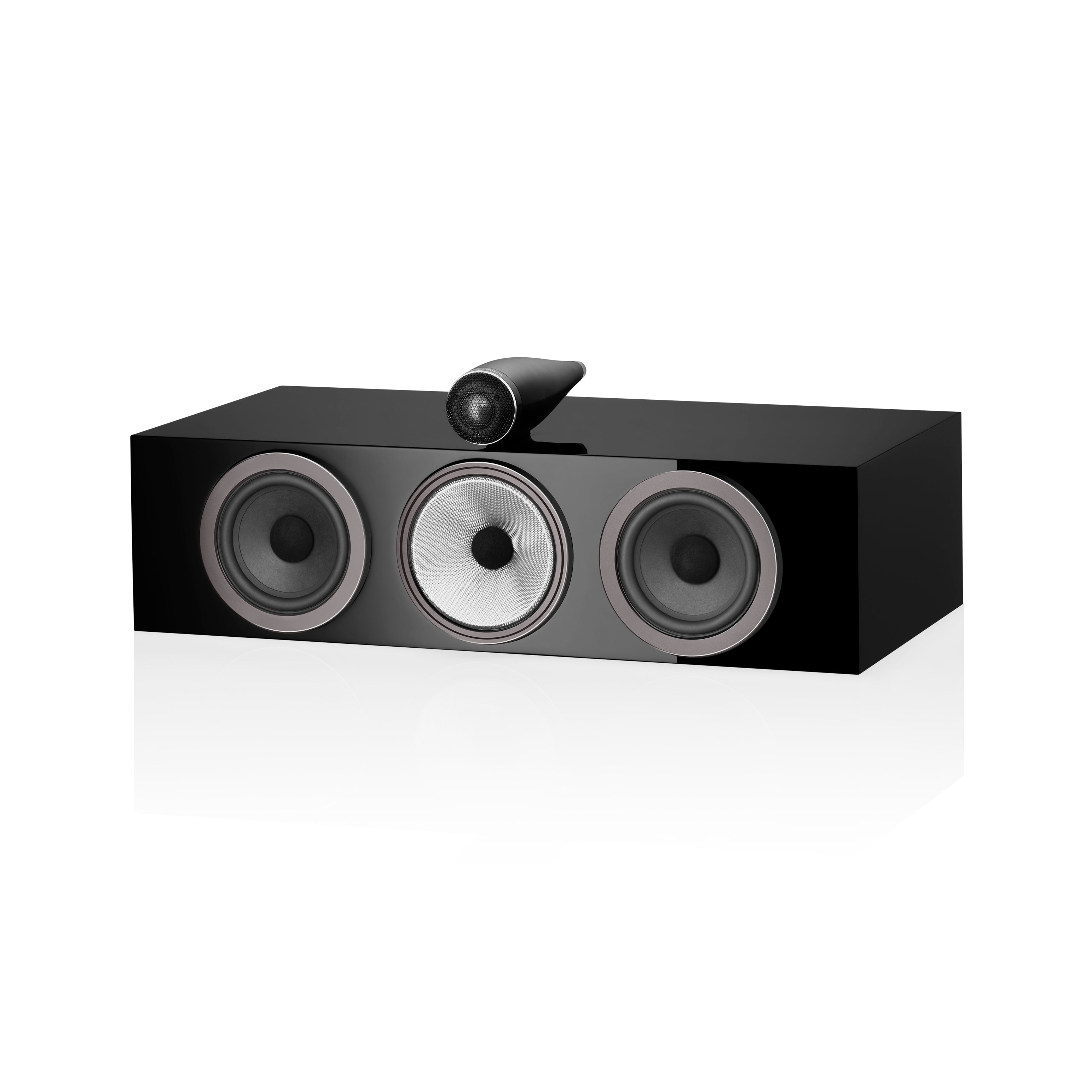

Bowers & Wilkins HTM71 S3 Centre Channel Speaker
Specifications
Model: | HTM71 S3 |
Description: | 3-way vented-box system |
Features: | Decoupled Carbon Dome tweeter Solid Body Tweeter-on-Top Continuum™ cone FST midrange Aerofoil™ Profile bass cones Flowport™ |
Drive units: | 1x ø25mm (1in) Decoupled Carbon Dome high-frequency 1x ø130mm (5in) Continuum cone FST midrange 2x ø130mm (5in) Aerofoil Profile bass |
Frequency range: | -6dB at 45Hz and 33kHz |
Frequency response: | 50Hz - 28kHz ±3dB |
Sensitivity: | 89dB spl (2.83Vrms, 1m) |
Harmonic distortion: | 2nd and 3rd harmonics (90dB, 1m)<1% 100Hz - 22kHz<0.5% 300Hz - 20kHz |
Normal impedance: | 8Ω (minimum 3.7Ω) |
Recommended amplifier power: | 30W - 200W into 8Ω on unclipped programme |
Dimensions: | Height: 165mm (6.5in) cabinet only 233mm (9.2in) including tweeterWidth: 628mm (24.7in) cabinet onlyDepth: 318mm (12.5in) cabinet only 356mm (14in) including grille and terminals |
Net weight: | 17.5 kg |

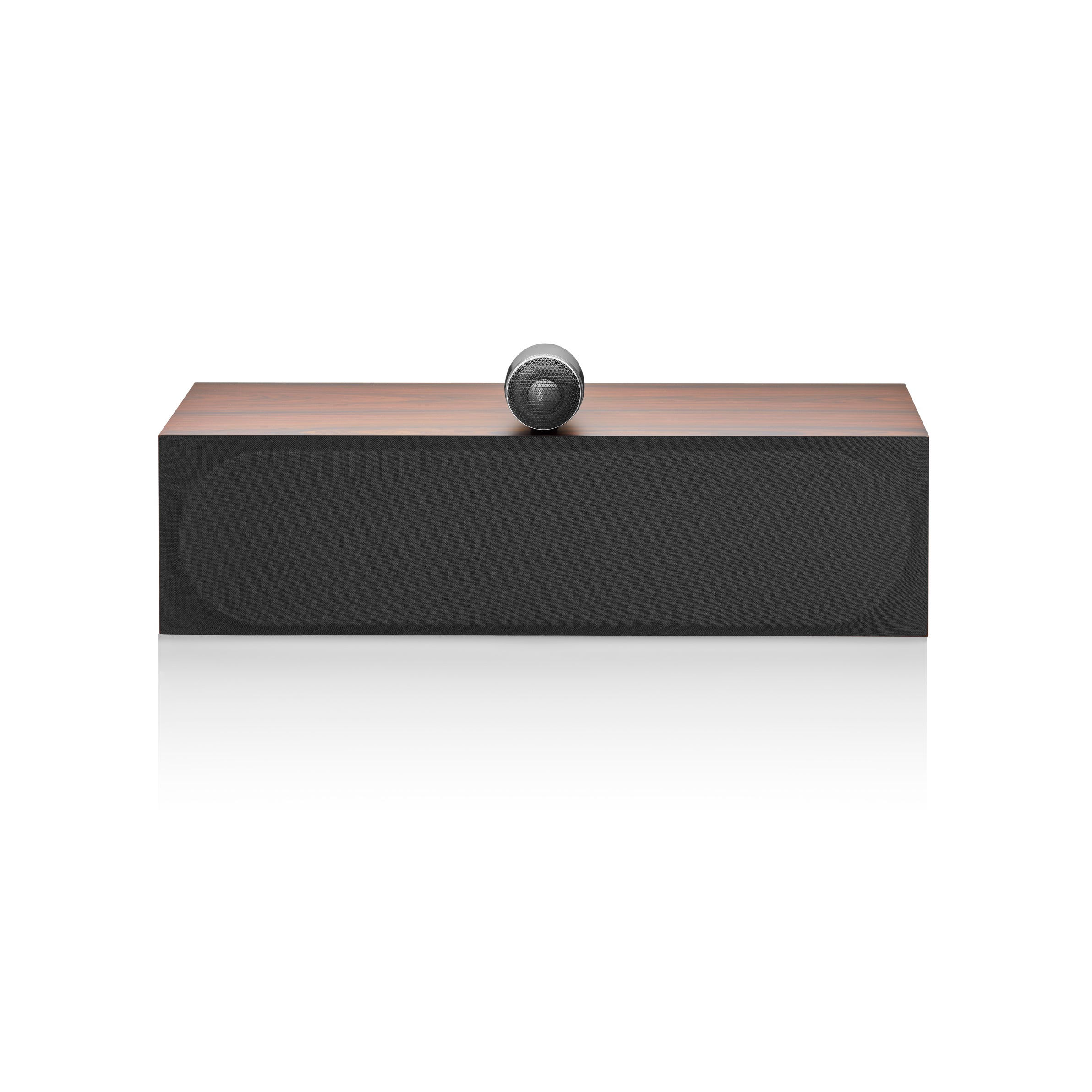

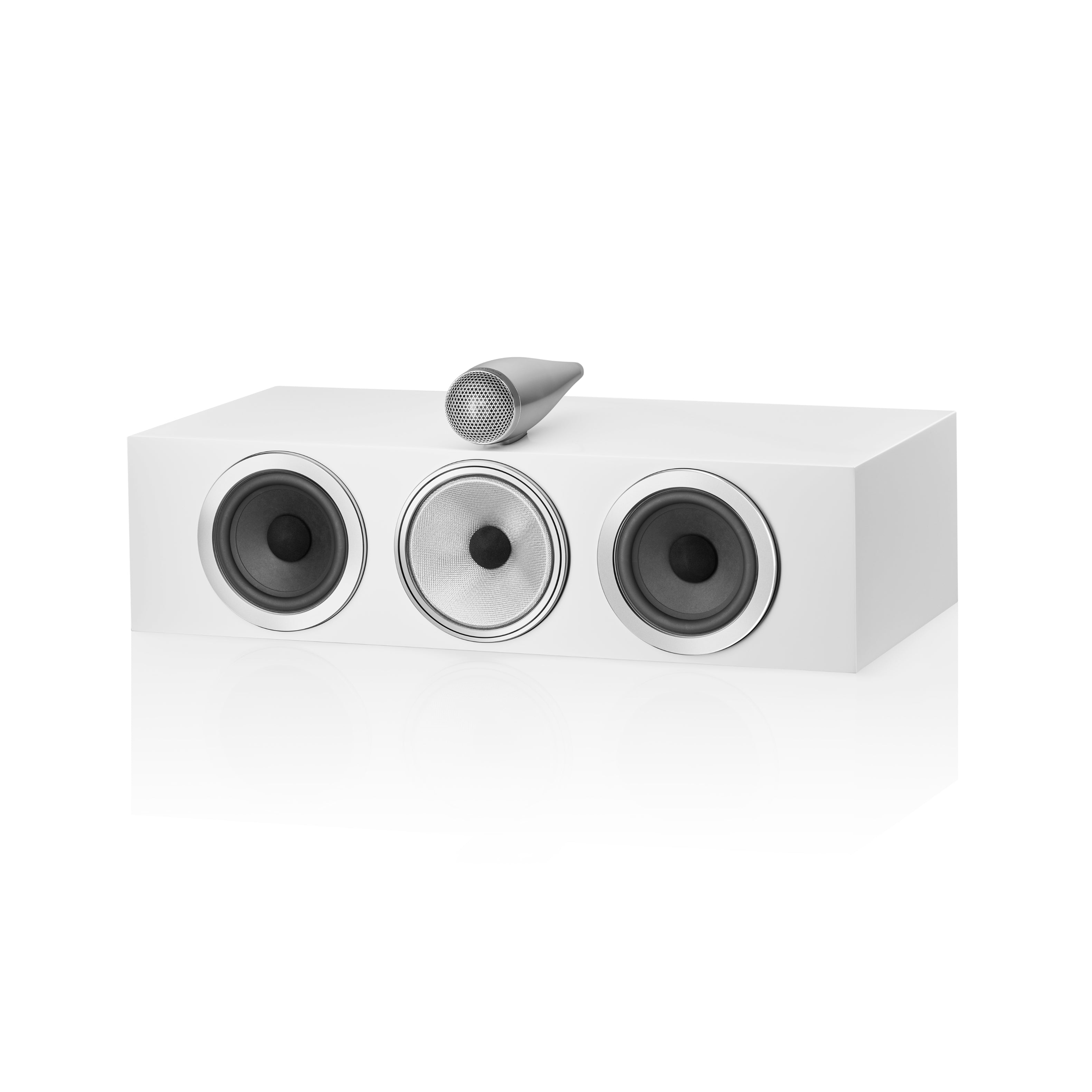

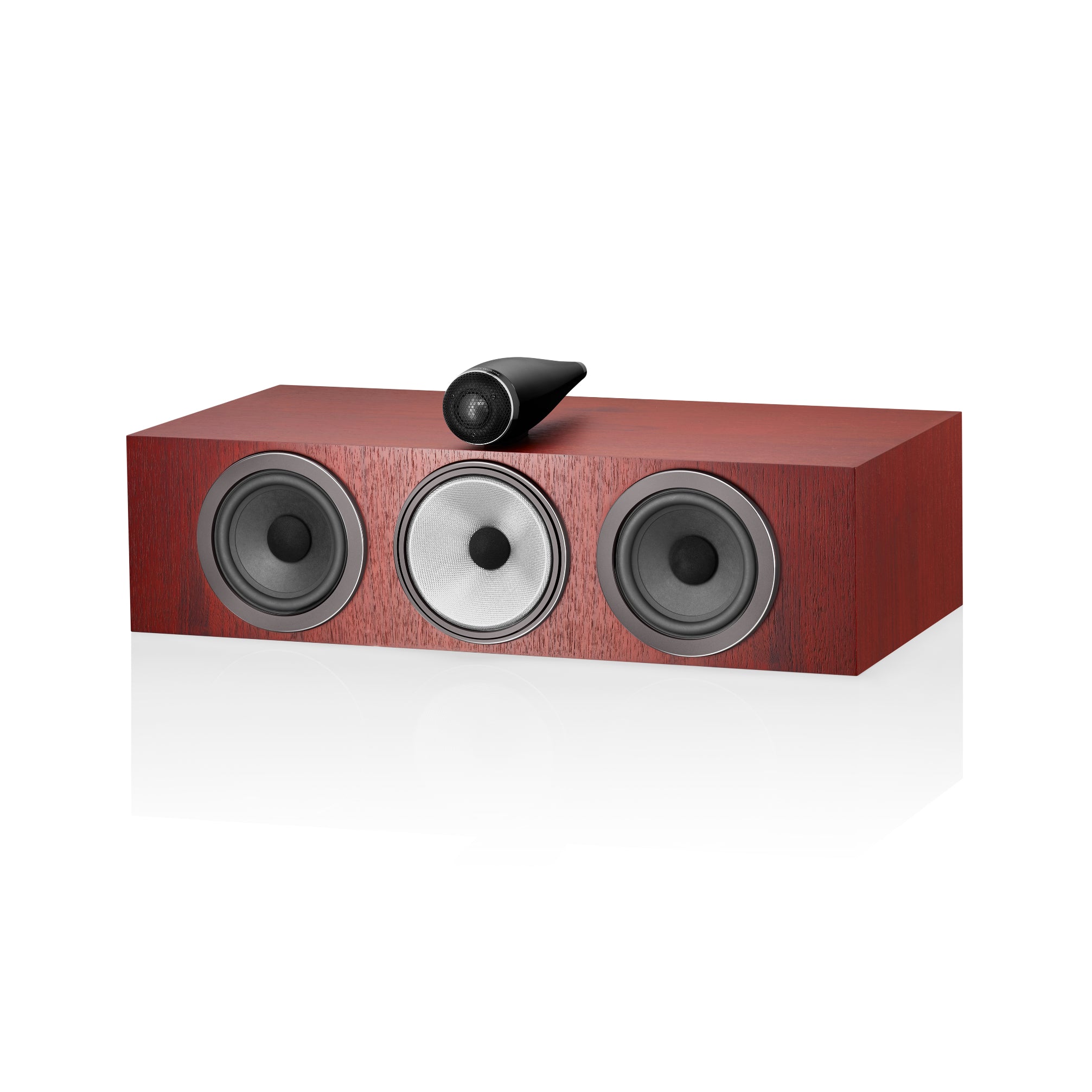

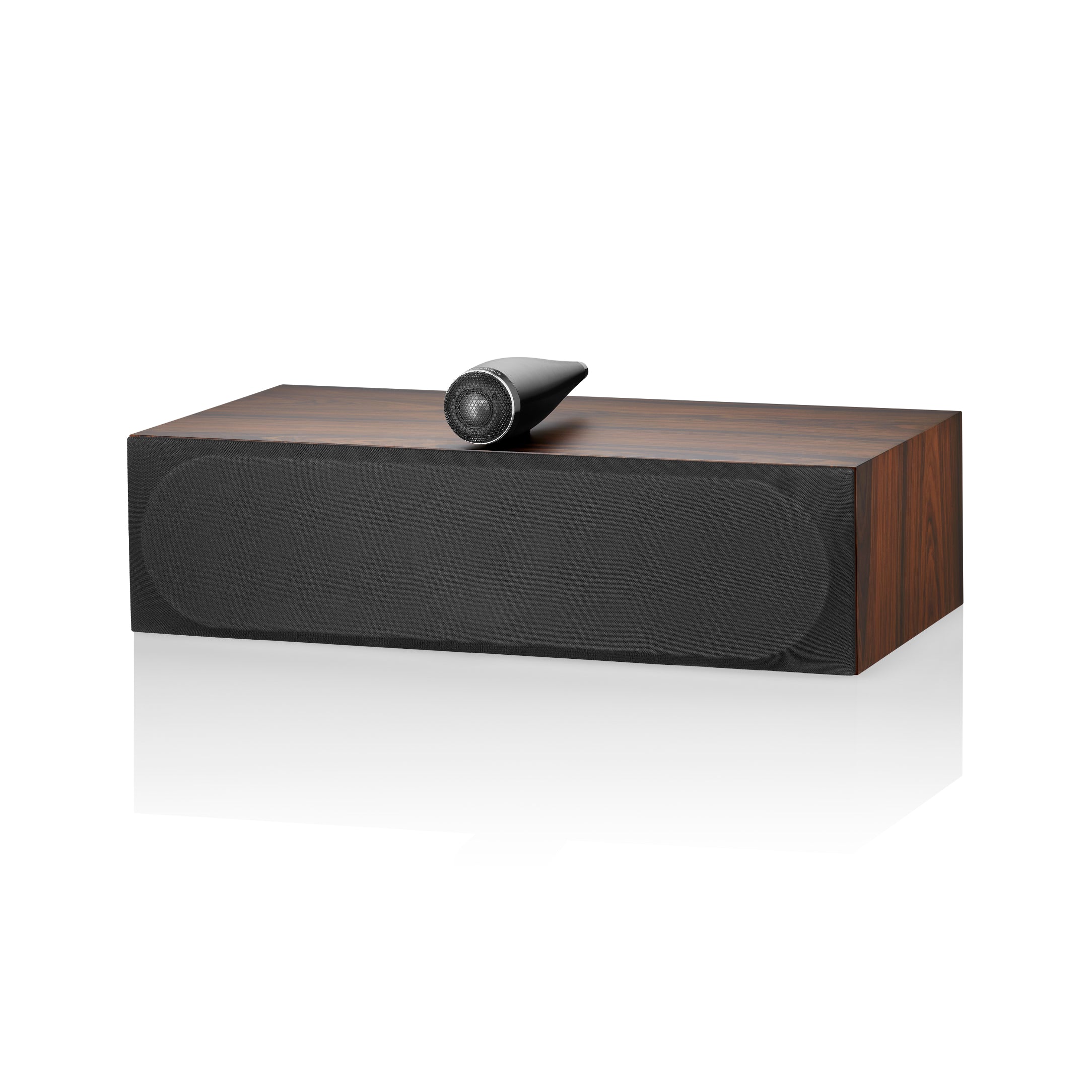

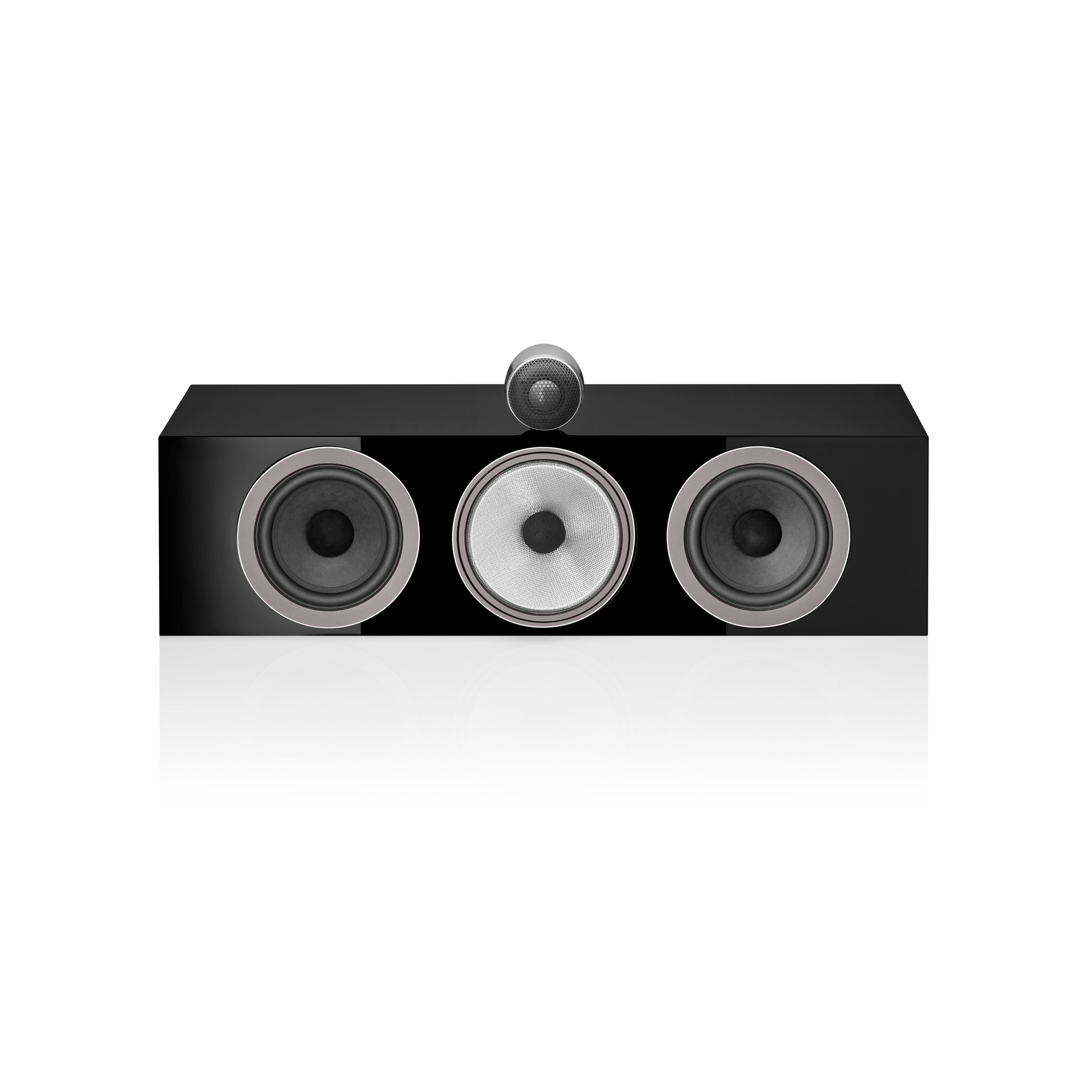

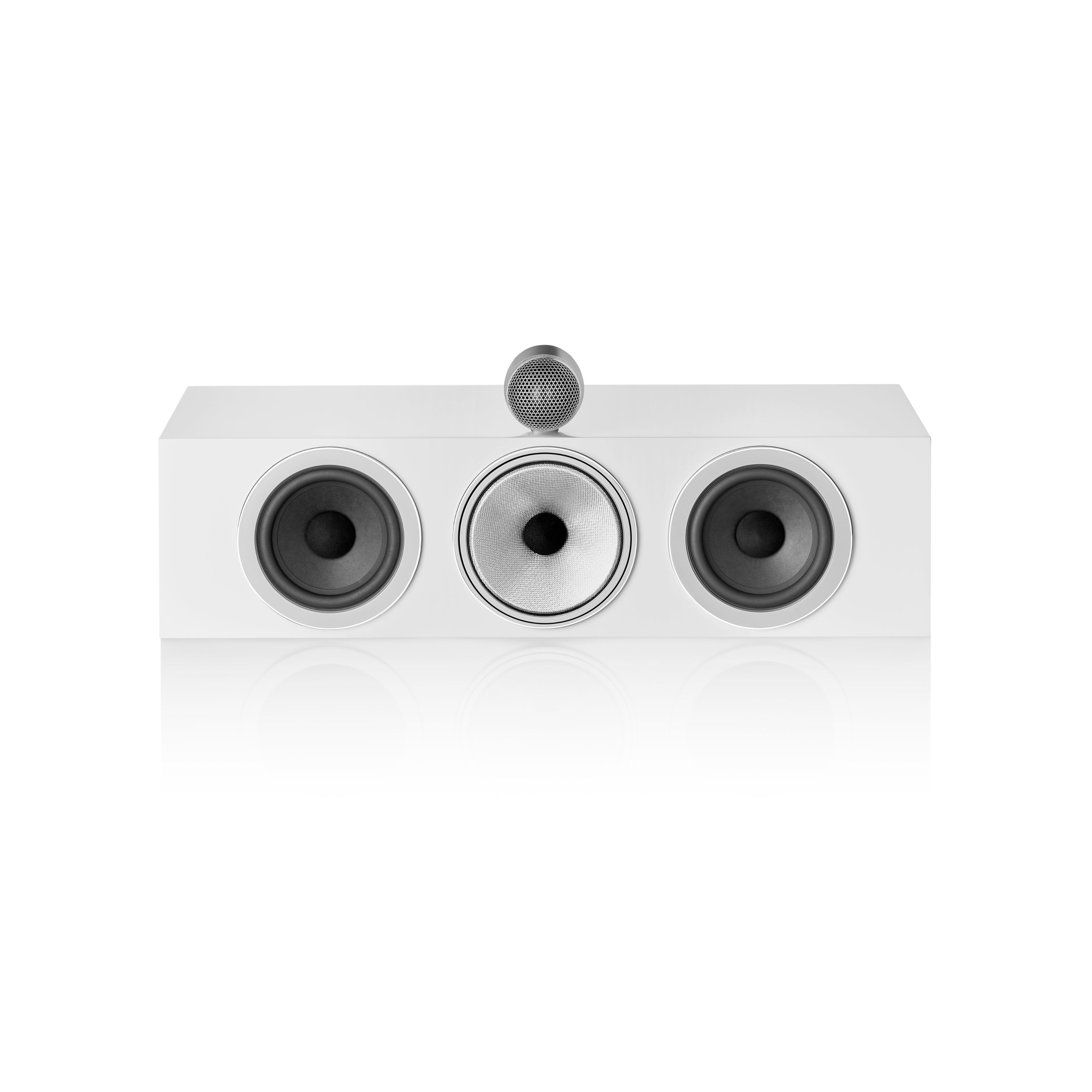

Cabinet finishes: | Gloss BlackSatin WhiteRosenutMocha |

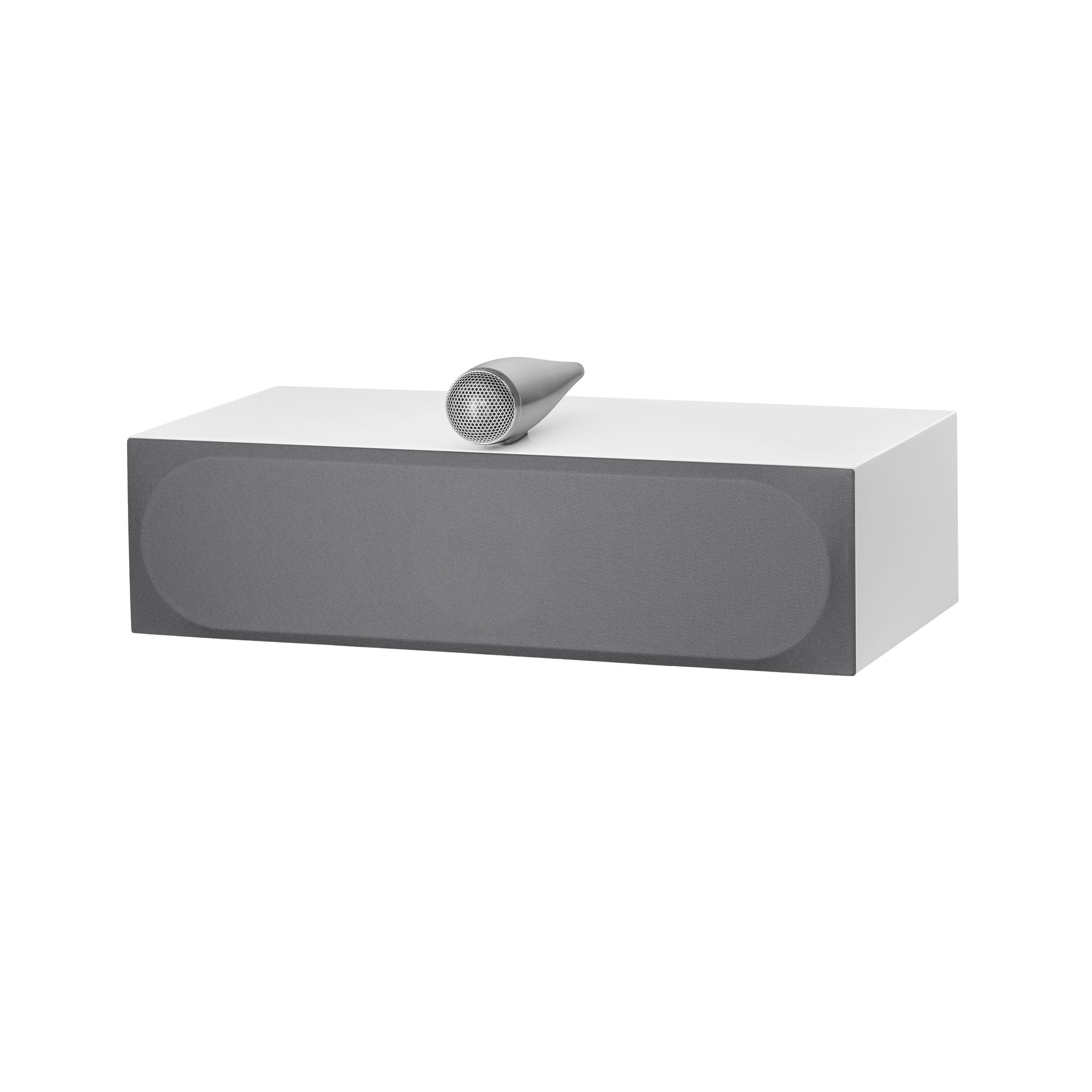

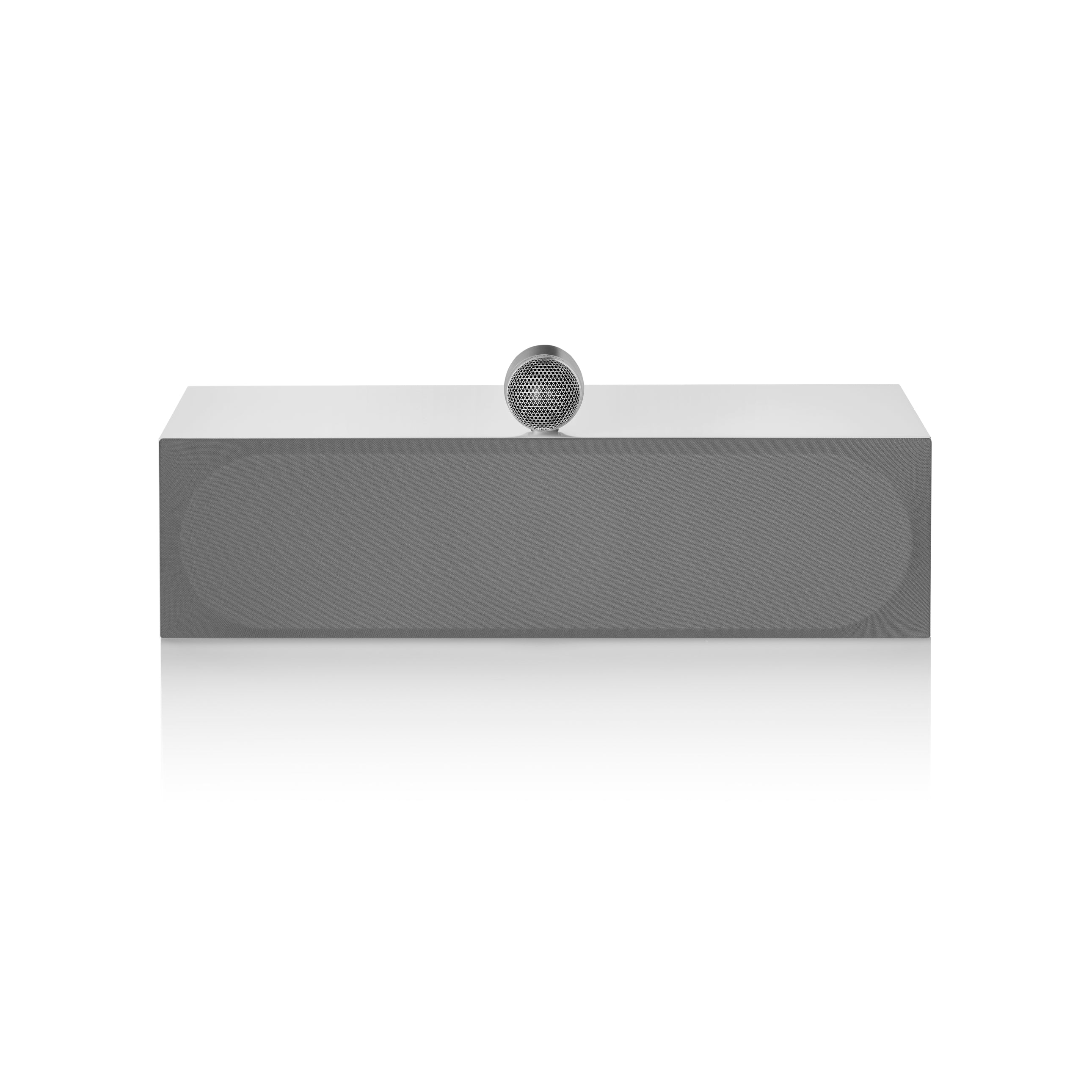

Grille finishes: | BlackGrey (Satin White only) |
Warranty
Shipping & Returns
We offer free shipping on any order over $150. For full details please see our Shipping Policy.
Our returns policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately, we may not be able to offer you a refund or exchange. For full details please see our Refund Policy.
Bowers & Wilkins HTM71 S3 Centre Channel Speaker

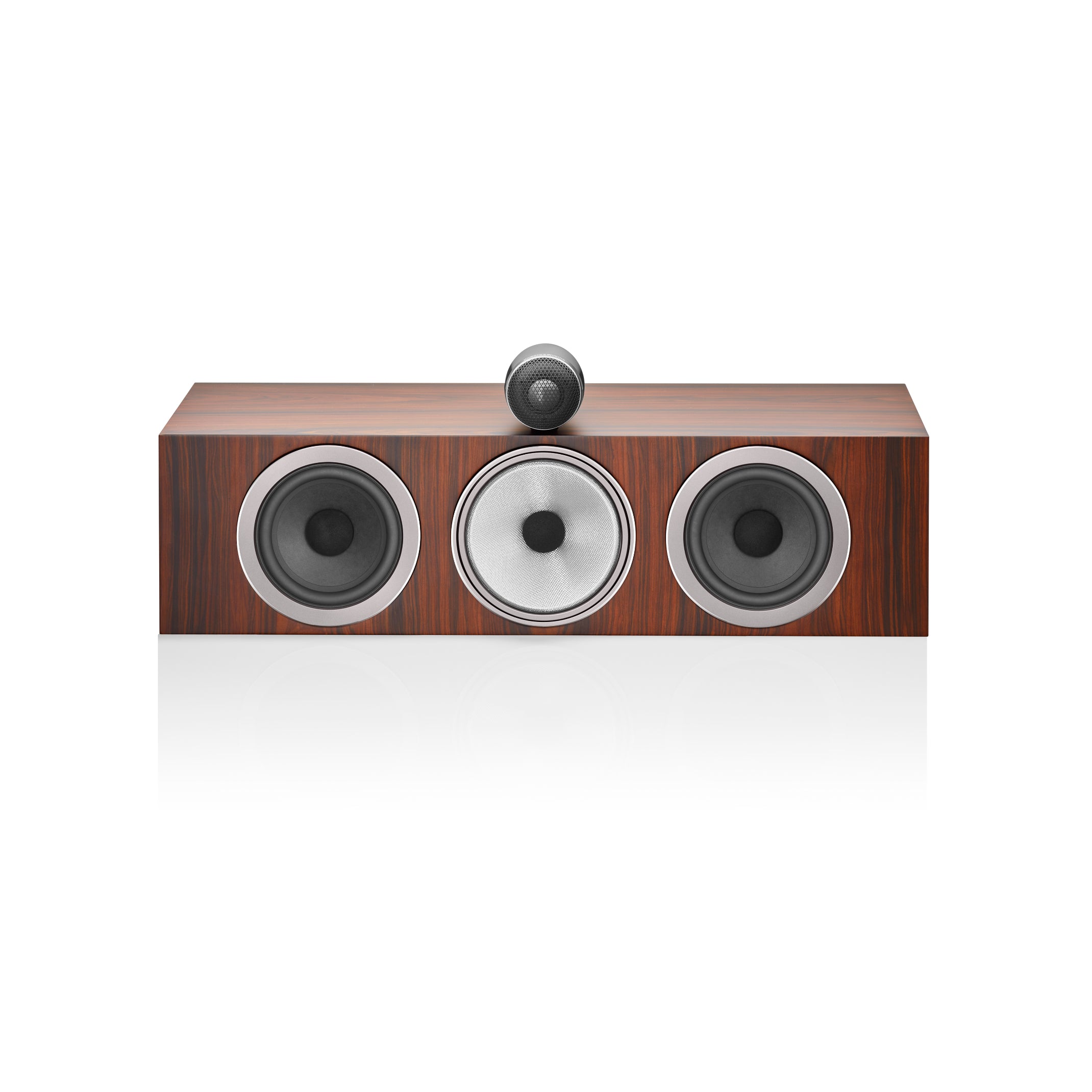

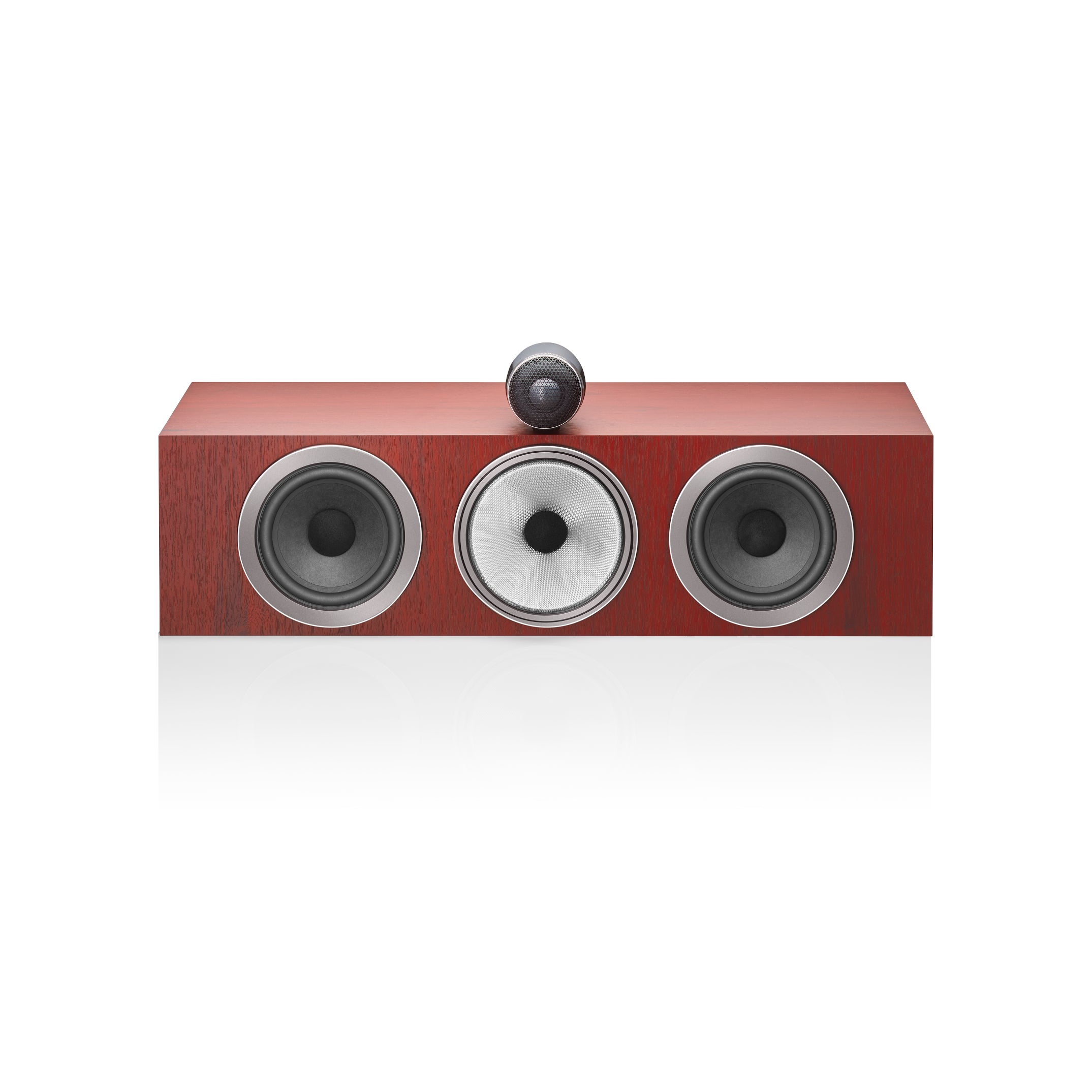

B&W’s flagship centre-channel loudspeaker, the HTM71 S3 features a Carbon Dome drive unit housed in a Tweeter-On-Top enclosure, making it the perfect match for its 705 S3, 703 S3 and 702 S3 stablemates. This approach allows for outstanding integration and an even-more-immersive listening experience across B&W’s premium 700 Series-based surround sound systems. The HTM71 S3 also features an all new 130mm (5in) Continuum Cone FST™ midrange driver complete with B&W’s Biomimetic Suspension – particularly important for clarity with dialogue.
Manufacturer Details
Solid Body Tweeter
The 700 Series features the latest generation of B&W's iconic Solid Body Tweeter-on-Top housing. Its new, more elongated form incorporates a longer tube loading system to produce an even more free and open sound with high frequencies. The carefully decoupled housing is milled from a single solid block of aluminium to better resist resonance.
Carbon Dome tweeters
Carbon Dome tweeters are purpose-built for the 700 Series. Delivering a dramatic improvement on the aluminium double dome tweeter, they raise the breakup threshold to 47kHz, for pinpoint imaging accuracy and detail.
Biomimetic Suspension
Sometimes, making a big difference takes unconventional thinking. The transition from B&W's famous yellow Aramid Fibre midrange cones to B&W's Continuum cone technology resulted in a massive improvement to midrange performance. Now, we’ve turned B&W's attention to another crucial element in a loudspeaker cone: the fabric spider. The new Biomimetic Suspension revolutionises midrange cone performance by greatly reducing the unwanted air pressure and coloration that a conventional fabric spider can generate. The result? Midrange transparency you wouldn’t believe possible.
Engineered With Care
Continuum™ cone
Thanks to its composite construction, the Continuum™ cone avoids the abrupt transitions in behaviour that can impair the performance of a conventional drive unit. The result is a more open, neutral performance that delivers voices and instruments with precision and transparency.
Decoupled Midrange assembly
Every three-way loudspeaker in the new 700 Series has a dedicated midrange cone using four key Bowers & Wilkins technologies: the Continuum cone, FST™, Biomimetic Suspension and midrange decoupling, the latter ensuring minimal interference from the operation of the loudspeaker’s bass drivers.
Aerofoil™ Profile bass cone
Developed using advanced computer modelling techniques, the Aerofoil™ Profile bass cone has variable thickness, providing stiffness and rigidity where it’s needed most. The result: deep and dynamic bass.
Curved Baffle
The new 700 Series features a curved front baffle for the first time. This allows the midrange and bass drivers to be located in individual pod-type housings that sit proud of the speaker baffle. When combined with the curvature of the structure, this new approach – derived from the 800 Series Diamond – reduces the audible impact of the cabinet, creating a cleaner, more open and more immersive sound.
Gabi Recommends
If you are looking to create a full home theatre system using the Bowers & Wilkins 700 S3 Series of speakers, then you might notice that there is no official subwoofer in the range. Fear not, we have you covered.
I highly recommend the Bowers & Wilkins DB4S Subwoofer is the perfect sonic match for this series. If you would like some advice on the right models for the size of your room, you can get in touch here for some extra guidance. We would be happy to help.
