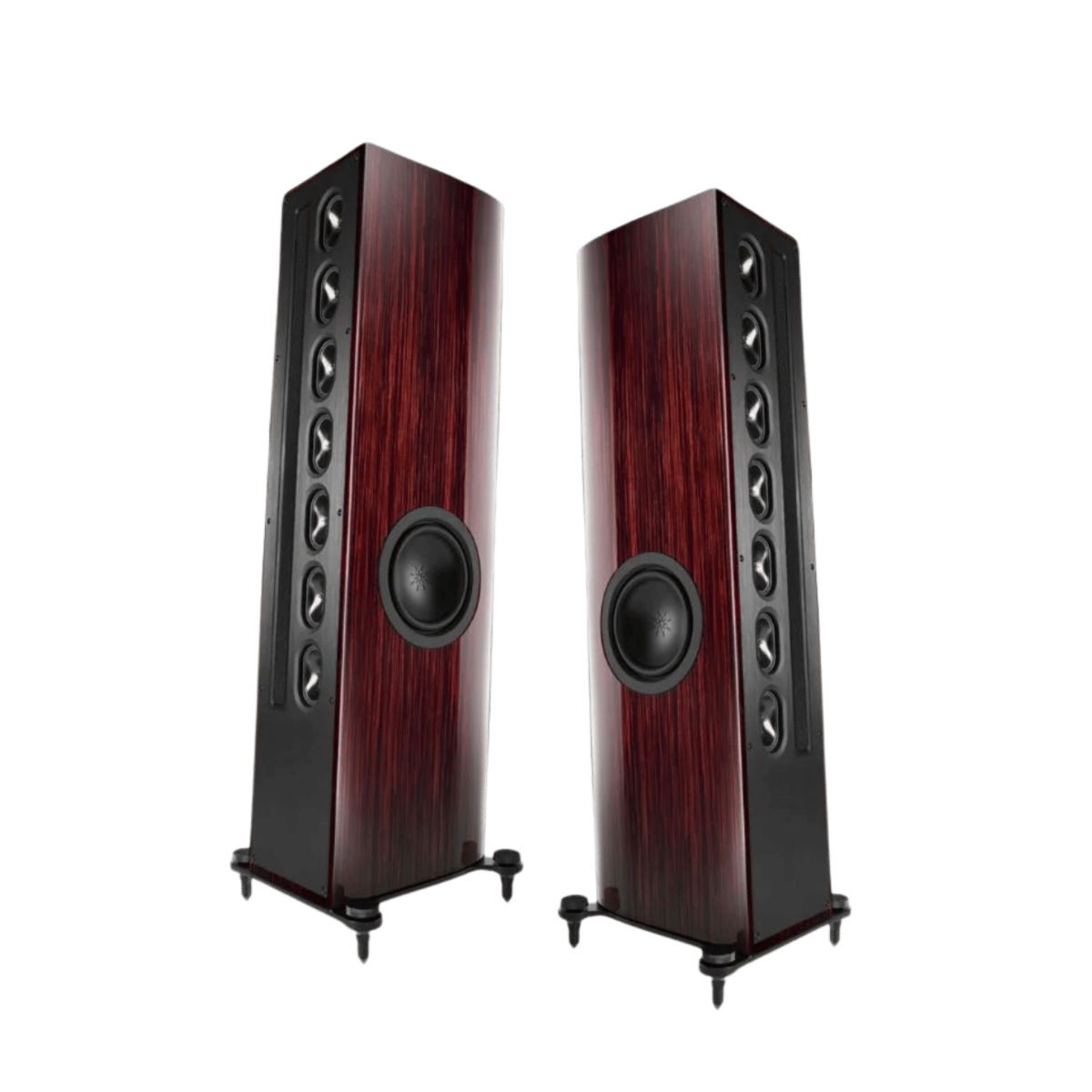

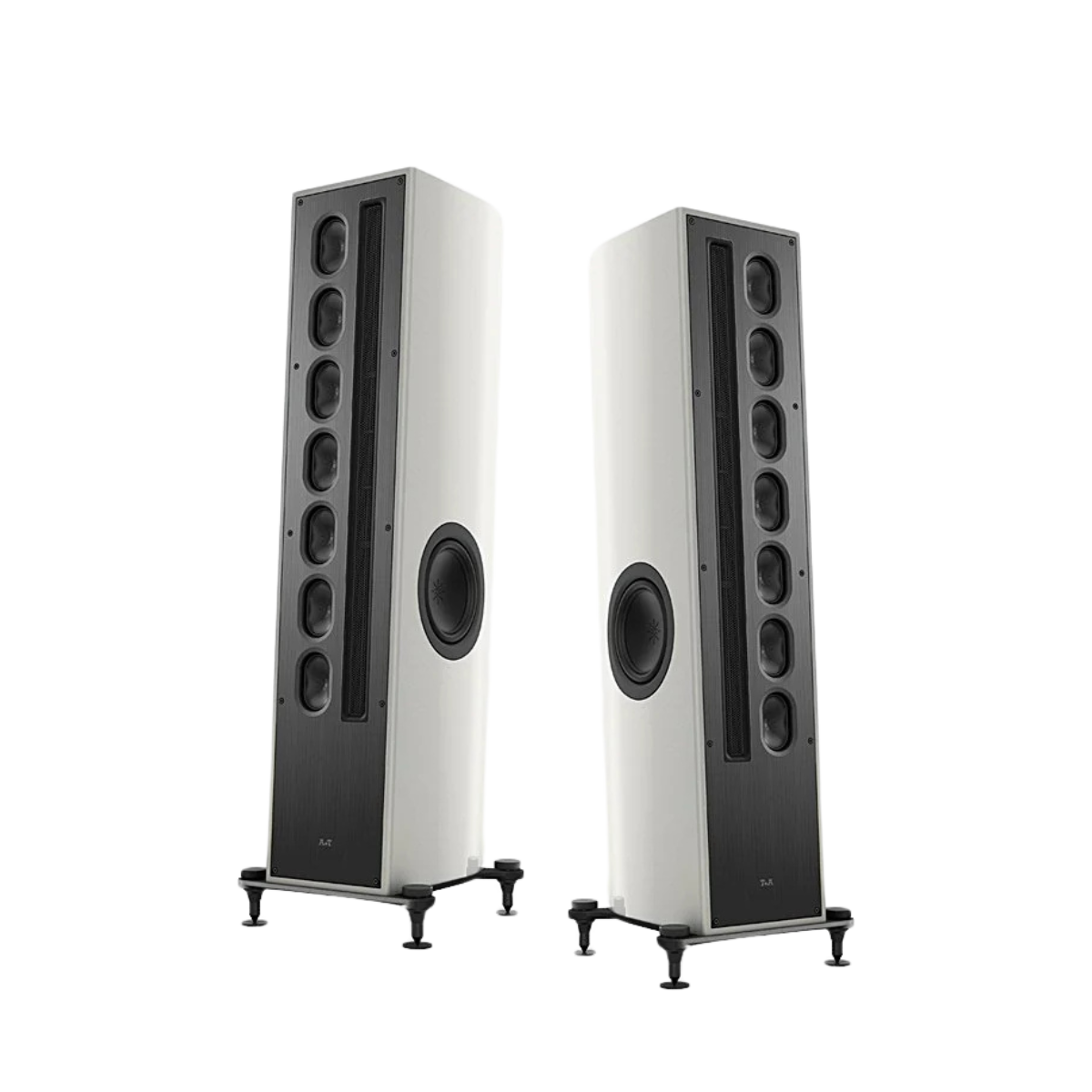

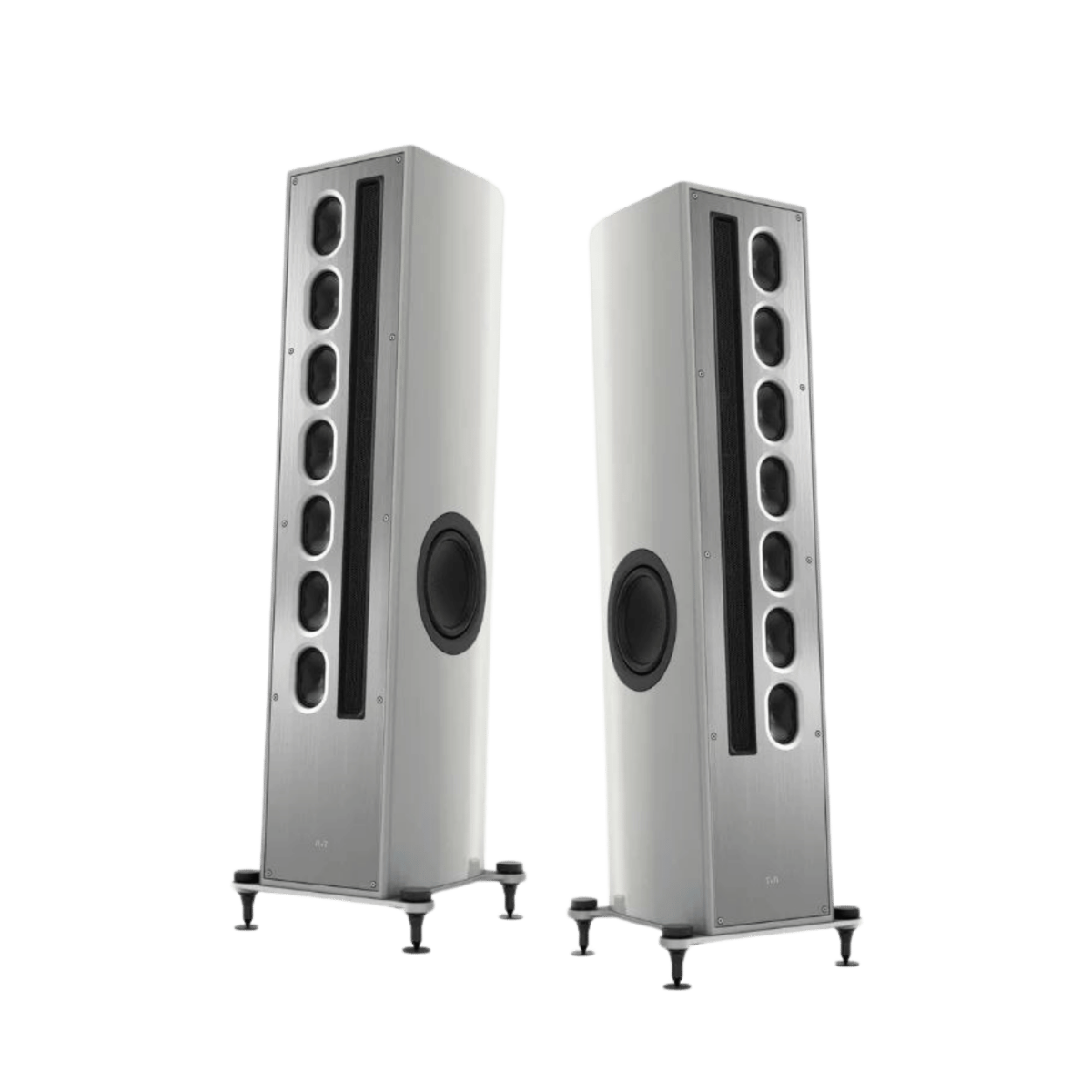

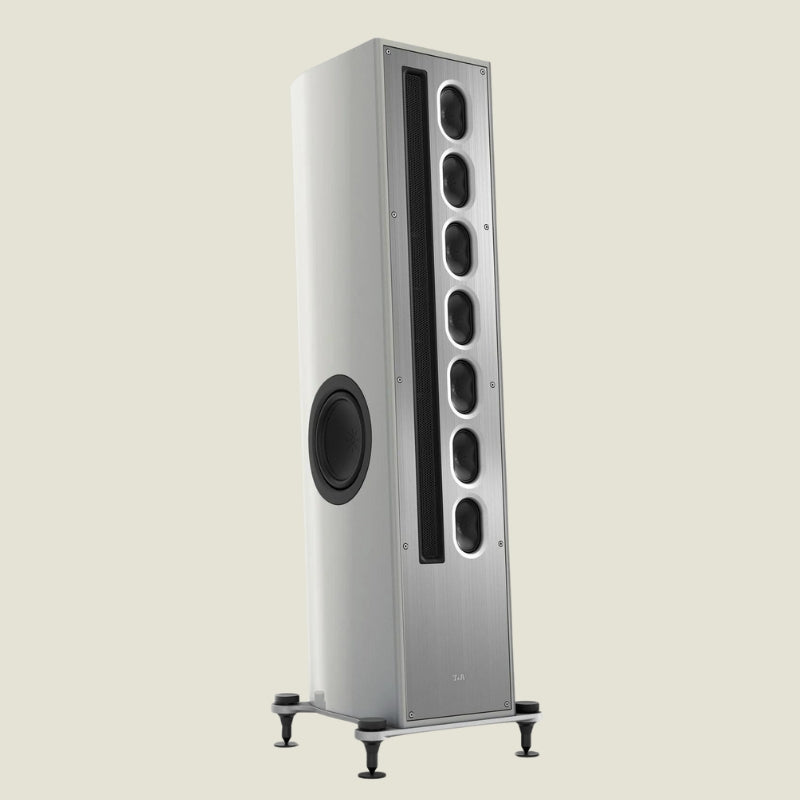

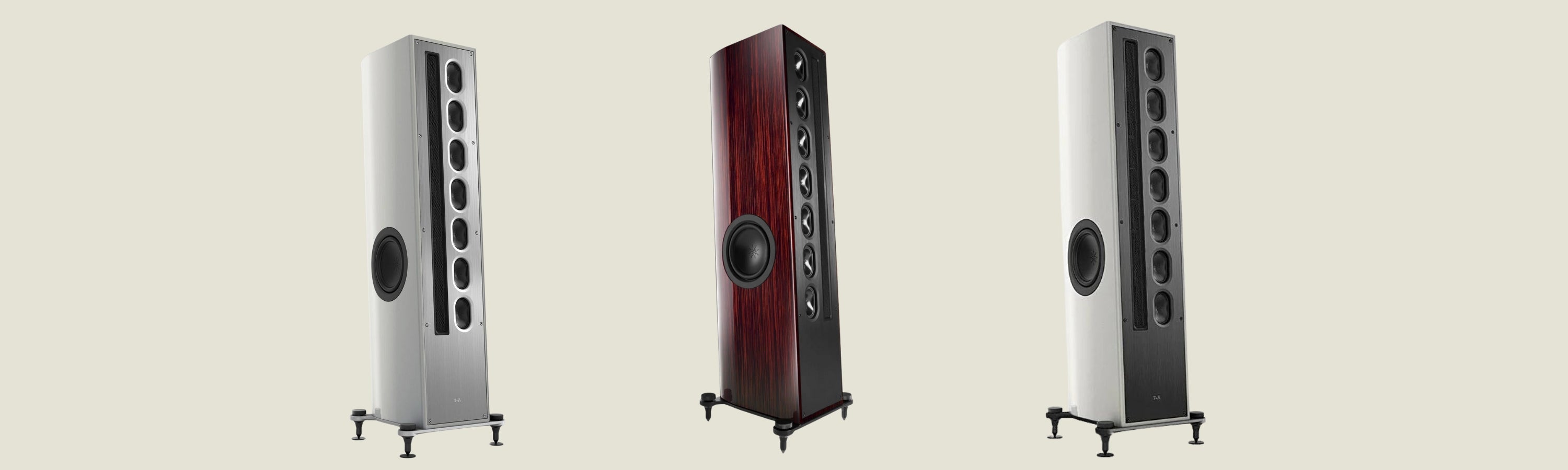

T+A Hi-Fi Solitaire S 530 Floorstanding Loudspeakers

The T+A Solitaire S 530 boast three-way floorstanding design with custom drivers, active bass system, adjustable high-frequency output, and bi-wiring/bi-amping technology, resulting in powerful, clear sound, perfect for discerning audiophiles.


Sale price$59,000.00

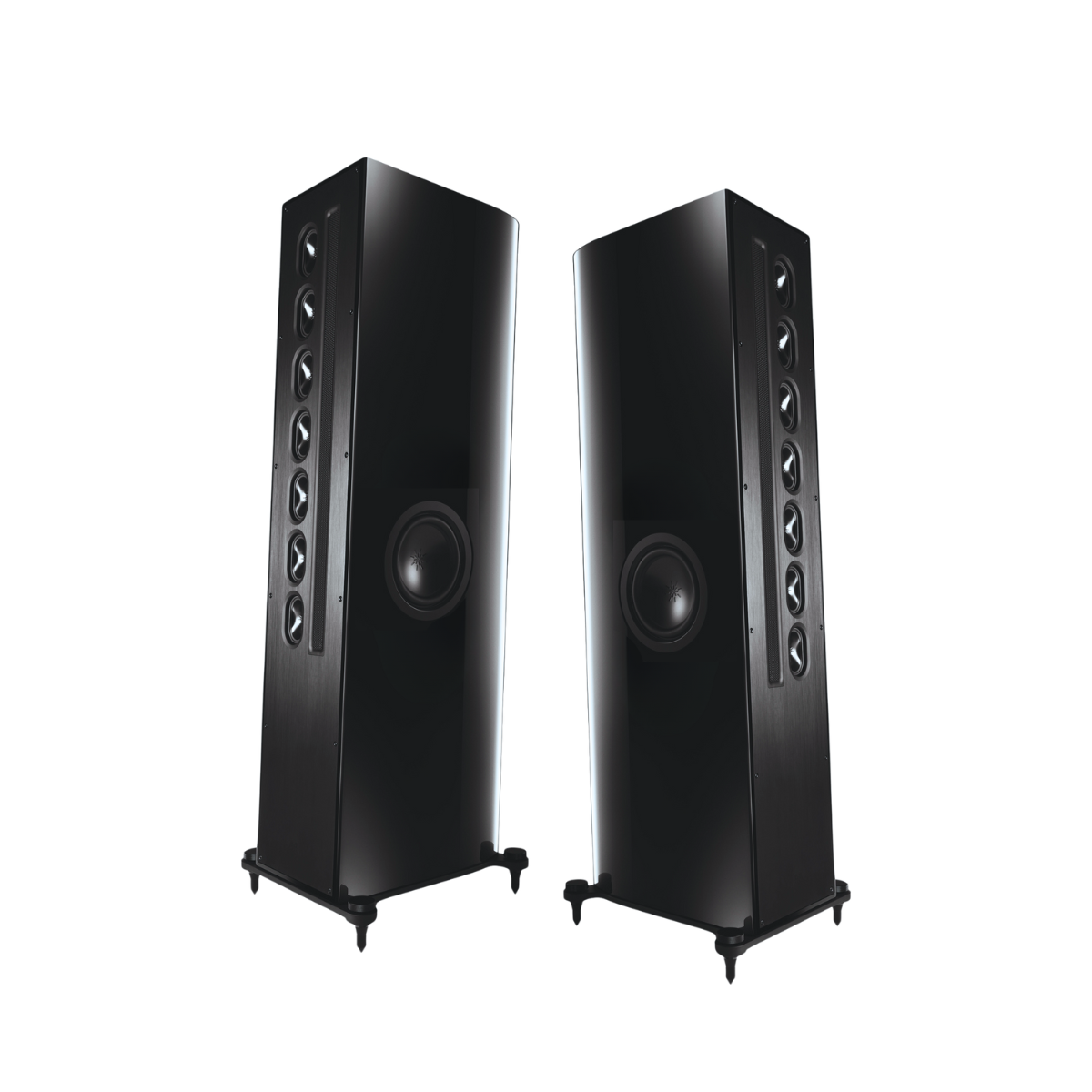

Colour: High Gloss Black / Black

Key features

High Quality Drivers

Advanced Crossover Network

Cabinet Construction

Tunable high-frequency output

Elegant Design

TELL ME MORE ABOUT THE

T+A Hi-Fi Solitaire S 530 Floorstanding Loudspeakers

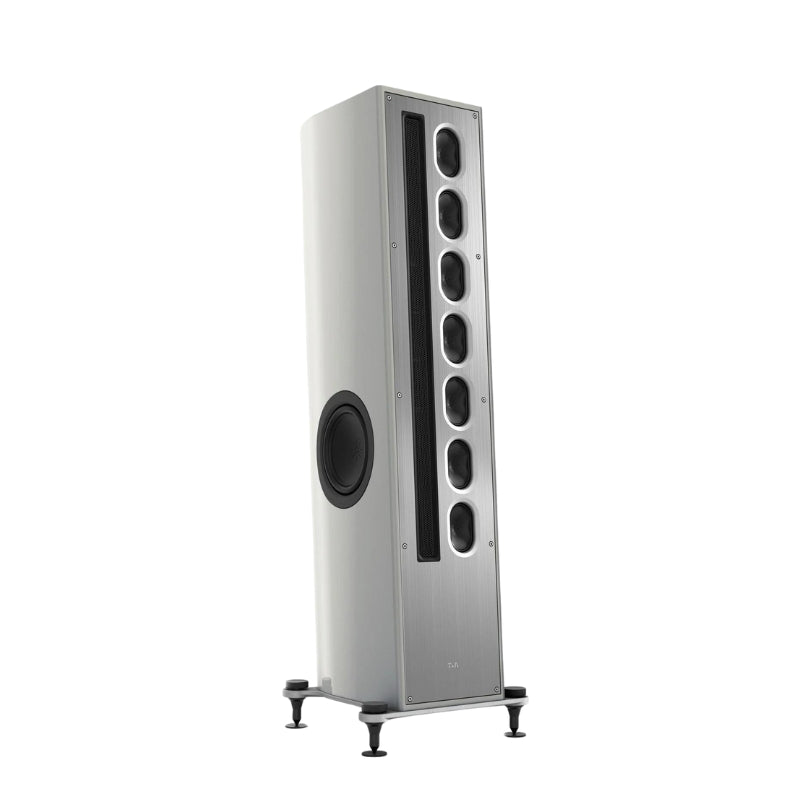

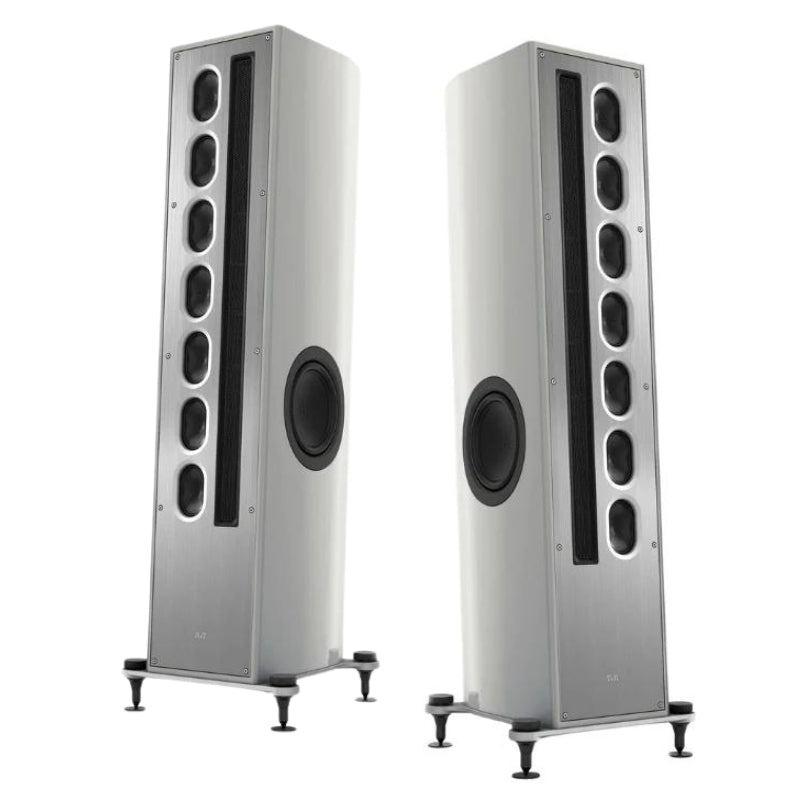

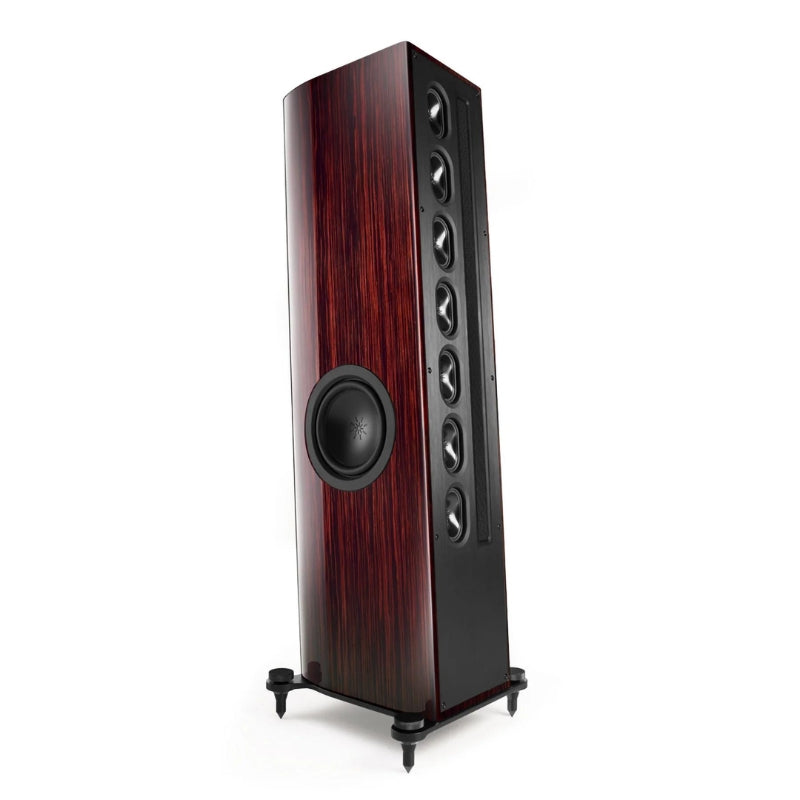

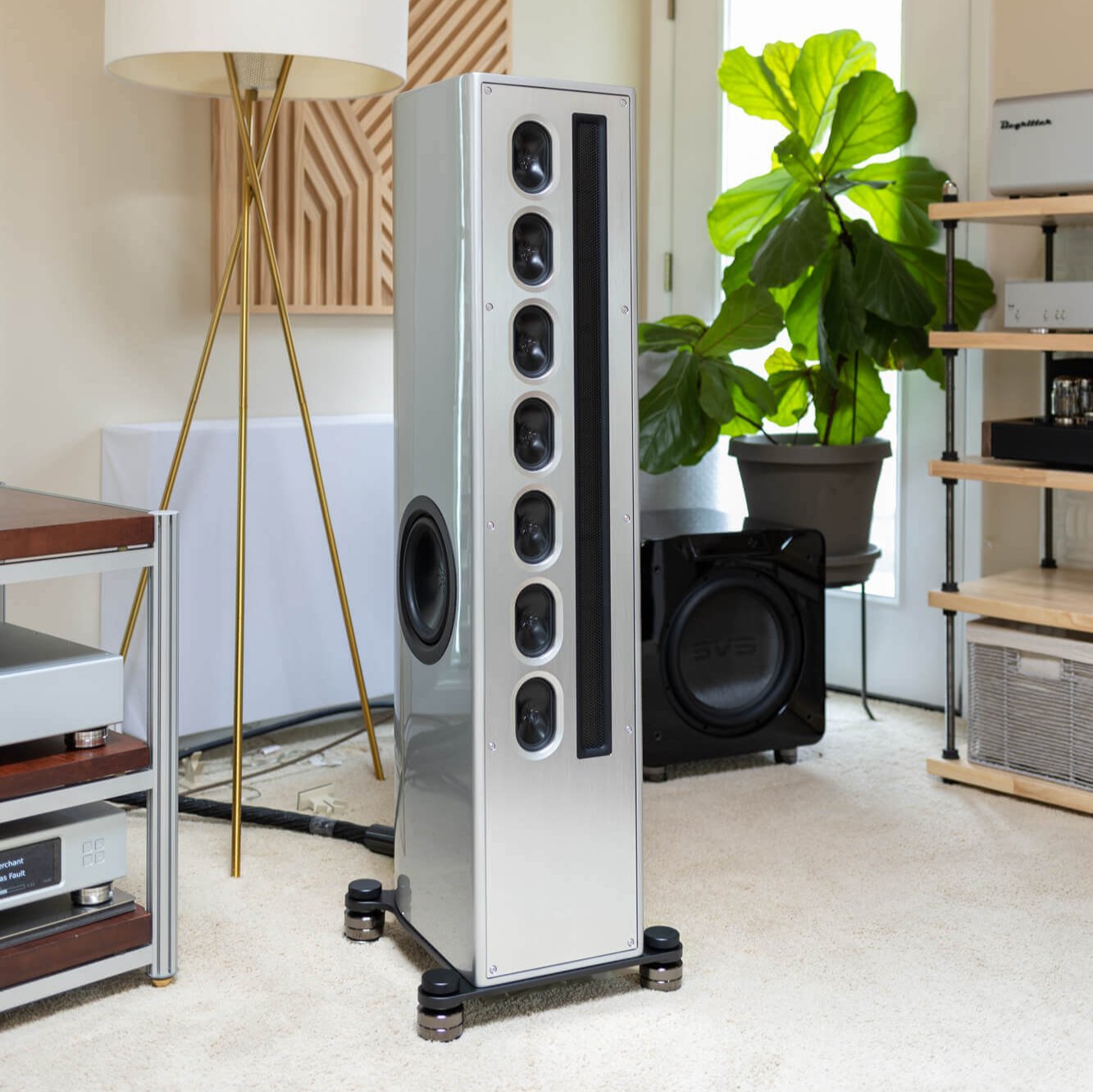

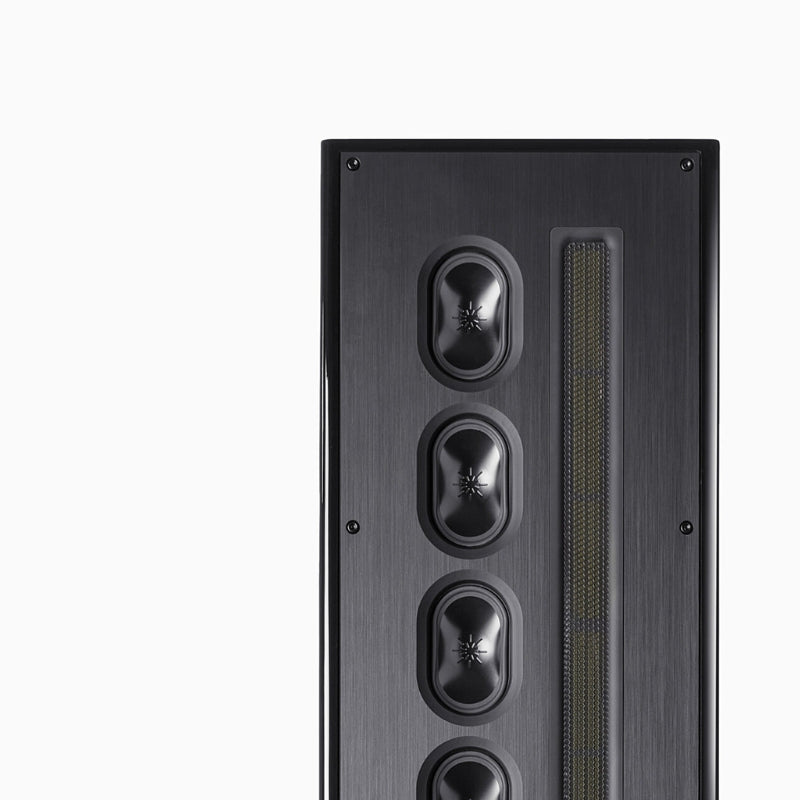

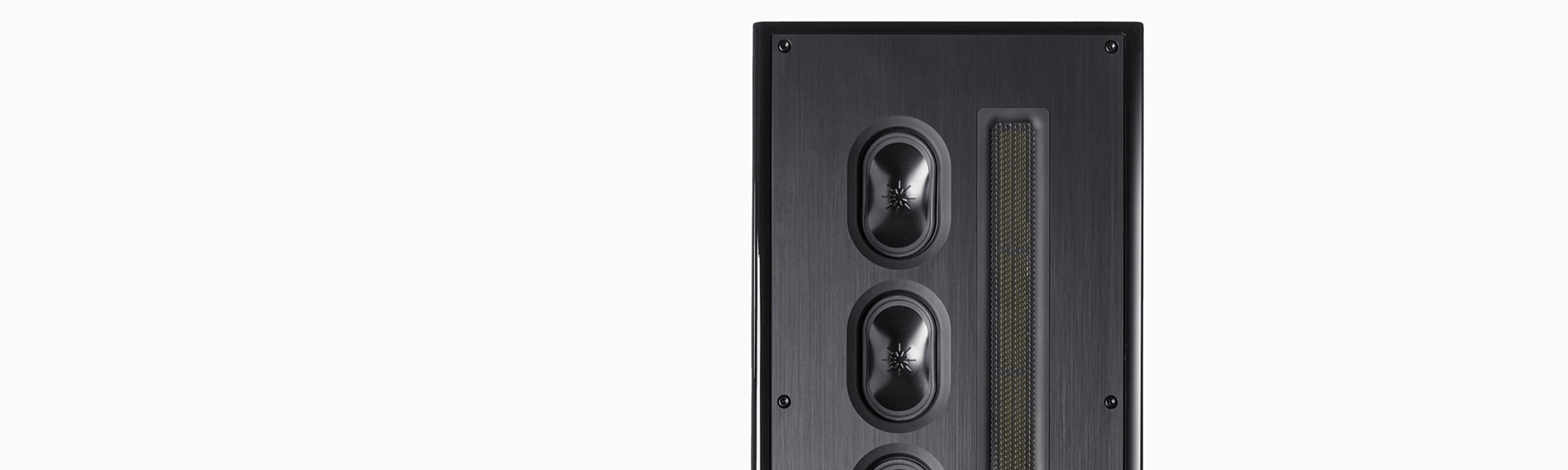

The Solitaire S 530 features an array of advanced technologies, including its In-house Mag850 magnetostat, with 64 high-performance magnets, running 85 cm along the cabinet, as well as seven ellipse-shaped StarStabiliser mid-range units covering 150-2000 Hz. At 128 cm, with two powerful bass drivers in a bass reflex system, the system features our Cylinder Wave Technology, creating a uniform sound field and effectively reducing the impact of the listening room.

Cylinder Wave Technology

Our Cylinder Wave Technology, developed over a decade ago, is employed to prevent disruptive room reflections and provide a clear listening experience. The Mag850 and seven mid-range drivers combine to form a Line Source and Line Array, respectively. As every point of the Mag850's diaphragm moves in unison, it generates a perfect Line Source, creating an even dispersion pattern. These mid-range units are positioned closely and are oval-shaped, sending sound waves mostly towards the listening area in front of the speaker, thus avoiding echo-creating reflections off the ceiling and floor. This produces a more true-to-life, pristine sonic performance.

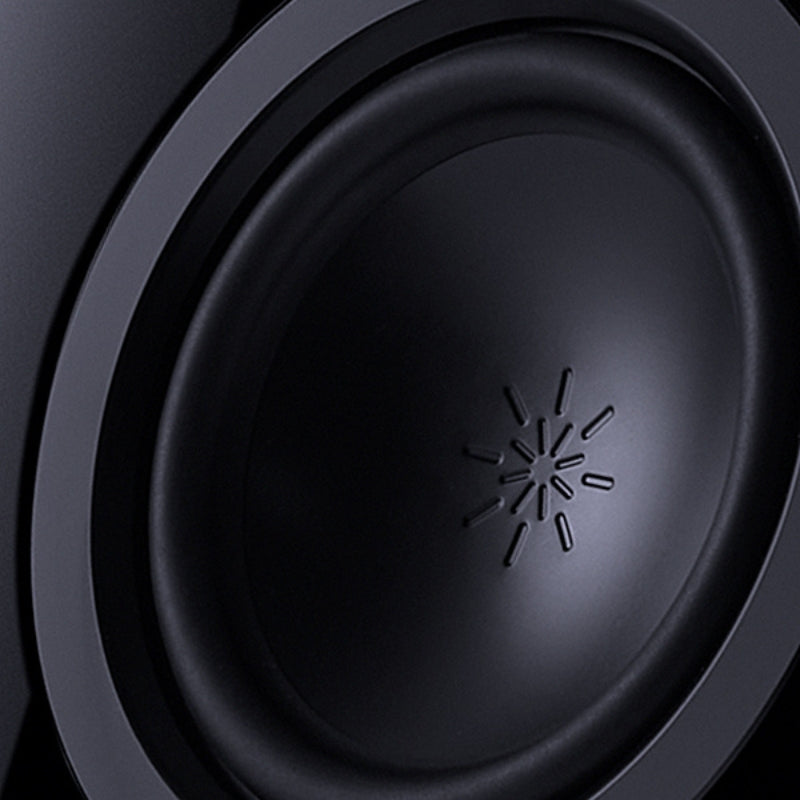

Star Stabiliser Diaphragms

The Solitaire S 530 and S 540 embody T+A's ambition to reproduce music accurately as originally produced. Our StarStabiliser diaphragm system aids this goal by having a precisely calculated conical arc shape, while the centre of the diaphragm is made purposefully stiff. These features restrict native resonances and modes that can cause the drive units to distort the signal. T+A StarStabiliser technology ensures the diaphragms perform like pistons, with no distortion, even at high volumes and music remains true to the source.

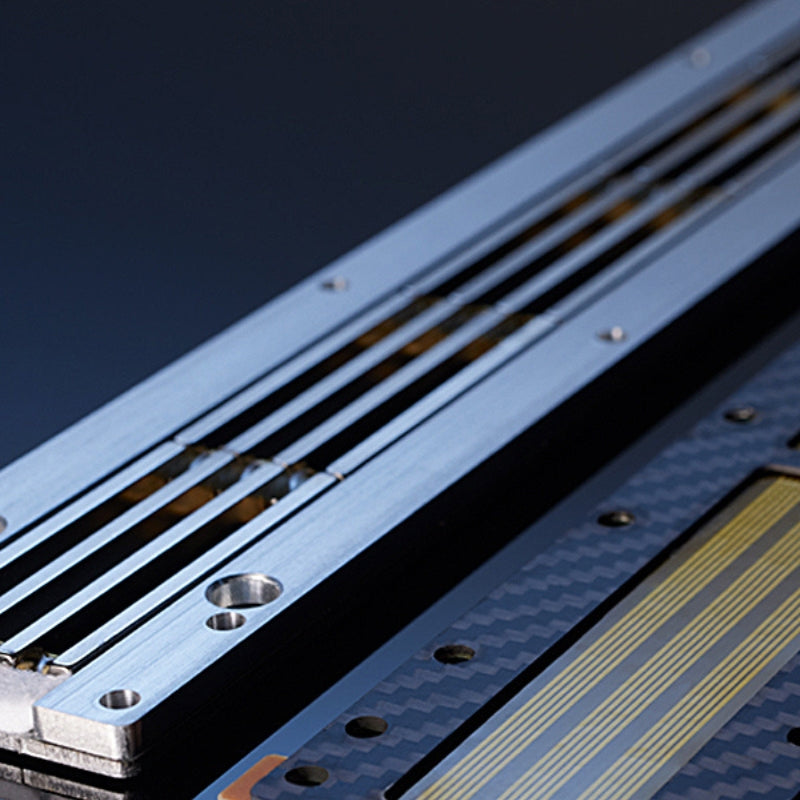

Mag850 Treble driver

With a system length of 85 cm & a rear volume of over 3 litres, the Mag850 takes up a sizeable portion of the front of the Solitaire speakers. Its 64 magnets, arrayed in one line, permit the diaphragm to freely vibrate in the room, while the Draft Control System--based on our TPM 3100 headphone transducer--eliminates sound disturbances. Each magnet is carefully placed & shaped so that the magnetic field over the 200 sq cm diaphragm is identical in strength. This ensures a continuous & consistent force across the diaphragm. Plus, the Mag850's design permits the diaphragm to always remain in the linear field, avoiding oscillations & excess travel, & providing speed & precision akin to electrostatic treble units without the need for high voltage.

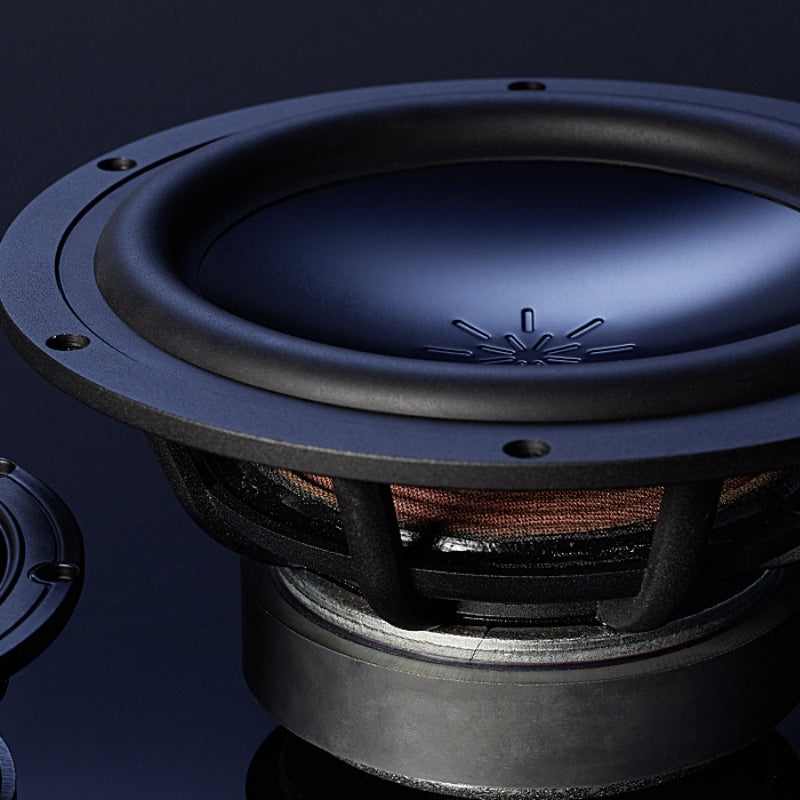

Bass System

The design of bass systems is paradoxical: the higher the performance, the greater the potential for vibration to reach the cabinet. The Solitaire S 530 and S 540 feature two bass drivers, positioned on the side panels of the cabinet and coupled by additional braces. This form of installation allows the drivers to perfectly balance one another, preventing cabinet vibration and resonance, even at high sound pressures. This harmonious unit produces an exceptionally dry, clean, forceful bass with mid and treble ranges free of distortion. To handle high sound levels, the drivers feature StarStabiliser technology and a high-performance suspension for greater stability, resulting in smoother transitions when the speakers are pushed hard.

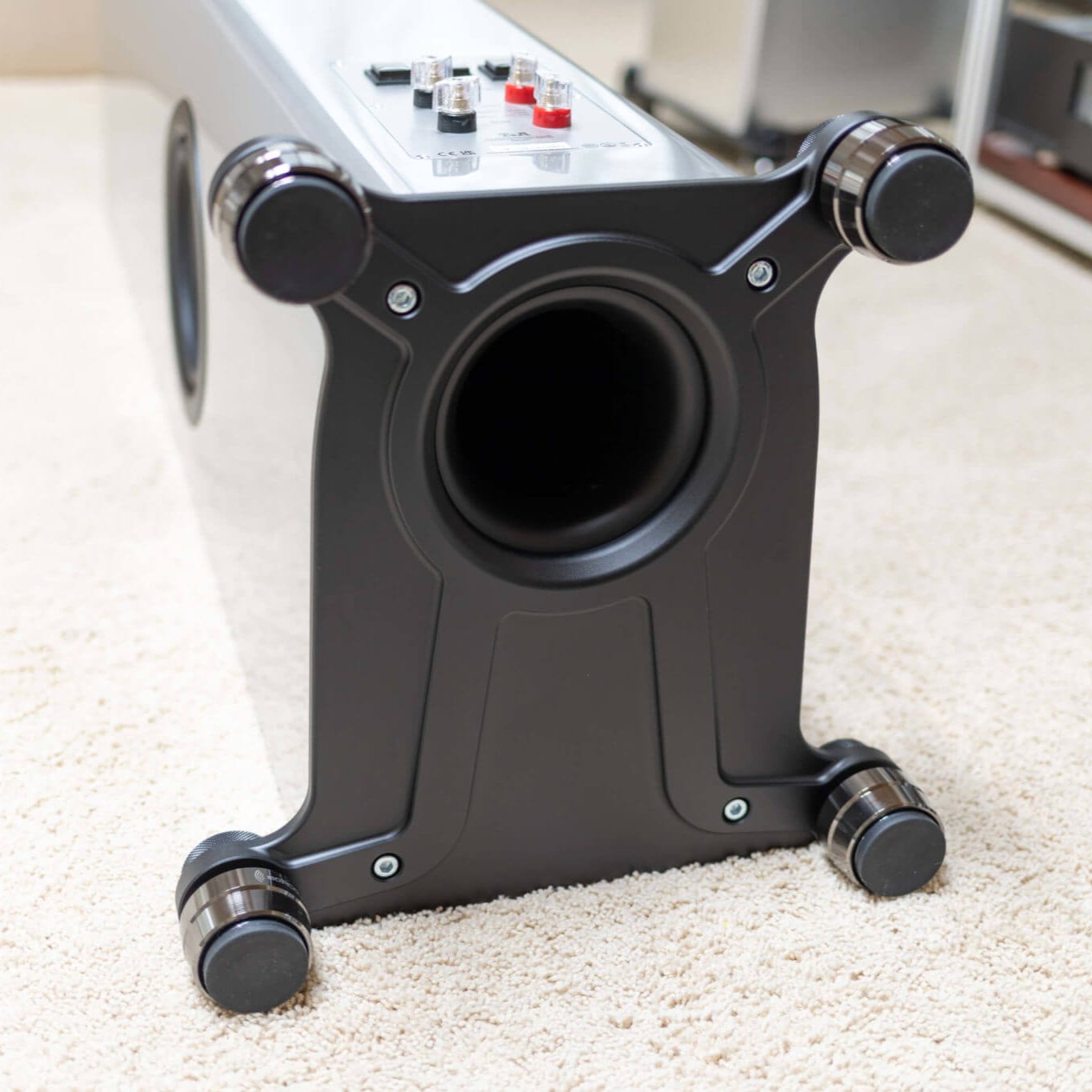

The S 530 features two long-throw bass units with a 22 cm diameter, leading to a precise cross-section bass reflex system that excels in deep bass reproduction and powerful dynamics. The S 540 even has four such units, optimised for its large enclosed cabinet, resulting in superior transient response and ultra-high volumes of clean, dynamic bass sound. The S 540 is the pinnacle of what can be accomplished by a passive system.

Cross Over Unit

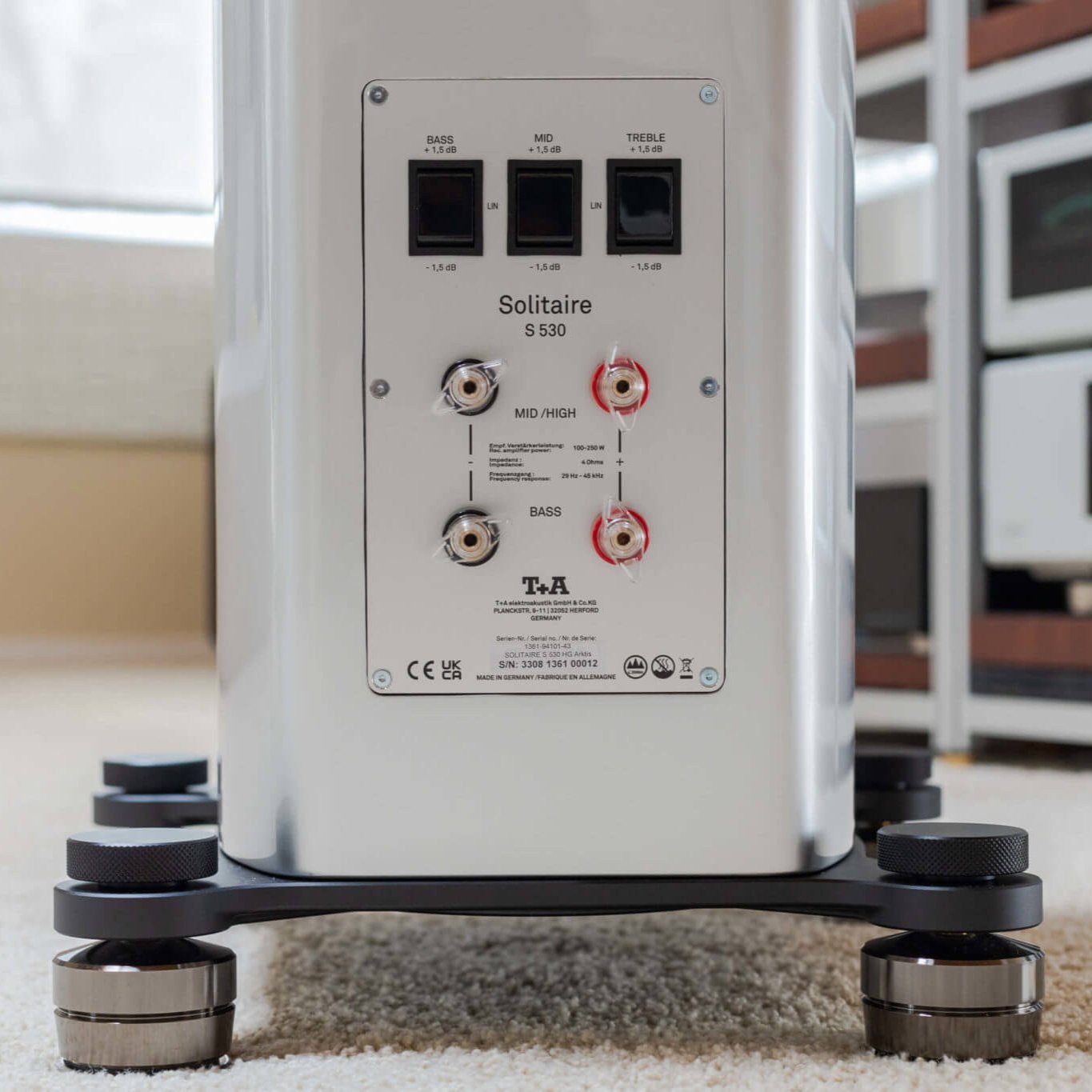

Equipped with double-sided Fast Signal Response (FSR) three-way crossovers, the Solitaire S speakers enable extremely high currents and large signals to be processed without distortion. Optimised for maximum transient and transmission behaviour, their filter stages and bandpasses guarantee correct phase and group timing. Special cable is used for internal speaker drive unit connections for high-frequency fidelity. Switches enable fine-tuning of bass, mid and treble ranges, and additionally, the Solitaire S' separately-circuited bass and mid-range boards make it an ideal choice for bi-amping.
