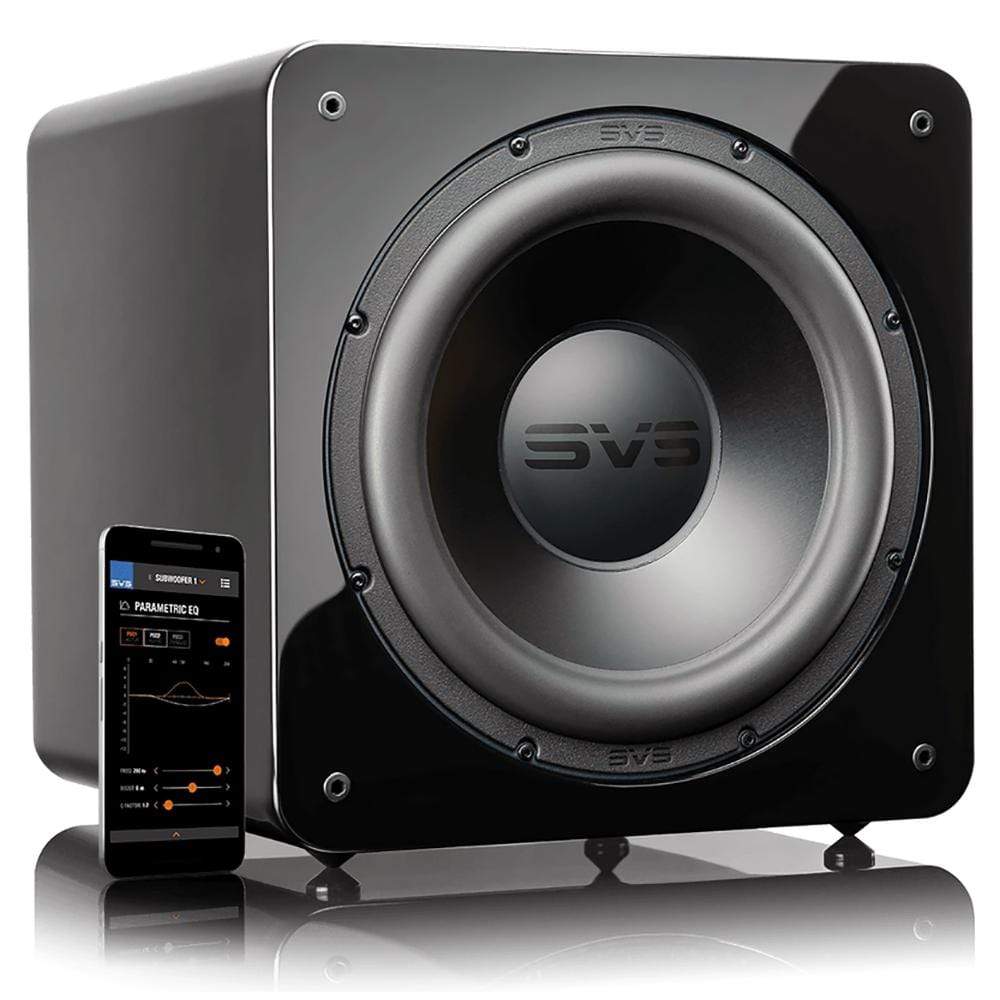

Featuring Ultra Series subwoofer technology, the top-selling SVS SB-2000 subwoofer features an unbeatable combination of low frequency extension, room energizing power, and lightning-fast and musical quickness from the commanding 12-inch driver and 500 watts RMS, 1,100 watts peak power Sledge STA-500D DSP amplifier enclosed in a compact cabinet measuring only 14-inches on all sides.
Specifications
Subwoofer Specs:
- Premium black ash and piano black finish options
- Protective non-resonant steel mesh grille
- Front-firing 12" driver
- Rear-mounted amplifier
- Screw-in rubber feet
- Robust Medium Density Fiberboard(MDF) cabinet construction
- Cabinet Dimensions: 14.6" (H) x 14.2" (W) x 15.4" (D) (without grille)
- Overall Dimensions: 14.6" (H) x 14.2" (W) x 17.1" (D) (with grille)
- Weight (unboxed): 34.8 pounds
- Shipped Dimensions: 21" (H) x 20.2" (W) x 23.2" (D)
- Shipped Weight: 51 pounds
Driver Specs:
- SVS 12” 2000-series driver
- Powder-coated cast aluminum basket
- Dual high-grade ferrite magnets
- Finite Element Analysis (FEA)-optimized motor structure
- Dual shorting rings reduce gap induction and lower distortion
- Extended pole piece improves heat sink and thermal management properties
- 2” diameter, high-power voice coil
- Upgraded Nomex spider for improved linearity and driver control at extreme drive levels
- High-quality insulated tinsel leads with 3-point-contact precision alignment
- Lightweight aluminum cone with polypropylene dust cap provides excellent rigidity and pistonic behavior
- Low-creep rubber long-throw surround for excellent durability and longevity

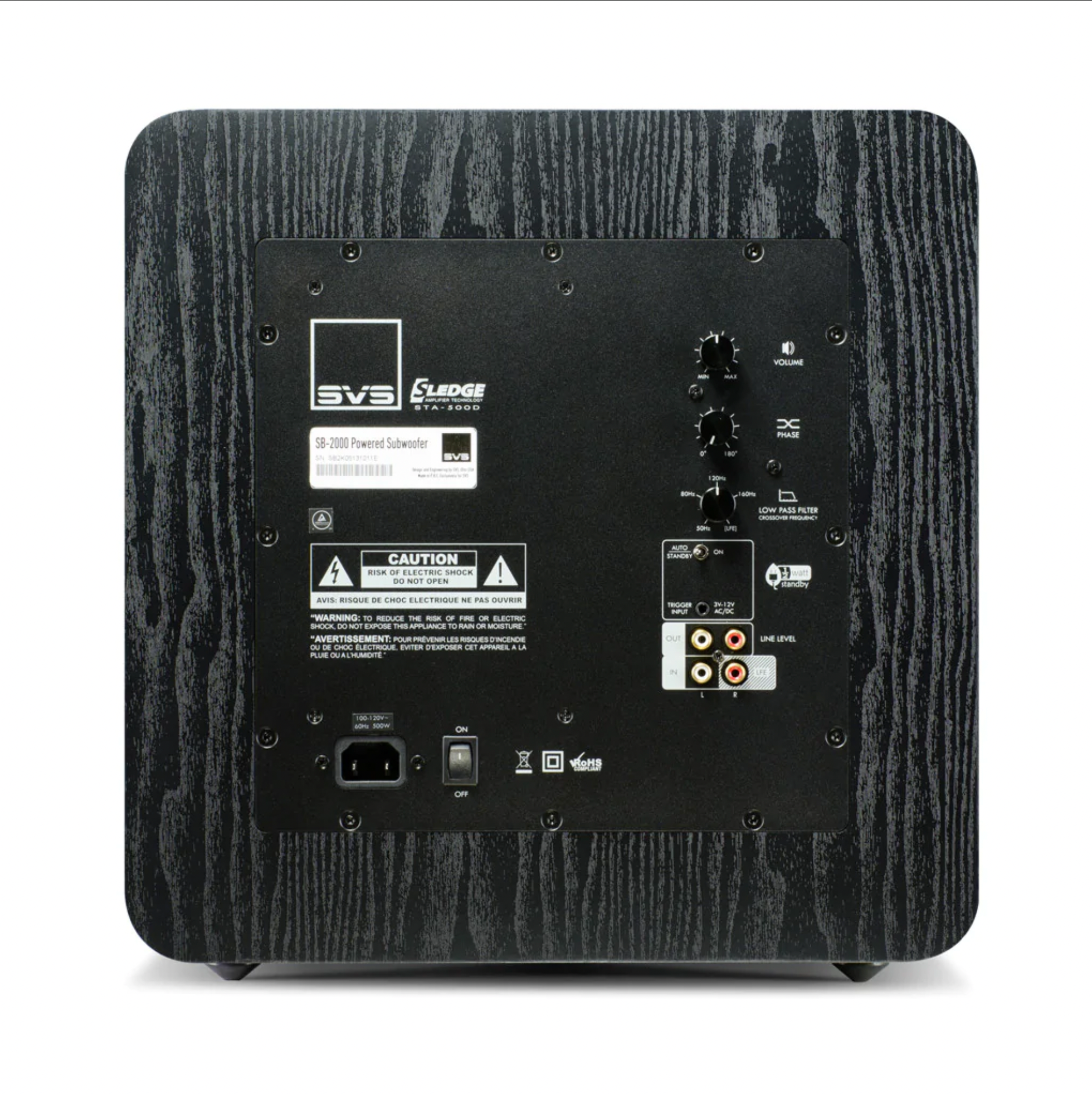

Amplifier Specs:
- Sledge STA-500D DSP amplifier
- 500 watts RMS continuous (1100 watts peak dynamic)
- Efficient and cool-running Class D topology
- DSP control for accurate response and refined behavior under all operating conditions
- Main power rocker switch
- Auto-On / On toggle switch
- 3-12V trigger with 1/8” (3.5 mm) TRS mini-jack input
- Green standby mode with > 0.5 watts consumption
- Stereo line-level RCA Input & Output connections
- Input impedance – 47 kΩ (unbalanced line-level RCA)
- Continuously variable volume/gain control
- Continuously variable (0-180 degrees) phase control
- Continuously variable (50-160 Hz) 12 dB/octave low pass filter frequency with disable/LFE setting
- Fixed 80 Hz 12 dB/octave high pass filter on line level outputs
- RoHS compliant, lead-free construction and world-wide safety certifications
- Detachable power cord
