Rotel RC-1572 MKII Stereo Preamplifier

Affordable high-end begins with Rotel’s RC-1572MKII preamplifier including multiple acoustic upgrades and refinements processing your favourite analogue and digital sources to an even higher level of performance in stunning clarity with a natural, enveloping sound stage.

Manufacturer Details:

As an essential component in a Hi-Fi audio stack the RC-1572MKII’s precision engineering begins with Rotel’s ultra-low noise power supply including a large, in-house manufactured toroidal transformer. The transformer design reduces stray radiated emissions and feeds a bank of slit-foil, low ESR capacitors delivering stable current to all sensitive circuits reducing noise and distortion with an ultra-quiet noise floor.

A premium Texas Instruments 32-bit Digital to Analog converter (DAC) renders the digital sources supported by custom tuned, proprietary external output filters ensuring the audio is effortlessly presented with exceptional dynamic detail and musical expression.

Engineered With Care:

Analogue, Digital, XLR, aptXTM and AAC Wireless Bluetooth and Moving Magnet Phono Stage inputs ensure connection to your favourite music sources. Digital media files are supported via a 32-bit/384kHz PC-USB connection supporting MQA and is fully certified Roon Tested for graceful access to the near limitless catalog of online music.

The RC-1572 MKII is easy to operate using the included remote control and front panel display. Automatic power controls, signal sensing, fixed volume settings and tone adjustments optimise customisation settings.

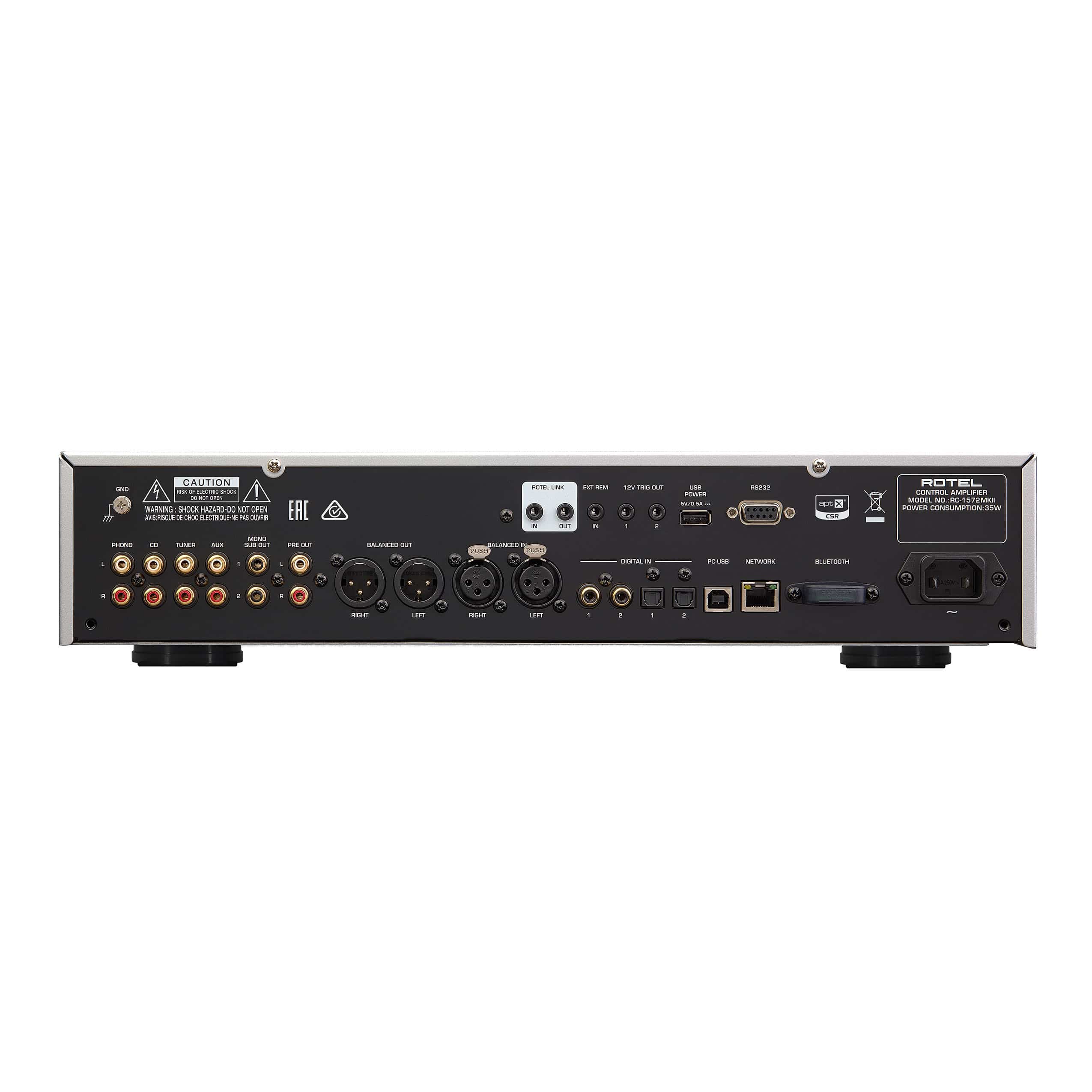

RCA, XLR and subwoofer outputs are provided for installation flexibility. Ethernet and RS232 ensure simple integration with control systems and software updates.

Bring your CD’s, Digital Files and Vinyl allowing the RC-1572MKII to bridge generations of music and music lovers.

Key Features:

  • Balanced XLR inputs and outputs
  • Moving Magnet Phono input for turntable connection
  • Wireless aptX™ and AAC Bluetooth
  • Texas Instruments premium 32-bit/384kHz Digital to Analogue Converter
  • Supports MQA and MQA Studio
  • Certified Roon Tested

Specifications:

Total Harmonic Distortion


(20 Hz-20k Hz): < 0.004%
Intermodulation Distortion


(60 Hz : 7k Hz, 4:1): < 0.004%

Input Sensitivity / Impedance




Phono Input (MM):

3 mV / 47k ohms

Line Level Inputs (RCA):

200 mV / 100k ohms

Line Level Inputs (XLR):

300 mV / 100k ohms

Input Overload

Phono Input:

63 mV

Line Level Inputs (RCA):

4 V

Line Level Inputs (XLR):

5 V

Output Level

Line Level (RCA):

1 V

Balance (XLR):

2 V

Frequency Response

Phono Input:

20 Hz-20k Hz (+0.3 dB, -0.2 dB)
Line Level Inputs (RCA): 10 Hz-100k Hz (+0 dB, -0.2 dB)
Line Level Inputs (XLR): 10 Hz-100k Hz (+0 dB, -0.2 dB)
Tone Controls
Bass: ±10 dB at 100 Hz
Treble: ±10 dB at 10k Hz
Signal to Noise Ratio (IHF “A” weighted)
Phono Input: 80 dB
Line Level Inputs (RCA): 118 dB
Line Level Inputs (XLR): 118 dB
Channel Separation
Phono Input: > 85 dB
Line Level Inputs (RCA): > 85 dB
Line Level Inputs (XLR): > 75 dB
Digital
Frequency Response: 20 Hz - 20k Hz (0 ± 0.5 dB, Max)
Signal to Noise Ratio (IHF “A” weighted): 100dB
Input Sensitivity/Impedance: 0 dBFs / 75 ohms
Preamplifier Output Level: 1.44 V (at - 20 dB)
Coaxial/Optical Digital Signals: SPDIF LPCM
(up to 24-bit / 192k Hz )
PC-USB: USB Audio Class 1.0
(up to 24-bit / 96k Hz )
USB Audio Class 2.0
(up to 32-bit / 384k Hz )*
*Driver installation required
MQA and MQA Studio
(up to 24-bit / 384k Hz )
Roon Tested
Power Requirements: 230 V, 50 Hz
120 V, 60 Hz
Power Consumption: 35 watts
Standby Power Consumption
Normal: < 0.5 watts
Network Wakeup: < 2 watts
BTU (4 ohms, 1/8 power): 65 BTU/h
Dimensions (W x H x D): 431 x 99 x 338 mm
Weight (net): 8.4 kg
