Rotel RA-1592 MK II Integrated Amplifier
Specifications
CONTINUOUS POWER OUTPUT | 200W/Ch (All channels driven, 8Ω) |
TOTAL HARMONIC DISTORTION (THD) | (20Hz–20kHz) < 0.008% |
FREQUENCY RESPONSE | Line Level Inputs: 10Hz - 100kHz ±0.5dBDigital Inputs: 10Hz - 90kHz ±2dBPhono Input: 20Hz - 20kHz ±0.5dB |
S/N RATIO (IHF | Line Level Inputs: 103dBDigital Inputs: 102dBPhono Input: 80dB |
DAMPING FACTOR | 600 |
INPUT SENSITIVITY | Line Level Inputs (RCA): 340mVLine Level Inputs (XLR): 540mVPhono Input (MM): 5.2mV |
INPUT IMPEDANCE | Line Level Inputs (RCA): 100kΩLine Level Inputs (XLR): 100kΩDigital Inputs: 75ΩPhono Input (MM): 47kΩ |
INPUT OVERLOAD | Line Level Inputs (RCA): 3.5VLine Level Inputs (XLR): 5.5VPhono Input: 52mV |
PREOUT LEVEL | 1.9V |
OUTPUT IMPEDANCE | 100Ω |
TONE CONTROLS | ±12dB at 100Hz / 10kHz |
COAX/OPTICAL DIGITAL INPUT SIGNALS | LPCM (Up to 24-bit/192kHz) |
PC-USB | USB Audio Class 1 (up to 24-bit /96 k Hz)USB Audio Class 2 (up to 32-bit/384 k Hz)DSD and DoP supportMQA and MQA Studio (up to 24-bit / 384k Hz ) |
DIMENSIONS (W × H × D) | 431 × 144 × 425mm |
FRONT PANEL HEIGHT | 3U / 132.6mm |
POWER REQUIREMENTS | 230V, 50Hz |
POWER CONSUMPTION | 500W |
STANDBY POWER CONSUMPTION | <0.5W |
NET WEIGHT | 17.63kg |
BTU RATING | 1239 BTU/h |
Warranty
Shipping & Returns
We offer free shipping on any order over $150. For full details please see our Shipping Policy.
Our returns policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately, we may not be able to offer you a refund or exchange. For full details please see our Refund Policy.
Rotel RA-1592 MK II Integrated Amplifier
Whether a seasoned audiophile or casual listener, the time has never been better to be a music lover. A near limitless supply of music is at our fingertips accessible via streaming, digital mediums, classic vinyl, and more.
Manufacturer Details:
Rotel has been designing and manufacturing high fidelity, high quality, high performance audio products for over 60 years accurately rendering audio with exceptional detail and stunning clarity. The RA-1592MKII proudly continues in the tradition and heritage of this iconic brand.
The RA-1592MKII Integrated Amplifier includes circuit design innovations, optimisation of audio signal paths, and updates to critical power supply components delivering a breathtaking performance with dynamic rhythm and timing.
Engineered With Care:
Utilising Rotel’s best-in-class preamplifier topology and award-winning power amplifier technology, the RA-1592MKII is a no-compromise, size-efficient, all-in-one integrated audio product. The RA-1592MKII delivers 200 Watts per channel into 8 ohms powered by Rotel’s in-house manufactured toroidal transformer feeding an array of slit-foil capacitors for rich, deep, controlled, bass energy.
The RA-1592MKII supports your favourite sources including Analogue, XLR, Digital, aptX™ and AAC wireless Bluetooth, PC-USB supporting MQA and 32-bit/384kHz PCM, and Moving Magnet Phono stage. Digital to Analog conversion utilises a Texas Instruments premium DAC with precisely tuned output filter circuits delivering unprecedented acoustic detail, wide sound stage and exacting positioning.
Key Features:
The RA-1592KII is certified Roon Tested delivering the best experience using Roon software so you can just enjoy the music.

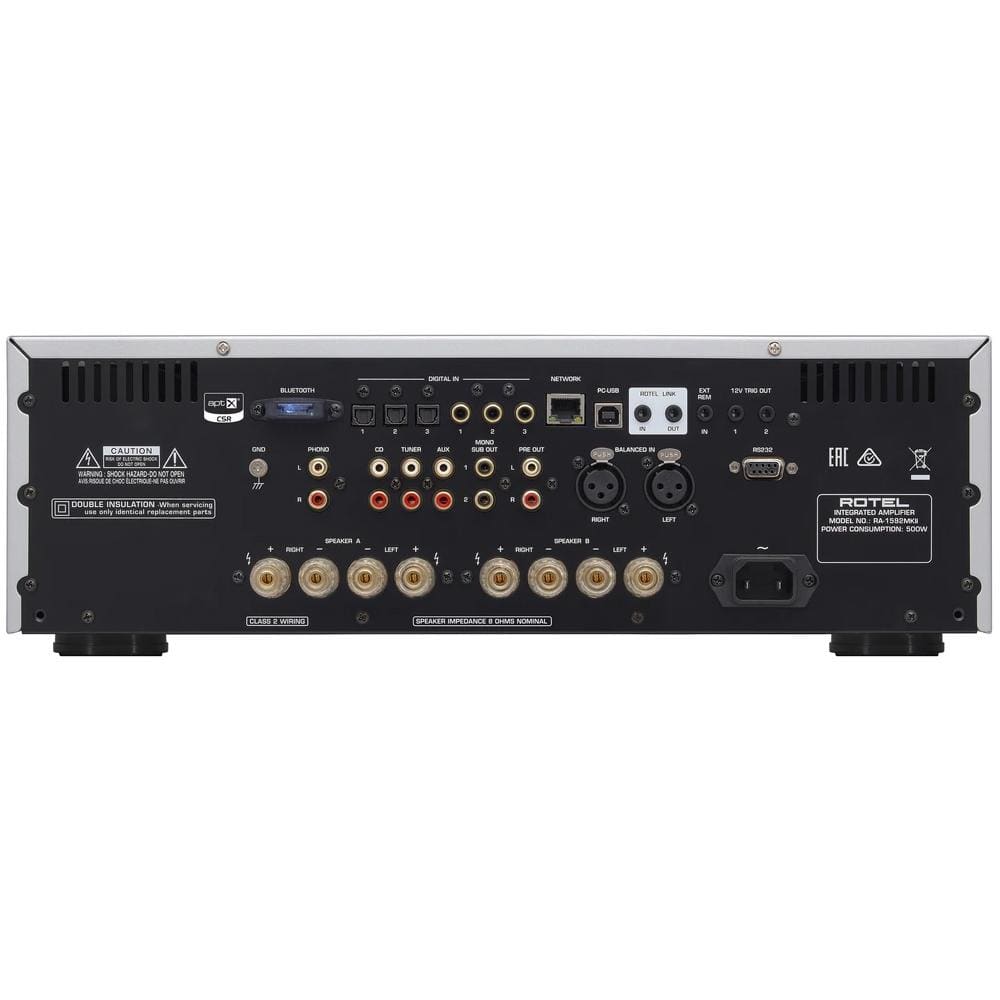

Selectable A-B speaker outputs, RS232, Ethernet, and 12V triggers ensure seamless integration with control systems.
Convenience, performance, and value - the RA-1592MKII delivers.
