Rotel DT-6000 Diamond Series CD Player & DAC
|MAXIMUM POWER OUTPUT||350W/Ch (4Ω)|
|CONTINUOUS POWER OUTPUT||200W/Ch (8Ω)|
|TOTAL HARMONIC DISTORTION (THD)||<0.0075%|
|Line Level Inputs||10Hz - 100kHz, ±0.5dB|
|Digital Inputs||10Hz - 90kHz, ±2dB|
|Phono Input||20Hz - 20kHz, ±0.5dB|
|S/N RATIO (IHF "A" Weighted)|
|Line Level Inputs||103dB|
|DIMENSIONS (W × H × D)||431 × 144 × 425mm|
|17" × 5.7" × 16"|
|FRONT PANEL HEIGHT||3U / 132.6mm (5.25")|
|POWER REQUIREMENTS||120V, 60Hz|
|STANDBY POWER CONSUMPTION||<0.5W|
|NET WEIGHT||18.81kg (41.47lbs.)|
Shipping & Returns
Rotel RA-6000 Diamond Series CD Player & DAC
The Rotel Diamond Series DT-6000 DAC Transport celebrates Rotel’s 60 year history delivering performance, passion and value synonymous with the brand's Japanese heritage. The DT-6000 supports Coaxial, Optical and PC-USB inputs as well as an integrated CD Player for the ultimate flexibility playing your favourite sources rendering digital audio with dynamic precision and authentic accuracy.
An EISA Award Winner:
The DT-6000’s critical Digital to Analog circuits utilises an ESS Sabre 8-Channel ES9028PRO DAC dedicating 4 channels each to the Left and Right stereo outputs. The DACs multi-channel processing delivers unprecedented details with an ultra-low noise floor through fully differential circuits resulting in an immersive, expansive sound stage.
Dedicated power supplies feed all critical circuits driven by an in-house manufactured low-emission shielded toroidal transformer with high efficiency, low ESR slit-foil smoothing capacitors delivering ripple free current. Physical circuit board isolation techniques and electronic decoupling design methods result in lower residual noise and reduced distortion in the sensitive analog stages including the external DAC output filters.
The Coaxial and Optical inputs support PCM audio up to 24-bit/192kHz with the asynchronous PC-USB input rendering up to 32-bit/384kHz high resolution music files. The PC-USB also supports MQA and DSD 4X and is certified Roon Tested for the highest compatibility with Roon software.
The smooth action tray loading CD player utilises Rotel’s formidable 30 years of experience engineering and manufacturing award winning disc spinners. The industrial design includes a spring-floating CD mechanism with damping materials to reduce mechanical noise and vibrations during playback. Precision motor controls and the optical laser pick-up extract every nuance and detail from CD collections both large and small.

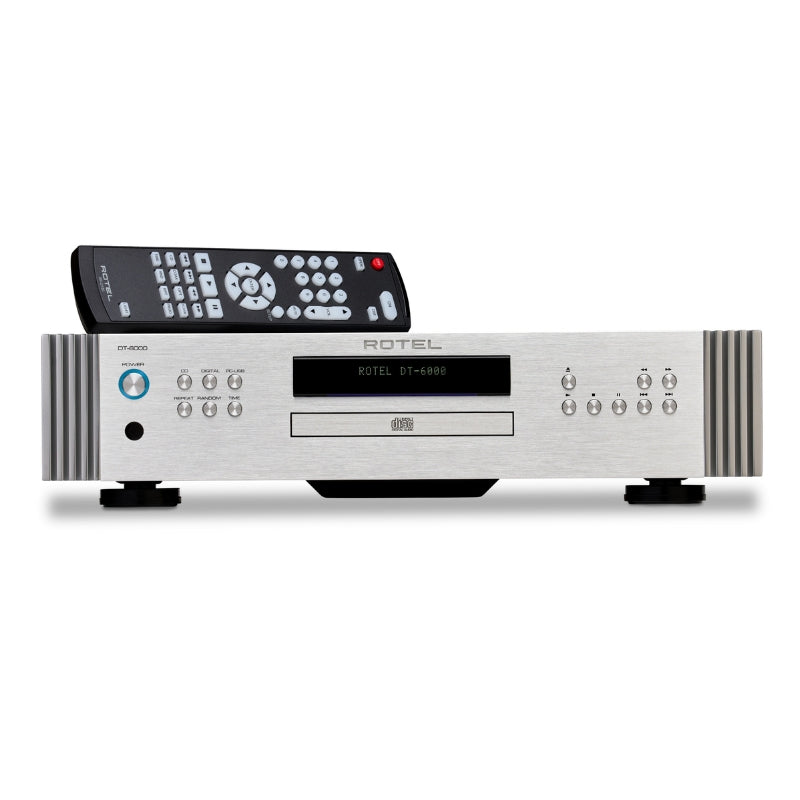

Front panel controls and a back-lit IR remote provide intuitive operation of the unit with playback status, music file stream details and CD metadata shown on the two-line display.

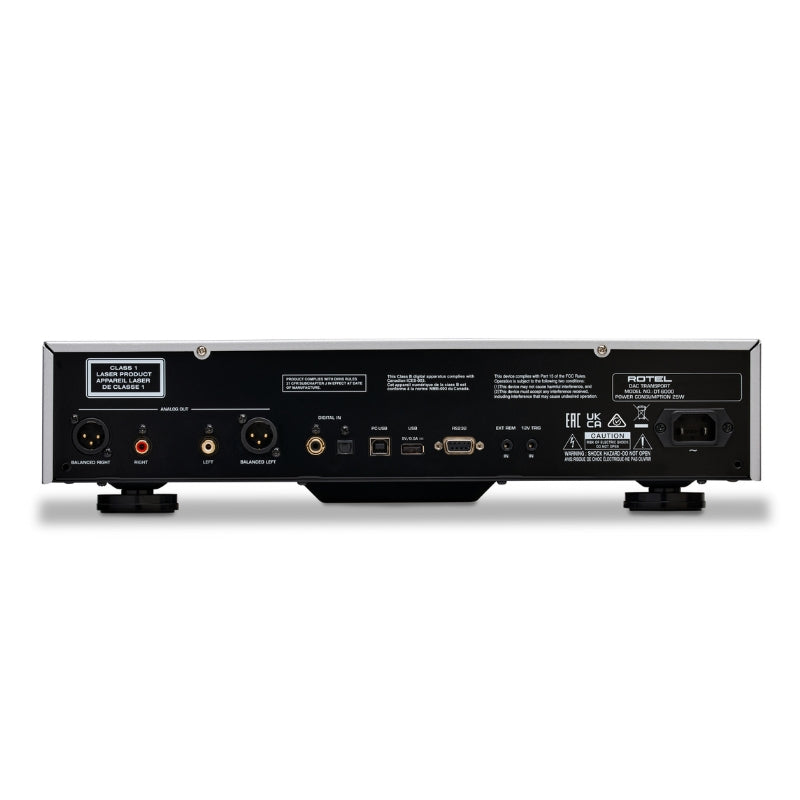

The RS232, 12V trigger and external remote input ensure simplified integration with all popular control systems. The DT-6000 is available in black and silver.
