Rotel A12 MKII Integrated Stereo Amplifier


  • Sale
  • $1,259.00
  • Regular price $1,399.00
  • 2 available

Australian warranty, Full support, Authorised reseller, Free shipping

Rotel A12 MKII Integrated Stereo Amplifier

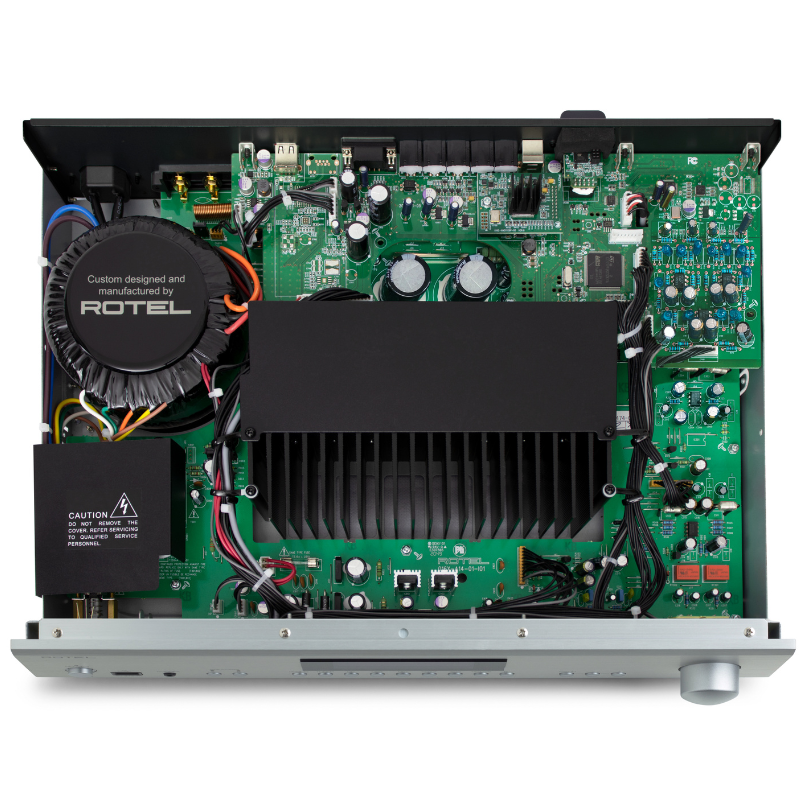

The heart of the A12MKII begins with Rotel’s in-house manufactured oversized toroidal transformer feeding high efficiency storage and smoothing capacitors for deep, controlled bass energy. The power supply features multiple voltage and current regulators delivering independent power to critical analog, digital and amplification stage circuits isolating sensitive low voltage signals from high power speaker outputs lowering the noise floor and reducing unwanted distortion. Circuit design follows Rotel’s proprietary Balanced Design Concept with physical and electrical isolation techniques delivering exceptionally clean audio.



Nat's thoughts:



As a multi-format user, I do not want to be limited by how I can play music. Sometimes it's vinyl, sometimes streaming, sometimes it's even a video clip on youtube - the A12 MKII has the capability to cater for those scenarios and many more.

When I think of the A12 MKII it reminds me a lot of my late grandfather “Noel”, a very multifaceted man. You could say he was a 'jack of all trades' but unlike how the rest of the saying goes, Noel typically mastered most tasks he put his hands to.

The A12 MKII, just like Noel with its multi-faceted talents masters the task it’s put to!



Manufacturers Details:

The A12MKII is replete with inputs supporting your favourite sources including a Moving Magnet Phono Stage for vinyl fans, 4 RCA analogue, 4 digital, PC-USB and high quality aptXTM Bluetooth for wireless streaming.

A premium 32-bit Texas Instruments Digital to Analog converter extracts genuine and accurate details of the music with custom output filters and preamplifier circuits preserving the integrity of the audio stream.





The Class AB amplifier delivers 60 Watts of dynamic power into 8 ohms utilising high current, fast transient output devices for improved accuracy of the music timing and a more lifelike reproduction of audio into dual A-B speaker binding posts.

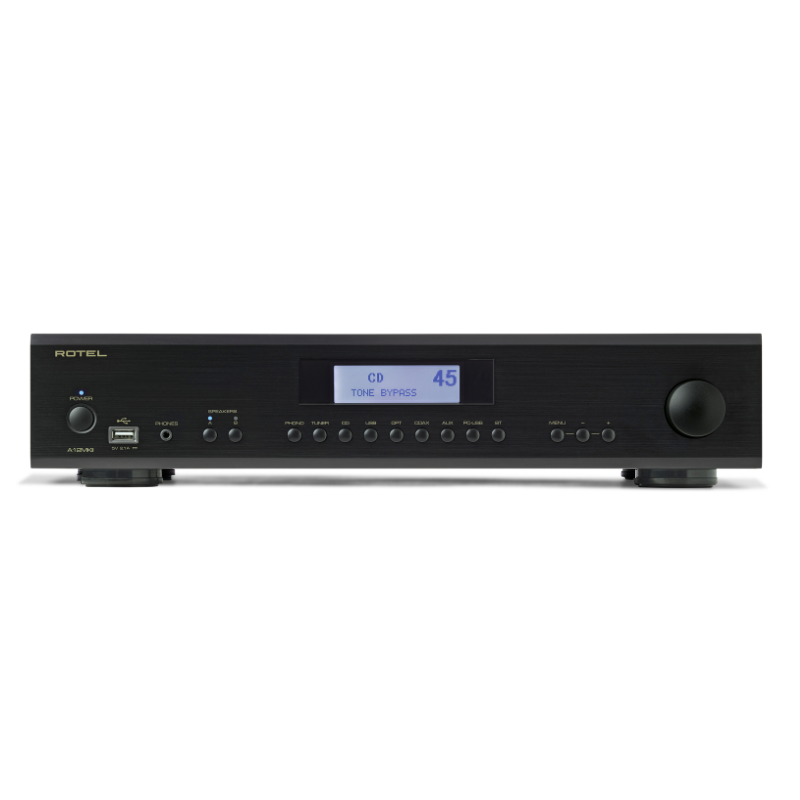

The IR remote, front panel controls, and graphic display ensure effortless operation. RS232, 12V triggers and remote input ensure seamless integration with control systems. Slim and powerful the A12MKII delivers on Rotel’s iconic brand heritage.








Who's This Amp For?

The A12 MKII is perfect if you have several source devices to hook-up such as a turntable, CD player, TV, Bluetooth ... the list goes on. Additionally, if you have lower impedance speakers such as 4 ohms that are a little hard to drive, the Rotel A12will be your new best friend.



Key Features:

  • Plethora of inputs
  • Great Phono Stage
  • Auto-sensing digital Inputs (Turns on when it senses a signal)
  • Fixed volume control available

Pair This With:

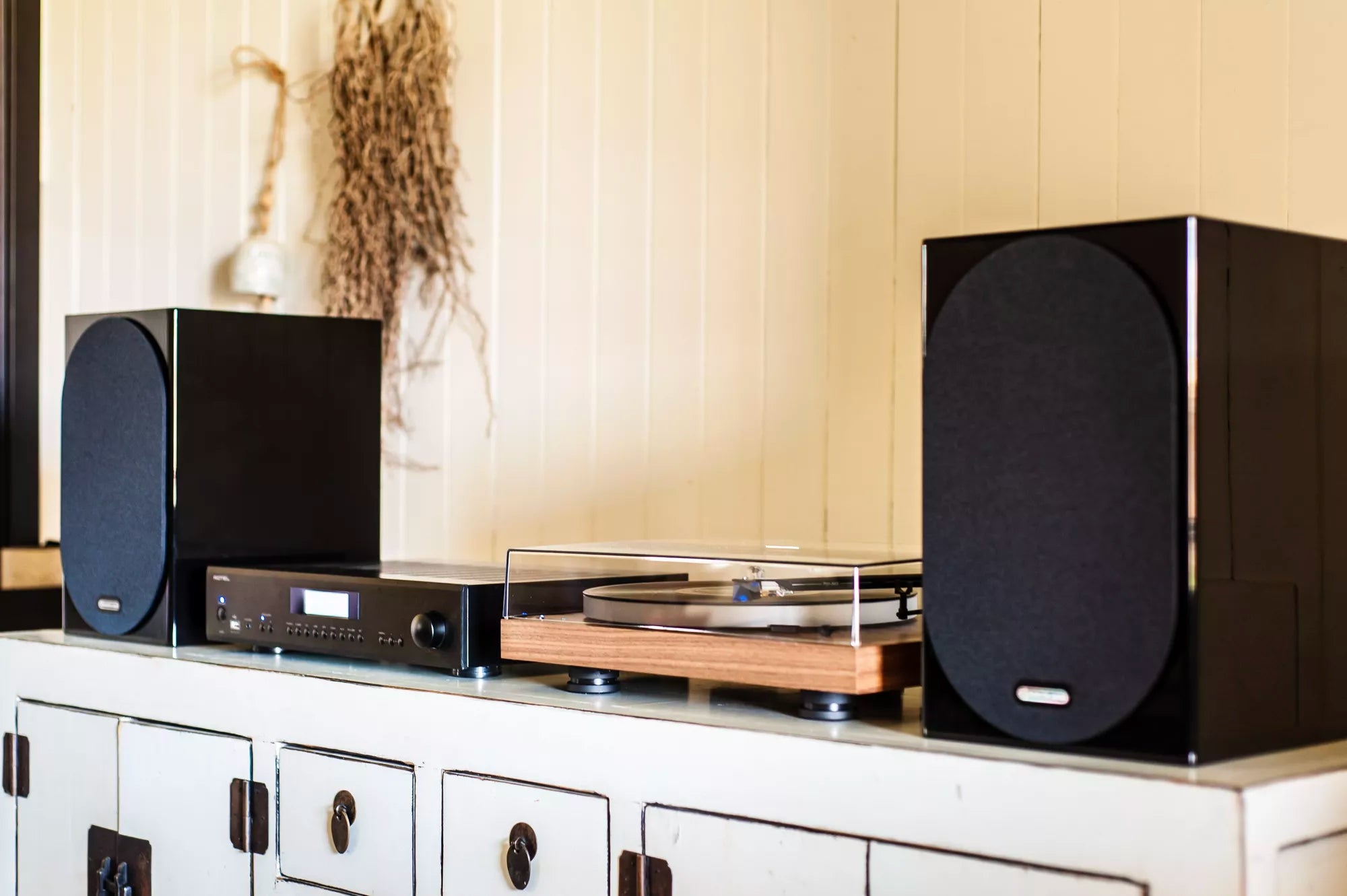

The Pro-Ject X1 turntable with Ortofon's 2m blue cartridge pairs amazingly with A12. Combing the smooth sound from the 2M blue with the A12's treble detail makes for a beautiful balance. As for speakers, the Monitor Audio Silver 100 7g bookshelf speakers with their awesome 8-inch woofer really benefit from the A12's dynamic range - when connected to the A12 MKII, you wouldn't be blamed for thinking they are a floor-standing speaker.



Manufacturers Warranty & Specifications:

Rotel A12 Warranty - All products, excluding accessories, are covered by warranty for 3 years from the date of purchase. Find out more here.

Specifications:



Maximum Power Output

120 watts/ch (4 ohms)

Continuous Power Output

60 watts/ch (8 ohms)

Intermodulation Distortion

< 0.03%

Total Harmonic Distortion

< 0.018%

Frequency Response

Phono Input

20 Hz - 20k Hz (0 ± 0.5 dB)

Line Level Inputs

10 Hz - 100k Hz (0 ± 0.5 dB)

Damping Factor

220

Input Sensitivity / Impedance

Phono Input (MM)

3.4 mV / 47k ohms

Line Level Inputs (RCA)

 230 mV / 24k ohms

Input Overload

Phono Input (MM)

 50 mV

Line Level Inputs

 4 V

Preamplifier Output / Impedance

 1.2 V / 470 ohms

Tone Controls - Bass / Treble

 ± 10 dB at 100 Hz / 10k Hz

Signal to Noise Ratio

Phono Input (MM)

 90 dB

Line Level Inputs

 100 dB

Frequency Response

 10 Hz - 90k Hz (0 ± 2 dB, Max)

Signal to Noise Ratio

 103 dB

Coaxial / Optical Digital Signals

 SPDIF LPCM (up to 24-bit / 192k Hz )

PC-USB

 USB Audio Class 1.0 (up to 24-bit / 96k Hz )

USB Audio Class 2.0 (up to 32-bit / 384k Hz )* *Driver installation required Roon Tested

Dimensions (W x H x D)

 430 x 93 x 345 mm

Weight (net)

 8.76 kg

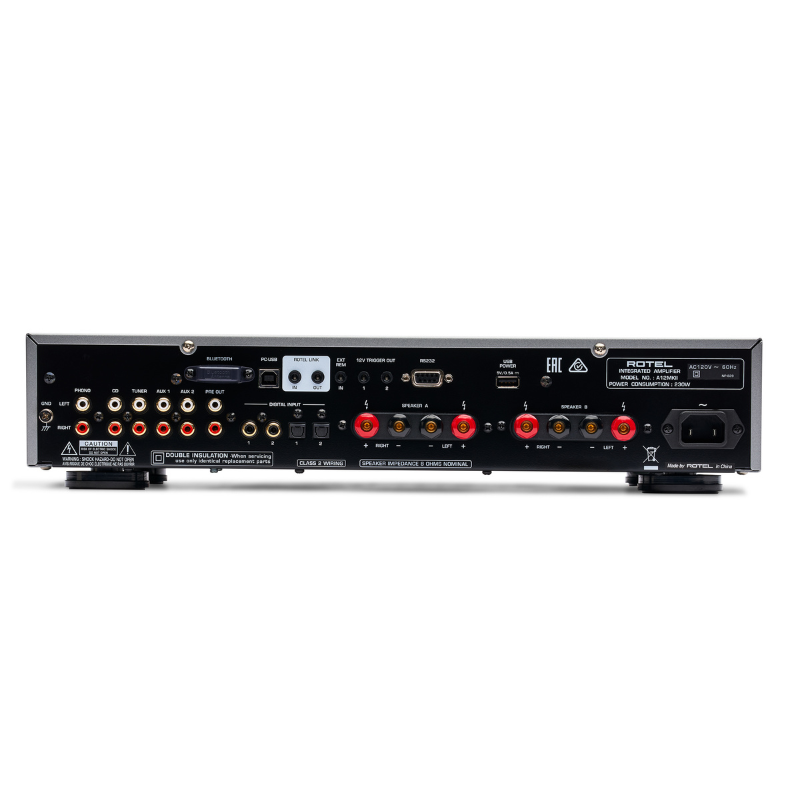

Analogue Inputs
3.5 mm None
Phono 1
RCA 4
XLR None


Analogue Outputs
Headphones 1
Pre 1
Sub None
Tape None


DAC
Resolution 24-bit/192kHz
Type Wolfson


Digital Inputs
Coaxial 2
Optical 2
PC-USB 1
Bluetooth 1
