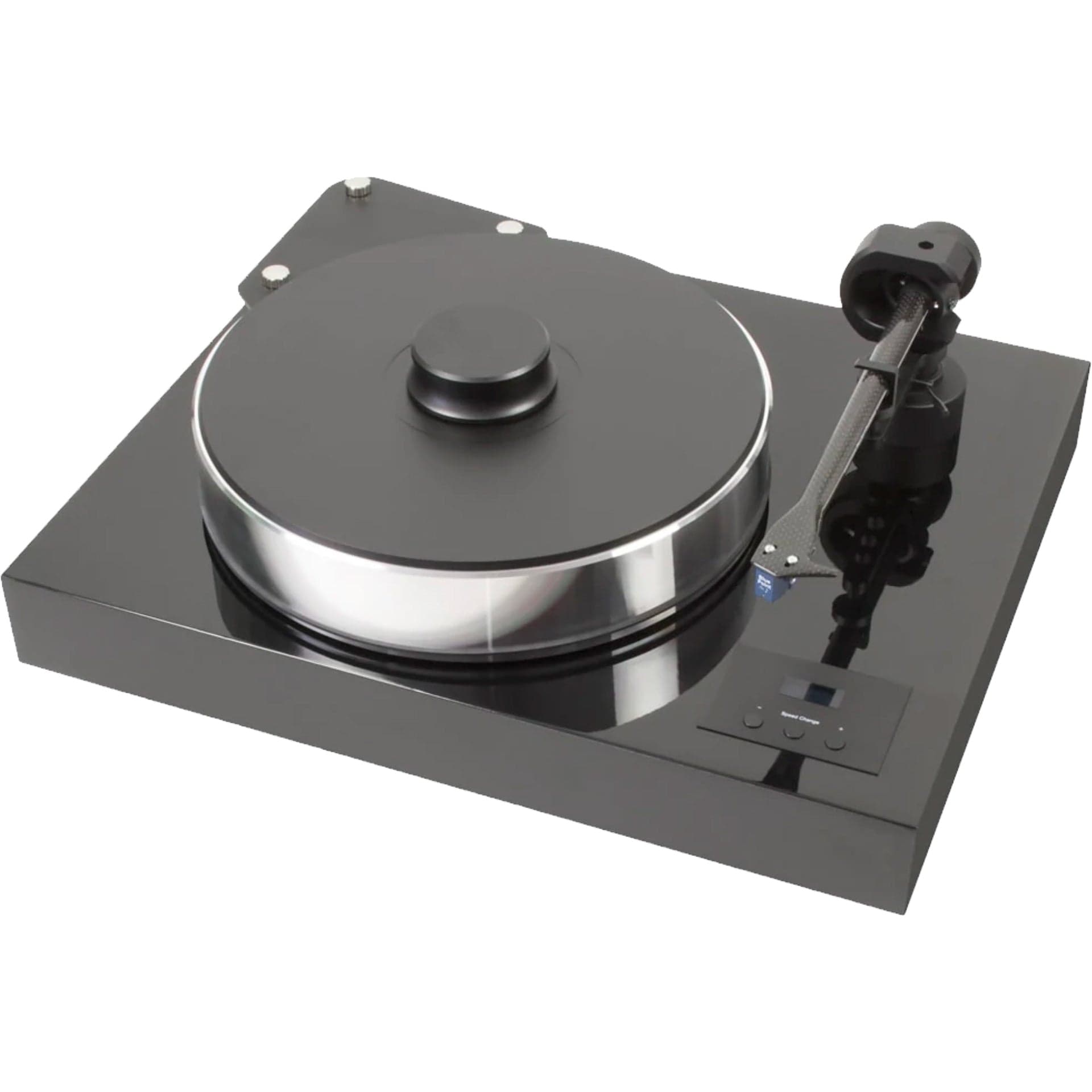

Pro-Ject Xtension 10 Evolution Turntable


  • Sale
  • $6,146.00
  • Regular price $6,819.00
  • 1 available

Australian warranty, Full support, Authorised reseller, Free shipping

Pro-Ject Xtension 10 Evolution Turntable

The Xtension 10 Evolution is a marvel of the elite turntable genre, with stunning audiophile features beyond it's modest price tag.

The result of the Xtension 10 Evolution's design is a unique combination of ‘mass loaded’ and ‘floating turntable’ principles.

Manufacturers Details:

Superlative vinyl performance in a more compact size!

The Xtension 10 chassis is made from MDF filled with metal sand, that gives high mass and is non-resonant. Magnetic feet, which decouple the main plinth from its base, are combined with a weighty 22 kg total turntable mass. With these two magnets located in the feet, the turntable is practically floating.The result is a unique combination of ‘mass loaded’ and ‘floating turntable’ design principles. Instead of the old standard adoption of pure metal used for the main platter, we’ve found a perfect alloy which we damped on the inner side with Sorbothane®. Additionally we’ve glued recycled Vinyl records to the top (which act as a perfect mat) and bake this ‘sandwich’ before precision balancing it. The final product subsequently benefits from a wonderfully resonance-free, heavy platter, that runs ultrasilently on an inverted ceramic ball bearing with magnetic suspension. The Pro-Ject 10” Evolution with its tonearm base also benefits from ‘high-mass’ technologies, and is isolated from the main board by a sheet of Sorbothane®. To use this tonearm with a wide range of top quality phono cartridges, from 4 to 14 Grams it comes with a set of 4 different Sorbothane®- damped counterweights.

Engineered With Care:

Quality build

The Pro-Ject Xtension 10 chassis is very unique in it's design. Made of high density MDF, the plinth is then filled with metal sand, allowing the base to have a high mass that is non-resonant.

Magnetic, floating feet decouple the main plinth from its base. This, combined with a weighty 22 kg total turntable mass result in a unique combination of ‘mass loaded’ and ‘floating turntable’ design principles.

The platter

Instead of a generic turntable design of pure aluminium or steel, we’ve found the perfect alloy for the for the main platter of the Pro-Ject Xtension 10 Evolution. Damped on the inner side with Sorbothane® to reduce vibrations, our design also pushes the envelope with the inclusion of an in-built recycled Vinyl mat on the surface.

The final product subsequently benefits from a wonderfully resonance-free, heavy platter, that runs silently on an inverted ceramic ball bearing with magnetic suspension and is ideal for coupling a record directly on its surface.

The 10" Evolution tonearm

The Pro-Ject 10” Evolution tonearm in stunningly designed. Featuring a ‘high-mass’ base that is isolated from the main board by a sheet of Sorbothane®.

To use this tonearm with a wide range of top quality phono cartridges, from 4 to 14 Grams, the Pro-Ject Xtension 10 Evolution comes with a set of 4 different Sorbothane®- damped counterweights.

We offer a premium 5pin > RCA unbalanced arm cable with all high-end turntables.

Key Features:

  • Super-heavy 22 kg belt drive turntable
  • Mass loaded magnetic floating subchassis
  • Precision balanced sandwich-platter
  • Inverted ceramic ball bearing with magnetic support
  • Heavy weight record clamp
  • Extremely low level of natural resonance
  • Perfect decoupling through magnetic feet
  • Electronic speed control 33/45/78 Upm
  • Tonearm 10cc Evolution made from carbon fibre
  • Inverted tonearm bearings (ABEC 7 quality)
  • Dust cover included

Specifications:

Speed: 33, 45, 78 (electronic speed change)
Principle: Belt drive
Platter: 10.3 kg/300 mm aluminium (TPE damped)
Main bearing: Inverted stainless steel with ceramic ball with antimagnetic support
Wow & flutter: ± 0.01% (max)
Speed variance: ± 0.09% (max)
Signal to Noise: 73 dB
Tonearm: 10” cc EVO, Carbon
Effective arm length: 254 mm
Effective tonearm mass: 8.5g
Overhang: 16.0 mm
Tracking force range: 10 - 30 mN
Cartridge weight range: 4 - 14 g (4 different counterweights included)
Included accessory: Power supply, dust cover
Power consumption: 2 Watts
Dimensions: 480 x 235 x 400 mm (WxHxD)
Weight: 26 kg net
