Pro-Ject MC Step Up Box S3 Step-up Transformer

Pro-Ject MC Step Up Box S3 Step-up Transformer

Name: Pro-Ject MC Step Up Box S3 Step-up Transformer
Brand: Pro-Ject
Price: 749.0 AUD
Availability: InStock

New

The output level of MC cartridges is very low, compared to a MM (Moving Magnet) one it is about 10x lower, which means, you need a special phono amplifier. A higher gain is needed to utilise the signals, which can result in a higher noise level and distortion. The MC Step Up Box S3 is the solution.

$749.00

Colour:

Black

Variant

Quantity:

Specifications

Frequency response 10Hz - 55kHz	+/- 1dB
Gain at 10-40 Ohm	21dB at 1kHz
Transformation ratio	1:16
Gain at 40-150 Ohm	24dB at 1kHz
Recommended load	47 kOhm / 100pF
Input MC	1x pair RCA phono sockets
Output	1x pair RCA phono sockets
Dimensions WxHxD	206 x 65 x 153 (164 with sockets) mm
Weight	940g

Warranty

Pro-Ject Audio turntables and electronics are covered by a 2 year warranty from date of purchase.

Speakers are covered by a 5 year warranty from date of purchase.

Vacuum tubes used within components (such as the Tube Box S2) are covered for 90 days from date of purchase.

Shipping & Returns

We offer free shipping on any product over $99. For full details please see our Shipping Policy.

Our returns policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately, we may not be able to offer you a refund or exchange. For full details please see our Refund Policy.

Pro-Ject MC Step Up Box S3 Step-up Transformer

$749.00

Key features

Dual mono design principle

Gold-plated RCA terminals

Superior sound quality

Low Noise Design

Handmade in Europe

TELL ME MORE ABOUT THE

Pro-Ject MC Step Up Box S3 Step-up Transformer

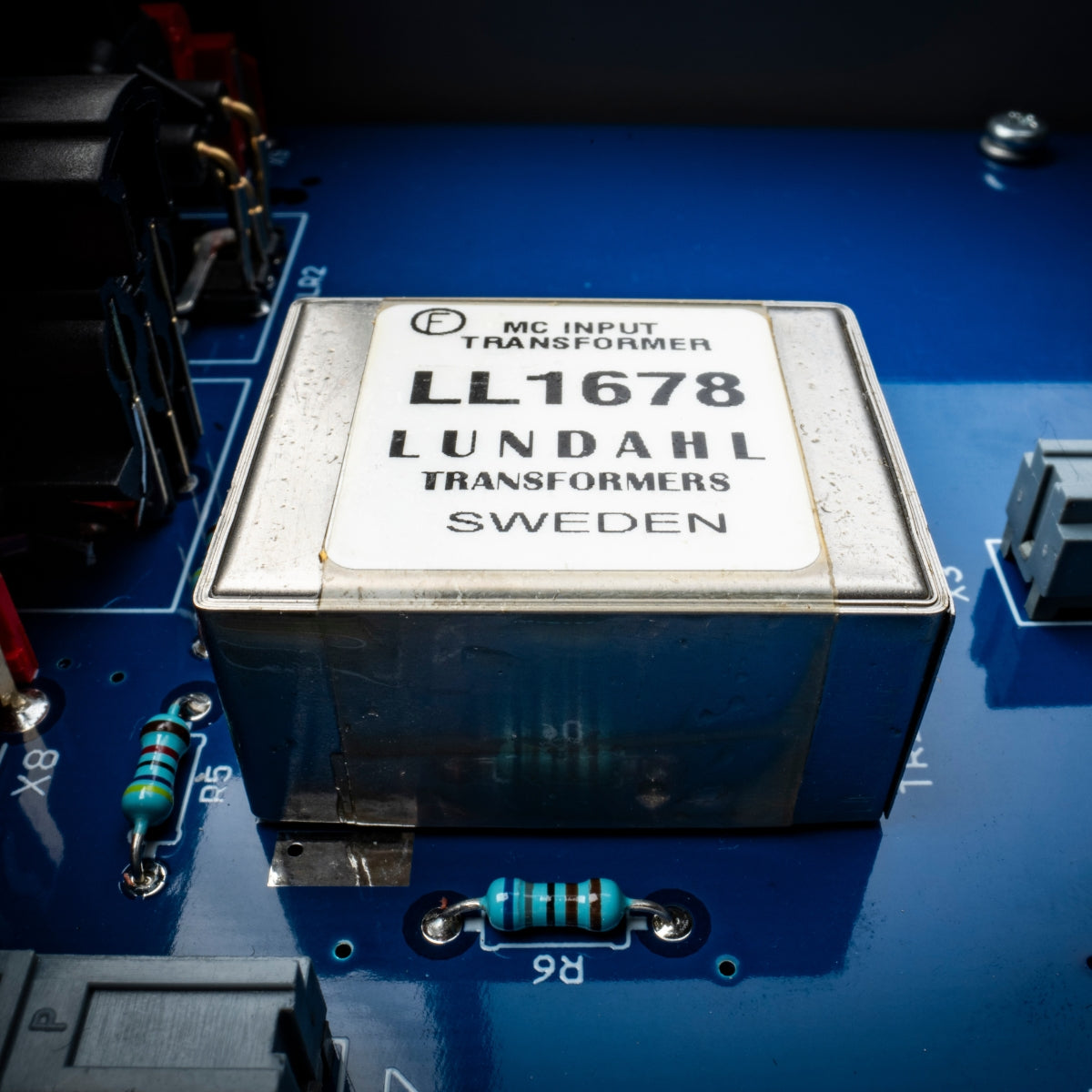

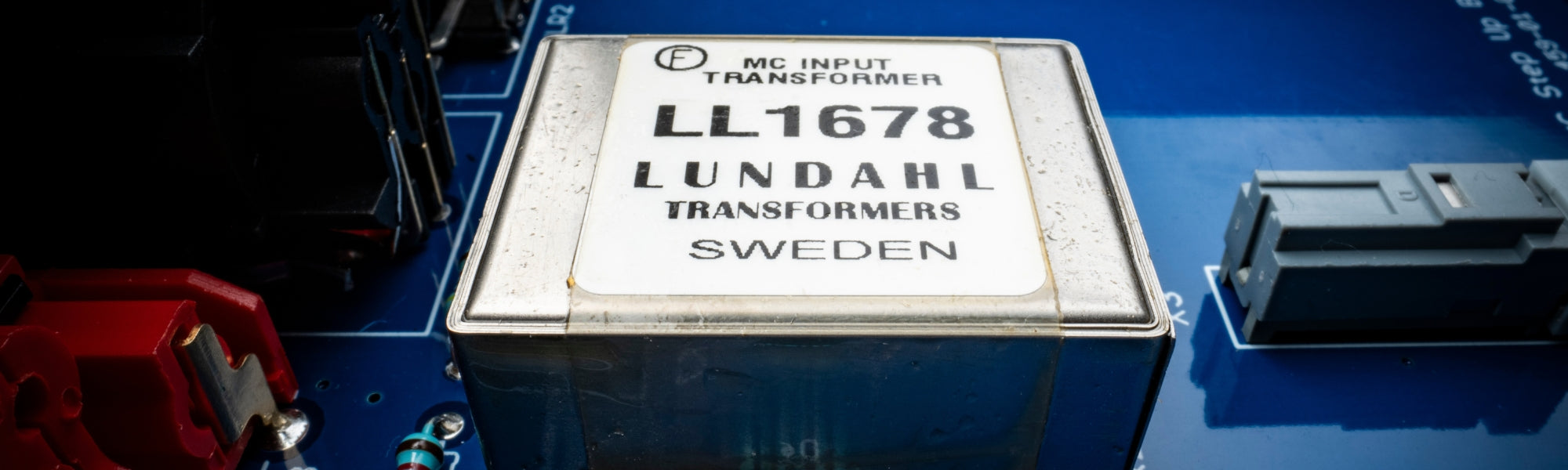

The MC Step Up Box S3 works very differently compared to a phono preamplifier. The windings ratio of the transformer determines the gain factor. As it works completely passive and no external power is needed, no extra power can be produced. The increase in voltage is achieved by a coresponding decrease is current. As there is no amplification, the MC Step Up Box S3 has a remarkable noise performance and a very low level of distortion. The sound with a Step-Up Transformer will be more lively, dynamic and natural.

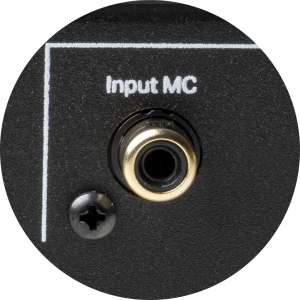

Gold-plated Premium RCA terminals

Gold plated in- and output RCA terminals for optimum signal transmission.

Solid full aluminium housing

Due to the timeless design & rigid aluminium casework, the MC Step Up Box S3 is built for eternity.

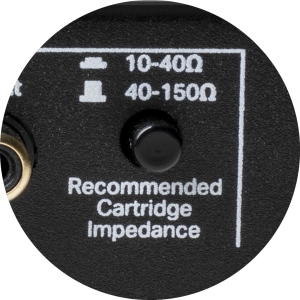

Cartridge impedance setting

Cartridge impedance matching button on the back. Two different settings available: 10-40Ω & 40-150Ω

Made in Europe

The new Step Up Box S3 is carefully designed and handmade in Europe.
