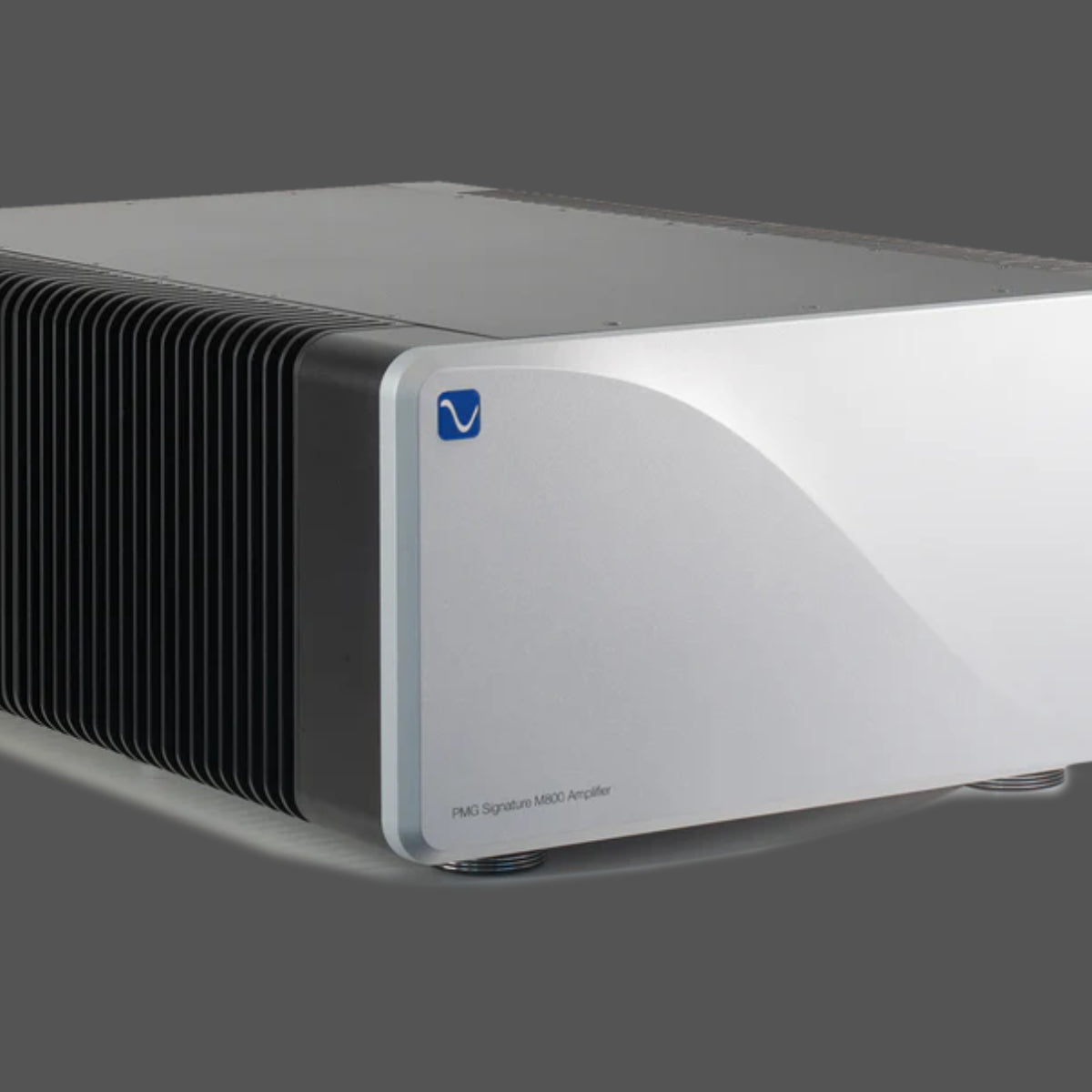

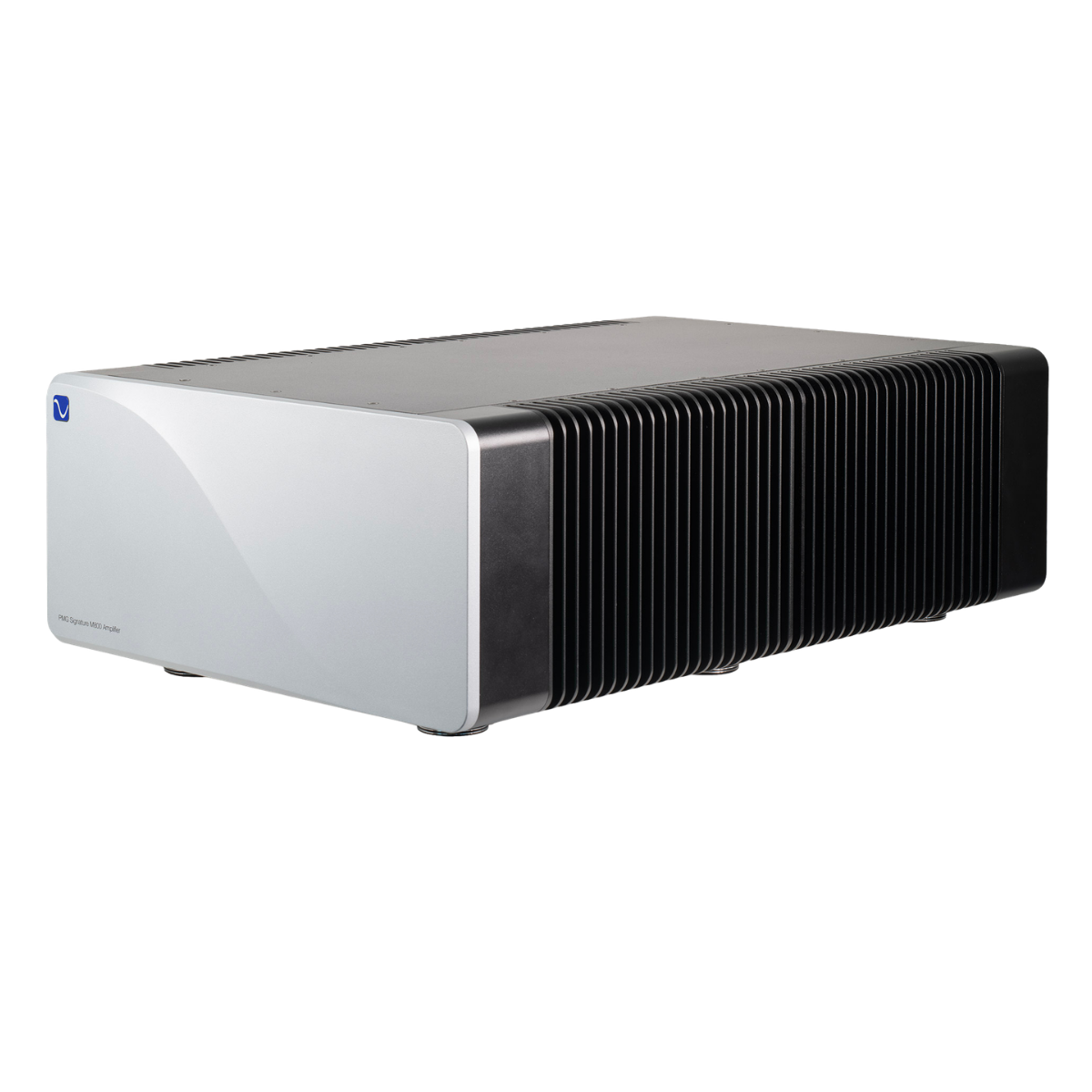

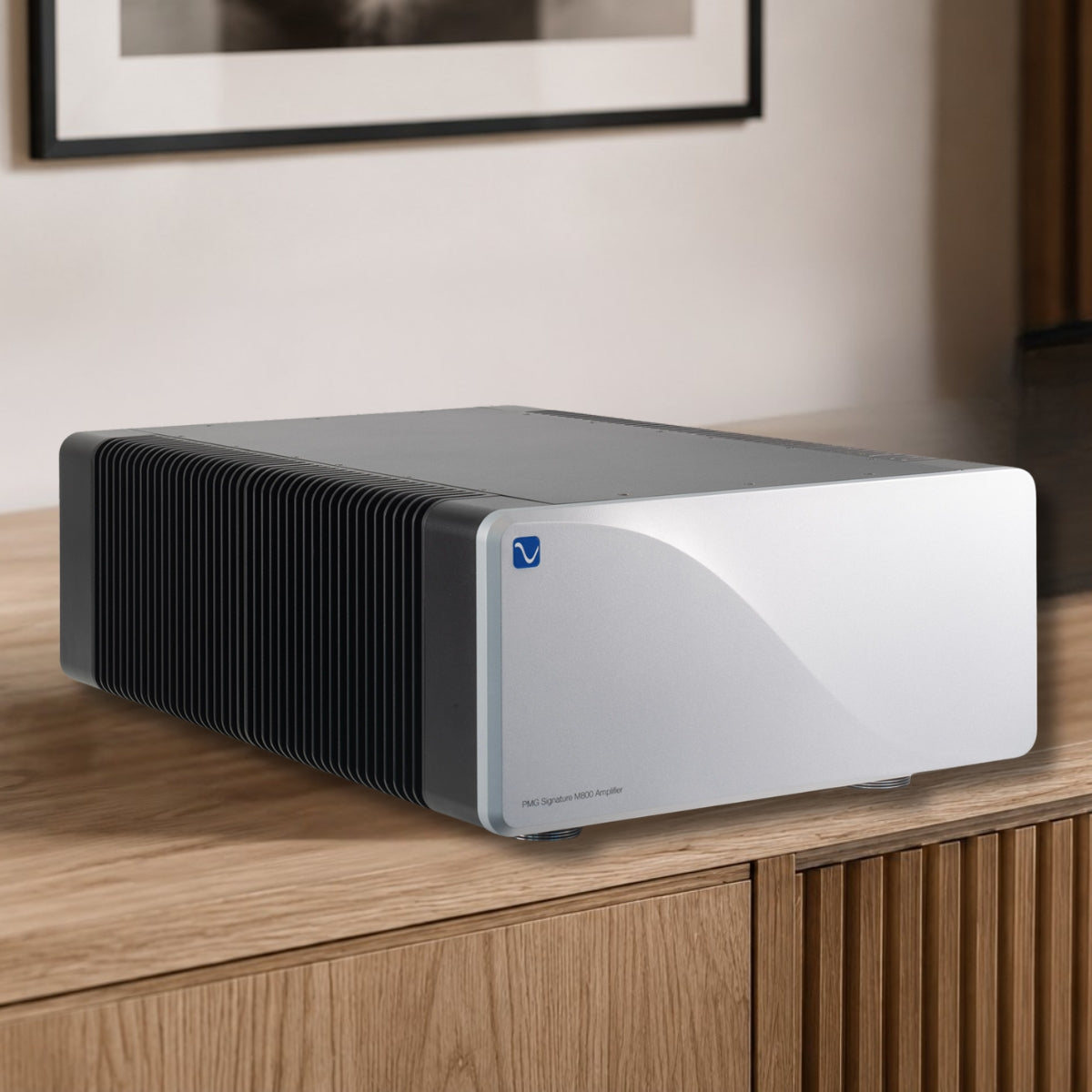

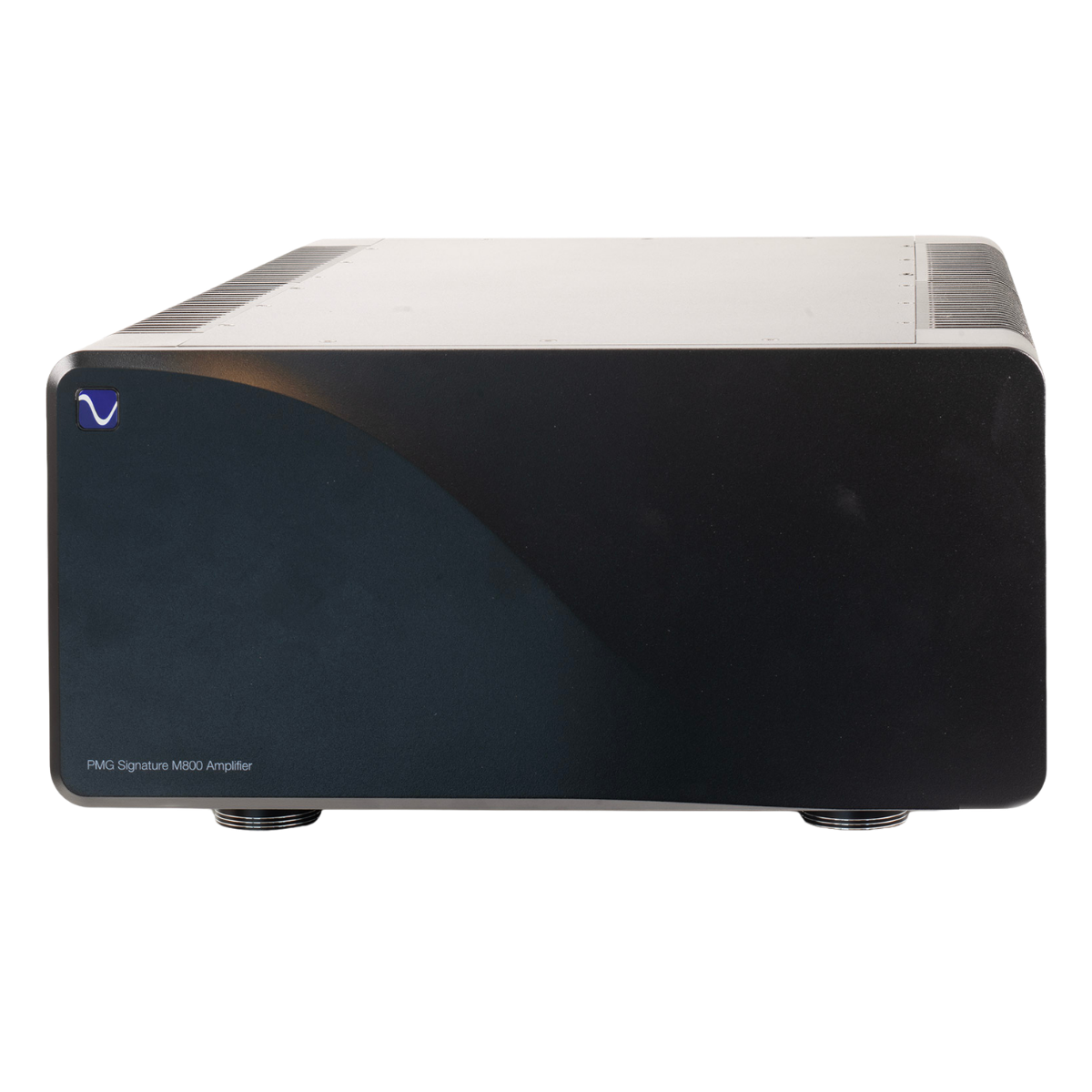

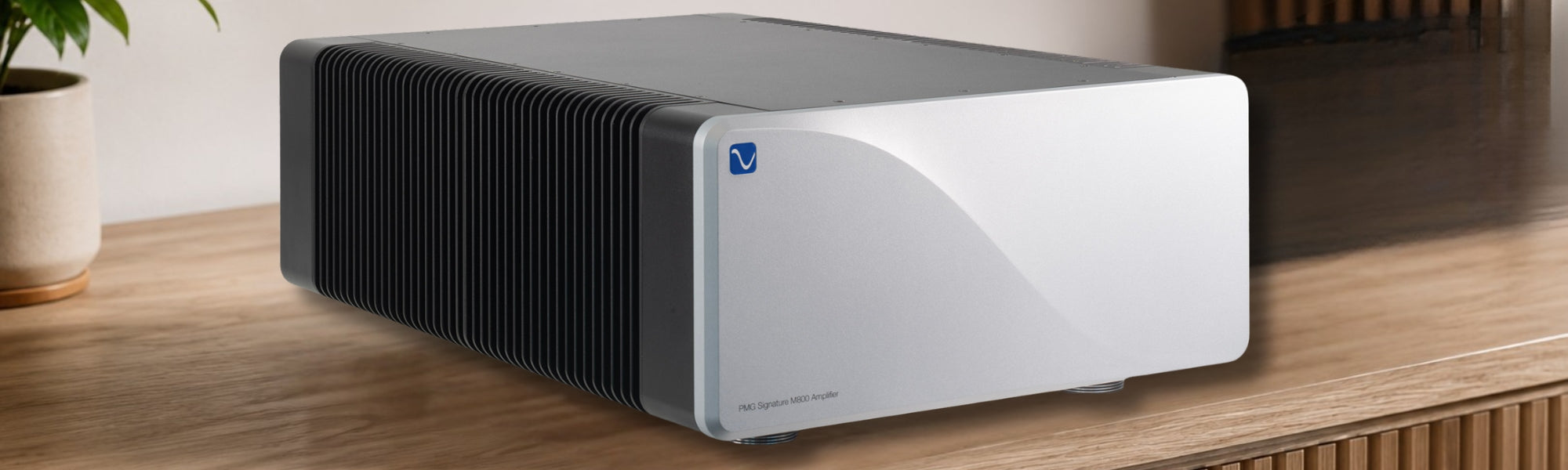

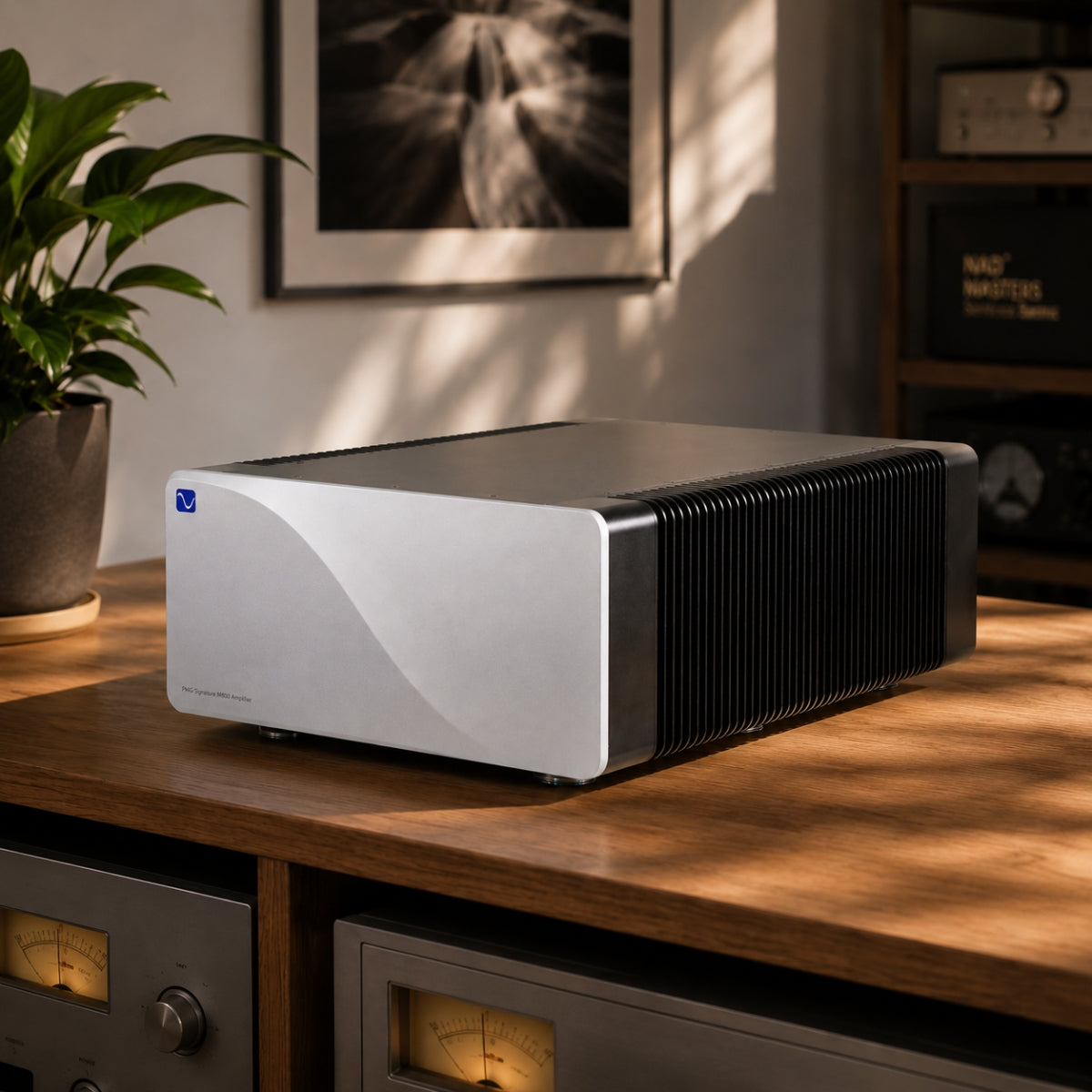

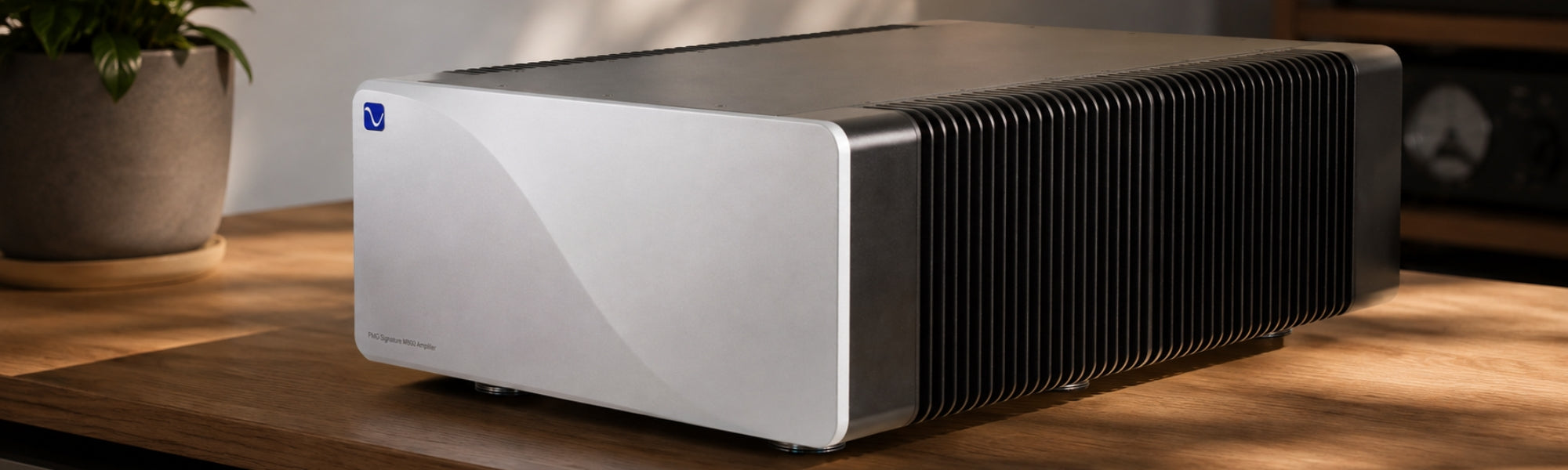

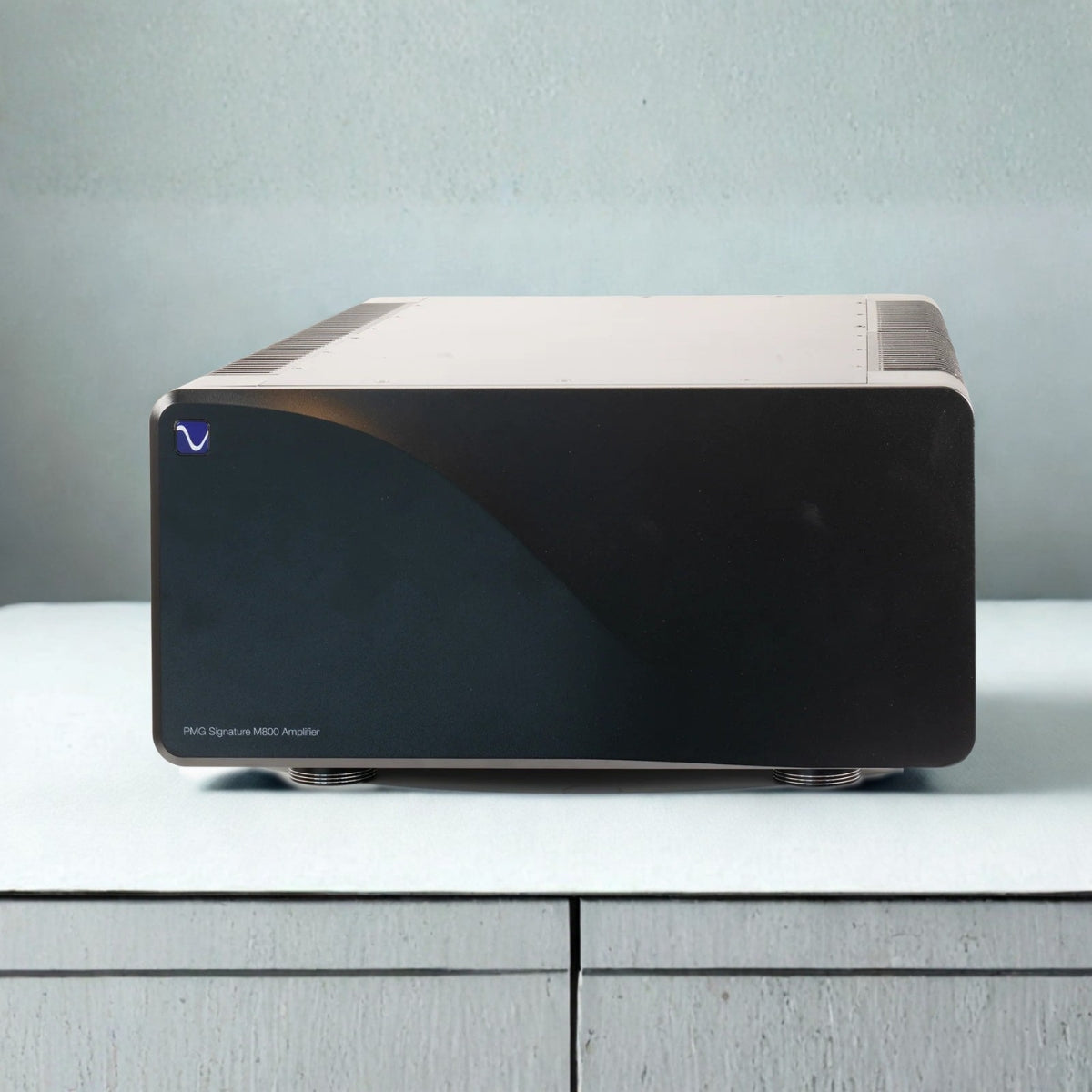

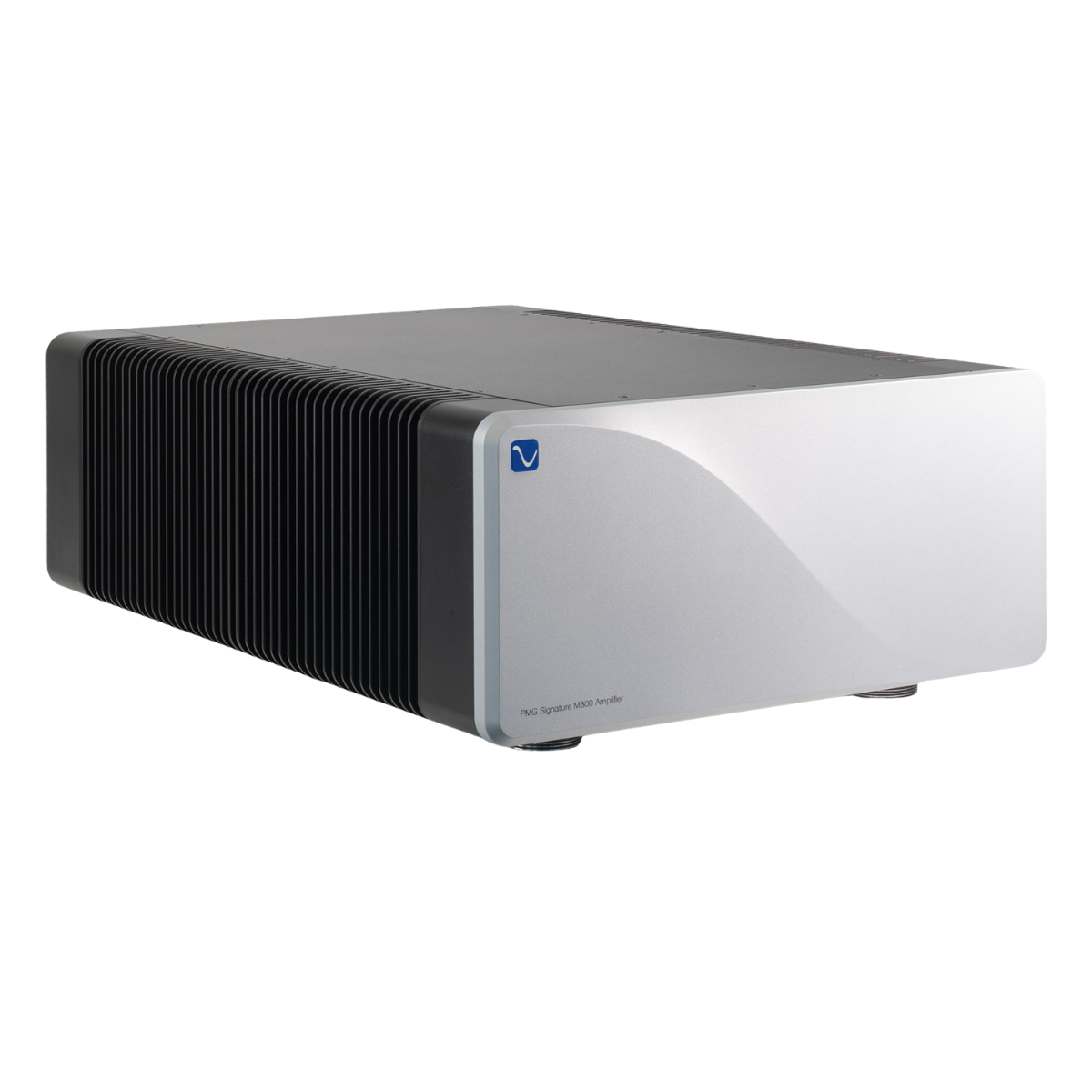

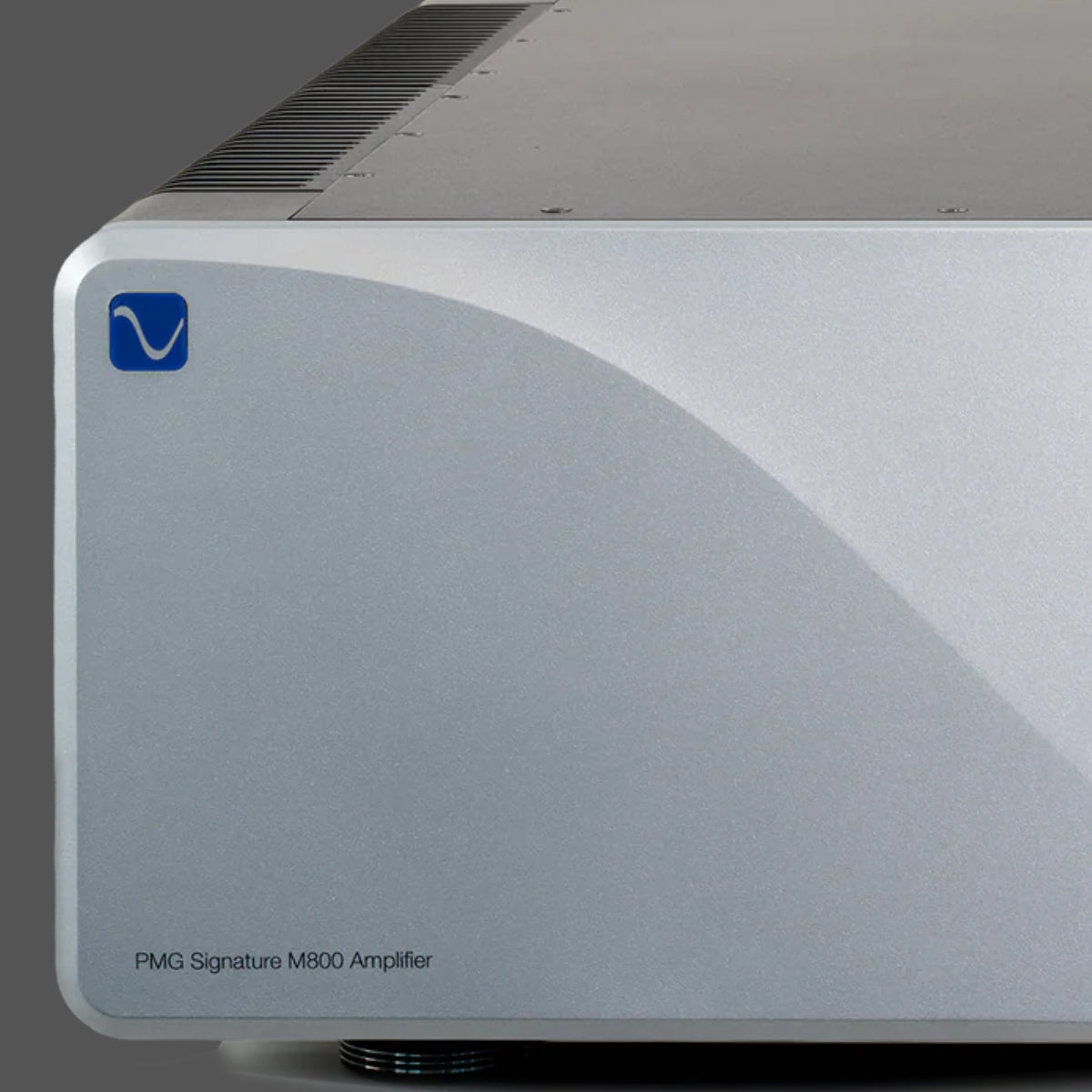

PMG M800 Monoblock Signature Power Amplifier
Specifications
| Input Power | Auto Voltage: 120VAC or 230VAC, 50 or 60 Hz |
| Power Consumption | Standby (Ready): <2W | Idle: 360W | 25W/4Ω: 520W |
| Fuses | No user serviceable fuses |

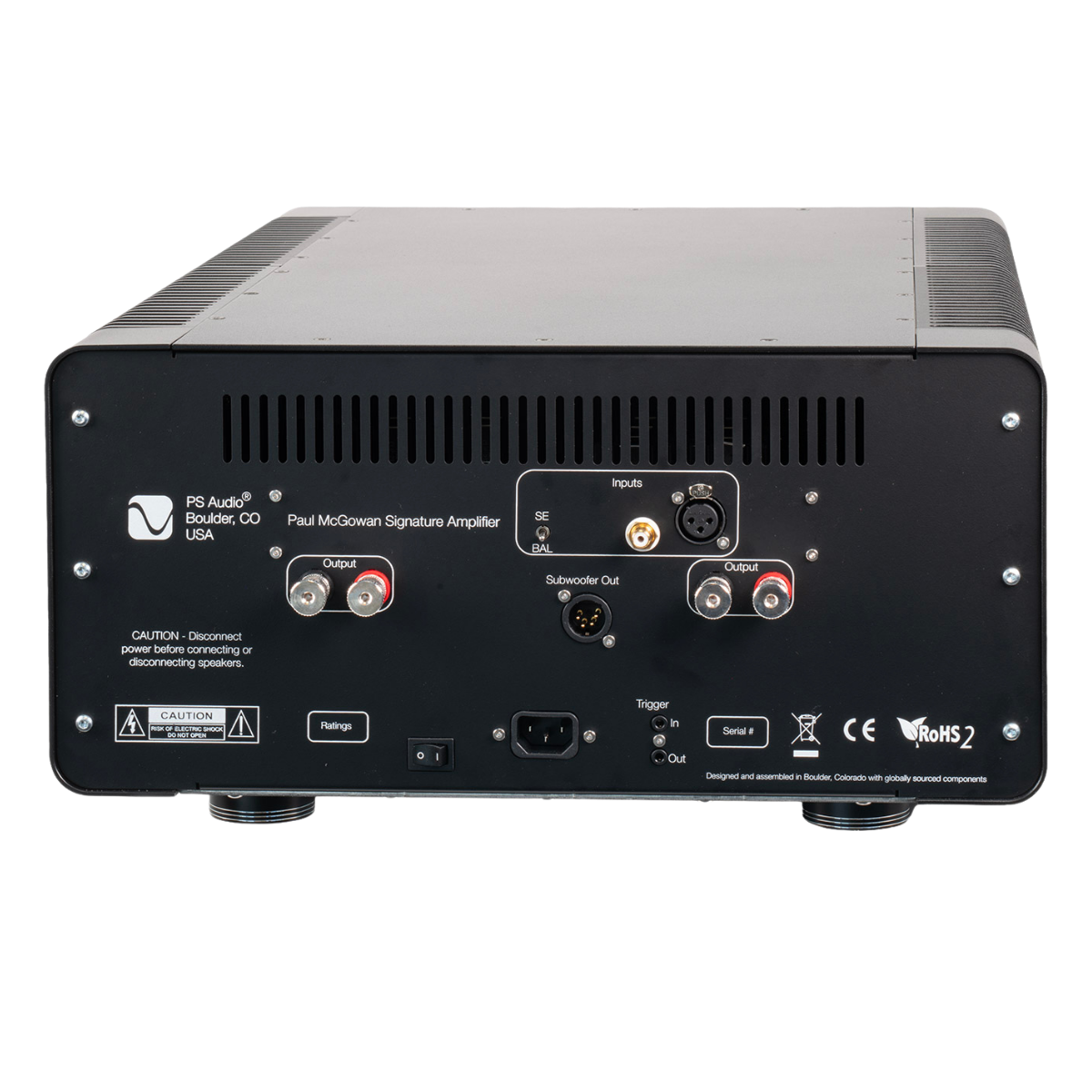

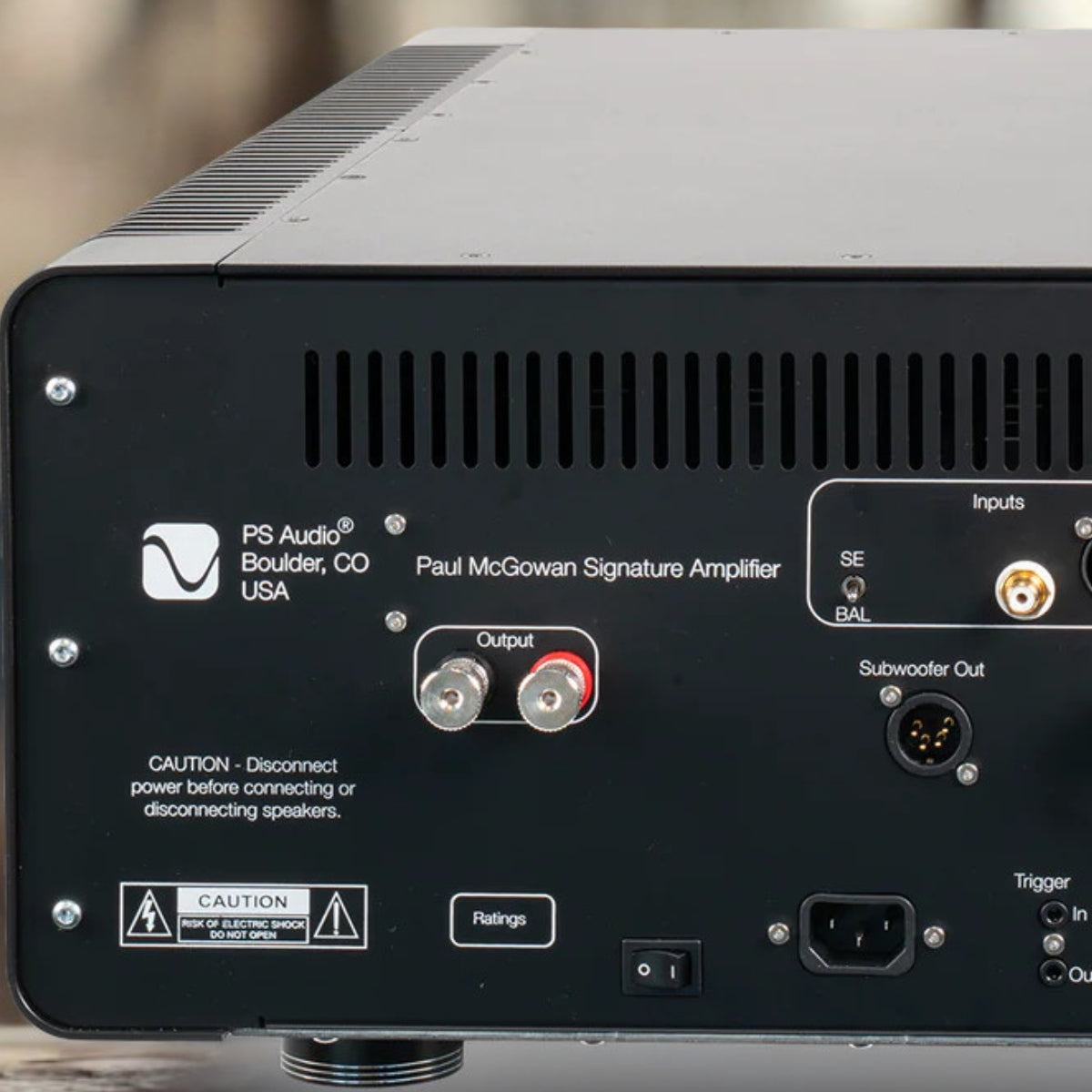

| Audio Inputs | RCA (Single-ended): 1 pair |
| XLR (Balanced): 1 pair | |
| Speaker Outputs | Silver Plated Binding Posts: 2 pair |
| Trigger | Input: 3.5mm, 5–15VDC |
| Output: 3.5mm, 12VDC | |
| Gain | 26.2 dB |
| Sensitivity | 2.8V |
| Power Output | 400W into 8Ω, 800W into 4Ω, 1200W into 2Ω (1kHz, <1% THD) |
| Class A Power Output | 60W into 8Ω |
| Frequency Response | <10Hz – 80kHz (±0.25dB) |
| Input Impedance | 100kΩ Single-ended |
| 200kΩ Balanced | |
| Bandwidth | >500kHz |
| THD | <0.002% typical (20Hz–20kHz, 1W/8Ω) |
| Damping Factor | >300 at 8Ω (20Hz–1kHz) |
| Unit Weight | 95.7 lbs / 43.4 kg |
| Unit Dimensions | 26.75 in L × 17.5 in W × 8 in H (679.5 × 444.5 × 203.2 mm) |
| With feet & binding posts: 27.5 in L × 17.5 in W × 8.75 in H | |
| Shipping Weight | 119.2 lbs / 54.1 kg (per unit) |
| Shipping Dimensions | 34.4 × 23.1 × 14.9 in / 873.8 × 586.7 × 378.5 mm (2 units) |
Warranty
Shipping & Returns
We offer free shipping on any order over $150. For full details please see our Shipping Policy.
Our returns policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately, we may not be able to offer you a refund or exchange. For full details please see our Refund Policy.

TELL ME MORE ABOUT THE
PMG M800 Monoblock Signature Power Amplifier

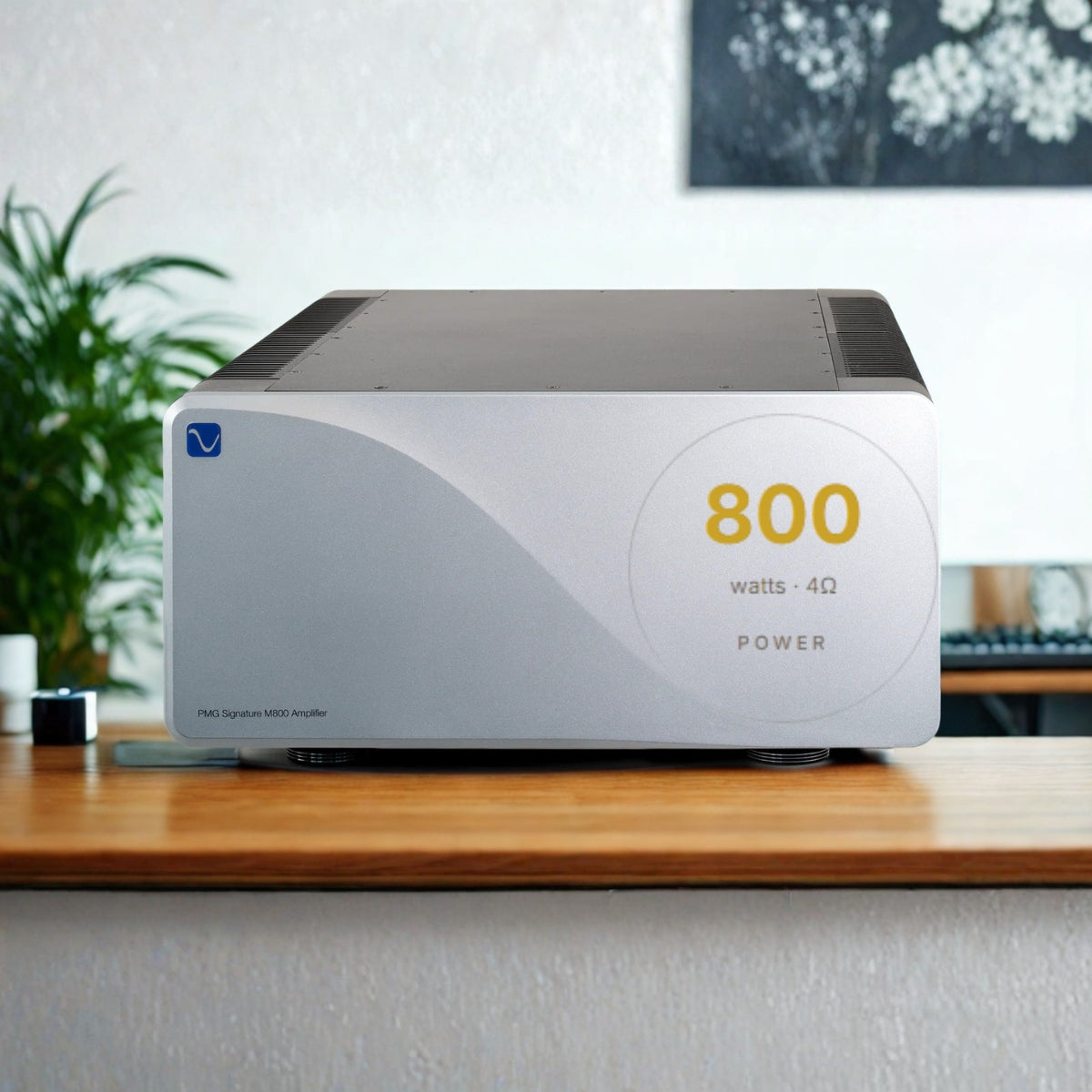

Massive 800-Watt Power with Effortless Control

PMG M800 50 Watts of Pure Class A Bias

Ultra-Fast Performance with >200 V/µs Slew Rate

Active Power Supply & Insta-ntaneous Power Delivery

Low-Feedback Design for Natural, Transparent Sound

Reference-Level Build Quality & Loudspeaker Compatibility
