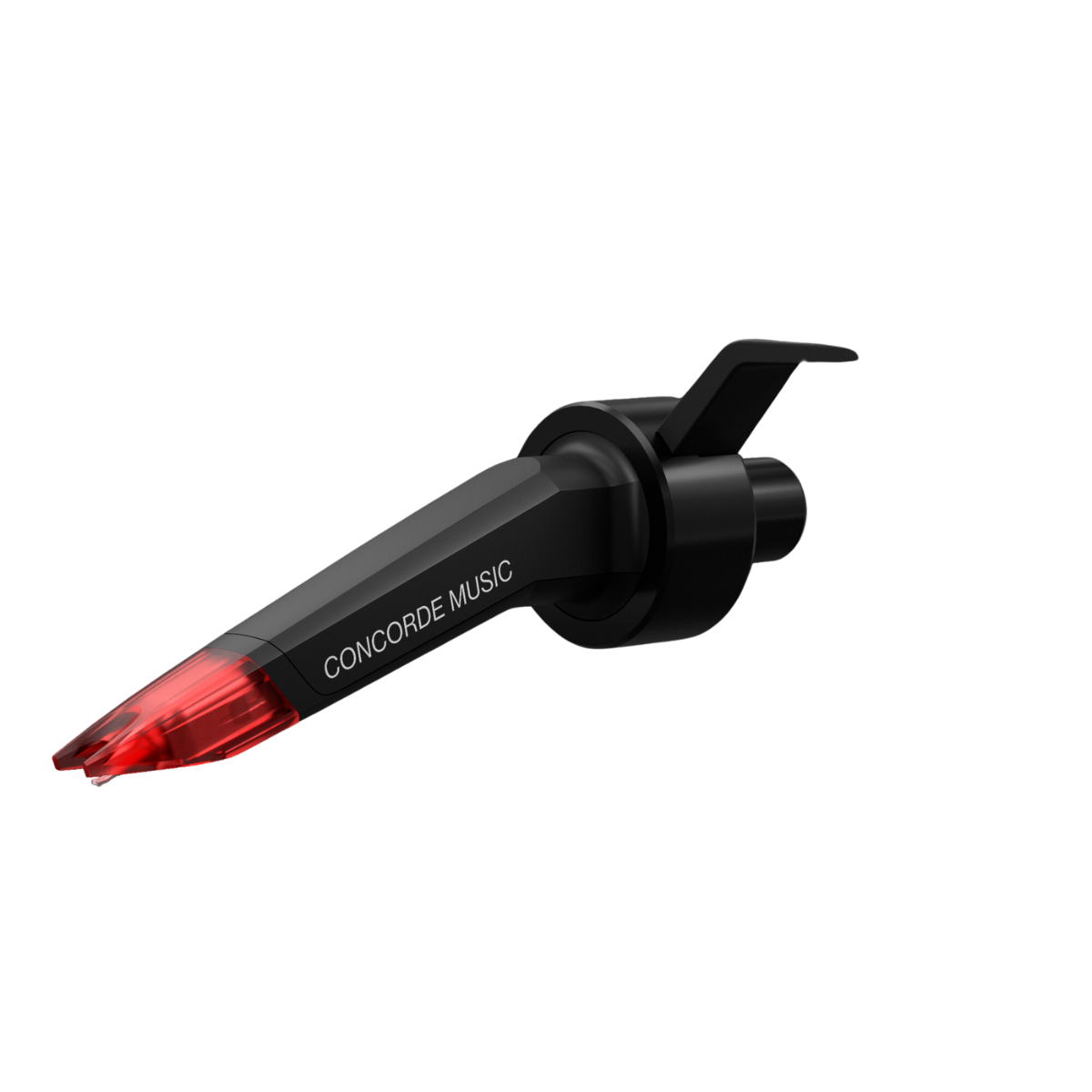

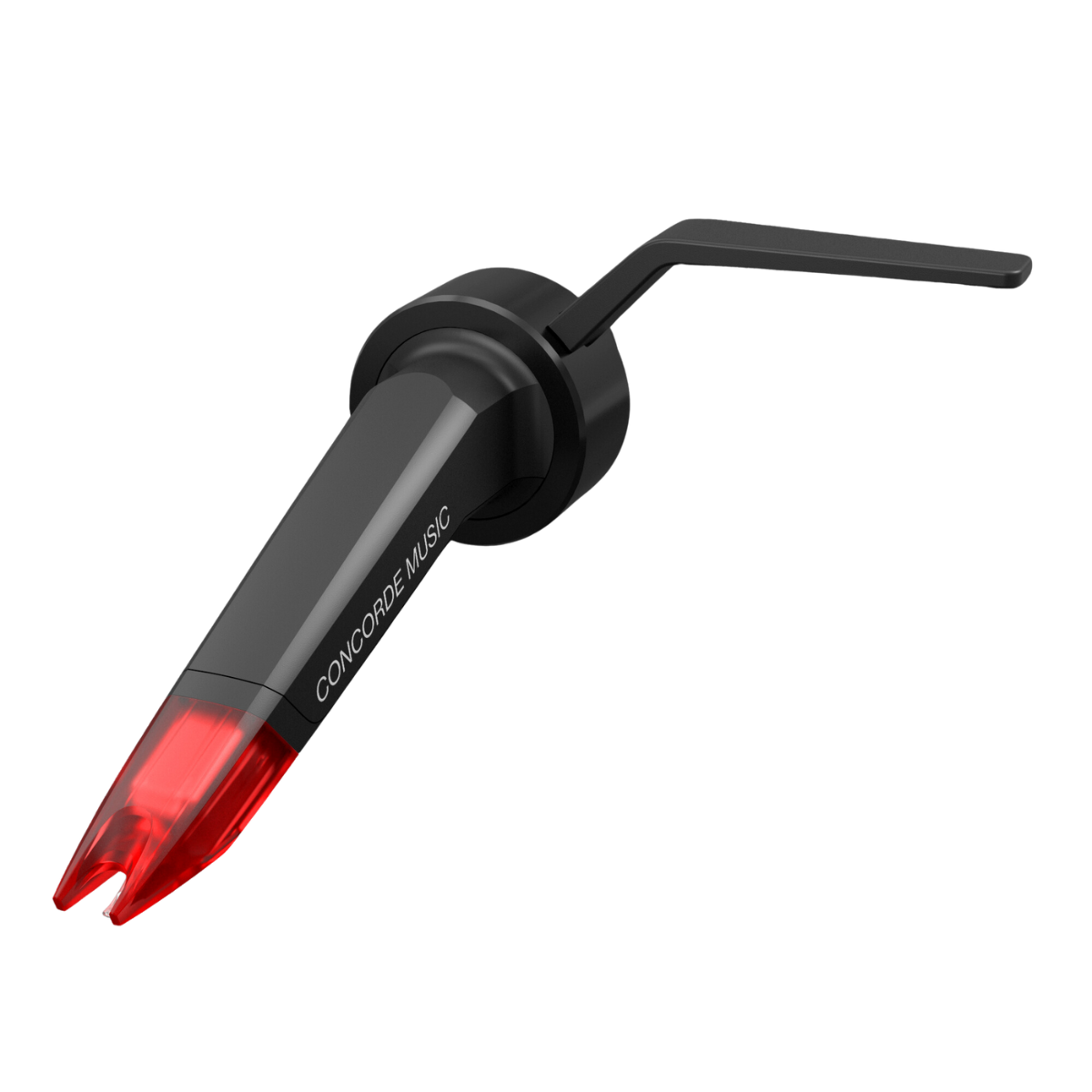

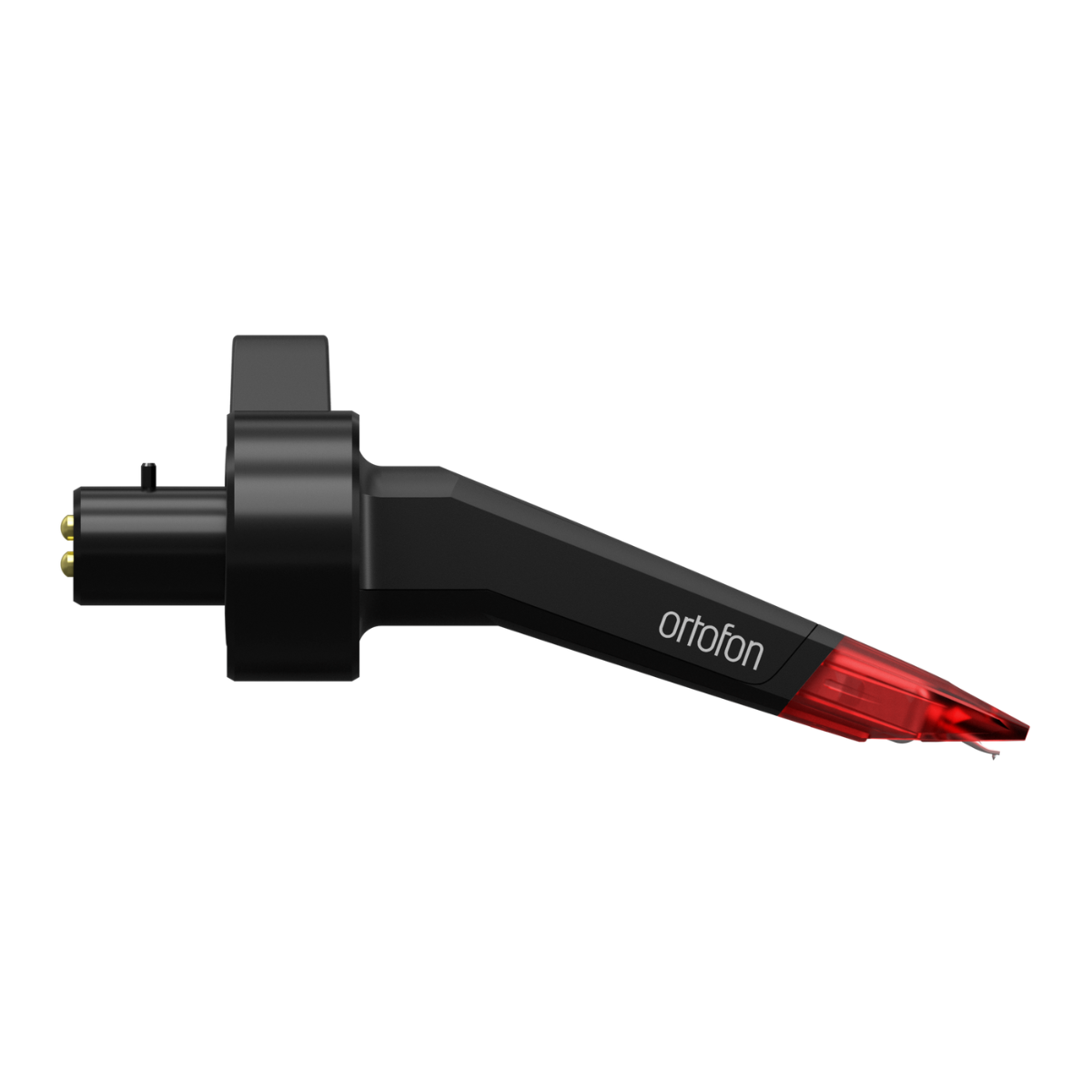

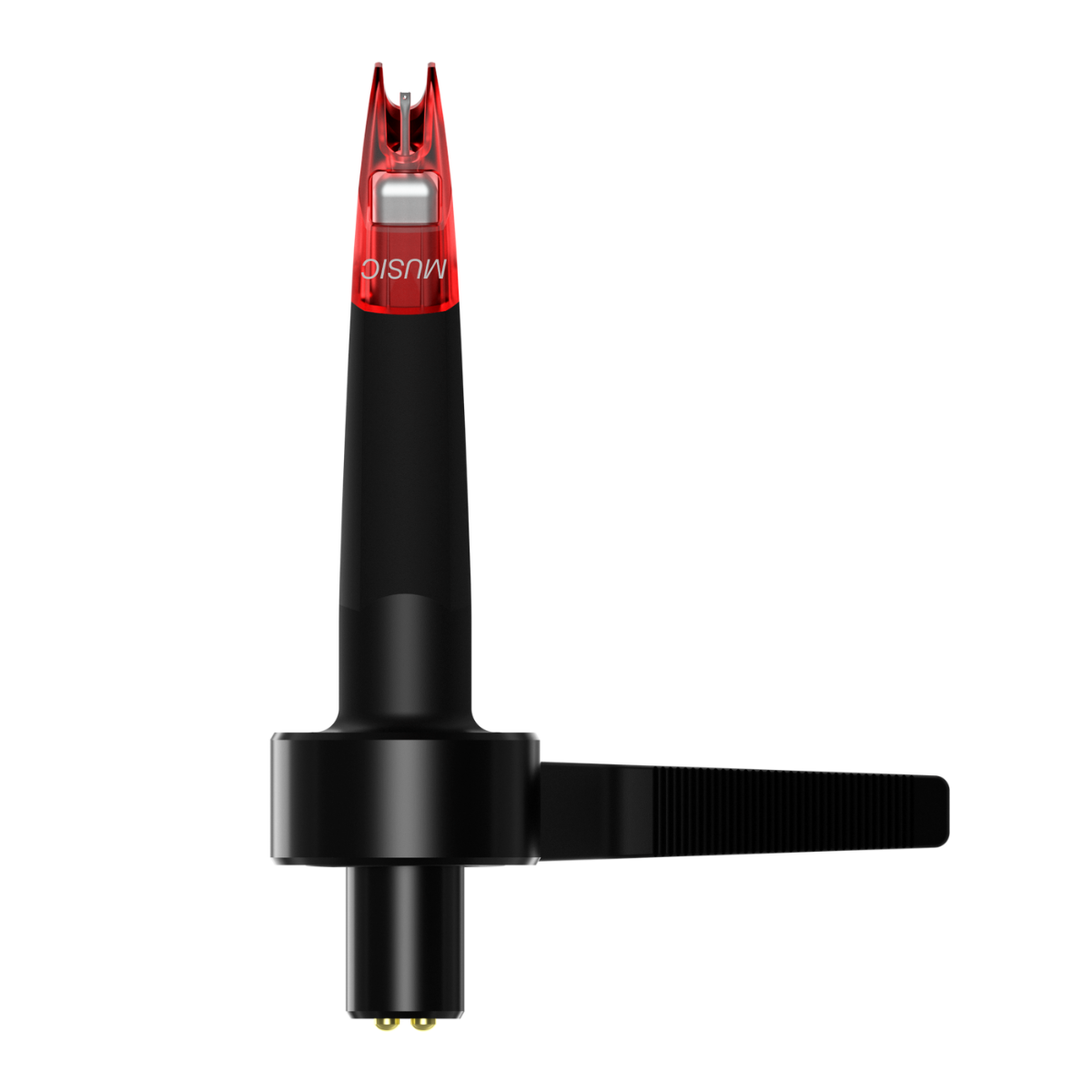

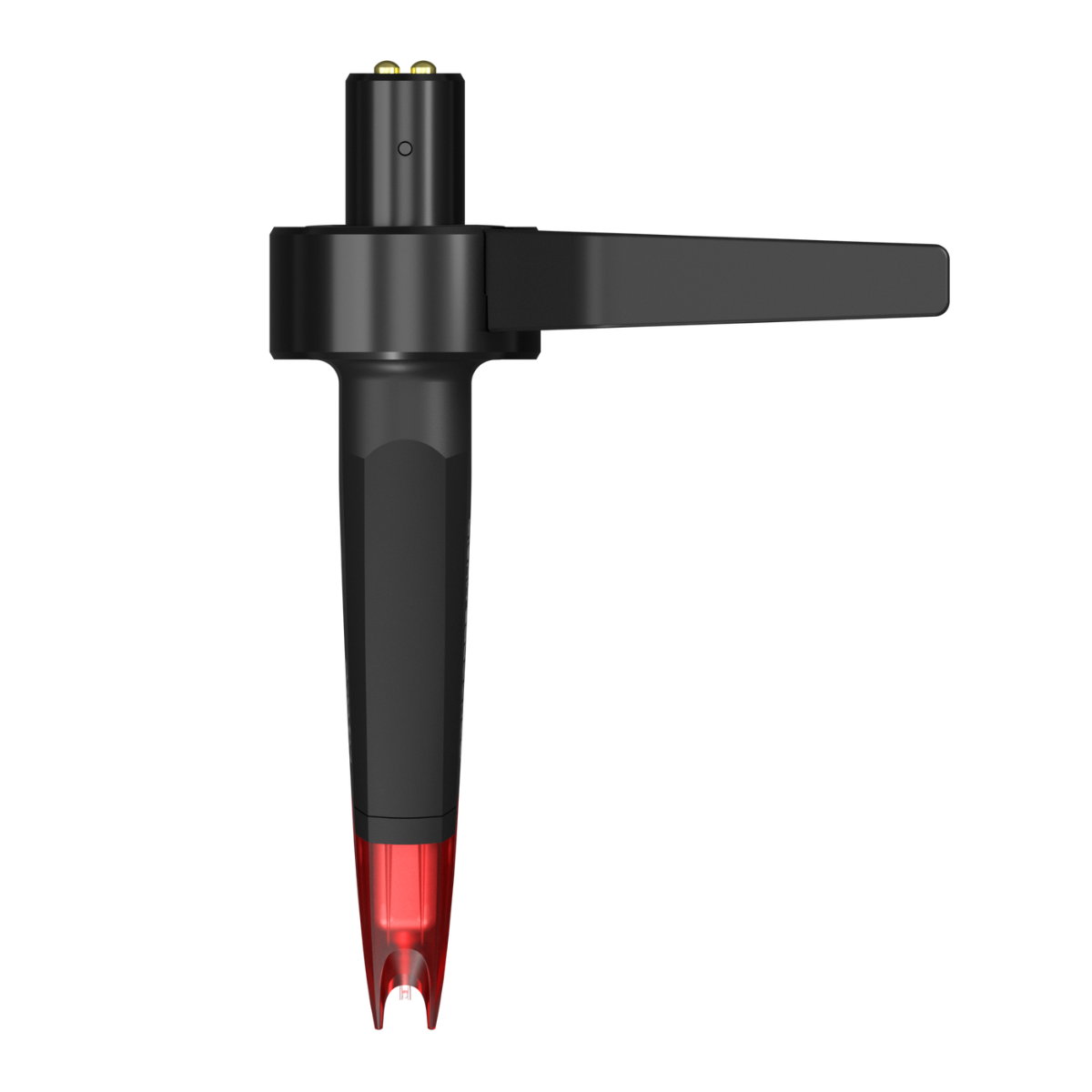

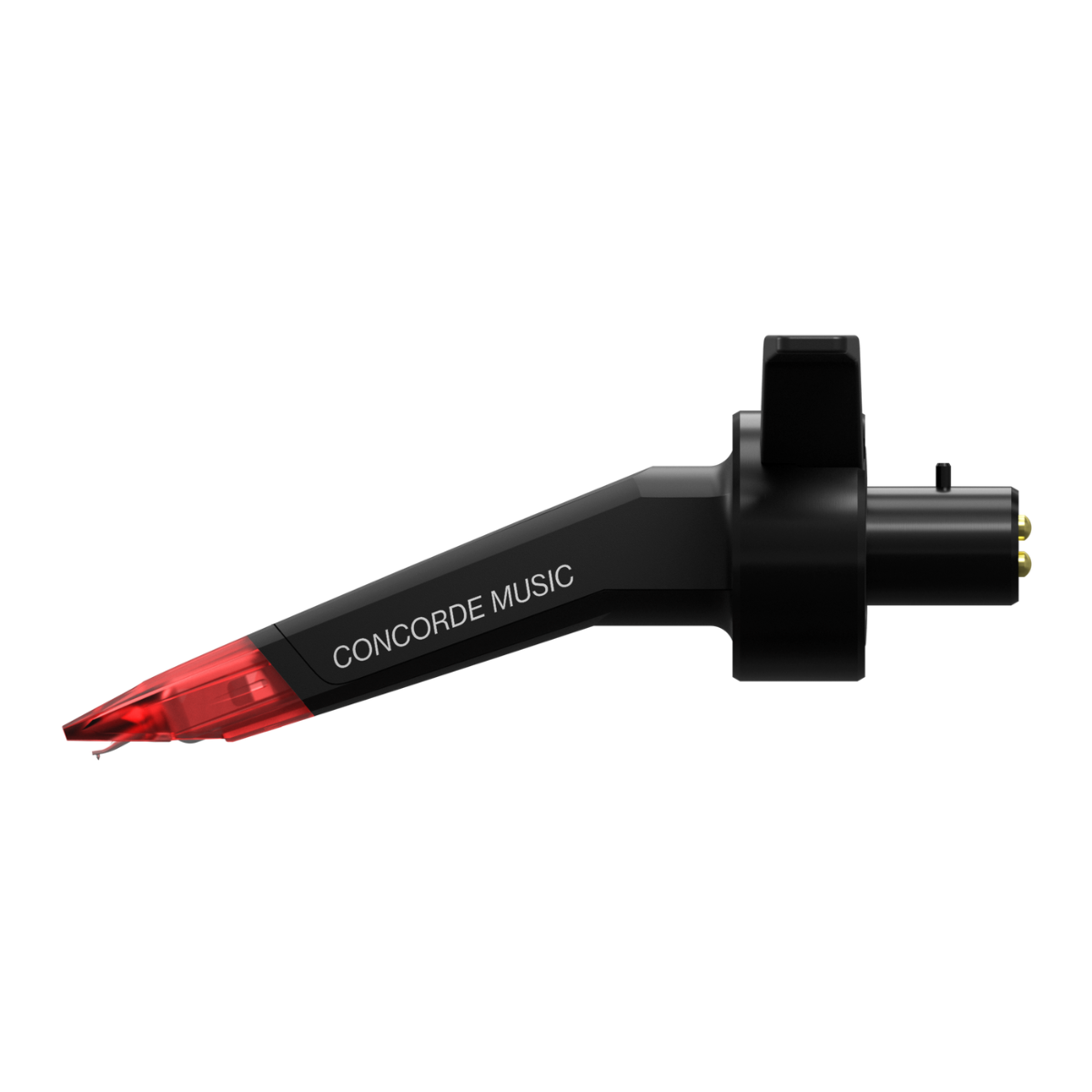

Ortofon Concorde Music Red Cartridge
Specifications
Channel balance at 1 kHz | 1.5 dB |
Output voltage at 1 kHz, 5cm/sec | 6mV |
Channel seperation at 1 kHz | 22 dB |
Channel seperation at 15 kHz | 15 dB |
Frequency response 20 Hz - 20 kHz | +3 / -1 dB |
Tracking ability at 315Hz at recommended tracking force | 80 µm |
Compliance, dynamic, lateral | 15 µm/mN |
Stylus type | Elliptical diamond on Aluminium cantilever |
Stylus tip radius | r/R 8/18 µm |
Tracking force, recommended | 1.8 g |
Tracking angle | 20° |
Internal impedance, DC resistance | 1.27 kΩ |
Cartridge colour | Black/Red |
Cartridge weight | 18 g |
Recommended load resistance | 47 kΩ |
Internal inductance | 815 mH |
Recommended load capacitance | 150-300 pF |
Warranty
Shipping & Returns
We offer free shipping on any order over $150. For full details please see our Shipping Policy.
Our returns policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately, we may not be able to offer you a refund or exchange. For full details please see our Refund Policy.
Ortofon Concorde Music Red Cartridge
Sale price$269.00
Regular price$269.00 (/)
TELL ME MORE ABOUT THE
Ortofon Concorde Music Red Cartridge
Iconic design
Stylus
Rubber suspension
Coil system
Compatibility
