Nordost QNET Network Switch
Specifications
Type: | Layer 2 unmanaged switch |
Number of ports: | 5 |
Ports capability: | Ports 1, 2, and 3 are 1000BASE-T/100BASE-TX capable with auto-negotiation and auto-MDI/MDI-X support. Ports 4 and 5 are 100BASE-TX full duplex only. |
Connectors: | 8P8C (RJ45) |
DC Power Input: | 9V/1.2A |
Weight: | 880g |
Dimensions: | 165mm D x 34.25mm H |
Warranty: | 2 Years |
Warranty
Shipping & Returns
We offer free shipping on any order over $150. For full details please see our Shipping Policy.
Our returns policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately, we may not be able to offer you a refund or exchange. For full details please see our Refund Policy.
Nordost QNET Network Switch
NOTE: This product has a typical lead time of 2-4 weeks.
QRT – AUDIO ENHANCERS
QRT products are designed to improve the performance of your system. Each product has its own unique objective, whether that be alleviating the impact of poor quality AC or DC power, providing proper grounding, optimising data transfer for audio applications, or synchronising electromechanical resonances. Regardless of their function, Nordost QRT products make an immediate and distinct impact on audio systems.
The effects are cumulative and best heard when QRT products are used as a system. When arranged correctly, the effects include a lower noise floor, increased image depth with tighter focus, wider soundstage, as well as improved overtones, pacing, dynamic range and musical expression.
Manufacturer's Details:
The QNET is a layer-2, five-port Ethernet switch that has been specifically designed with audio performance in mind.
Compared to other audiophile network switches currently found on the market, which are typically standard switches with a simple upgrade to either the power supply or oscillators, the QNET is completely redesigned from the ground up. Every aspect of this product, from part to placement, was made to perfect the transmission and receival of high-speed audio signals, while achieving extremely low noise operation.
Internally, the QNET uses a high speed, multi-layered, impedance-controlled layout, which optimises signal routes, minimising reflections, interference, and crosstalk. It also boasts an extremely low-noise, stable oscillator for the main clock of the device, which allows for minimal jitter and phase noise. It is equipped with six dedicated power supplies, which provide unencumbered current to all parts of the switch, while minimising noise cross-contamination and ensuring clean, interference-free operation.
Externally, the QNET is manufactured using an extremely durable aluminium housing. This housing not only acts as a heat sink and shield for the device, but also provides physical separation for the five, independent ports, each accommodating an 8P8C (RJ45) connector. The physical separation of each of these ports is a critical and unique design element, ensuring minimal crosstalk and interference within the device.
Each port on the QNET is optimised for its application. Three of the five ports are auto-negotiated 1000BASE-T (1 Gbps) capable, which should be used for the router and other generic network devices. The remaining two ports are fixed to 100BASE-TX (100 Mbps), a speed at which internal noise reduction is possible, making these ports best used for primary audio servers/players or external media sources.
The QNET is provided with its own DC power supply. However, to achieve the best results, the QNET should be powered by Nordost’s QSOURCE Linear Power Supply and connected with Nordost’s award-winning Ethernet Cables.
Whether you stream music and/or video from a local server, a NAS drive, or from the internet, upgrading your digitally-run system with Nordost’s QNET will make all the difference. This premium network switch will deliver enviable dynamic range, extension, and clarity to your system. As a result, the voices and instruments in your music will stand out against a surprisingly black background, giving you the fluid, life-like performance that you are looking for from your digital experience.

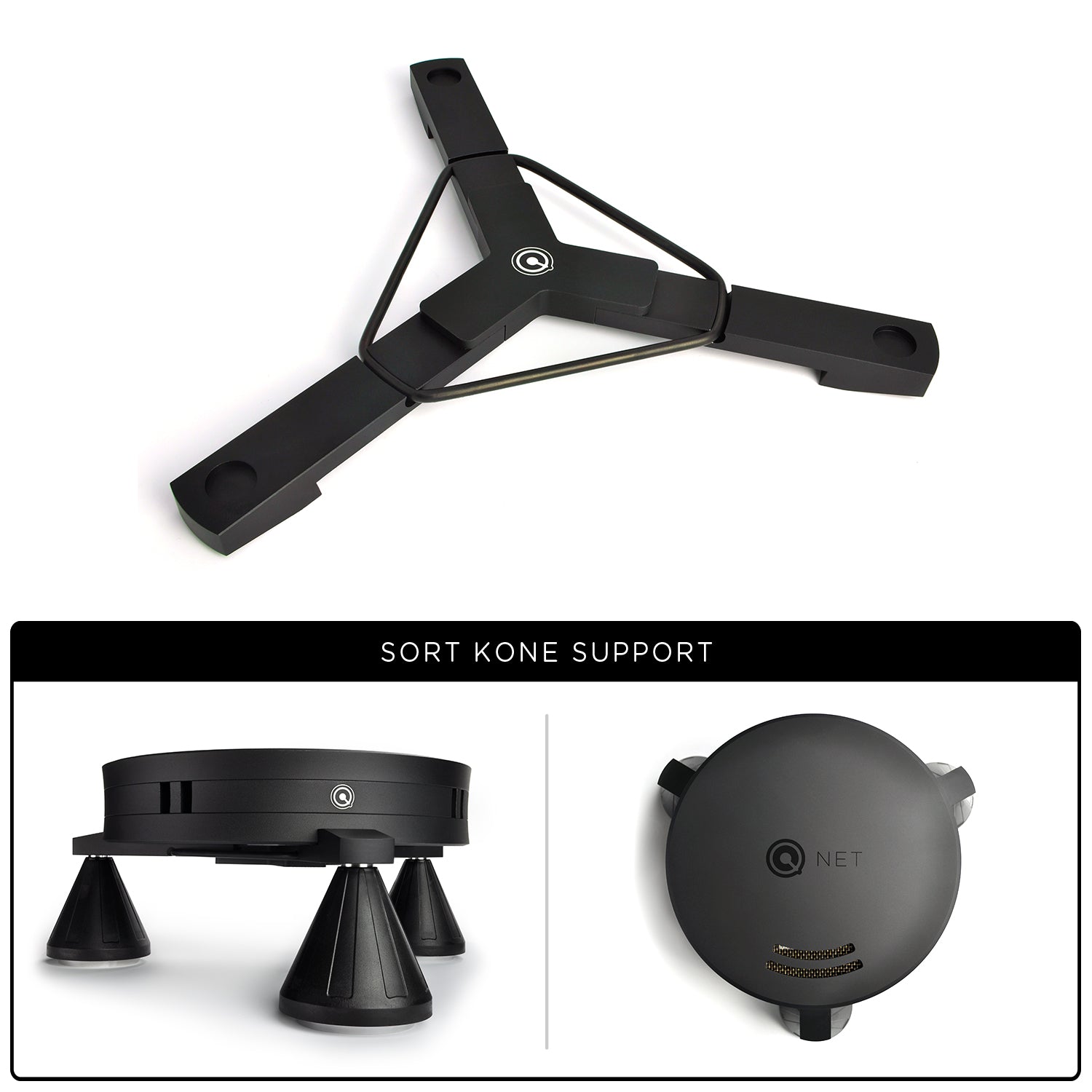

Available Accessory:
QNET STAND
Elevate your QNET with its very own intricately-designed QNET Stand.
Easily support your QNET NETWORK SWITCH with Sort Kones for optimum performance with resonance control.
Key Features:
- Audio optimised, Layer-2, five-port Ethernet switch
- Auto-negotiated and fixed Ethernet ports
- Internal noise-reduction
- High speed internal layout
- Low-noise, high precision oscillator
- Power supply available with AUS, EU, UK, or US plug
STAND:
- Easily support your QNET NETWORK SWITCH with Sort Kones for optimum performance with resonance control.
- Components: Anodised aluminium centre piece, three anodised aluminium legs, and rubber support ring.
