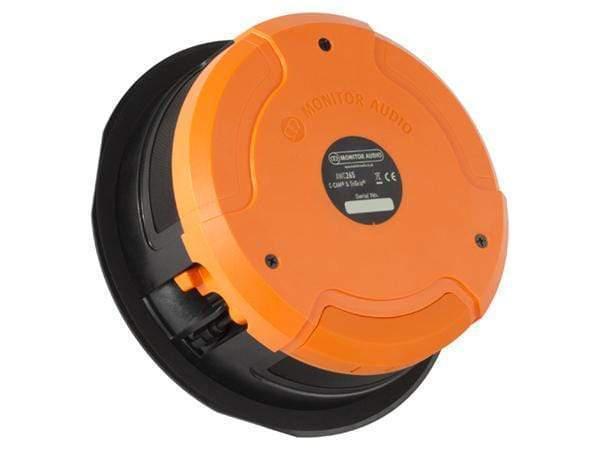

Monitor Audio AWC265 Outdoor In-Ceiling Speaker
Specifications
Frequency Response | 65 Hz – 25 kHz |
Sensitivity (1W@1M) | 88 dB |
Nominal Impedance | 8 ohms |
Maximum SPL | 105.8 dBA |
Power Handling (RMS) | 60 W |
Recommended Amplifier Requirements | 20 — 60 W |
Drivers | 6.5" C-CAM cone bass driver 1" C-CAM Gold Dome tweeter (fixed angle) |
Controls | HF Level Switch (+3 dB / 0 dB / -3 dB) - Adjustable at the point of installation |
Adjustment Controls | 2 x (1 pair) Gold plated push style terminal |
Overall Diameter (Including Grille) | 251.71 mm (915/16") |
Overall Depth (Including Grille) | 93.5 mm (31/2") |
Cut-Out Hole Diameter | 211 mm (81/4") |
Mounting Depth | 88.5 mm (31/2") |
Optional Square Grille - Outer Dimensions | 249 x 249 mm (9 3/16") |
Fixing Type | 4 position dog leg fixings |
Construction Material | Mineral Filled PC-ABS Polymer (UL V0 Fire Retardant, RoHS2 Compliant) |
Grille | SS430 Stainless Steel |
Magnets | Samarium Cobalt |
Operating Temperature Range | -34° to 79° C -29° to 174° F |
Weight | 2.04 kg (4 lb 8 oz) |
Warranty
Shipping & Returns
We offer free shipping on any order over $150. For full details please see our Shipping Policy.
Our returns policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately, we may not be able to offer you a refund or exchange. For full details please see our Refund Policy.
AWC265
Developed using all C-CAM driver systems derived from our critically acclaimed hi-fi speakers, the AWC265 comprises a stylish two-way 6 1/2” C-CAM bass driver.
Technology
- Quick and easy installation
- High Performance C-CAM bass and high frequency drivers
- Stainless Steel ‘Trimless’ grille – strong and resistant to corrosion
- Non-ferrous Samarium Cobalt magnets for grille attachment – prevent rust and corrosion
- IP55 certified for extreme climate conditions: Salt Spray, UV stability, Water, Vibration, Anti-corrosion
- Patented Tri-grip Dog-leg fixings for easy, long-lasting installation
- EPDM barriers to prevent moisture. EPDM is an extremely durable synthetic rubber membrane (ethylene propylene diene monomer)
- Gold plated push terminals with silicon cover
- Stainless fixing screws with Silicone covers
- Tweeter level attenuation (internal) – set prior to installation
- Applications: pool rooms, bathrooms, marine deck, universal outdoor installation
