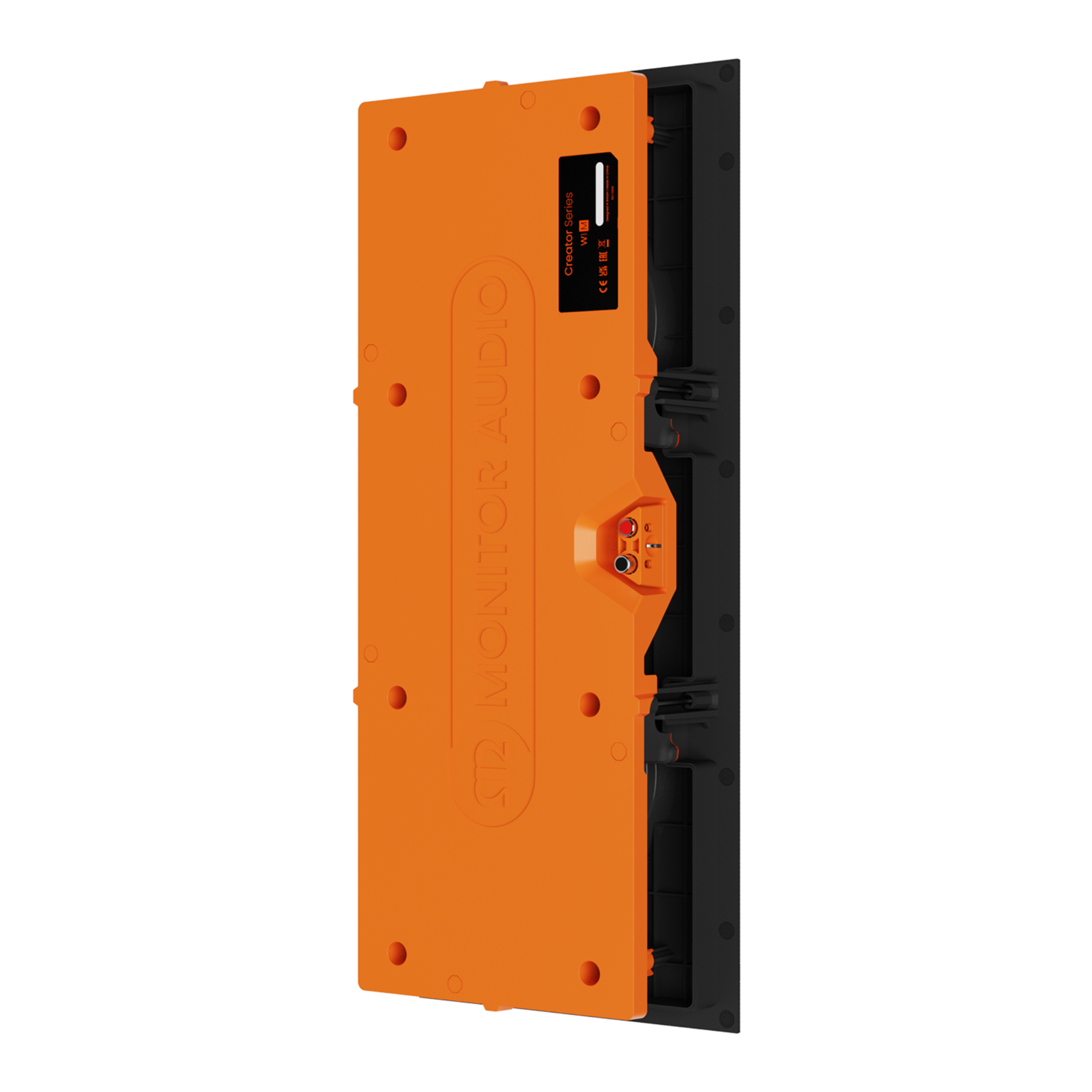

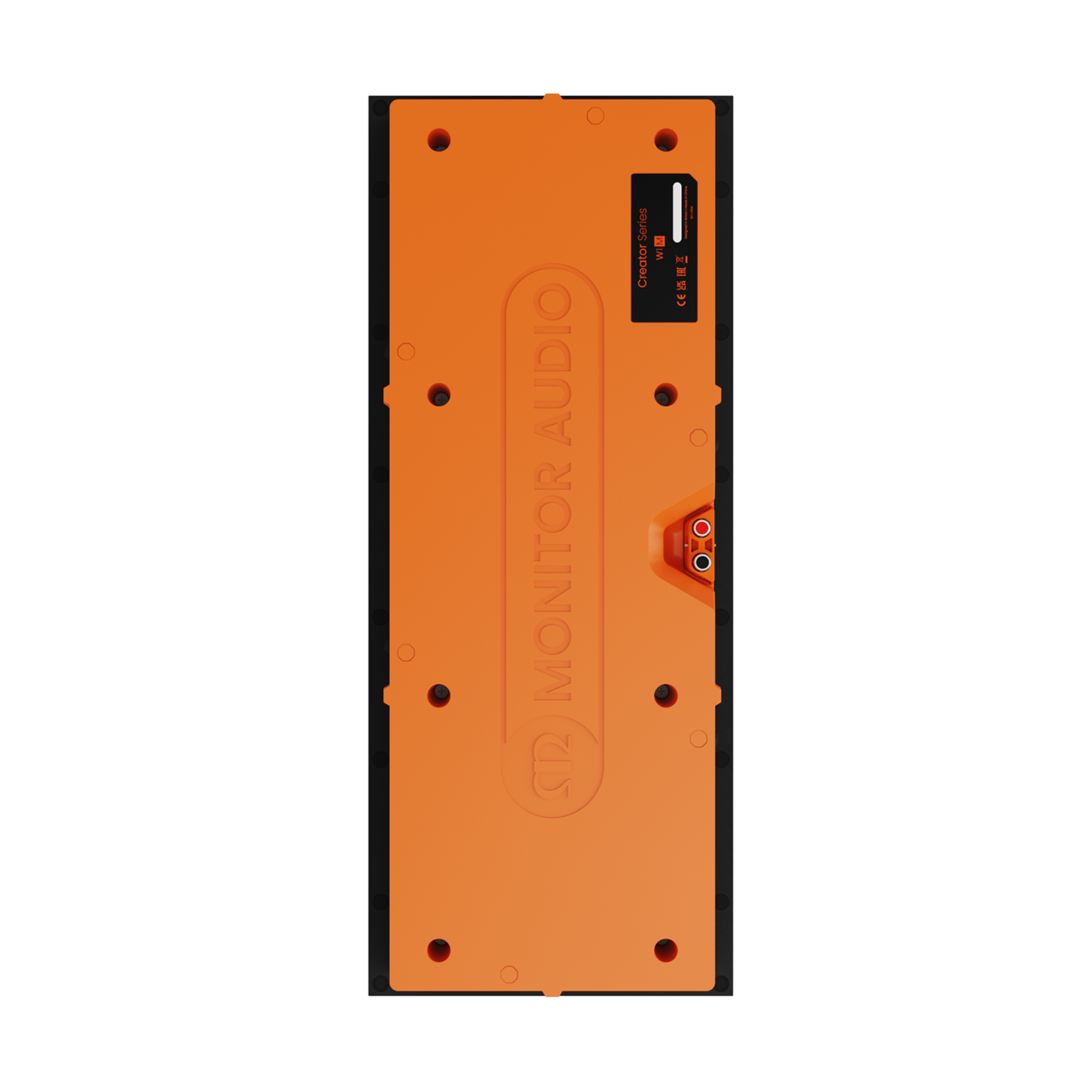

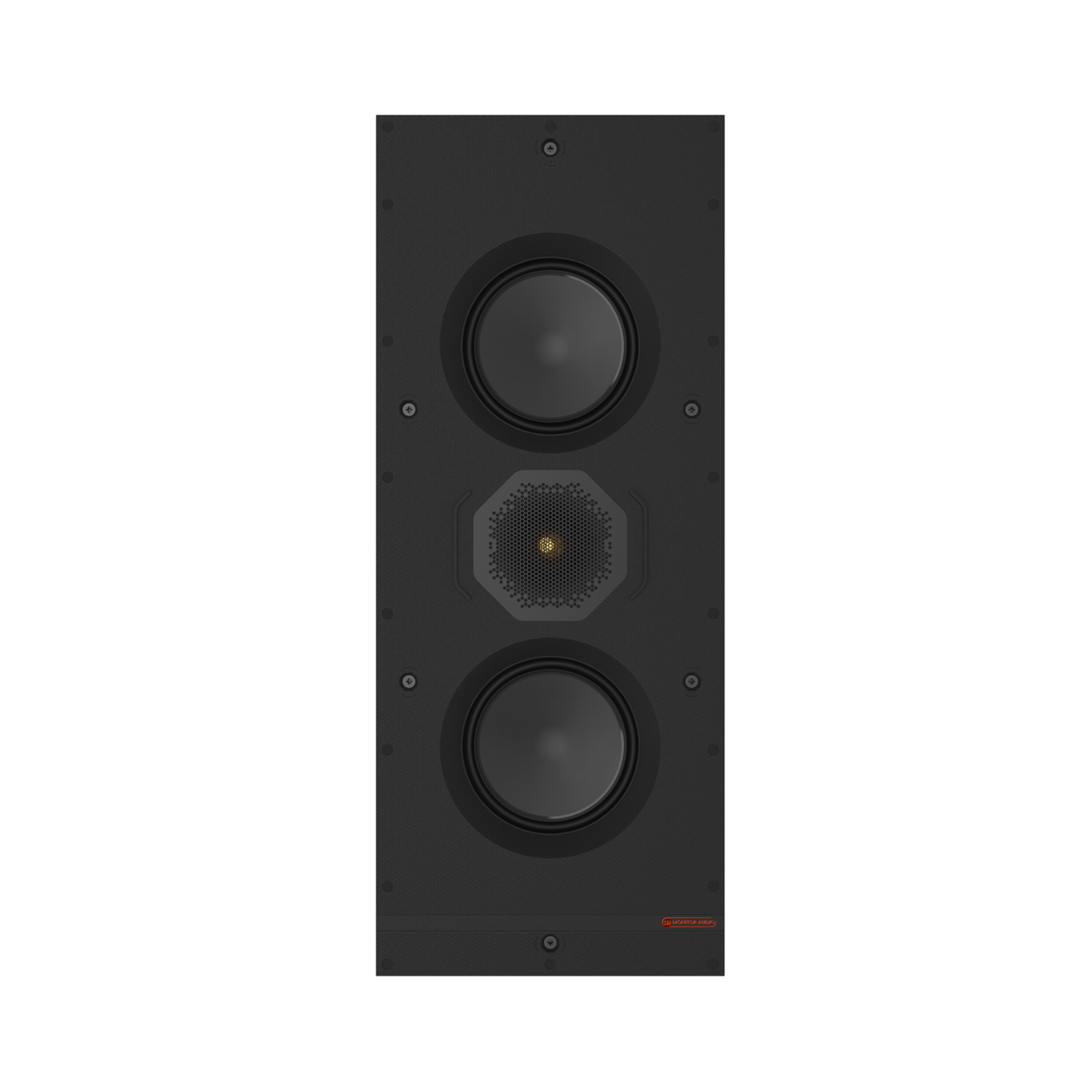

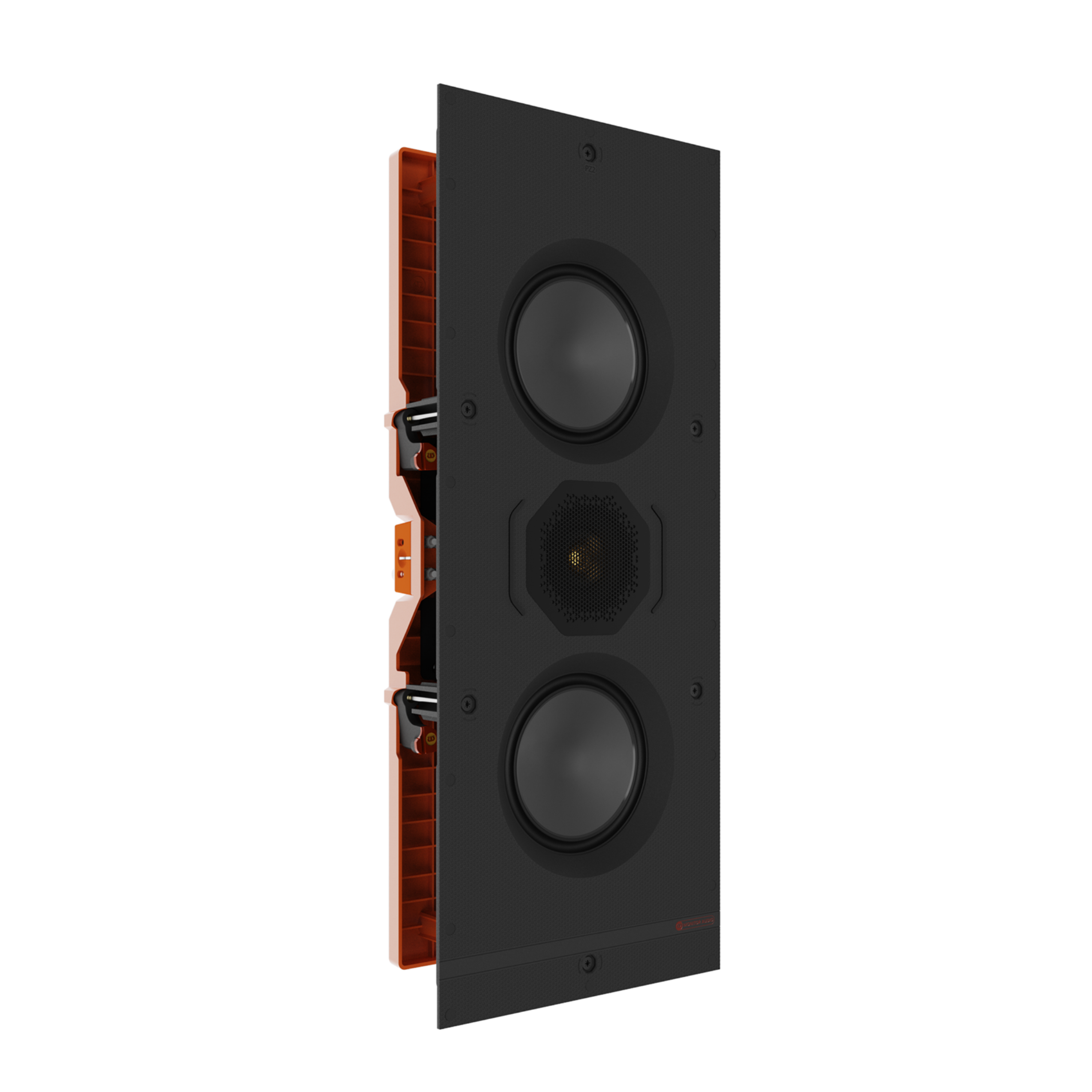

Monitor Audio W1M In-Wall Speaker
Each
Specifications
System Format | 2–Way |
Channels | 1 |
Frequency Response, Installed (-6dB) | 40 Hz – 30 kHz |
Nominal Impedance | 6 ohm |
Minimum Impedance (20Hz to 20kHz) | 4.8 Ohm @ 15 kHz |
Sensitivity (2.83Vrms@1m, Installed) | 87 dB |
Maximum Peak SPL* (single speaker @ 1m Z-Weighted) | 113 dB |
Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor) | 75 W |
Recommended Amplifier Power (RMS into 8 OHM, Music Signal) | 30 – 110 W |
Drive Unit Complement | 2 x 5" (127 mm) C-CAM mid-bass driver 1 x 1" (25 mm) C-CAM tweeter |
Crossover Frequency | LF/HF: 2.75 kHz |
Mounting Depth | 85 mm (33/8") |
Cutout L x W | 527 x 198 mm (203/4 x 713/16") |
External Dimensions (Including Grille (H x W x D)) | 560 x 231 x 90 mm (221/16 x 91/8 x 39/16") |
Weight (each) | 3.4 kg (7 lb 8 oz) |
Pre-Construction Bracket | WM-B |
Cabinet Finish | Matt black & Orange |
Sold As | Single Unit |
Warranty
Shipping & Returns
We offer free shipping on any order over $150. For full details please see our Shipping Policy.
Our returns policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately, we may not be able to offer you a refund or exchange. For full details please see our Refund Policy.
Monitor Audio W1M In-Wall Speaker
Sale price$699.00
Regular price$699.00 (/)
TELL ME MORE ABOUT THE
Monitor Audio W1M In-Wall Speaker
Who is this speaker for?
Tri-Grip II
Quik-Link
