Monitor Audio

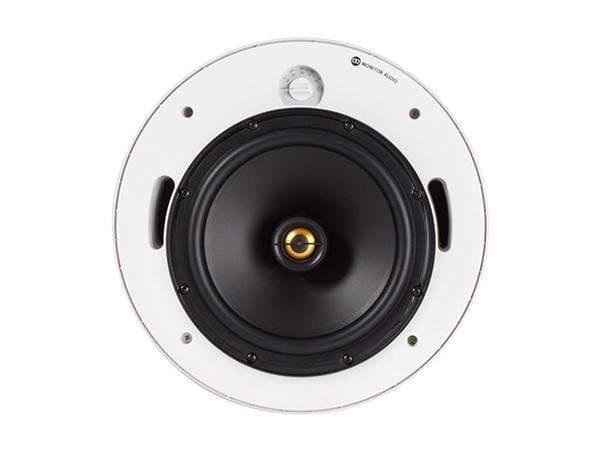

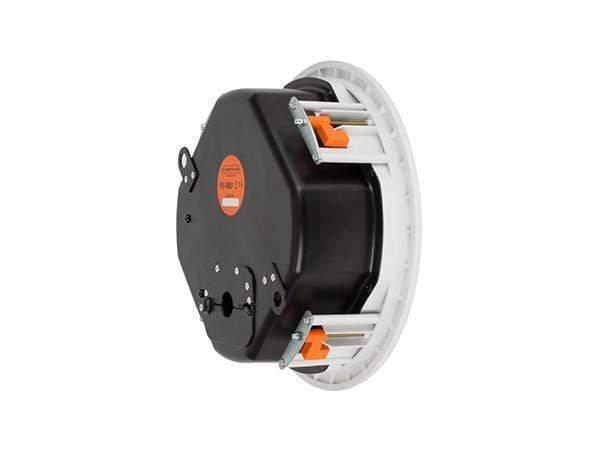

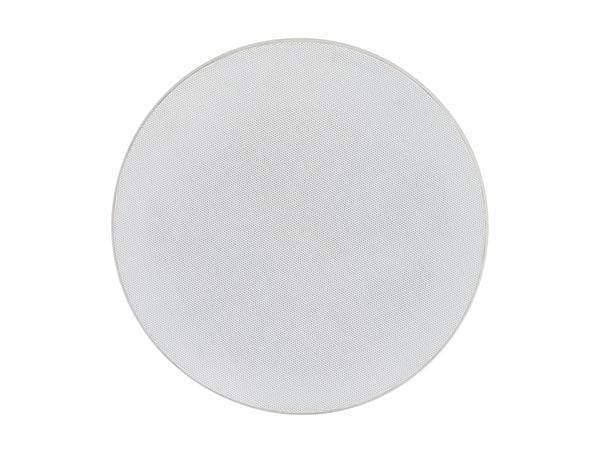

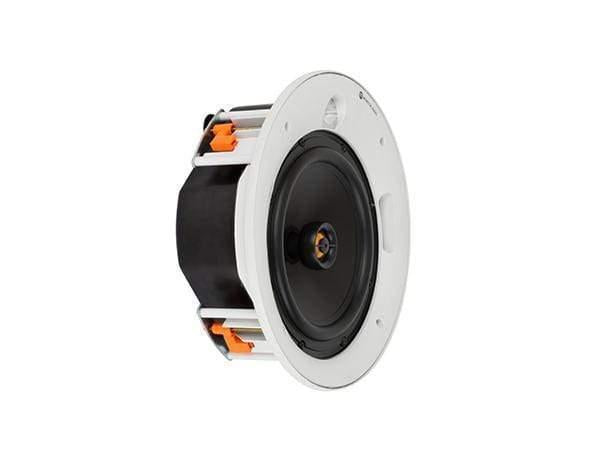

Monitor Audio Pro-80LV In-Ceiling Speaker


  • Sale
  • $1,286.00
  • Regular price $1,429.00

Living Entertainment North Coast

Pro-80LV


Joining the Pro-65 and Pro-80in the expanded PRO-IC range, the new professional Pro-80LV 70/100 V line speaker offers similarly stealthy but highly flexible system options for commercial installations.



Reprising many of Monitor Audio’s most acclaimed hi fi design configurations, its 8" MMP II bass driver and signature 1" Gold Dome tweeter deliver high audio quality with excellent speech intelligibility for public address and distributed music applications. The Pro-80LV features an internal matching transformer, providing a 70 V or 100 V input for powering multiple speakers on a single amplifier channel. A 16 ohm switch position offers the flexibility to wire one, two, three or four speakers in parallel per channel. Power taps allow system designers to set maximum SPL in areas such as restrooms and foyers.

Building regulations are satisfied by the Pro-80LV’s fireproof steel back box and secure anchor points while a plug-type connection block ensures easy and reliable system integration with a link out option for ‘daisy chain’ wiring. Combining installation versatility with Monitor Audio’s robust build quality and hi-fi clarity, the slender new Pro-80LV offers the added advantage of trimless aesthetics for an optimum blend of design, performance and value.





Specifications

Frequency Response

65 Hz – 25 kHz

Nominal Impedance

16Ω 70V (4,8, 16,32,64 W) 100V (8,16,32,64 W) power selection

Sensitivity (1W@1M)

87 dB

Maximum SPL

103.8 dBA

Power Handling (RMS)

40 W

Recommended Amplifier Requirements

10 — 40 W

Drive Unit Complement

8" MMP II cone bass-mid driver
1 x 25 mm (1") fabric soft dome tweeter

Connection

Screw type plug termination

Overall Diameter (Including Grille)

294 mm (119/16")

Overall Depth (Including Grille)

114 mm (41/2")

Cut-Out Hole Diameter

266 mm (101/2")

Mounting Depth

101.4 mm (4")

Fixing Type

4 position dog leg fixings

Construction Material

ABS (UL94 rated, RoHS2 Compliant) Painted steel grille, Steel rear enclosure

Other

Fire Rating: UL1480 & UL2043

Weight

3.76 kg (8 lb 4 oz)
