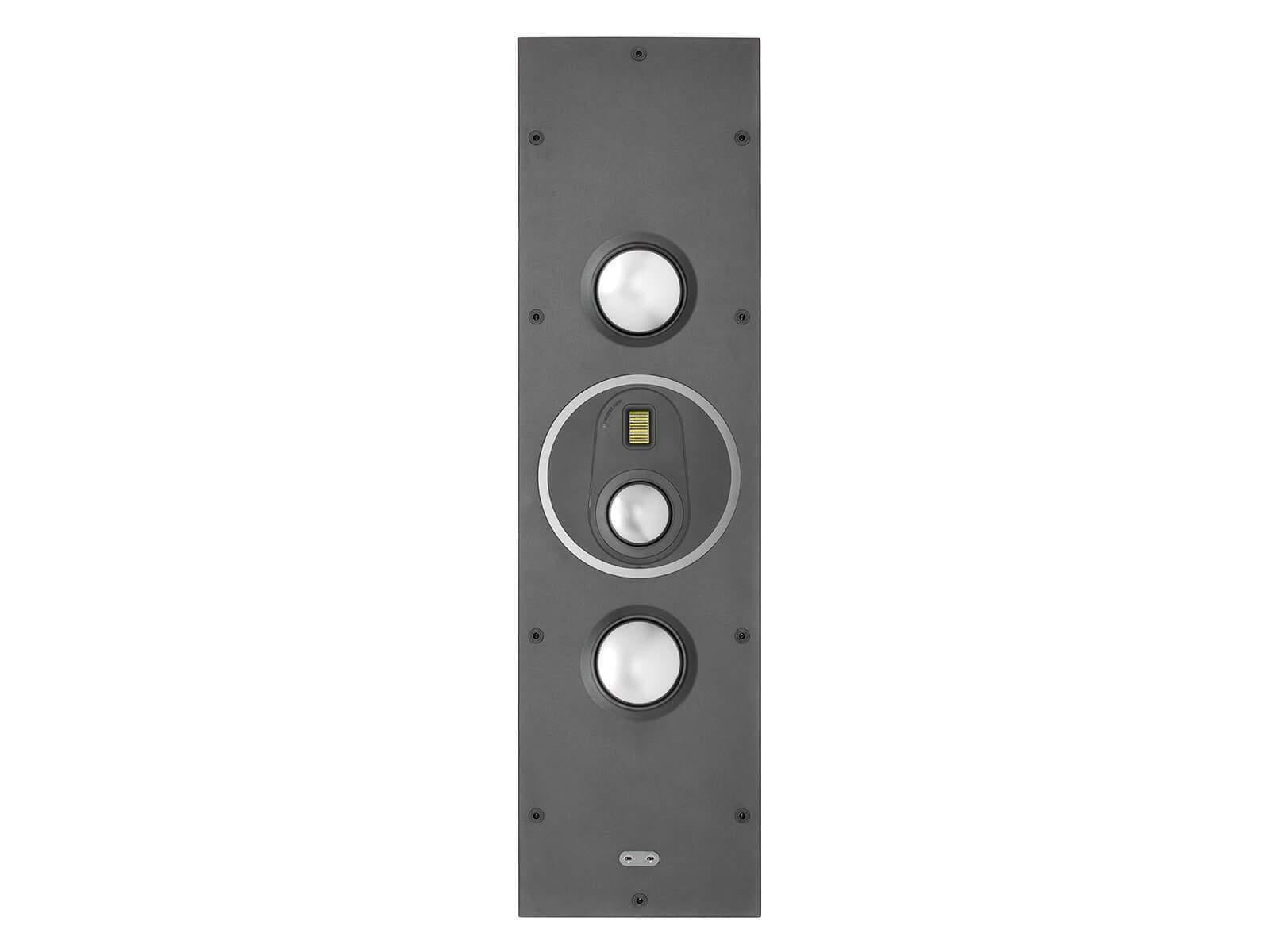

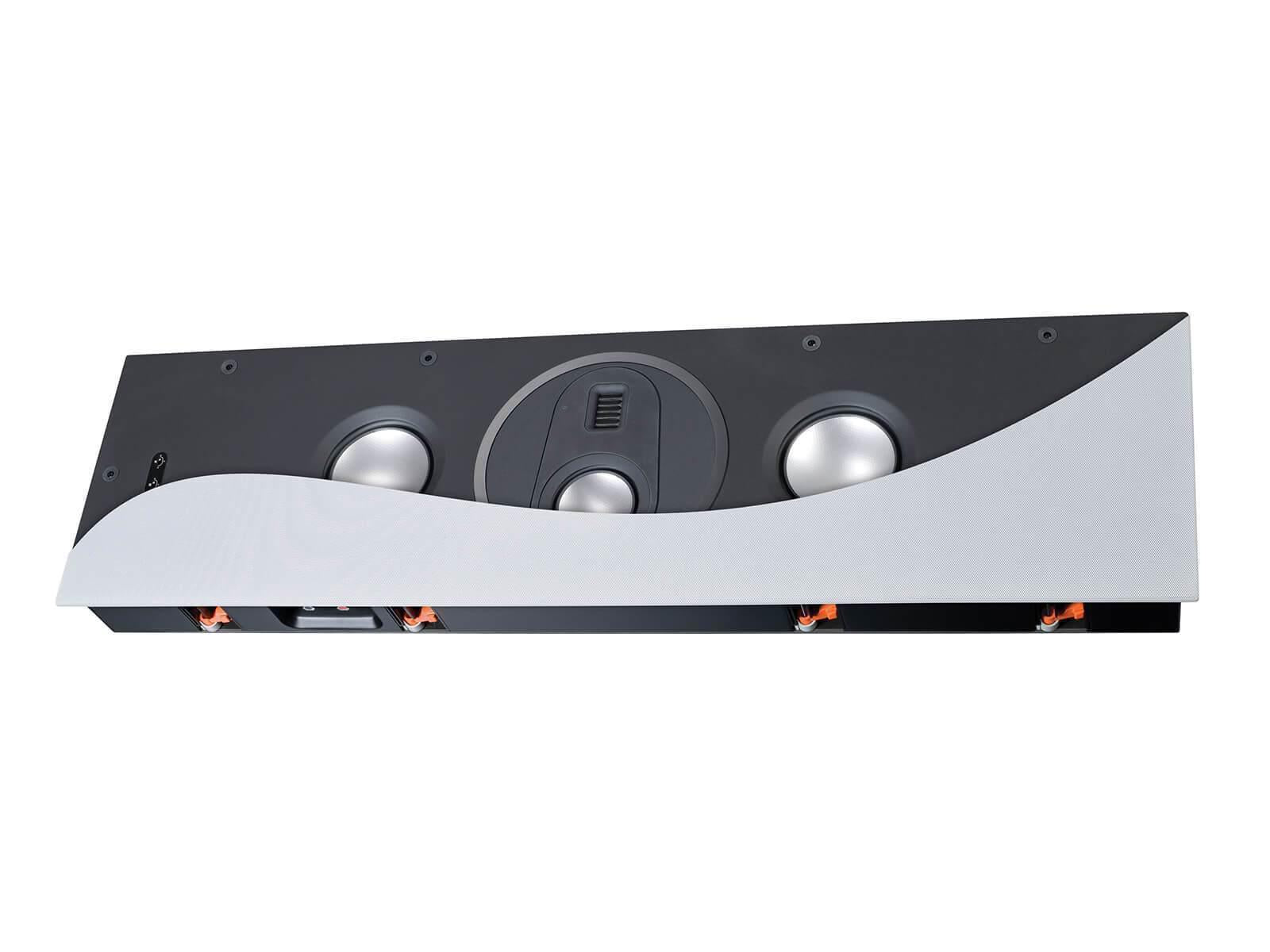

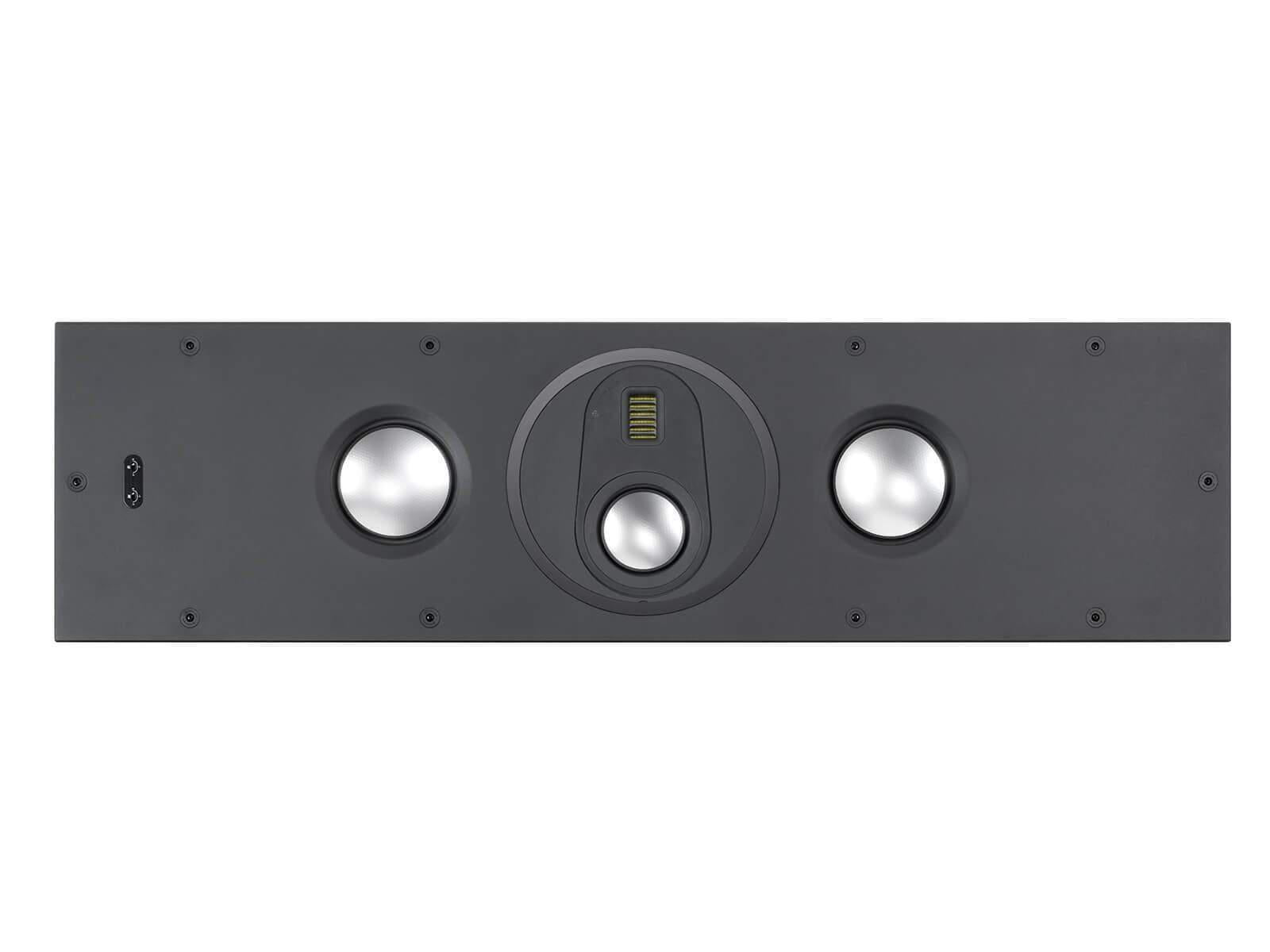

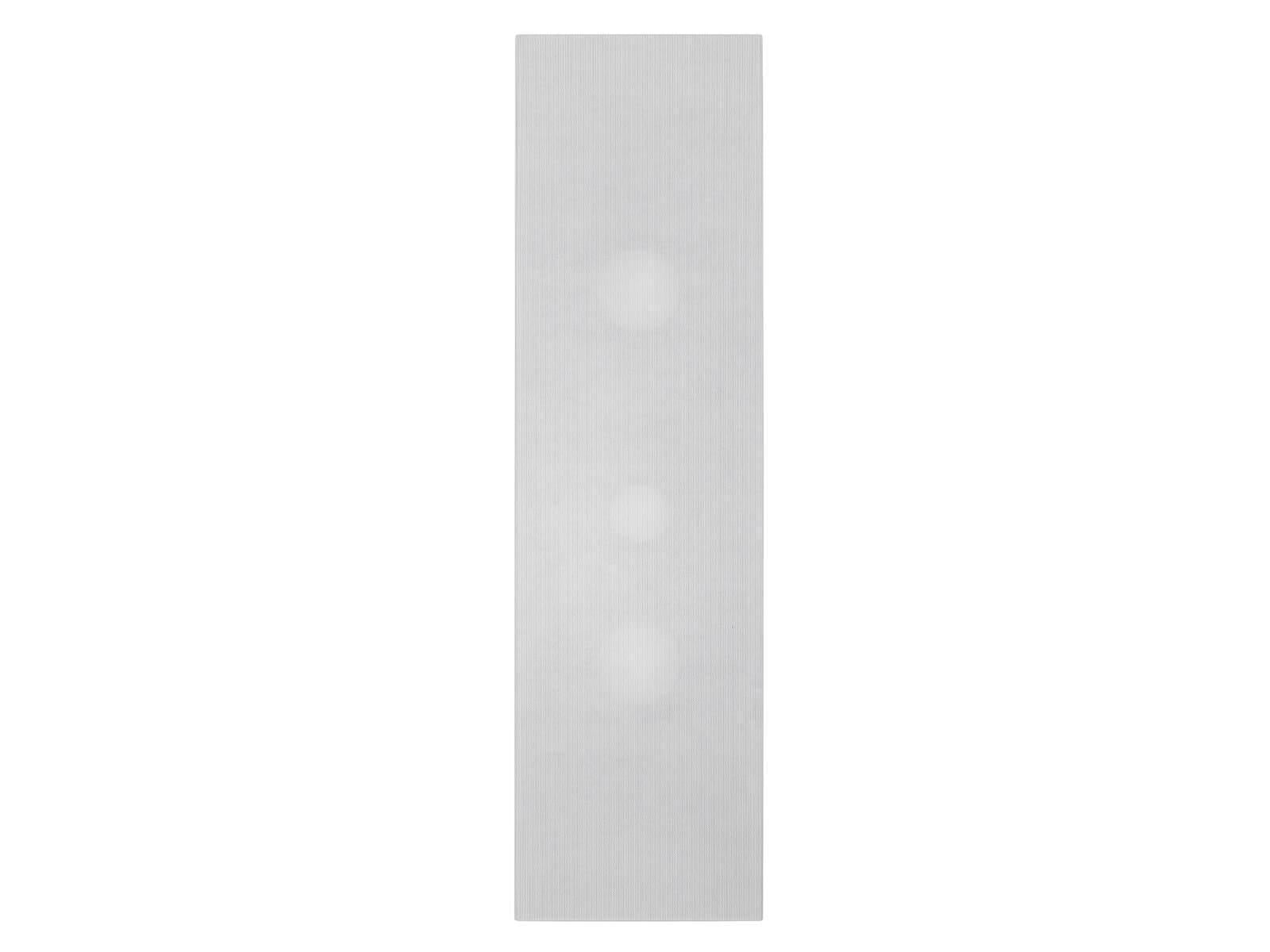

Monitor Audio Platinum In-Wall II Threeway Speaker
Specifications
| System Format | 3 Way — 4 Driver |
| Frequency Response (-6 dB - IEC 268-13) | 52 Hz — 100 kHz |
| Sensitivity (1W@1M) | 90 dB |
| Maximum SPL | 117 dBA (pair) |
| Nominal Impedance | 4 ohms (3.7 ohms min. @ 2.8 KHz) |
| Power Handling (RMS) | 200 W |
| Recommended Amplifier Requirements | 100 — 200 W |
| Cabinet Design | Sealed Cabinet |
| Drive Unit Complement | 2 x 61/2" RDT II bass drivers 1 x 4" RDT II mid-range driver 1 x MPD high frequency transducer |
| Mid / H.F Crossover Frequency | 4.1 kHz 3rd Order (18 dB/Octave) |
| Bass / Midrange Crossover Frequency (Hz) | 700 Hz/ 2nd Order (12 dB/Octave) |
| Fixing Type | 10 x Tri-Grip dog leg type fixing system |
| Overall Dimensions (Including Grille (H x W x D)) | 1207 x 332 x 105.5 mm (47 9/16 x 13 1/16 x 4 4/16") |
| Cut-Out Dimensions | 97.5 mm (313/16") |
| Weight | 27 kg (59.4 lb) |
Warranty
Shipping & Returns
We offer free shipping on any product over $99. For full details please see our Shipping Policy.
Our returns policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately, we may not be able to offer you a refund or exchange. For full details please see our Refund Policy.
Platinum In-Wall II
The Platinum In-Wall II is a three-way reference architectural speaker system, perfect for custom home theatre projects where lifelike scale and dynamics are demanded.
Equipped with an adjustable mid/high frequency driver array, the In-Wall is able to deliver pin-point audio imaging and consistency from both vertical or horizontal positions.
By rotating the array though 90 degrees at the centre of a LCR configuration for instance, a soundstage of three Platinum In-Wall IIs will generate the seamless tonal integrity of the finest boxed systems from a stealthy in-wall location.
Technology
- 2 x 61/2" RDT II bass drivers
- 4" RDT II mid-range driver
- MPD (Micro Pleated Diaphragm) high frequency transducer designed specifically for Platinum II
- Patented 'DCF' (Dynamic Coupling Filter) mechanism for more natural sound
- Bespoke speaker terminals and footings
- Underhung, edge-wound voice coils: greater driver efficiency and lifelike dynamics, less distortion
- Bolt through drivers: clearer sound and cleaner aesthetics
- Rigid cabinet construction made from 25 mm MDF with steel back
- Extensive internal bracing using thick MDF cross bracing techniques
