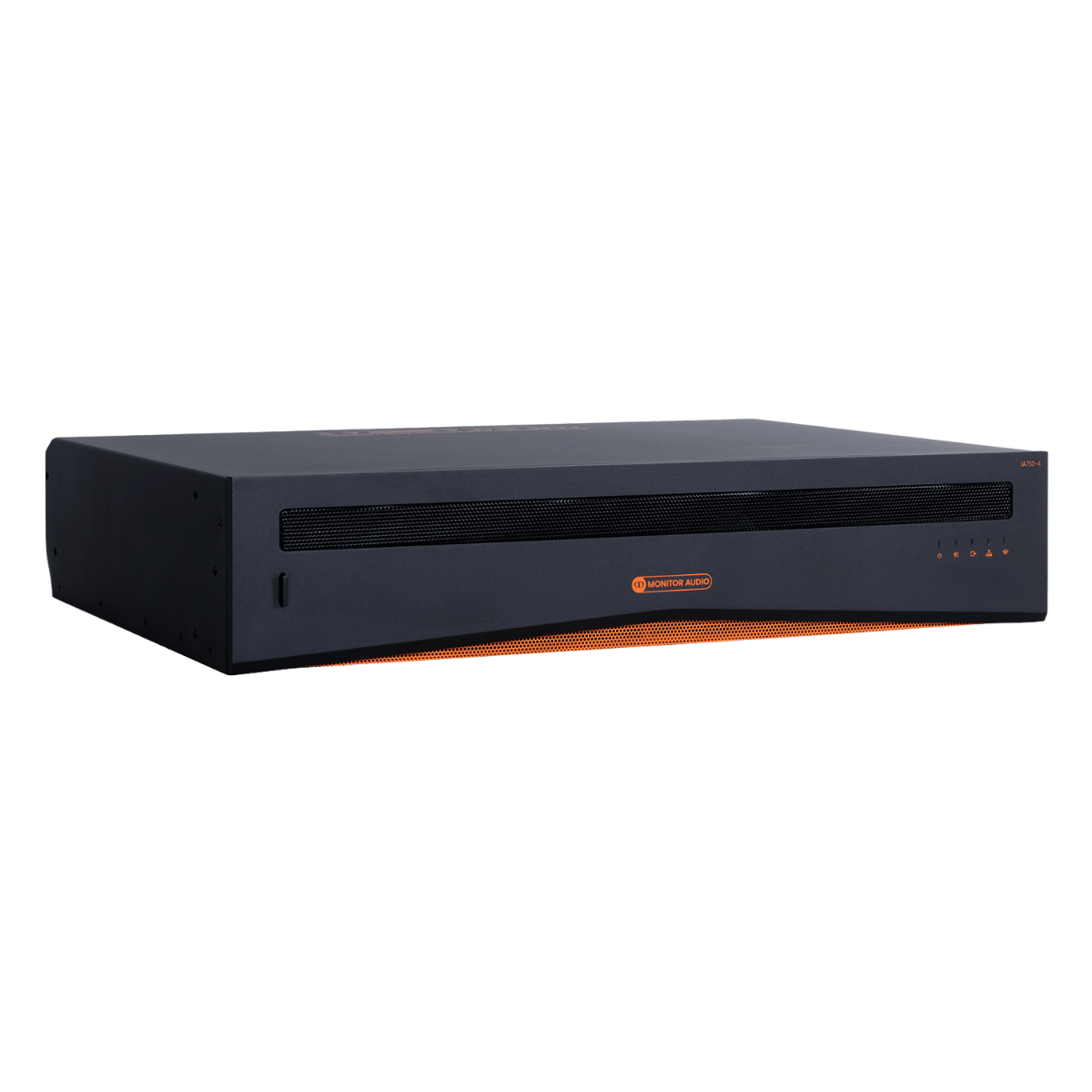

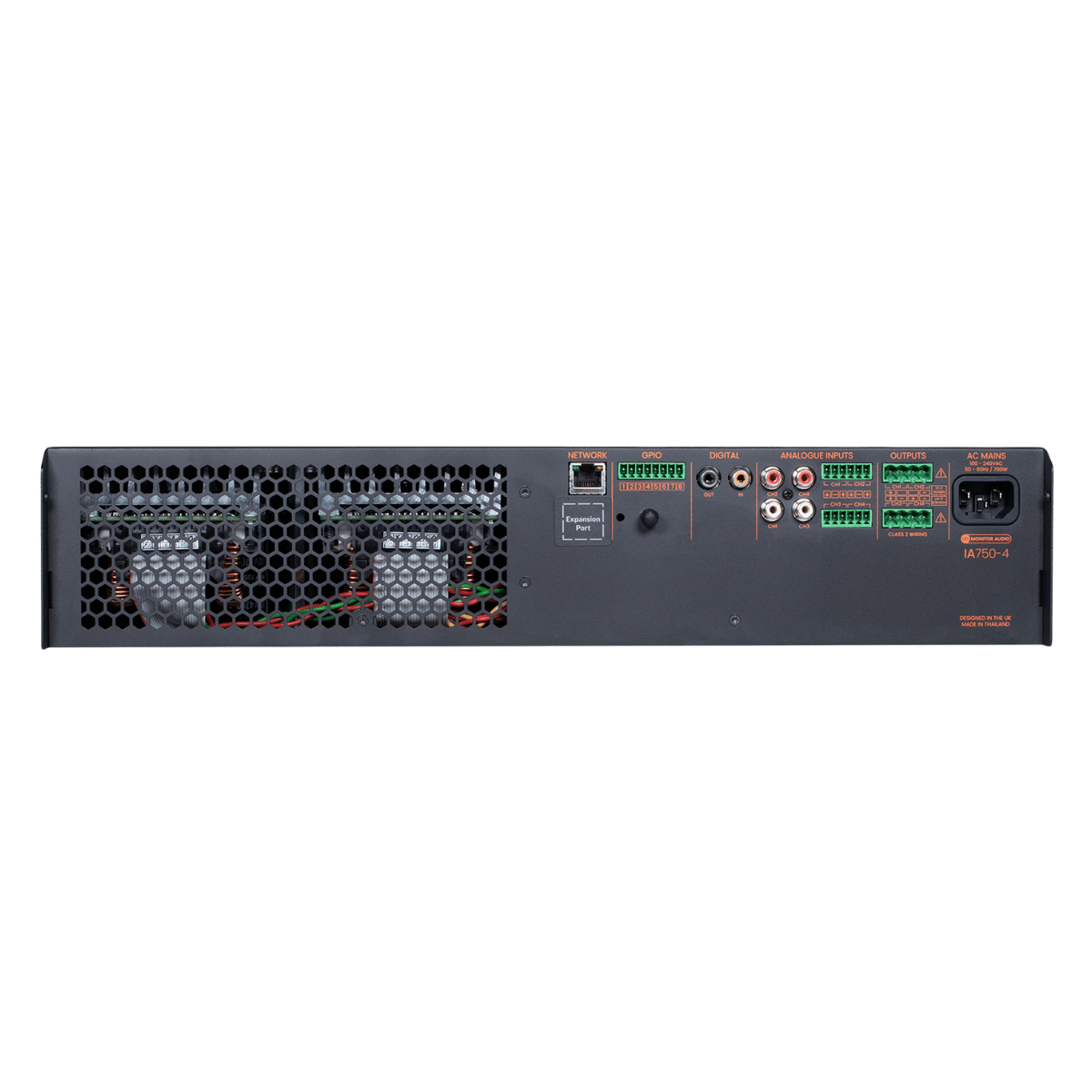

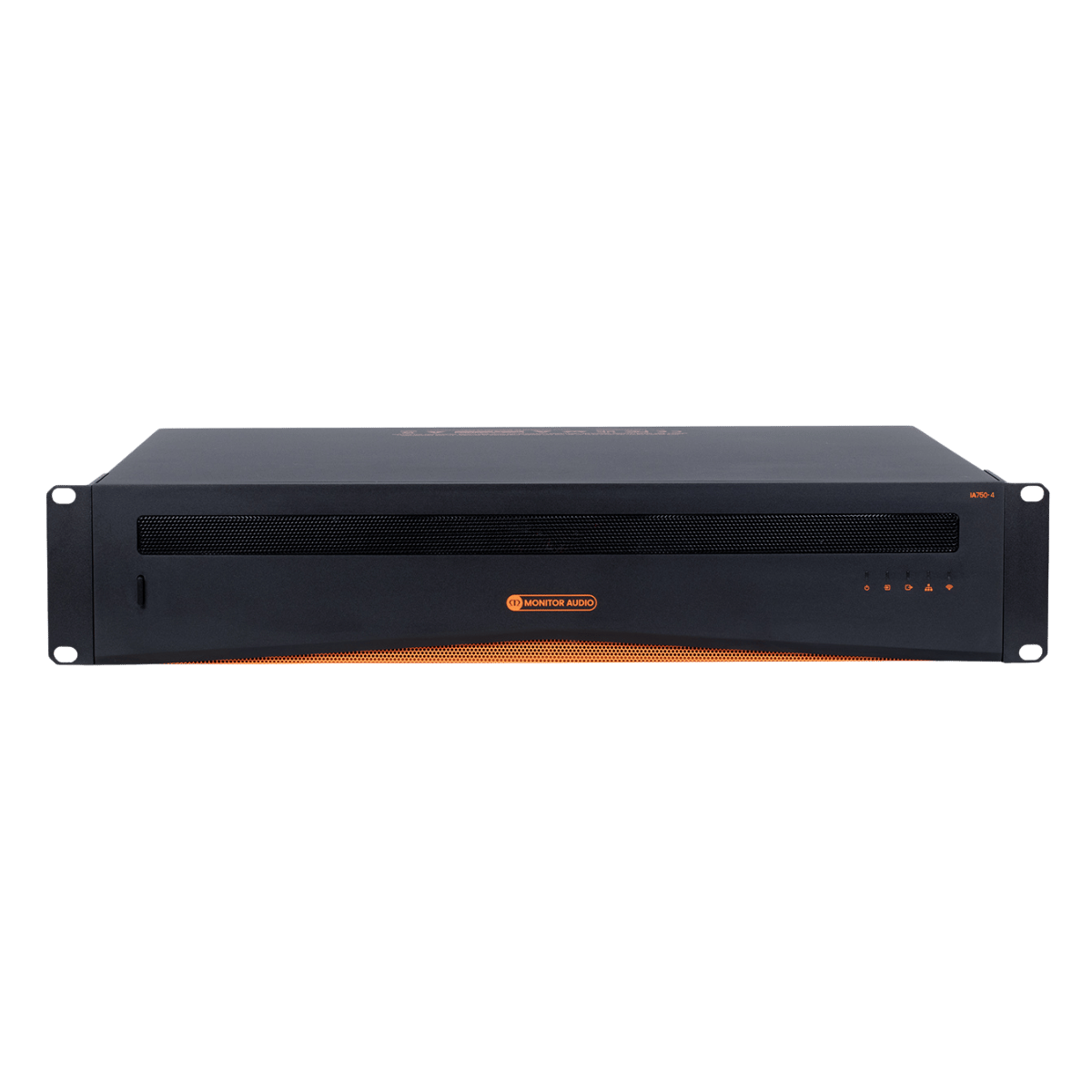

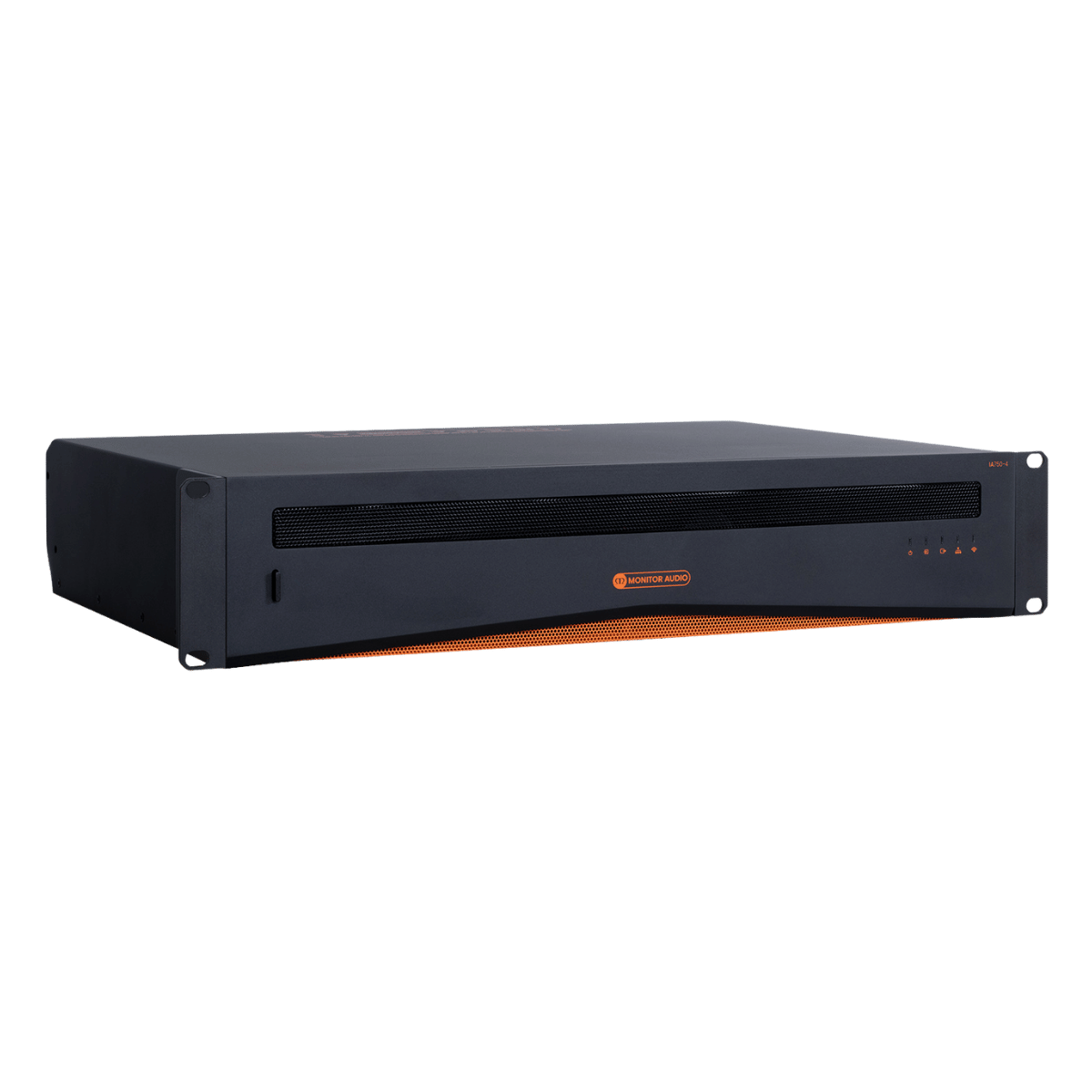

Monitor Audio IA750-4 CI Amplifier
Specifications
Channels | 4 |
Output Power @ 2 Ohms | 4 x 750W SE |
Output Power @ 4 Ohm | 4 x 750W SE, 2 x 1500W BTL |
Output Power @ 8 Ohm | 2 x 400W SE, 2 x 1500W BTL |
Output Power @ 70V | 2 x 1200W BTL |
Output Power @ 100V | 2 x 1500W BTL |
Maximum Total Output Power, all channels driven | 3000 W |
Power Consumption | 700 W |
Thermal Output | 2400 BTU |
Polarity (Default) | Non-inverting |
Dimensions | 88 x 440 x 329 mm (36/16 x 175/16 x 1215/16”) |
Output Voltage | 80Vp / 160Vpp (SE unloaded), 160Vp / 320Vpp (BTL unloaded) |
Signal to Noise Ratio | >108dB (A-weighted, 20Hz – 20kHz, 8 Ohm load) |
THD+N (typical) | <0.05% (20 Hz – 20 kHz, 8 Ohm load, 3db below rated power) |
Frequency Response | +0/-0.25dB 20Hz – 20kHz (8 Ohm load, 3dB below rated power |
Protection Circuits | Short circuit -, DC, Undervoltage -, Temperature – and Overload protection |
Power Supply | Switch mode power supply with Power Factor Correction (PFC) and standby converter |
Operating Voltage/Frequency | Universal Mains, 100 V – 240 V, 50 Hz – 60 Hz |
Standby Consumption | <0.5W |
Accessories | Rack mount kit (pre-installed) |
Power Ratings | 1% THD @ 120Vac and 230Vac |
Cabinet Finish | Black Anodised |
Warranty
Shipping & Returns
We offer free shipping on any order over $150. For full details please see our Shipping Policy.
Our returns policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately, we may not be able to offer you a refund or exchange. For full details please see our Refund Policy.
TELL ME MORE ABOUT THE
Monitor Audio IA750-4 CI Amplifier
Superior power for your home cinema or multi-room installation
Technology that works for you
BluOS with IMS-4 Streamer
Flexibility built in
Indoor sound quality, outdoors
Designed for installation
