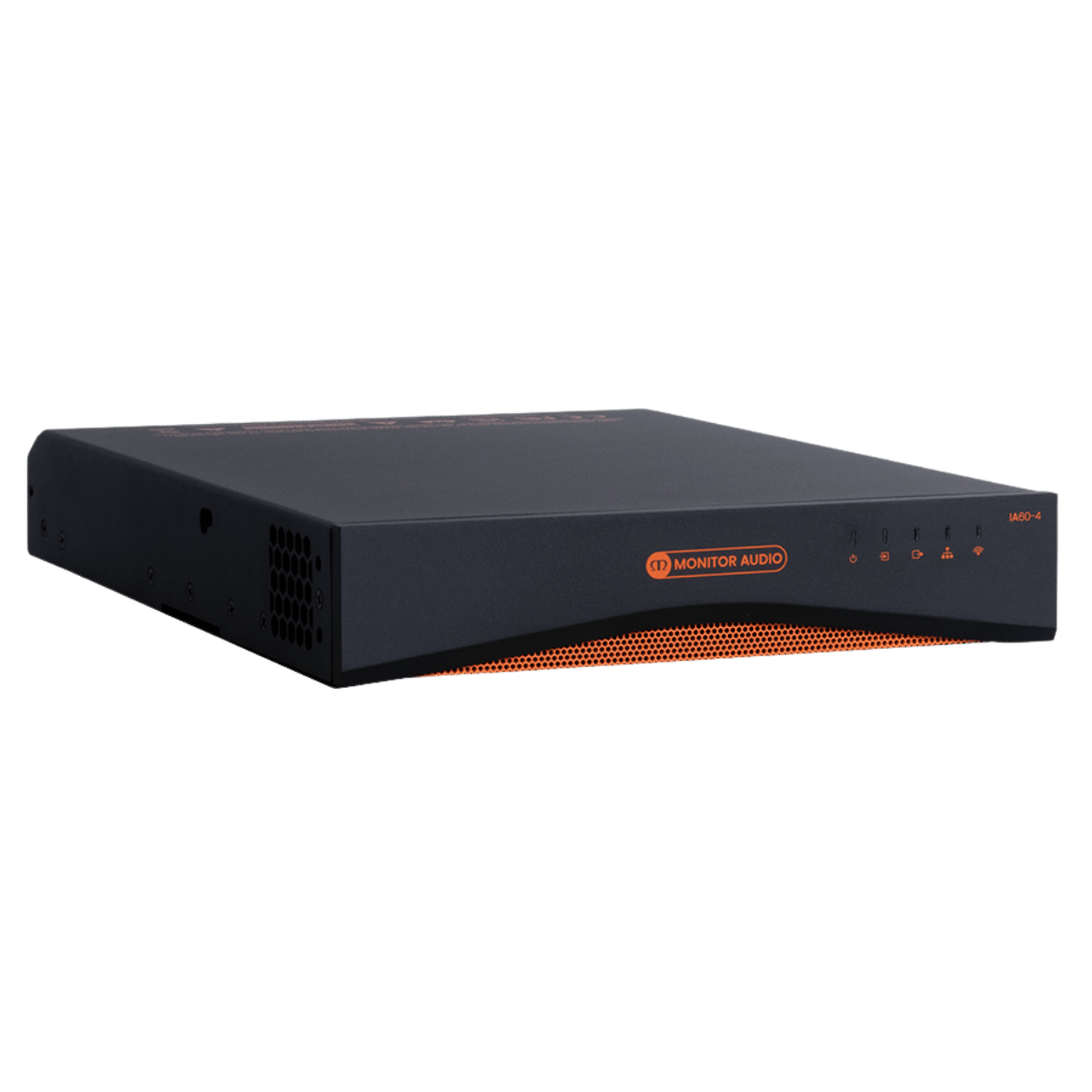

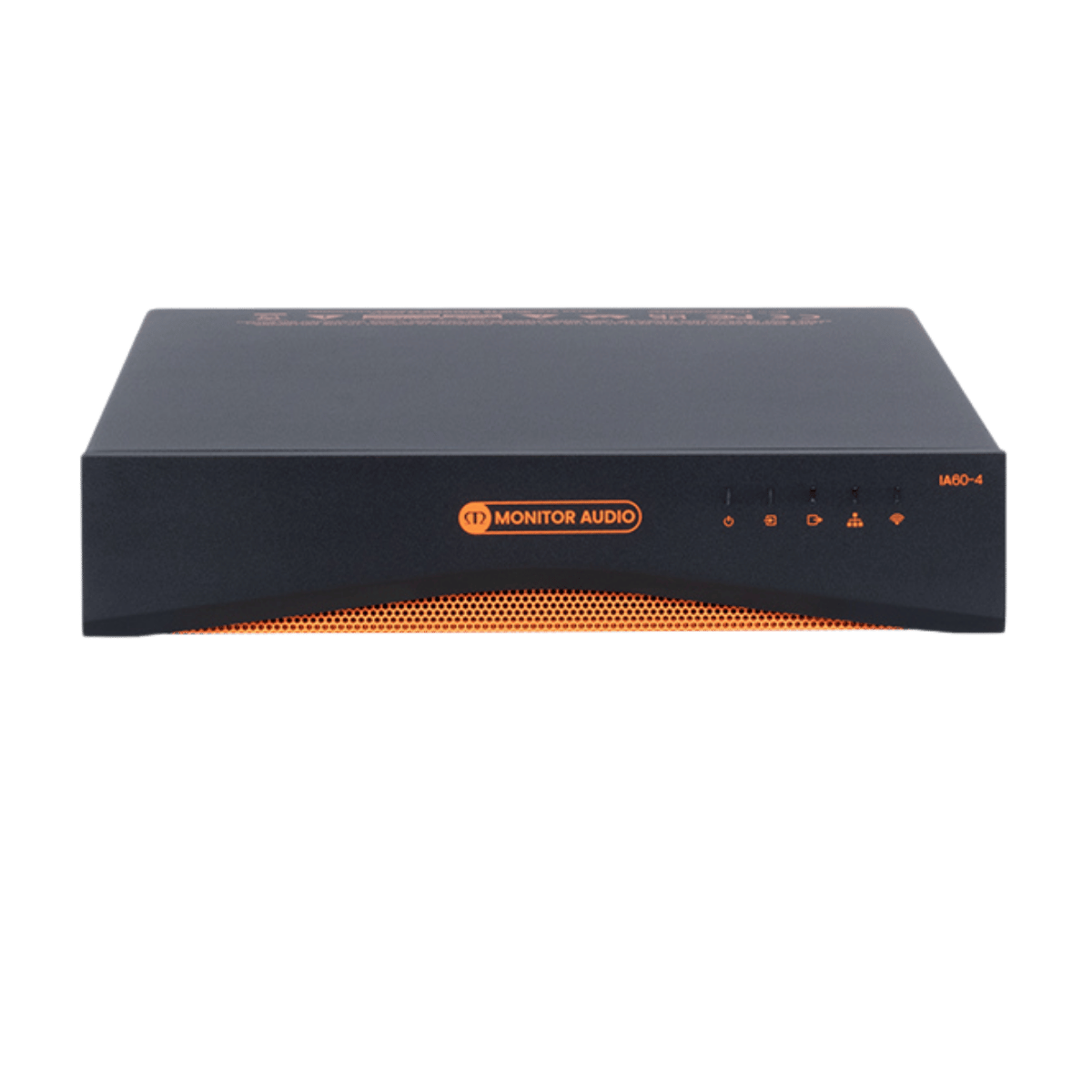

Monitor Audio IA60-4 CI Amplifier
Specifications
Channels | 4 |
Output Power @ 4 Ohms/8 Ohms | 4 x 60W SE* |
Output Power @ 70/100V | 2 x 125W BTL** |
Poweshare (up to) | 1 x 250 W |
Power Consumption | 75 W |
Thermal Output | 256 BTU |
Polarity (Default) | Non-inverting |
Dimensions | 44 x 220 x 325 mm (13/4 x 811/16 x 115/8") |
Output Voltage | 70Vp / 140Vpp (SE unloaded), 140Vp / 280 Vpp (BTL unloaded) |
Signal to Noise Ratio | >106dB (A-weighted, 20 Hz – 20 kHz, 8 Ohm load) |
THD+N (typical) | <0.05% (20 Hz – 20 kHz, 8 Ohm load, 3db below rated power) |
Frequency Response | +0/-0.25dB 20Hz - 20kHz (8 Ohm load, 3dB below rated power) |
Protection Circuits | Short circuit -, DC, Undervoltage -, Temperature – and Overload protection |
Power Supply | Switch mode power supply with Power Factor Correction (PFC) and standby converter |
Operating Voltage/Frequency | Universal Mains, 100 V – 240 V, 50 Hz – 60 Hz |
Standby Power Consumption | < 0.5 W |

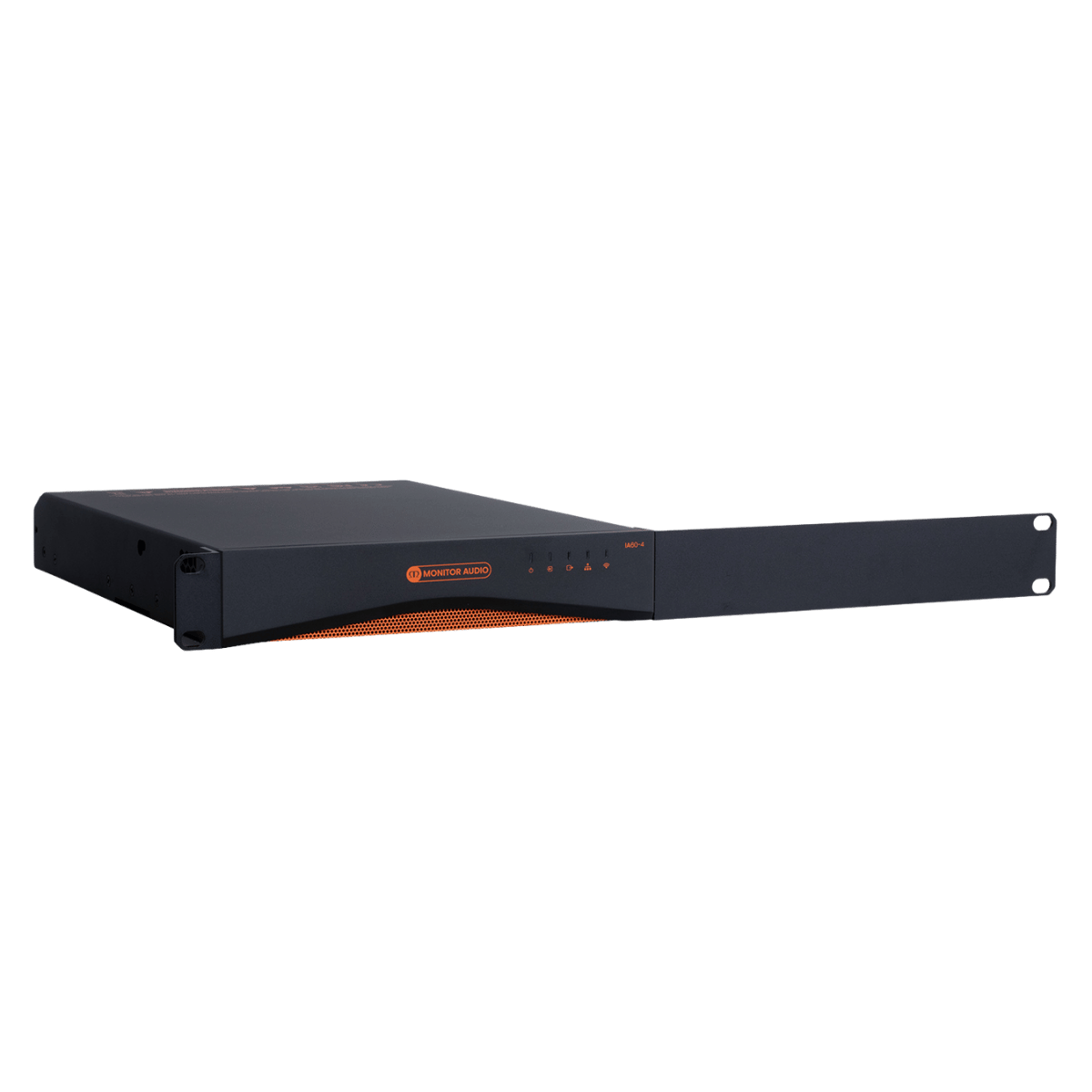

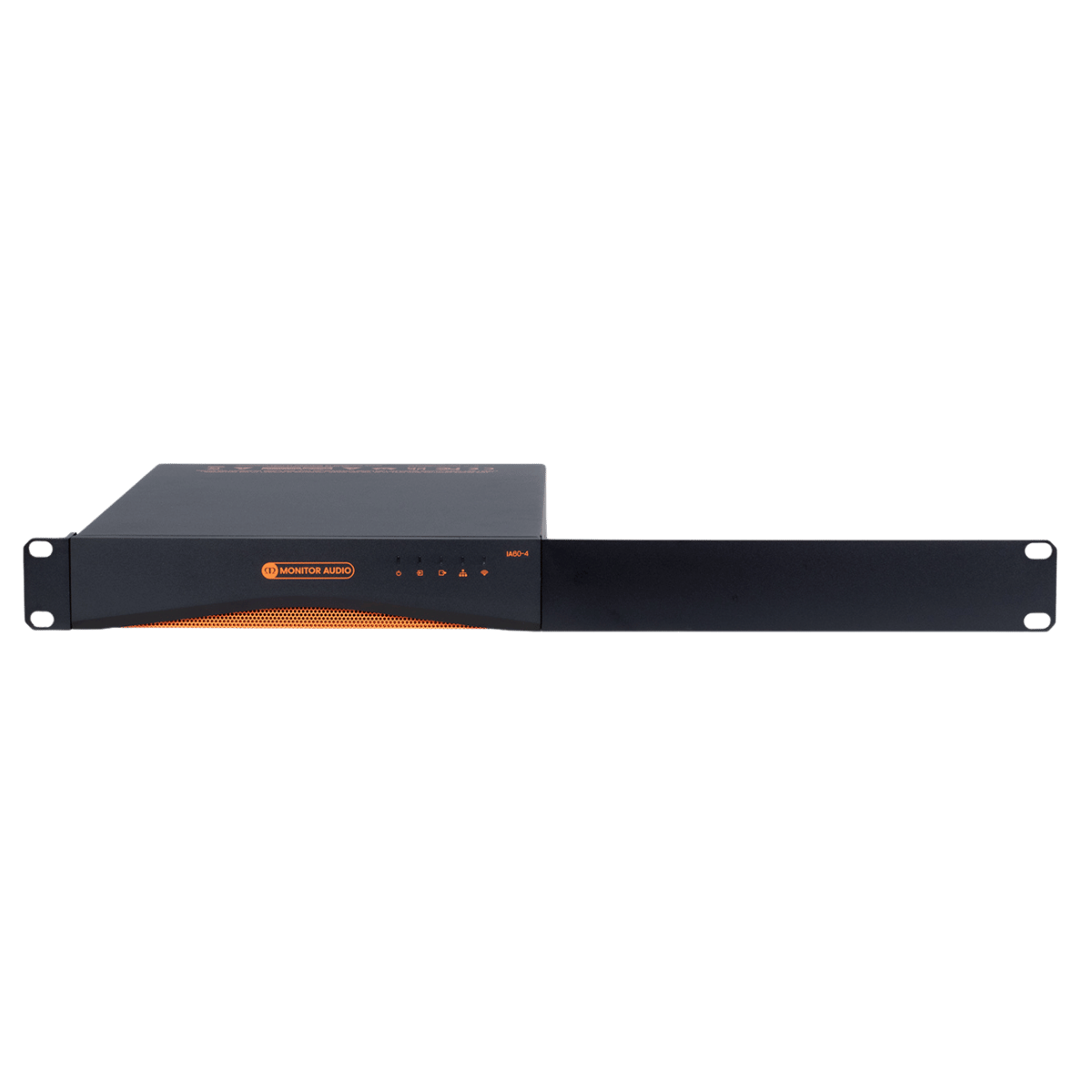

Accessories | Rack Mount Kit, Wall/desktop mount kit (sold seperatley) |
Power Ratings | 1% THD @ 120Vac and 230Vac |
Cabinet Finish | Black Anodised |
SE | Single Ended |
BTL | Bridge Tied Load |
BTU | British Thermal Unit |
Warranty
Shipping & Returns
We offer free shipping on any order over $150. For full details please see our Shipping Policy.
Our returns policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately, we may not be able to offer you a refund or exchange. For full details please see our Refund Policy.
TELL ME MORE ABOUT THE
Monitor Audio IA60-4 CI Amplifier

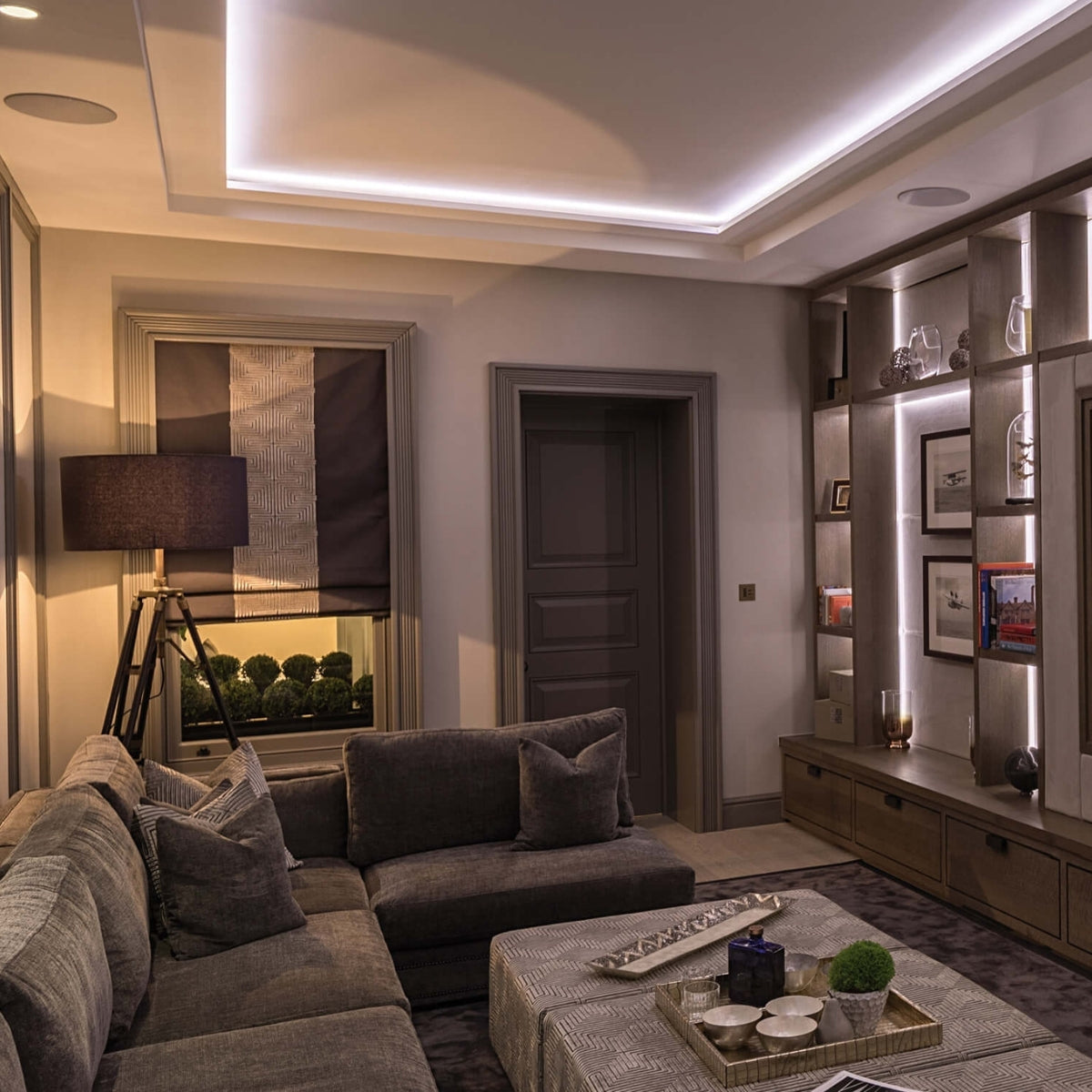

Superior power for your home cinema or multi-room installation
Technology that works for you

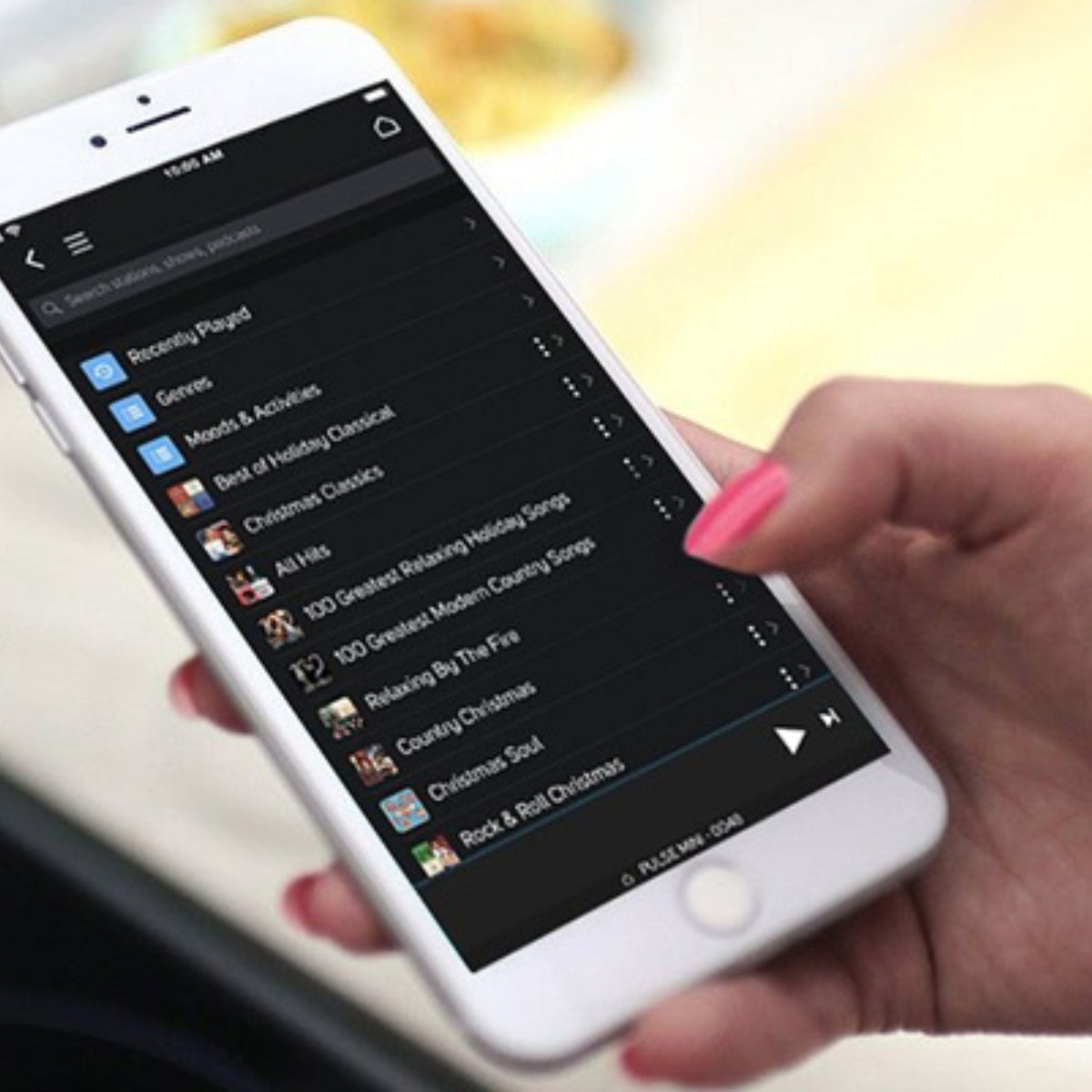

BluOS with IMS-4 Streamer
Flexibility built in

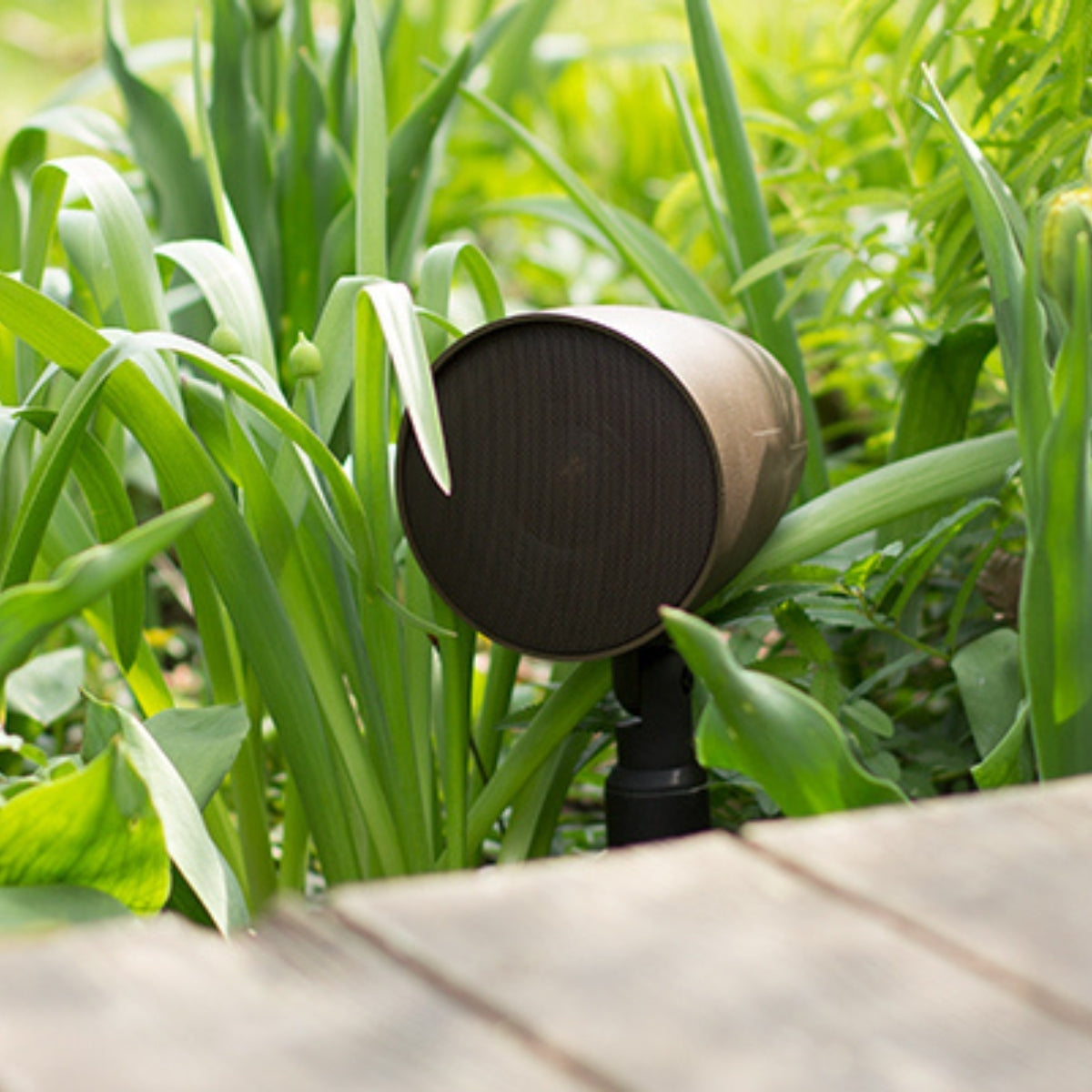

Indoor sound quality, outdoors

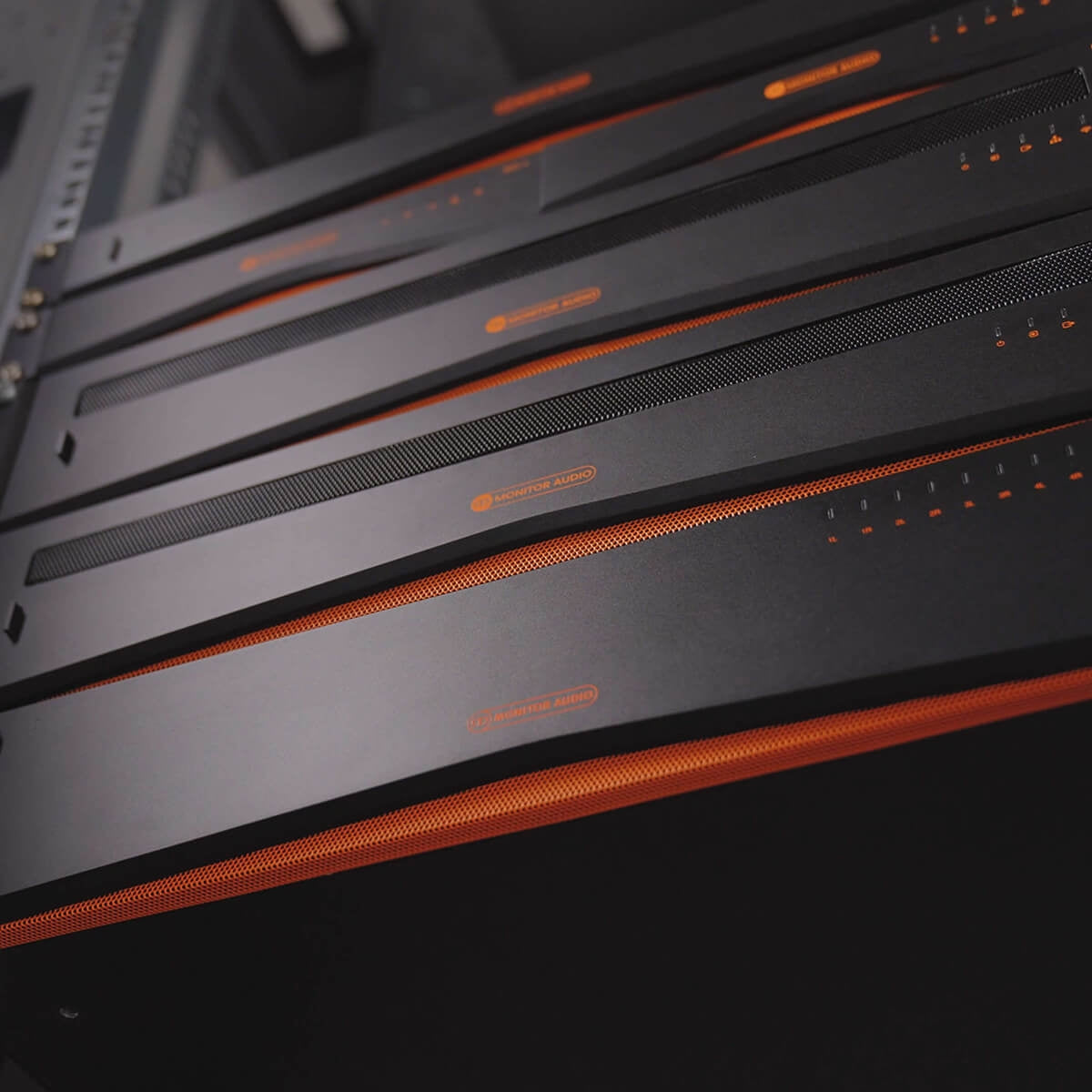

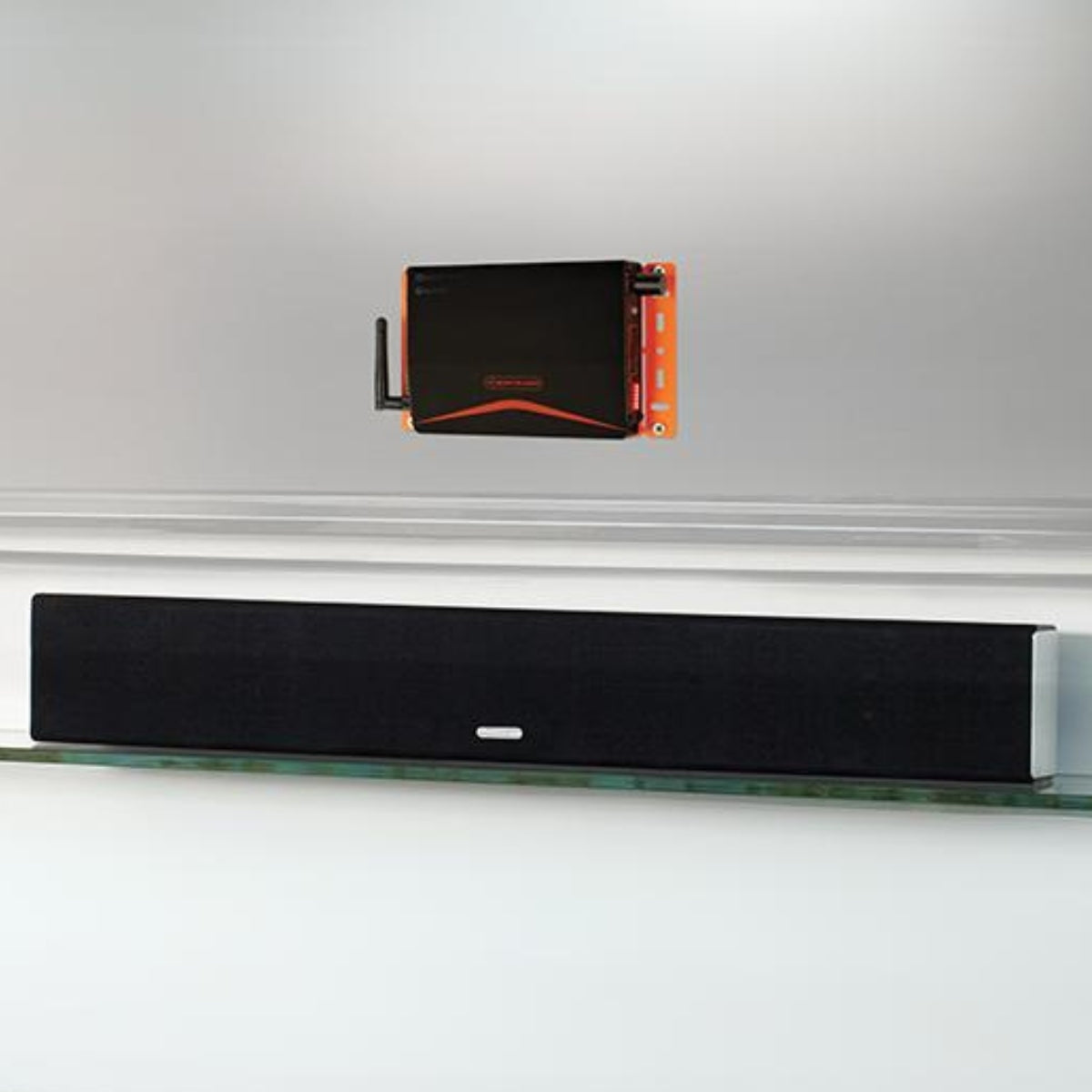

Designed for installation
