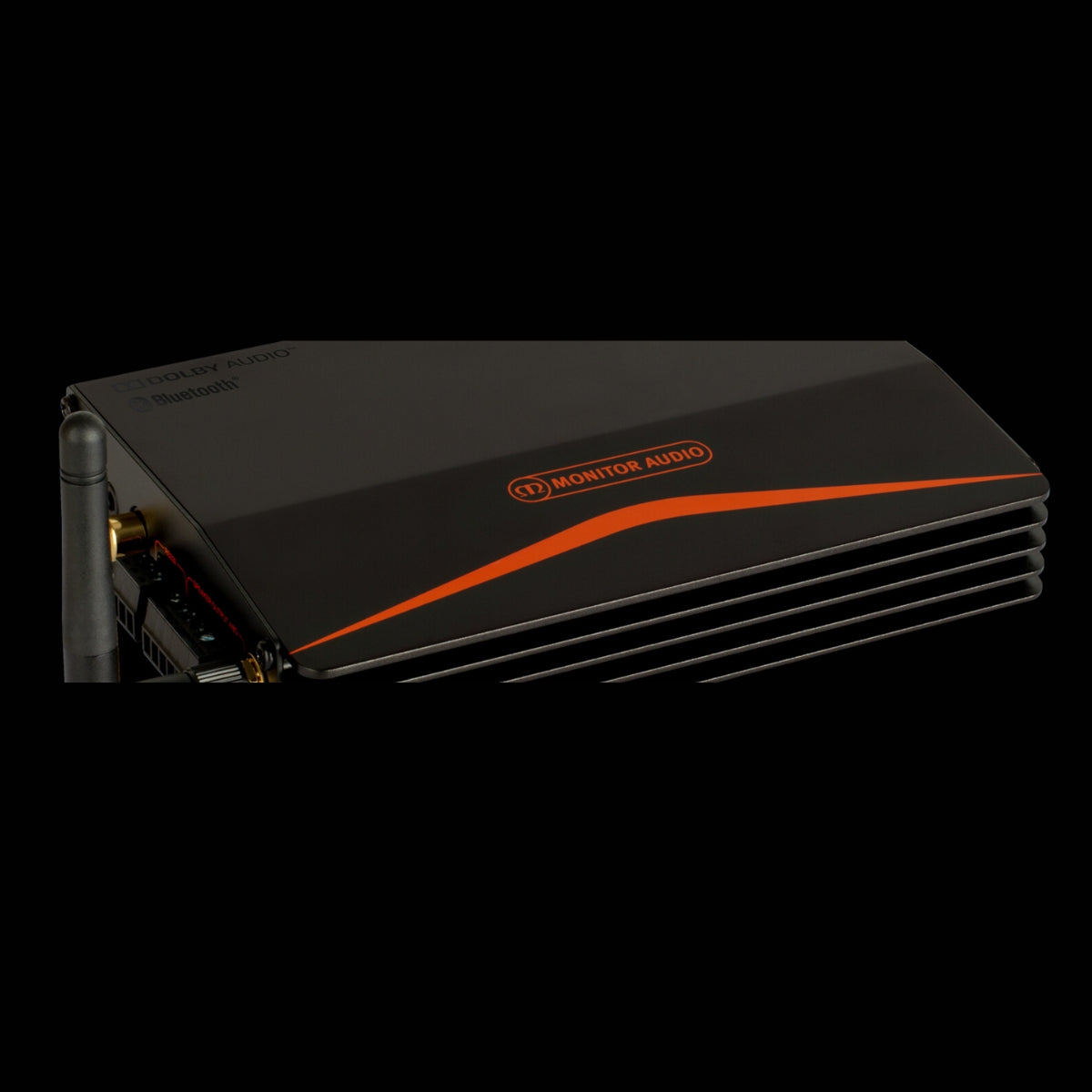

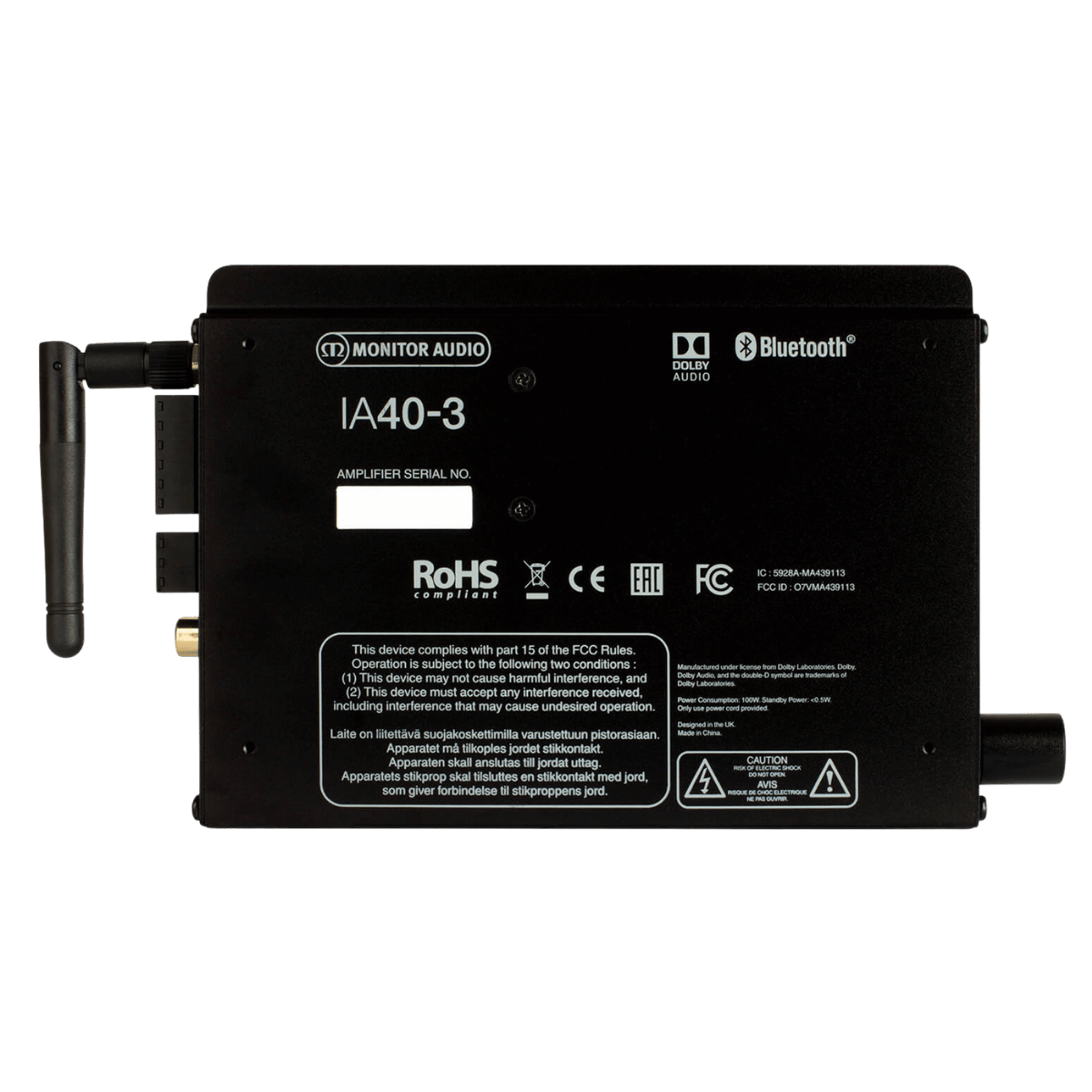

Monitor Audio IA40-3 Custom Installation Amplifier
Specifications
Number of Output Channels | 3 |
Power (W / Channel) | 4 ohms | 1 kHz | 60 W @ 1% THD+N for 2 Channel |
40 W @ 1% THD+N for 3 Channel | |
Power (W / Channel) | 8 ohms | 1 kHz | 50 W @ 1% THD+N for 2 Channel |
30 W @ 1% THD+N for 3 Channel | |
Input Impedance | 10k Unbalanced |
Output Impedance (Sub/Line Out) | 1.47k |
Input Sensitivity | ~300 mV - Full Power |
Maximum Input Voltage | 2.3 V |
Signal to Noise (SN:R) | > 84 dB Unweighted |
Frequency Response (+-0.5dB) @ 1W | 10 Hz – 20 kHz |
Total Harmonic Distortion THD + N@1 KHz | < 0.05% |
Dimensions (Excluding Mounting Brackets and Antenna (H x W x D)) | 31.4 x 180 x 110.5 mm (11/4x 71/16x 43/8") |
Dimensions (Including Mounting Brackets (H x W x D)) | 32.6 x 196 x 182.5 mm (15/16x711/16x 73/16") |
Mains Operating Voltage | 100-240 VAC, 50/60Hz |
Fuse Rating | 3 A |
Standby Power Consumption | < 0.5 W |
Weight (Including Amp, RS232 Terminal Block, Speaker Terminal Block and Antenna) | 0.484 kg |
Bluetooth | Yes |
Bluetooth Range with Antenna (line of sight) | > 20m |
Bluetooth Version | 4.1 |
Bluetooth Profiles | A2DP, AVRCP |
Audio Codec | SBC, Apt-X |

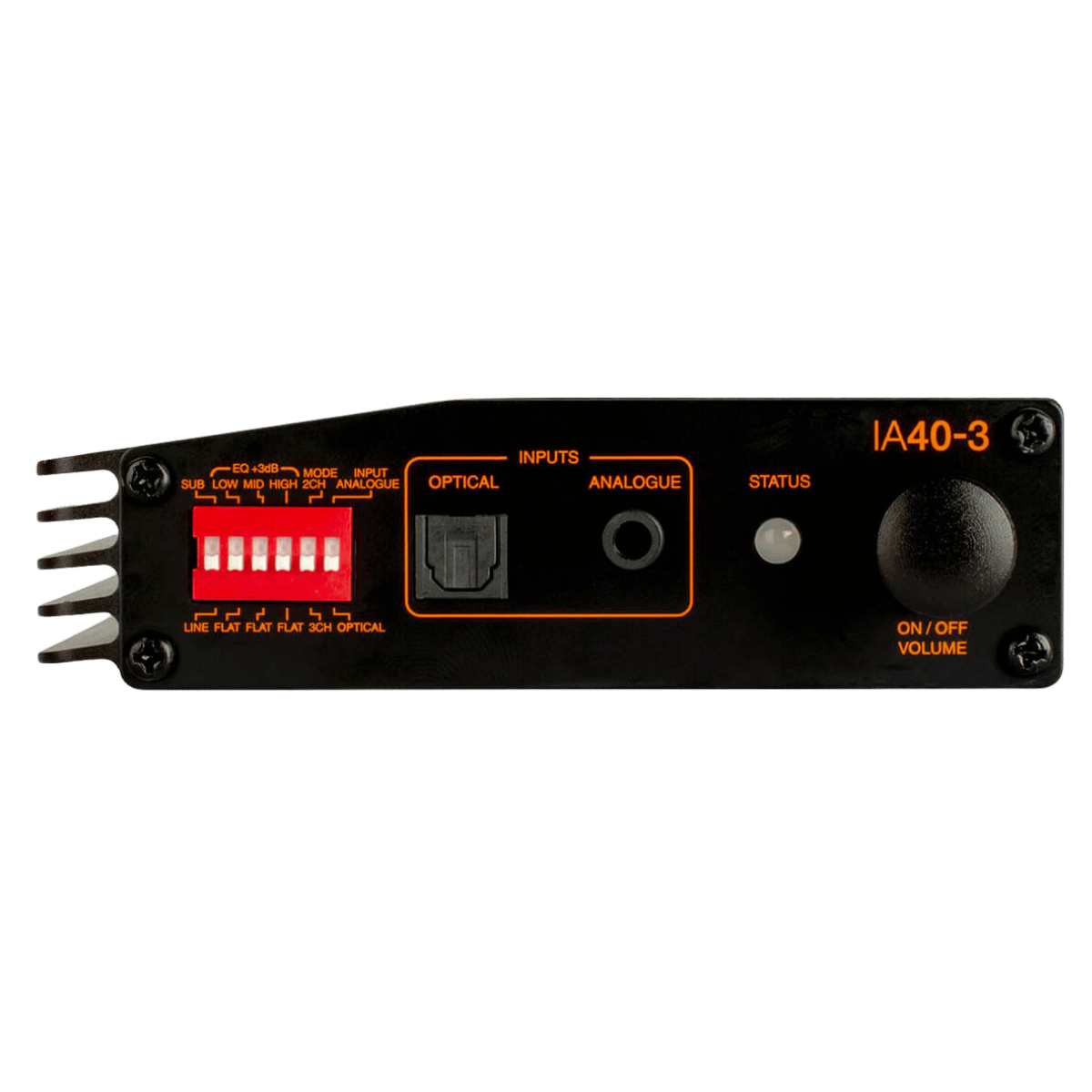

EQ | The EQ dip switches apply a 3 dB boost at 120 Hz, 1500 Hz, and 8 kHz. |
Sold As | Single Unit |
Warranty
Shipping & Returns
We offer free shipping on any order over $150. For full details please see our Shipping Policy.
Our returns policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately, we may not be able to offer you a refund or exchange. For full details please see our Refund Policy.
TELL ME MORE ABOUT THE
Monitor Audio IA40-3 Custom Installation Amplifier

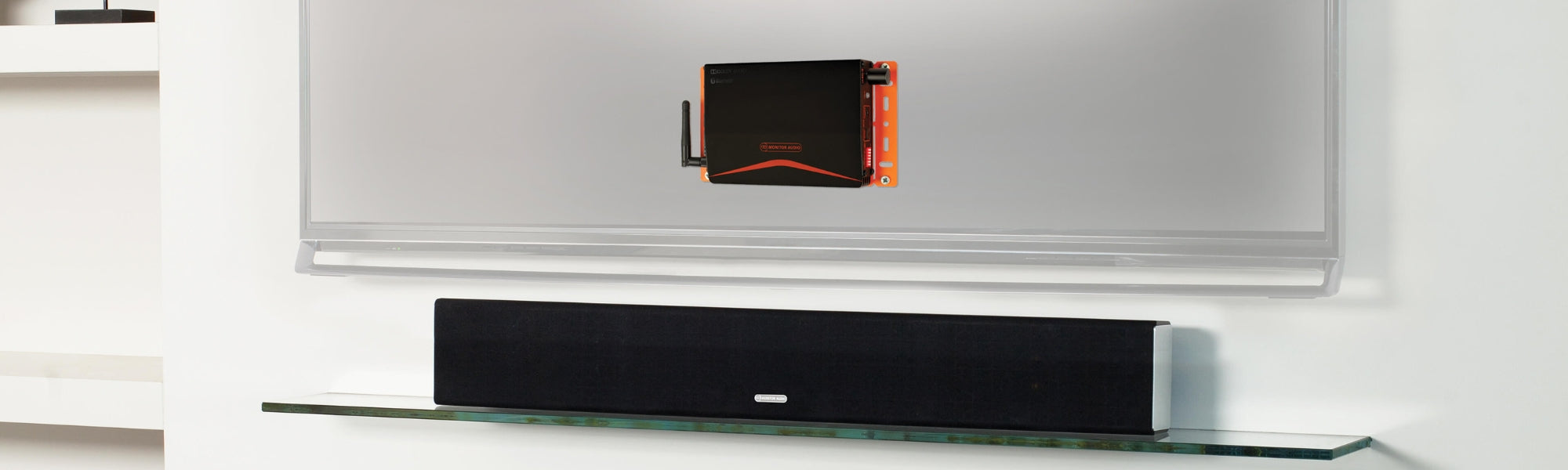

Superior power for your home cinema or multi-room installation
Technology that works for you
BluOS with IMS-4 Streamer
Flexibility built in
Indoor sound quality, outdoors

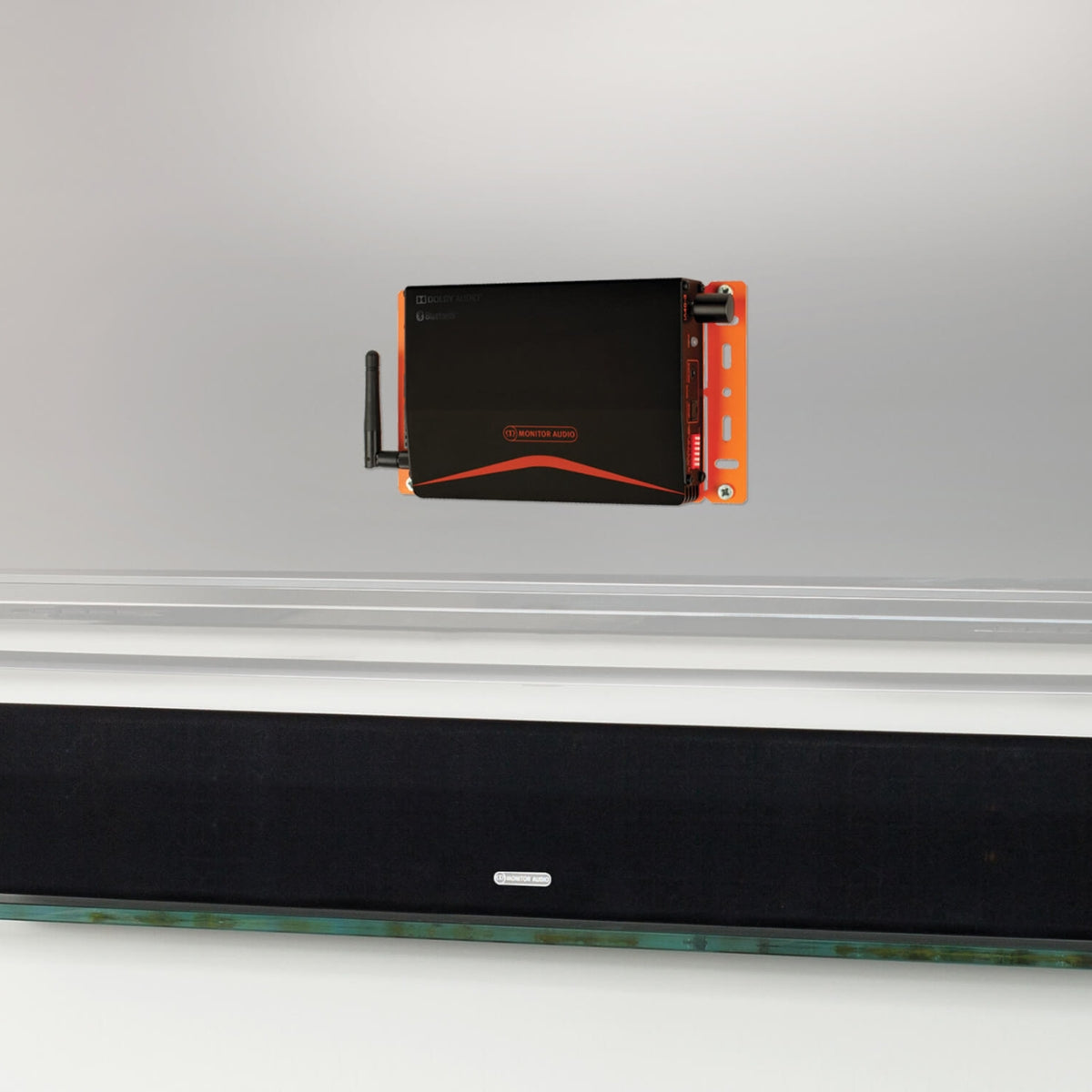

Designed for installation
