Monitor Audio

Monitor Audio CS180 In-Ceiling Speaker


  • Sale
  • $296.00
Living Entertainment North Coast

CS180

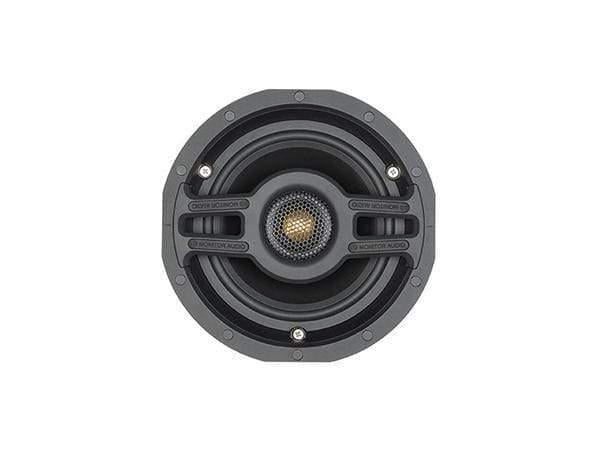

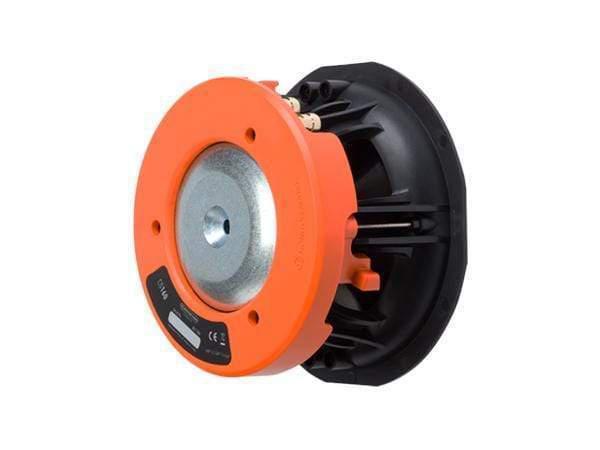

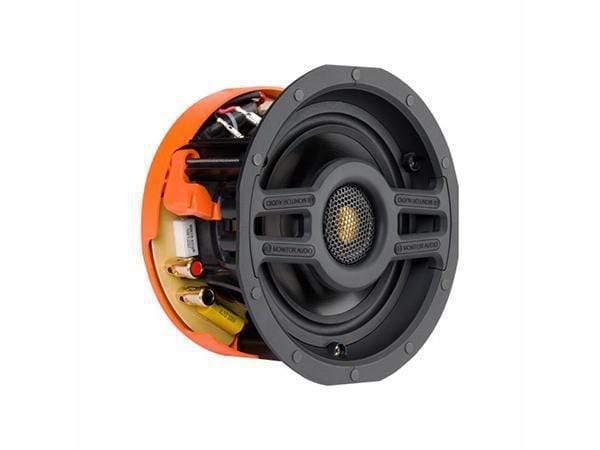

The CS180 in-ceiling model marries our 8-inch MMP IIdriver with the CWT family’s pivoting C-CAM Gold Dome tweeter.





Offering superlative dynamic delivery in a super-discreet format, the CS180 will deliver fabulous full-range sound with stealthy versatility.

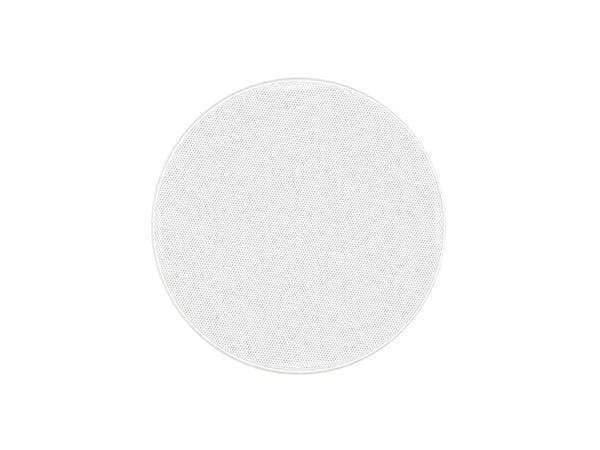

Please specify a round or square grille option when ordering.





Specifications

Frequency Response

48 Hz – 30 kHz

Nominal Impedance

6 ohms

Sensitivity (1W@1M)

90 dB

Maximum SPL

110.6 dBA

Power Handling (RMS)

120 W

Recommended Amplifier Requirements

30 – 120 W

Drive Unit Complement

1 x 8" MMP IIcone bass driver.
1 x 1" (25 mm) C-CAM pivoting Gold Dome tweeter

Acoustic Configuration

2-way

Overall Dimensions (Including Grille (H x W))

Round: 251.7 mm (915/16")
Square: 246.7 x 246.7 mm (911/16 x 911/16")

Mounting Depth

99.4 mm (315/16”)

Cut-Out Hole Diameter

213 mm (83/8”)

Fixing Type

3 position Tri-Grip dog fixings

Connection

Gold plated ‘push’ type terminals

Grille Attachment

Magnetic

Construction Material

Mineral filled ABS, RoHS compliant

Weight

2.72 kg (6 lb)

Pre-Construction Bracket

CB6 Pre-Construction Bracket (Purple)

Back Box

CCBOX-R | CMBOX-R
