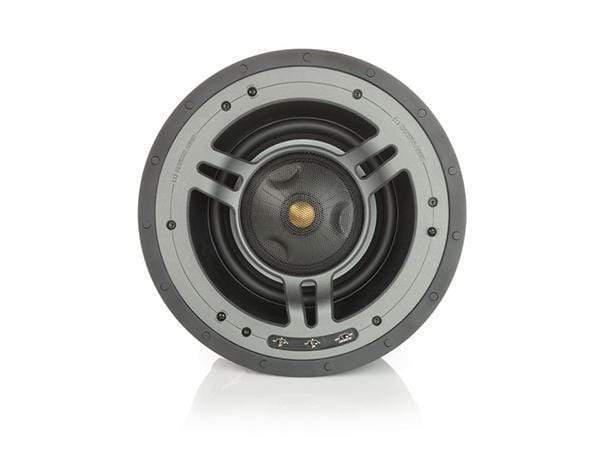

Monitor Audio CP-CT380IDC In-Ceiling Speaker


  • Sale
  • Regular price $649.00


CP-CT380IDC


Incorporating Monitor Audio’s innovative, pivoting Inverted Dual Concentric (IDC) midrange/tweeter module and 8" RST C-CAM bass driver, the three-way CP-CT380IDC represents the highest level of new CP performance. The IDC module houses a 4" C-CAM inverted midrange driver surrounding a 25 mm C-CAM Gold Dome tweeter.



Optional square grille can be used with this model.









Technology

  • Pivoting module consisting of IDC midrange driver and Gold Dome tweeter.
  • C-CAM bass driver featuring Rigid Surface Technology (RST).
  • High overall efficiency.
  • High frequency level adjustment (+/-3 dB).
  • Midrange frequency level adjustment (+/-3 dB).
  • Boundary compensation controls.
  • Our innovative Tri-Grip fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.
  • Magnetic and easily removable steel grille.
  • Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting.
  • Airtight enclosure design, which protects each precision-engineered driver system against the damaging ingress of dust and dirt.



 Specifications



Frequency Response

50 Hz - 30 kHz

Nominal Impedance

6 ohms

Sensitivity (1W@1M)

89 dB

Maximum SPL

109.6 dBA

Power Handling (RMS)

120 W

Recommended Amplifier Requirements

30 - 120 W

Crossover Frequency

Bass low pass: 300 Hz @ 6 dB / Octave
Mid: 300 Hz @ 6 dB / Octave
& 3 kHz @ 12 dB / Octave

Drive Unit Complement

3-Way
8" C-CAMRST cone bass driver
4" C-CAM IDC cone mid range driver
1" C-CAM Gold Dome tweeter
(tweeter & midrange driver combined in a pivoting module)

Adjustment Controls

HF Level Switch (+3 dB / 0 dB / -3 dB)
MF Level Switch (+ 3dB/ 0 dB/ -3 dB)
Boundary Compensation Switch

Overall Diameter (Including Grille)

309 mm (123/16")

Overall Depth (Including Grille)

187 mm (73/8")

Cut-Out Hole Diameter

274 mm (1013/16")

Mounting Depth

181 mm (71/8")

Optional Square Grille - Outer Dimensions

309 x 309 mm (123/16")

Fixing Type

3 position Tri-Grip dog leg fixings

Construction Material

Mineral Filled ABS Plastic (RoHS2 Compliant)

Connection

Gold plated 'push' type terminals

Weight

4.3 kg (9 lb 8 oz)
