Monitor Audio

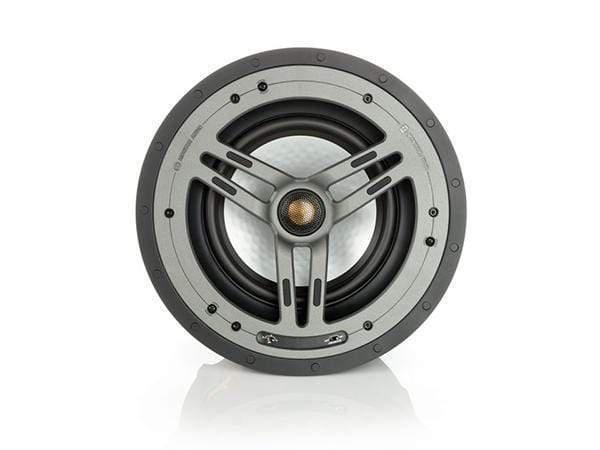

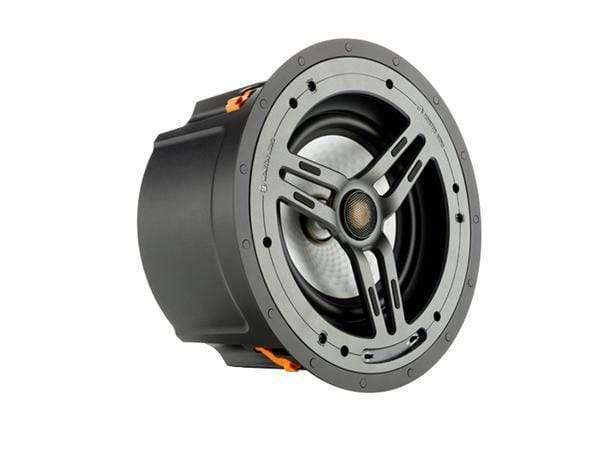

Monitor Audio CP-CT380 In-Ceiling Speaker


  • Sale
  • Regular price $549.00


CP-CT380


Alongside a pivoting C-CAMtweeter, the CP-CT380 model introduces a powerful 8" C-CAM bass driver featuring the Rigid Surface Technology (RST) cone surface employed by our range-topping home audio speaker systems.

Optional square grille can be used with this model.







Technology

  • Pivoting C-CAM gold dome tweeter.
  • C-CAM bass driver featuring Rigid Surface Technology (RST).
  • High overall efficiency.
  • High frequency level adjustment (+/-3dB).
  • Boundary compensation controls.
  • Our innovative Tri-Grip fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.
  • Magnetic and easily removable steel grille.
  • Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting.
  • Airtight enclosure design, which protects each precision-engineered driver system against the damaging ingress of dust and dirt.



Specifications



Frequency Response

50 Hz - 25 kHz

Nominal Impedance

6 ohms

Sensitivity (1W@1M)

89 dB

Maximum SPL

109.6 dBA

Power Handling (RMS)

120 W

Recommended Amplifier Requirements

30 - 120 W

Crossover Frequency

2.5 kHz @ 12dB / Octave

Drive Unit Complement

2-Way
8" C-CAMRST cone bass driver
1"  C-CAM pivoting Gold Dome tweeter

Adjustment Controls

HF Level Switch
(+3 dB / 0 dB / -3 dB)
Boundary Compensation Switch

Overall Diameter (Including Grille)

309 mm (123/16")

Overall Depth (Including Grille)

187 mm (7 3/8")

Cut-Out Hole Diameter

274 mm (1013/16")

Mounting Depth

181 mm (71/8")

Optional Square Grille - Outer Dimensions

309 x 309 mm (123/16")

Fixing Type

3 position Tri-Grip dog leg fixings

Construction Material

Mineral Filled ABS Plastic (RoHS2 Compliant)

Weight

3.74 kg (8 lb 4 oz)

Connection

Gold plated 'push' type terminals
