Monitor Audio

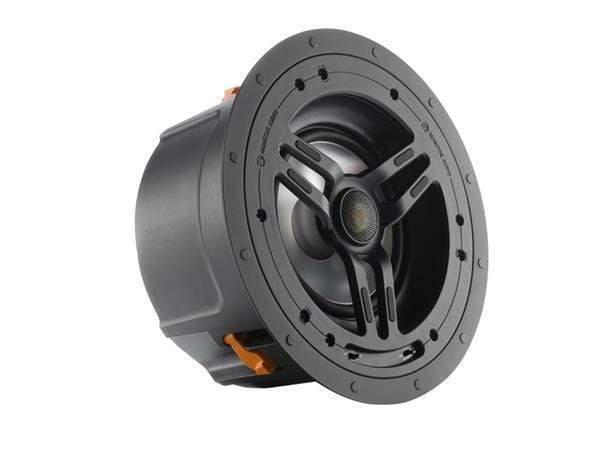

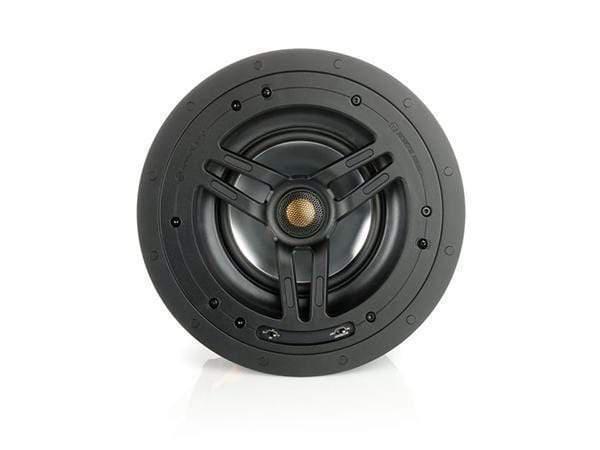

Monitor Audio CP-CT260 In-Ceiling Speaker


  • Sale
  • Regular price $379.00


CP-CT260


The CP-CT260's pivoting C-CAM tweeter is joined by a 6" C-CAM bass driver - and high frequency level adjustment by a boundary compensation control for optimum bass tuning when positioned near room corners.



Optional square grille can be used with this model.









Technology

  • Pivoting C-CAM Gold Dome tweeter and C-CAM bass driver.
  • High overall efficiency.
  • High frequency level adjustment (+/-3 dB).
  • Boundary compensation controls.
  • Our innovative Tri-Grip fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.
  • Magnetic and easily removable steel grille.
  • Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting.
  • Airtight enclosure design, which protects each precision-engineered driver system against the damaging ingress of dust and dirt.



Specifications



Frequency Response

66 Hz - 25 kHz

Nominal Impedance

6 ohms

Sensitivity (1W@1M)

88 dB

Maximum SPL

106.9 dBA

Power Handling (RMS)

65 W

Recommended Amplifier Requirements

20 - 65 W

Crossover Frequency

2.6 kHz @ 12 dB / Octave

Drive Unit Complement

2-Way
6" C-CAM cone bass driver
1" C-CAM pivoting Gold Dome tweeter

Adjustment Controls

HF Level Switch
(+3 dB / 0 dB / -3 dB)
Boundary Compensation Switch

Overall Diameter (Including Grille)

285 mm (111/4")

Overall Depth (Including Grille)

155 mm (61/8")

Cut-Out Hole Diameter

244 mm (95/8")

Mounting Depth

151 mm (515/16")

Optional Square Grille - Outer Dimensions

285 x 285 mm (111/4")

Fixing Type

3 position Tri-Grip dog leg fixings

Construction Material

Mineral Filled ABS Plastic (RoHS2 Compliant)

Weight

2 kg (6 lb 2 oz)

Connection

Gold plated 'push' type terminals

Pre-Construction Bracket

CB8 Pre-Construction Bracket (Green)

Back Box

CCBOX-L
