Monitor Audio

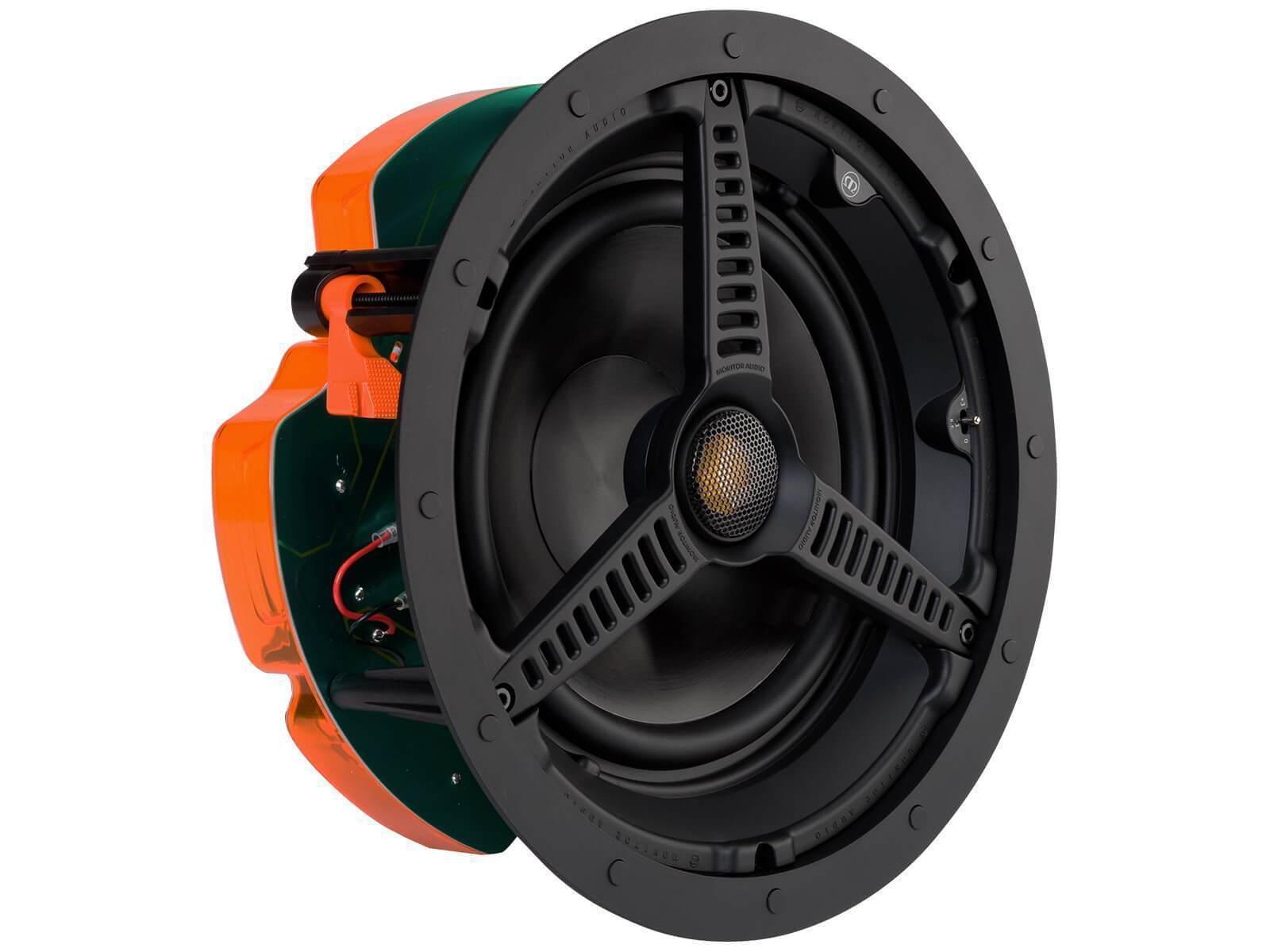

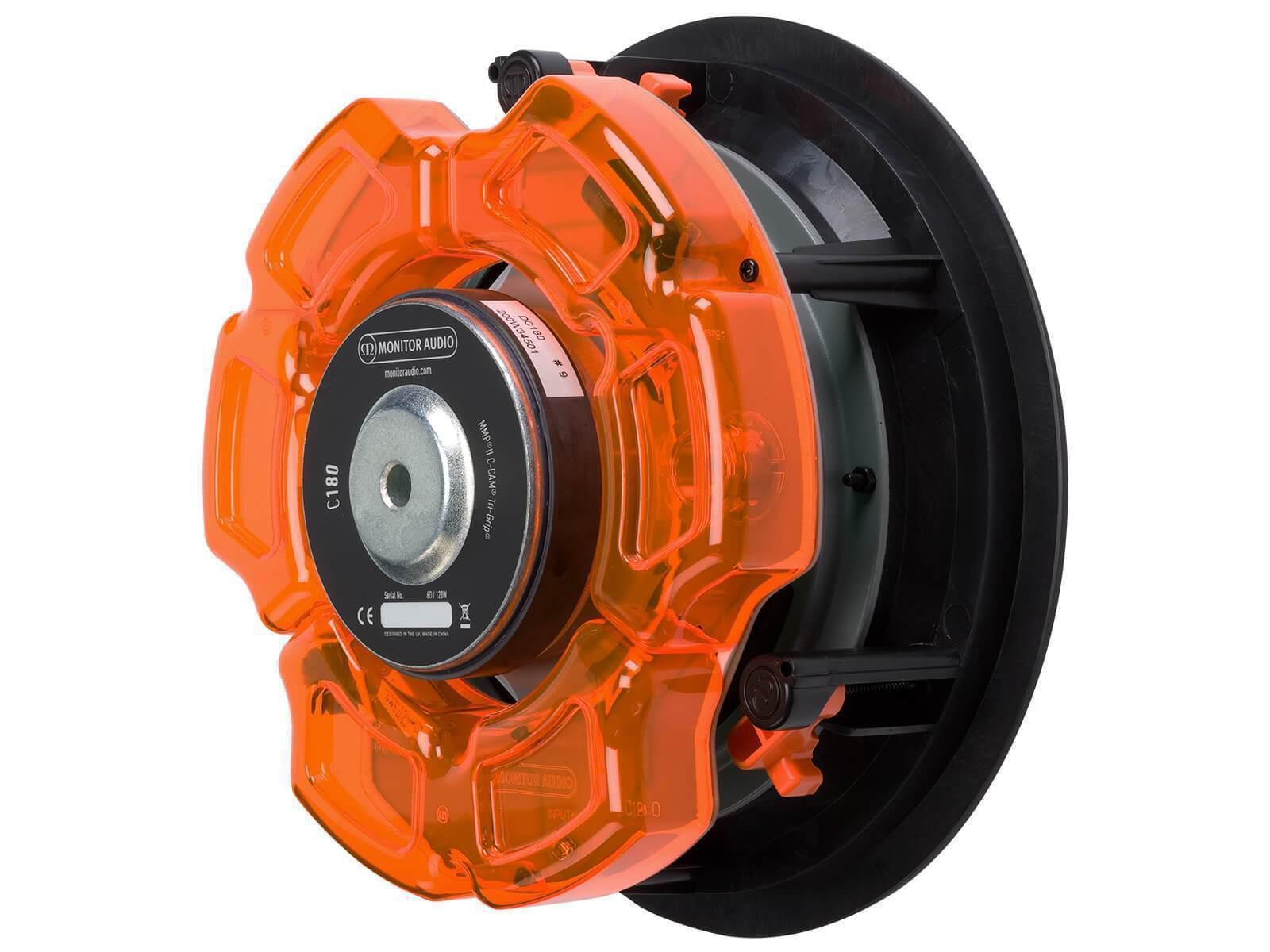

Monitor Audio C180 In-Ceiling Speaker


  • Sale
  • $278.00
  • Regular price $309.00

Living Entertainment North Coast

C180


Incorporating an 8-inch MMP IIbass driver with Monitor Audio’s signature C-CAM Gold Dome tweeter to provide high performance sound, ease-of-drive, and wide frequency response and dispersion.



Optimum imaging and set-up are established via a pivoting tweeter and high-frequency (+3 dB / 0 dB /-3 dB) level adjustment.





Specifications



Frequency Response

50 Hz – 25 kHz

Nominal Impedance

6 ohms

Sensitivity (1W@1M)

90 dB

Maximum SPL

111.6 dBA

Power Handling (RMS)

120 W

Recommended Amplifier Requirements

30 – 120 W

Drive Unit Complement

8" MMP II cone bass driver
1" C-CAMpivoting Gold Dome tweeter

Adjustment Controls

HF Level Switch (+3 dB / 0 dB / -3 dB)

Overall Diameter (Including Grille)

285 mm (111/4")

Overall Depth (Including Grille)

126 mm (415/16")

Mounting Depth

122 mm (413/16")

Cut-Out Hole Diameter

247 mm (93/4")

Fixing Type

3 position Tri-Grip dog fixings

Optional Square Grille - Outer Dimensions

285 x 285 mm (111/4")

Construction Material

Mineral filled ABS, RoHS compliant

Weight

2.72 kg (6 lb)

Pre-Construction Bracket

CB8 Pre-Construction Bracket (Green)

Back Box

CCBOX-R / CMBOX-R
