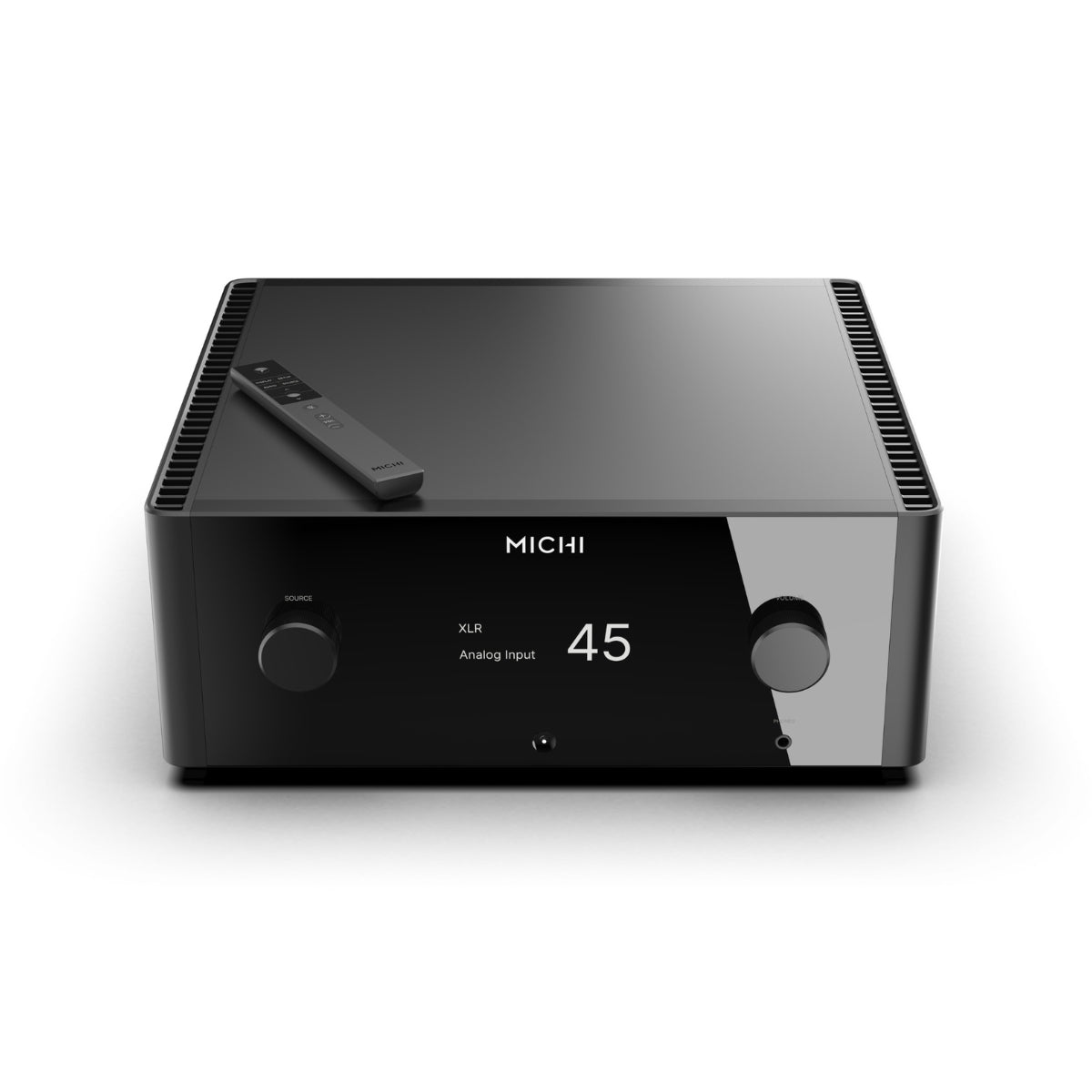

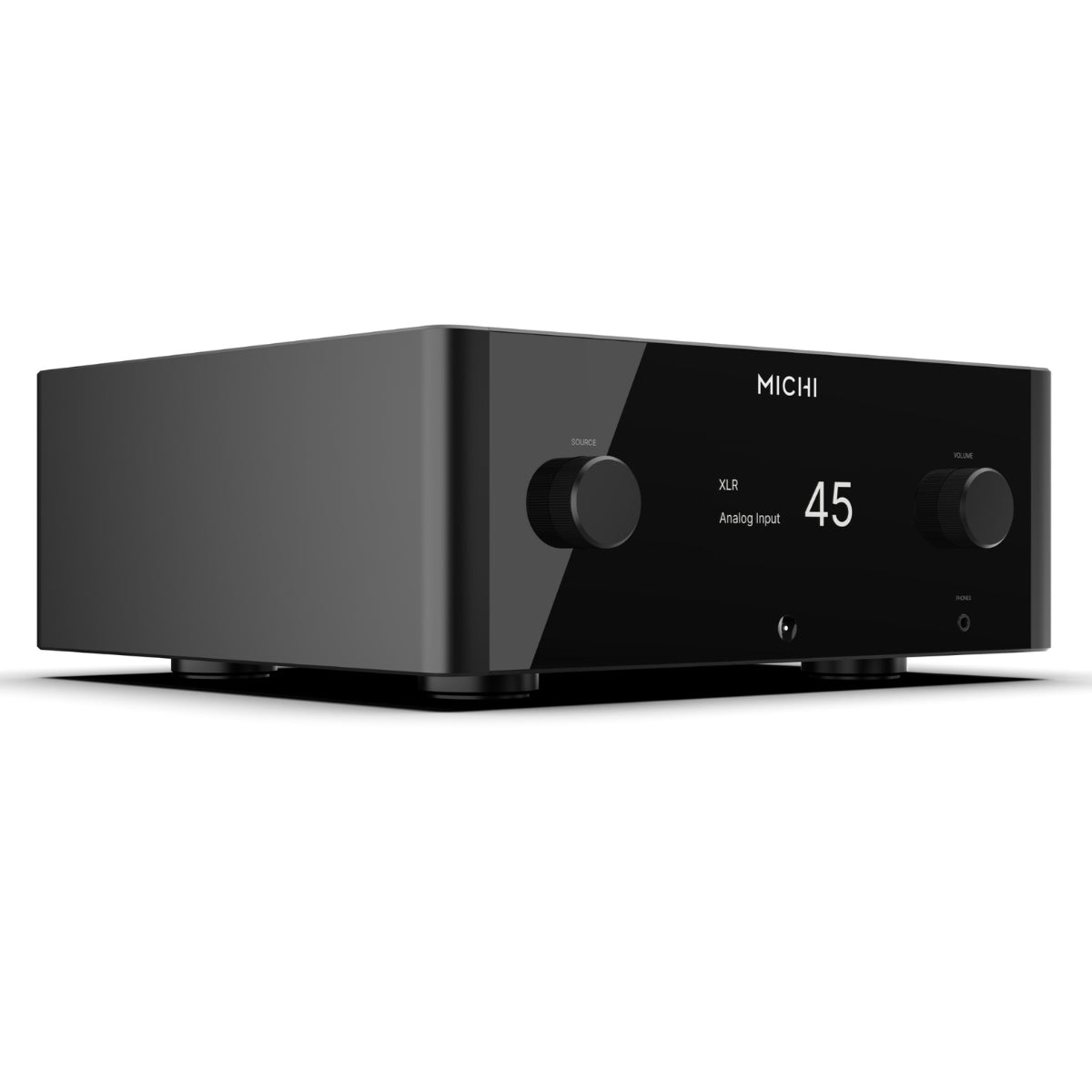

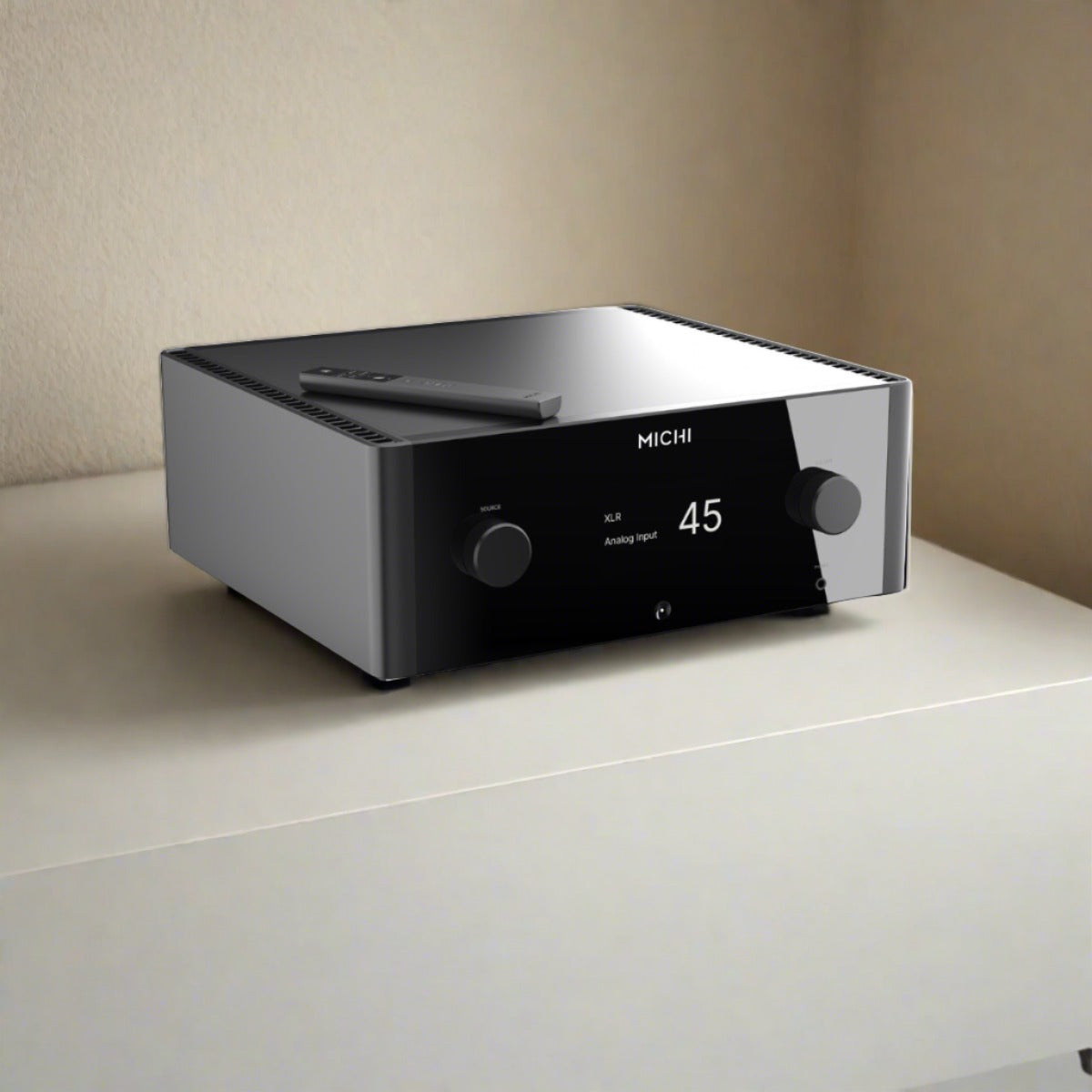

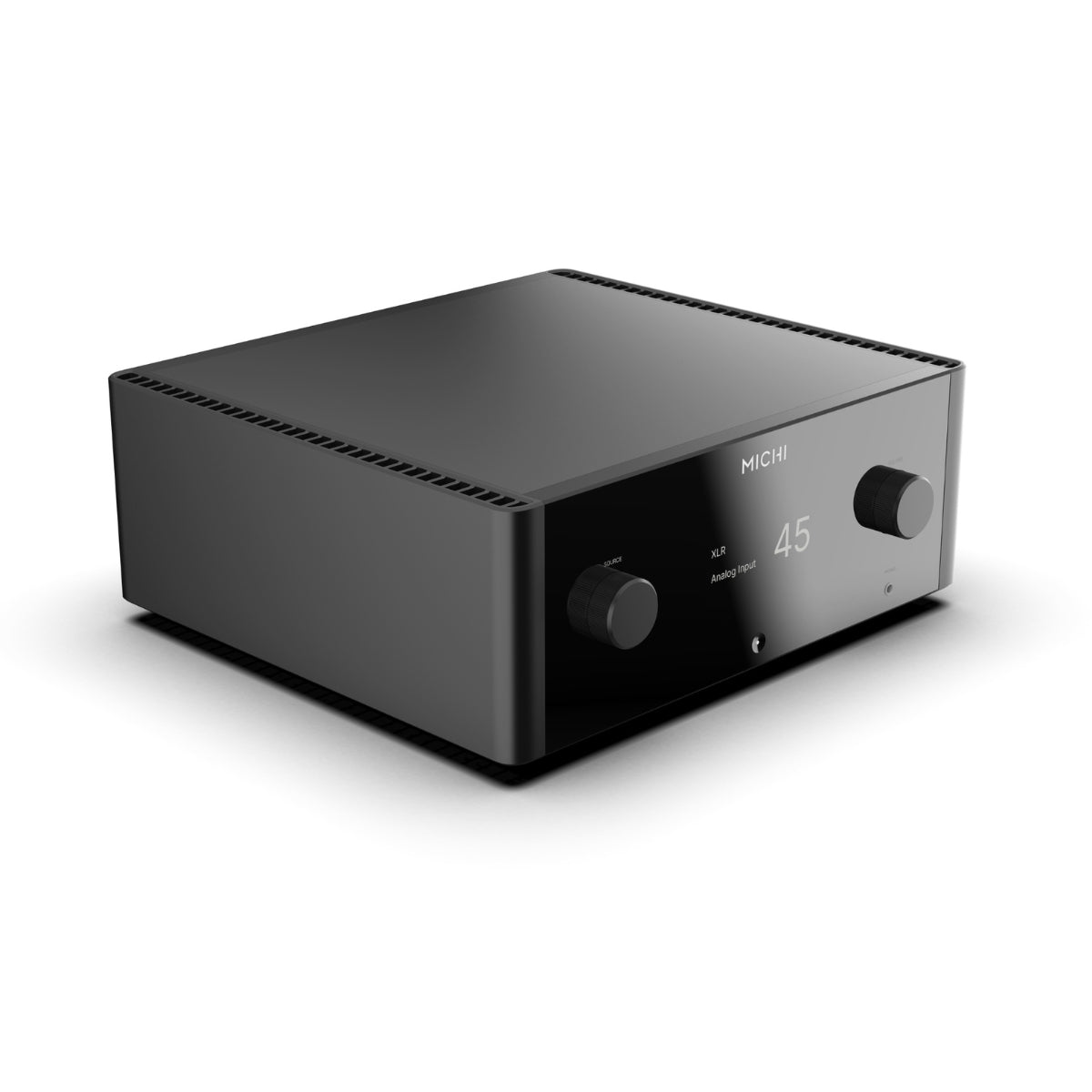

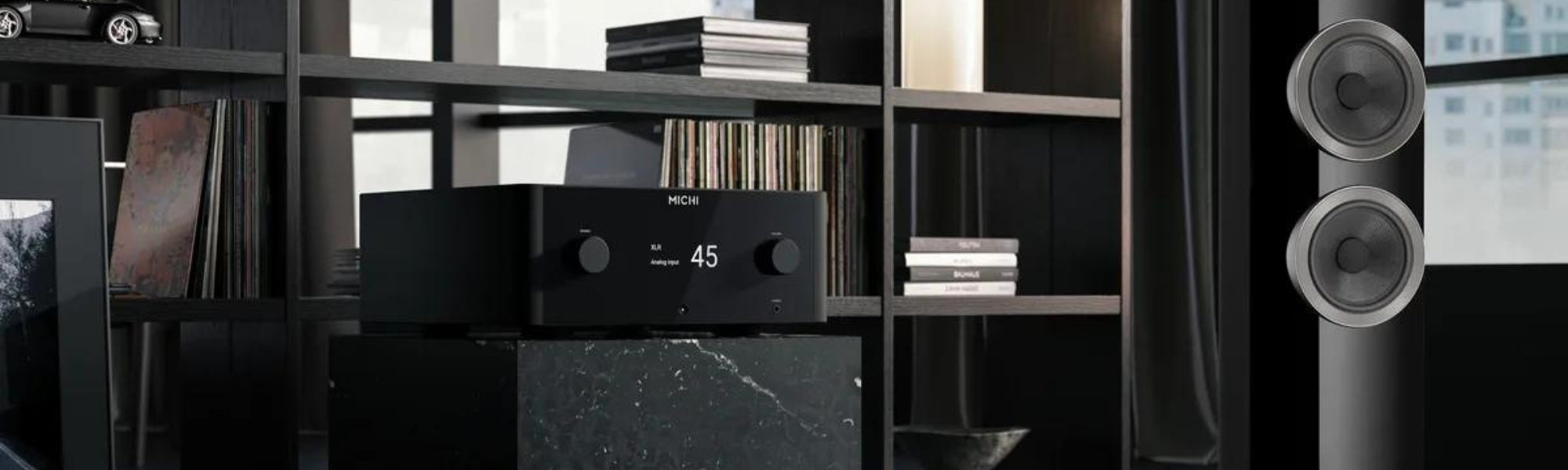

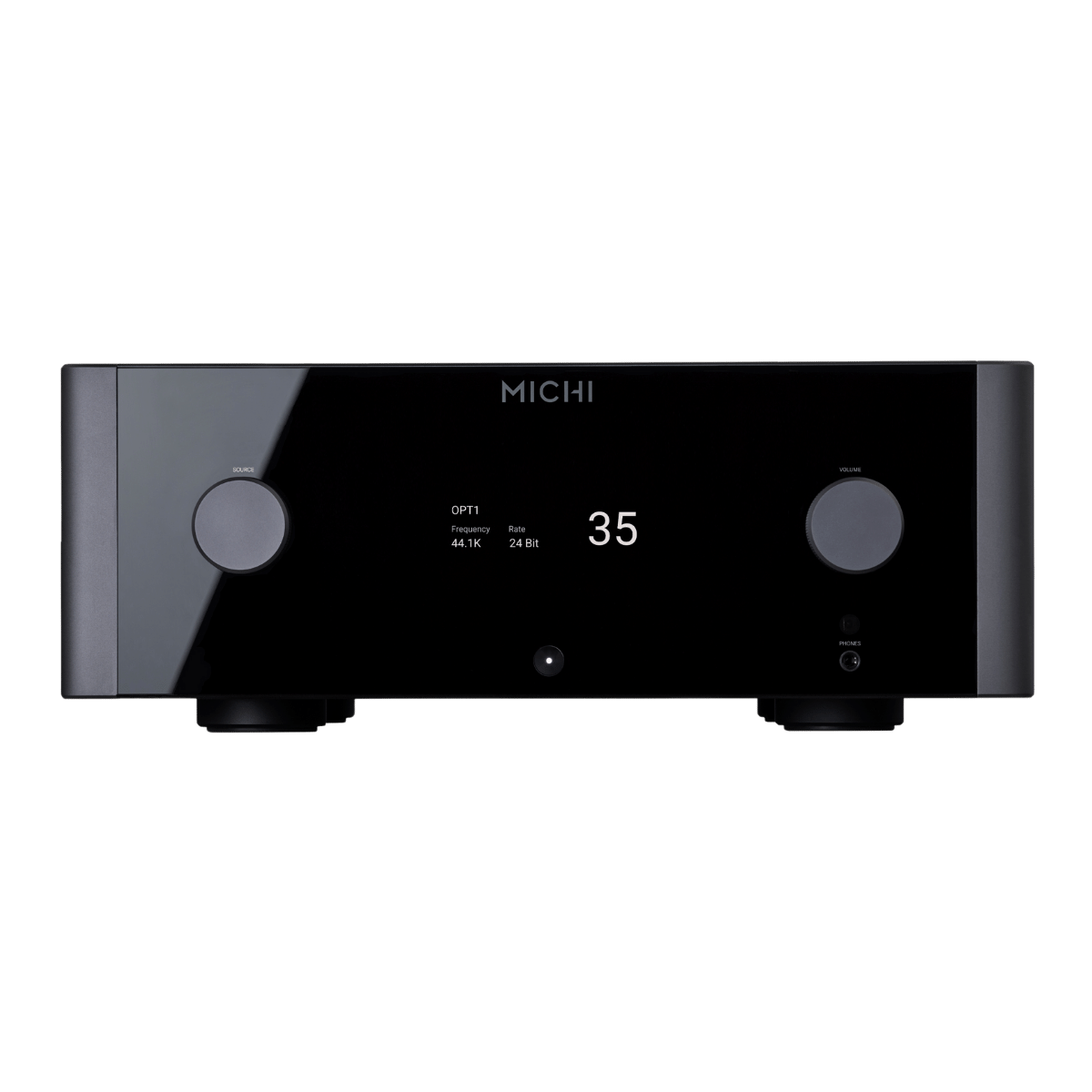

Michi X5 Series 2 Stereo Integrated Amplifier
Specifications
Maximum Power Output | 600 watts/channel (4 ohms) |
Continuous Power Output | 350 watts/channel (8 ohms) |
Total Harmonic Distortion | < 0.009% |
Intermodulation Distortion | < 0.03% (60 Hz : 7 kHz, 4:1) |
Frequency Response (Analog) | 20 Hz-20k Hz (+0 dB, -0.2 dB) |
Frequency Response (Digital) | 10 Hz-100k Hz (+0 dB, -0.6 dB) |
Phono Input | 5.7 mV / 47k ohms |
Phono Input (MC) | 570 uV/ 100 ohms |
Line Level Inputs (RCA) | 380 mV / 100k ohms |
Line Level Inputs (XLR) | 580 mV / 100k ohms |
Damping Factor | (20 Hz - 20kHz, 8 ohms) |
Input Sensitivity / Impedance | Phono Input (MM) - 197 mV Phono Input (MC) - 19 mV Line Level Inputs (RCA) - 12.5 V Line Level Inputs (XLR) - 12.5 V |
Input Overload | Phono Input (MM) - 1 V / 470 ohms Line Level Inputs (RCA) - ±10 dB at 100 Hz Line Level Inputs (XLR) - ±10 dB at 10k Hz |
Signal to Noise Ratio (IHF 'A' weighted) | Phono Input - 80 dB Line Level Inputs - 102 dB |
Channel Separation | Phono Input - > 65 dB Line Level Inputs - > 65 dB |
Frequency Response (Digital Section) | 20 Hz - 20k Hz (0 ± 0.4 dB) |
Signal to Noise Ratio (IHF 'A' weighted) (Digital Section) | 102 dB |
Input Sensitivity/Impedance (Digital Section) | 0 dBFs / 75 ohms |
Preamplifier Output Level (Digital Section) | 1.3 V (at -20 dB Volume Position) |
Coaxial/Optical Digital Signals (Digital Section) | SPDIF LPCM (up to 192kHz 24 bit) |
PC-USB (Digital Section) | USB Audio Class 1.0 (up to 96kHz 24-bit), USB Audio Class 2.0 (up to 384kHz 32-bit)* *Driver installation required |
DSD and DoP support (Digital Section) | true |
MQA and MQA Studio support (Digital Section) | true |
Roon Tested (Digital Section) | true |
Power Requirements (Europe) | 230 V, 50 Hz |
Power Requirements (USA) | 120 V, 60 Hz |
Power Consumption (Standby Power Consumption) | < 0.5 watts |
Power Consumption (Normal) | 850 watts |
Power Consumption (Network Wakeup) | < 2 watts |
BTU (4 ohms, 1/8 power) | 1303 BTU/h |
Dimensions (W x H x D) | 485 x 195 x 452 mm, 19" x 7 5/8" x 17 3/4" |
Front Panel Height | 177 mm / 7" |
Weight (net) | 43.8 kg, 96.56 lb |
Finish | Black |
Warranty
Shipping & Returns
We offer free shipping on any order over $150. For full details please see our Shipping Policy.
Our returns policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately, we may not be able to offer you a refund or exchange. For full details please see our Refund Policy.
TELL ME MORE ABOUT THE
Michi X5 Series 2 Stereo Integrated Amplifier
Unparalleled Power and Performance
Exceptional Digital-to-Analogue Conversion

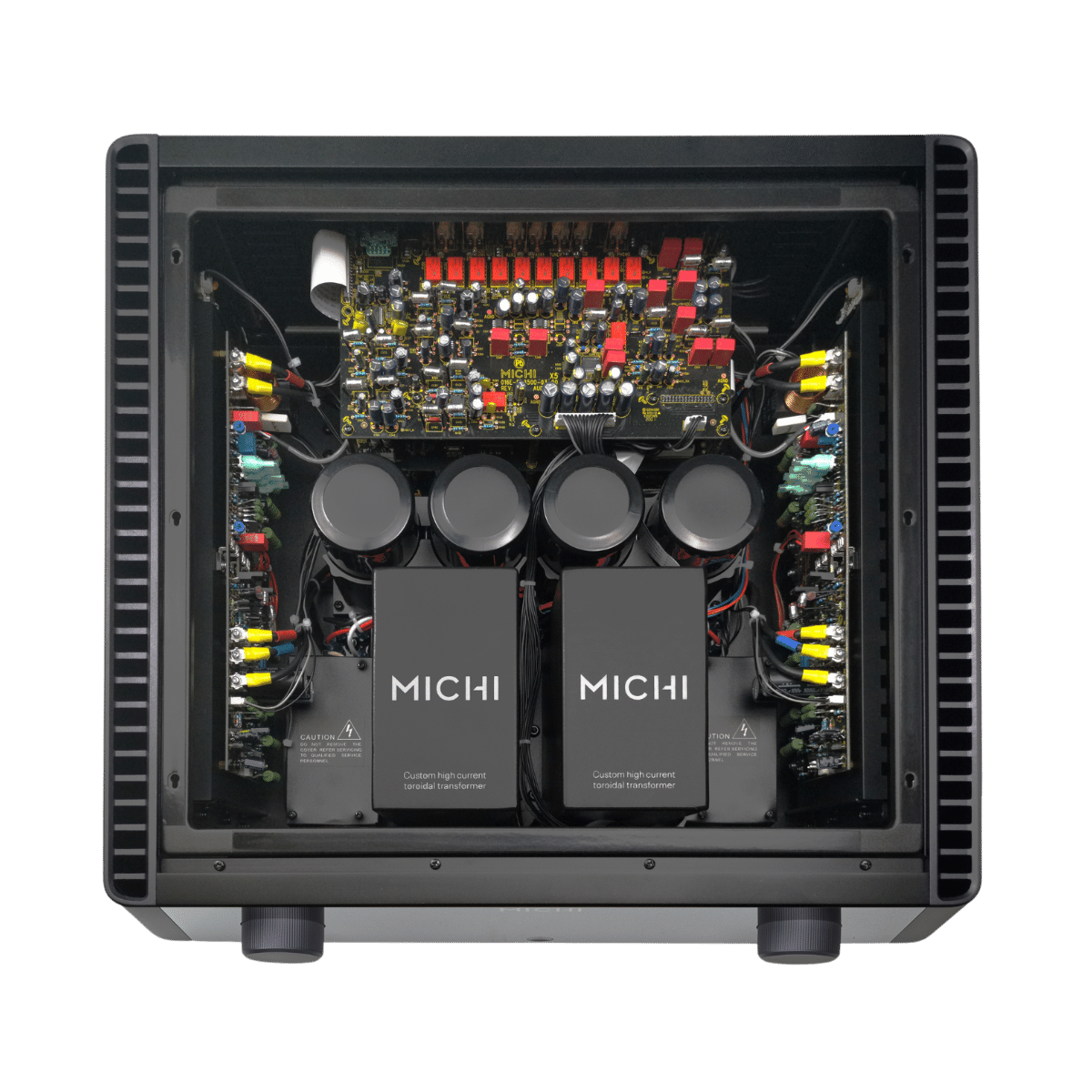

Advanced Power Supply Design
Versatile Connectivity Options
Intuitive Control and Display
