Featuring an upgraded, high-quality DAC, digital inputs, and a newly revamped built-in phono equalizer, the Marantz PM6007 integrated amplifier features ample connectivity and creates a realistic listening experience for the most musical sound.

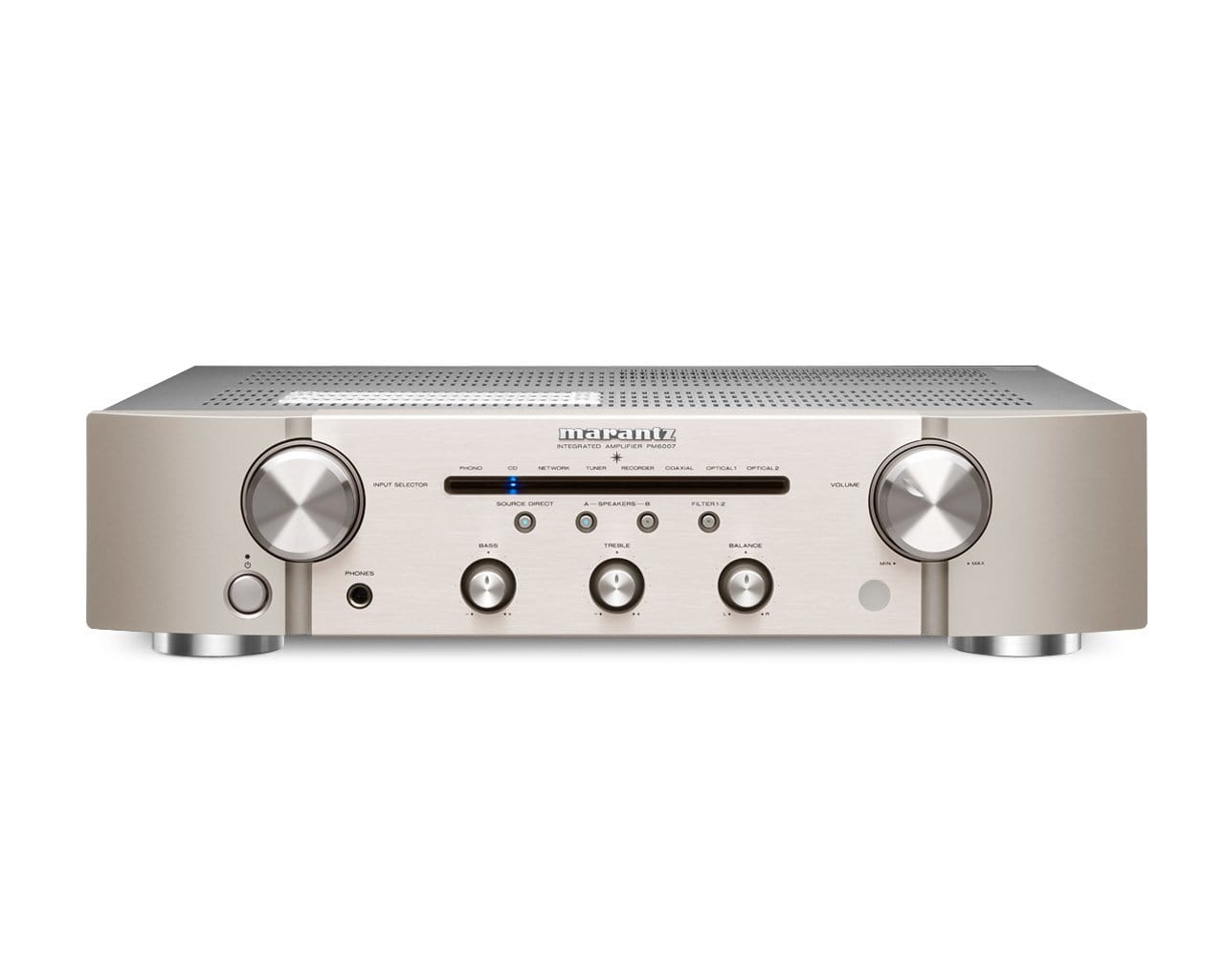

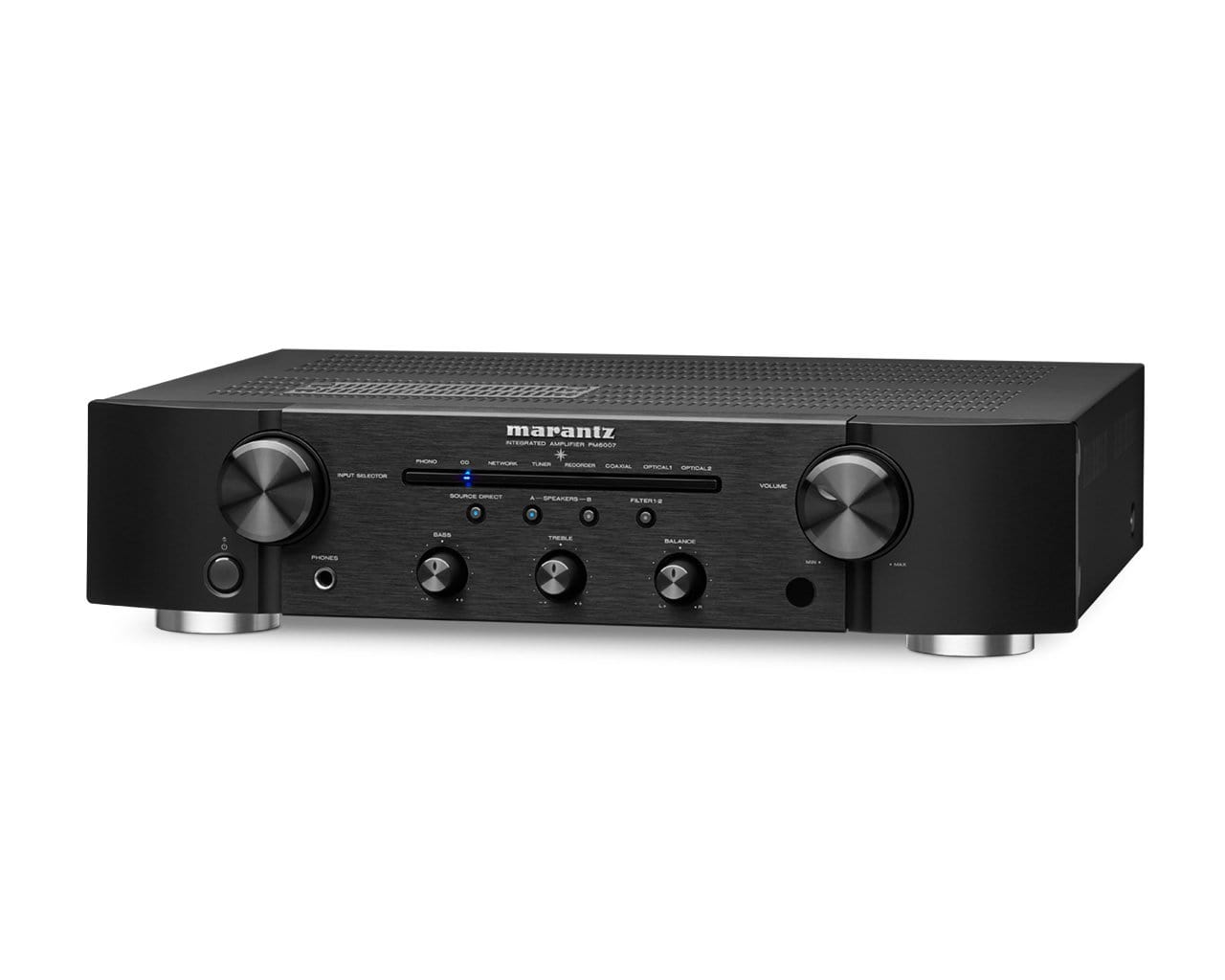

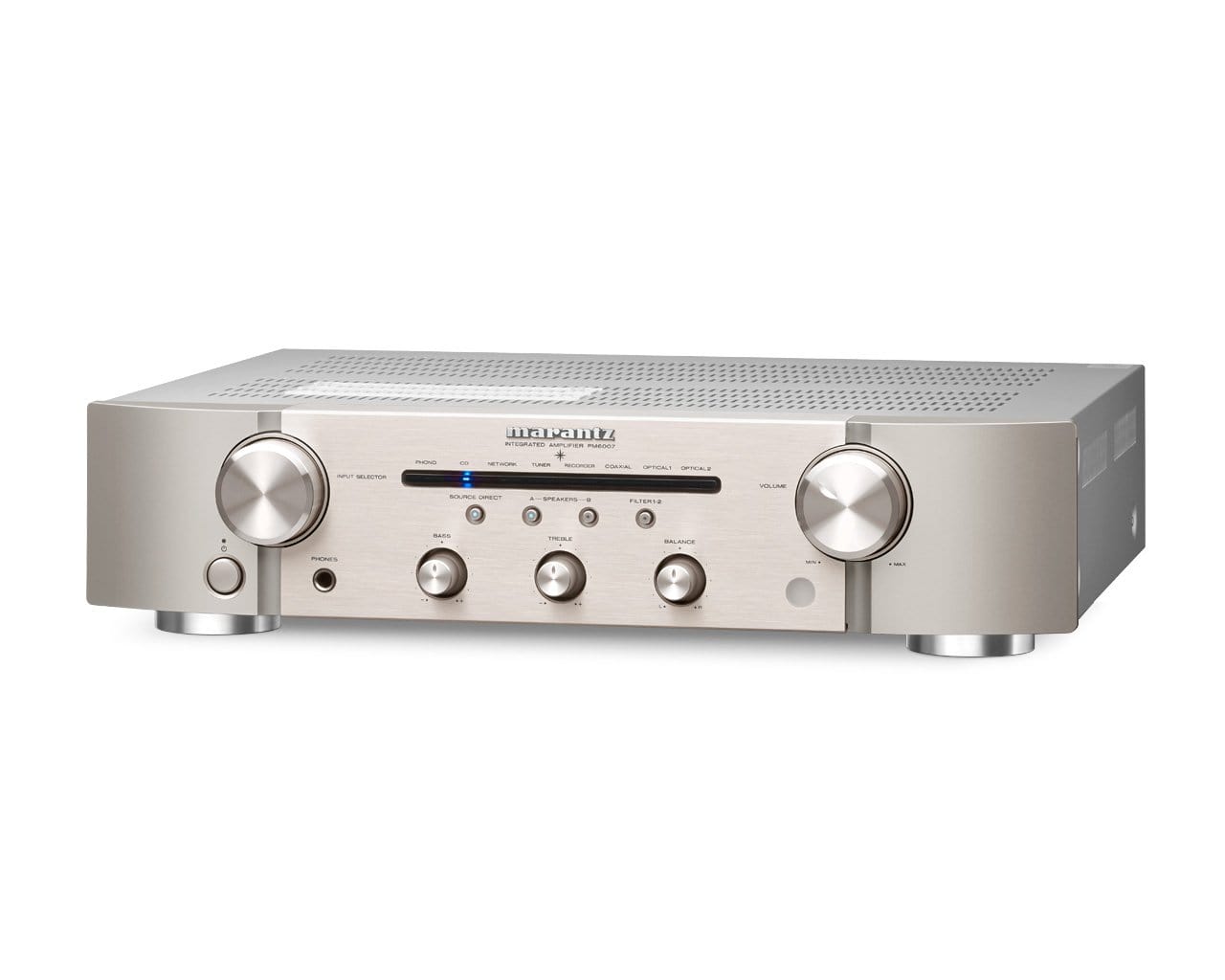

Marantz PM6007 Integrated Stereo Amplifier
Specifications
Channels | 2 |
Digital in | 2 x Optical1 x Coax |
Sample Rate Digital In | 192 kHz / 24-bit |
DAC chip | AK4490 |
HDAM version | SA3, SA2 |
Phono Input | MM |
Audio Outputs | 1 |
Pre-out | Subwoofer |
Speaker Terminals | Metal (Gold) Screw |
Number of terminals | 4 |
Power Output (8 / 4 Ohm RMS) | 45 W / 60 W |
Frequency Response | 10 Hz - 70 kHz |
Total Harmonic Distortion | 0.08 % |
Damping Factor | 100 |
Input Sensitivity: MM | 2.2 mV / 47 kOhm |
Signal to Noise Ratio MM | 83dB |
Input Sensitivity: High level | 200 mV / 20 kOhm |
Signal to Noise Ratio: High level | 102dB(2V input) |
Power Consumption in W | 155 |
Standby Consumption in W | 0.3 |
Remote Control | RC004MCD |
Maximum Dimensions (W x D x H) in mm | 440 x 370 x 105 |
Weight in kg | 7.6 |
Warranty
Shipping & Returns
We offer free shipping on any order over $150. For full details please see our Shipping Policy.
Our returns policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately, we may not be able to offer you a refund or exchange. For full details please see our Refund Policy.
Marantz PM6007 Integrated Amplifier:
Manufacturers Details:
Current Feedback Amplifier
The Current Feedback Amplifier technology provides wide-bandwidth and high-speed sound reproduction. In combination with the high current power supply, the PM6007's amplifier holds a large energy reserve to easily drive even the most demanding speakers. An advanced thermal compensation avoids memory distortion for clean amplification under any circumstances.
Reference Quality D/A Conversion For Digital Input
The PM6007 features a new Hi-Res D/A conversion. It is equipped with a reference class AK4490 D/A converter, which provides up to 192-kHz/24-bit resolution for optimum fidelity with your Hi-Res audio file types.
Engineered With Care:
High Current Power Supply
The power supply supports high current, high speed Shottky Barrier Diodes and high current storage capacitors fed by a Toroidal Transformer that together provide wide dynamic range and low impedance drive capability.
Toroidal Transformer
A Toroidal Transformer has several advantages over a normal EI core transformer. The highly efficient design delivers more power compared to the same size EI core transformer. In addition, the shape of the Toroidal Transformer delivers low electromagnetic radiation and mechanical vibration for better sound quality.
Key Features:
A World Of Marantz Awaits
The PM6007 integrated current feedback amplifier powers 2x 45W (8 ohms RMS, 20Hz – 20kHz) to offer a refined audio experience.
Meticulously And Masterfully Tuned
During the extensive tuning process, Marantz sound masters carefully refine and curate each component for optimal performance.
Wide Range Of Connectivity

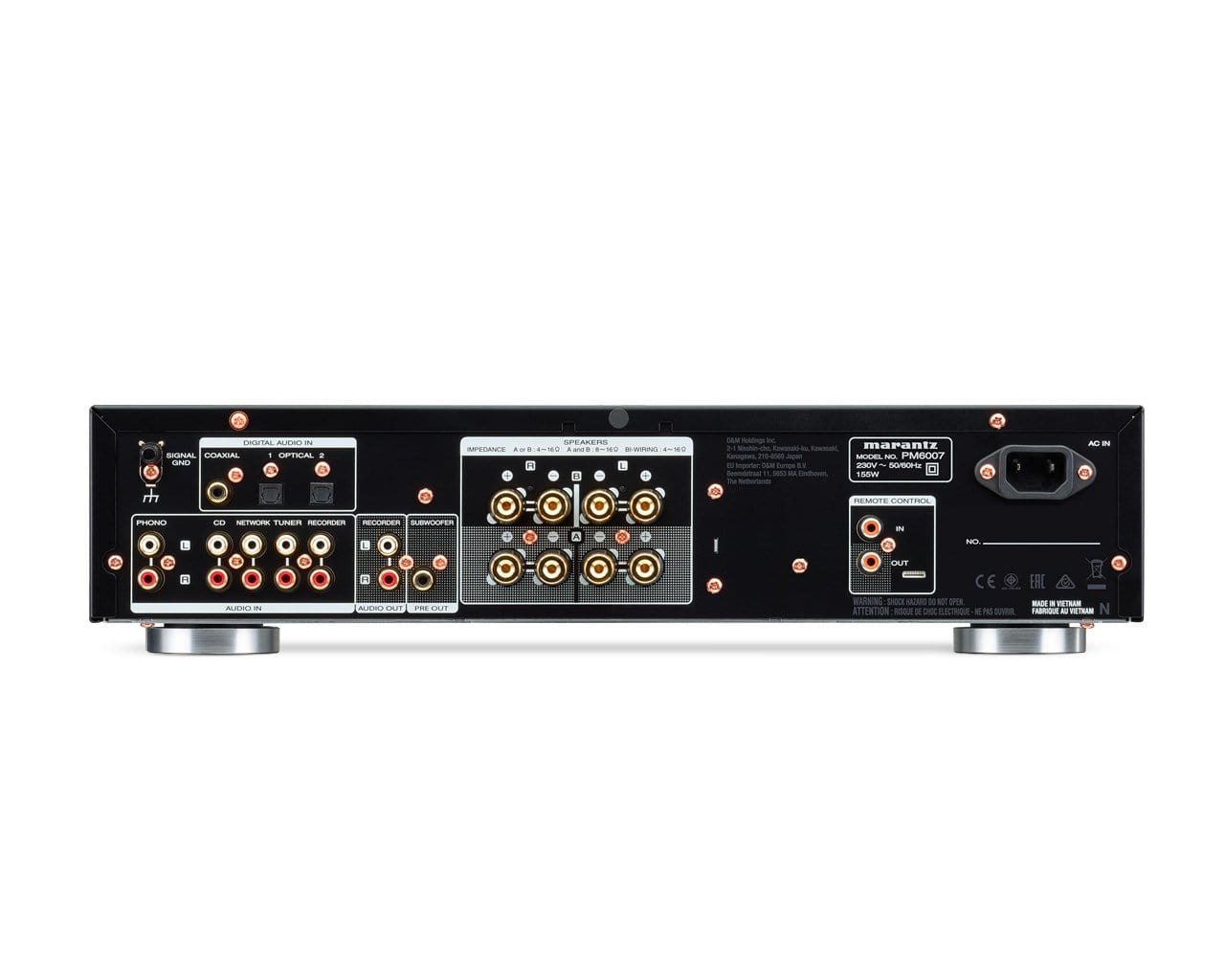

Experience Hi-Res audio files exactly as intended through the following gold-plated inputs: 5 analog inputs, one coaxial input and two optical digital inputs.
An Updated Audio Experience
The newly updated, high-quality DAC AK4490 offers a cleaner sound for your enjoyment.
