Marantz

Marantz Model 30 Integrated Amplifier

  • Sale
  • Regular price $4,999.00

*This product cannot be purchased online. Please call, email or message using any of the buttons below to get in touch and place an order.*

Living Entertainment North Coast


Marantz Model 30 Premium Integrated Amplifier

MASTER-TUNED INTEGRATED AMPLIFIER WITH CUSTOM-DESIGNED HDAM

Featuring a fully discrete, two stage design for minimal interference, and unique Marantz HDAM technology for signal purity, MODEL 30 offers exceptional sound quality.

Manufacturers Details:

Exquisite Sound Tuning

MODEL 30 continues the renowned heritage of exquisite Marantz amplifiers. Tuned by the Marantz Sound Master who channeled his passion, experience, and extraordinary ear into the amplifier design.

The Most Musical, Accurate, Detailed Sound

MODEL 30 is built on its own discrete circuit board, the Hyper-Dynamic Amplifier Module, or HDAM. By custom-curating hundreds of individual parts, rather than adopting an off-the-shelf solution, the MODEL 30 HDAM significantly outperforms standard integrated circuits to create the unique musicality you always expect from Marantz.

Marantz Musical Premium Phono EQ

Envisioned to deliver optimal sound quality by simplifying the signal path – vital given the delicate nature of phono signals – the Phono EQ stage in MODEL 30 can be used with both moving magnet and low-output moving coil cartridges, thanks to a built-in MC head amplifier.

Engineered With Care:

MC / MM Phono Input Impedance Selector

In order to optimize sound performance when using a moving coil (MC) or magnetic moving (MM) cartridge, and to accommodate all configurations as much as possible, MODEL 30 is equipped with an input impedance selector. The input impedance can be adjusted to three different settings: MC LOW (33 ohm), MC MID (100 ohm) and MC HIGH (390 ohm).

Built For Generations

Like its counterpart, the SACD 30n Streaming CD Player, the MODEL 30 Integrated Amplifier is designed to the highest standards.

More Than 65 Years Of Audiophile Heritage

Founded in 1953, Marantz has a long and rich history of designing audio components embraced by music lovers and critical listeners around the world. Because music matters, the MODEL 30 continues Marantz’s long tradition of delivering a best-in-class listening experience for music and cinema. Your music always sounds better on a Marantz.

Key Features:

Designed To Last

You see and feel it in the build quality and you hear it every time. No matter your musical passions, your music always sounds better with MODEL 30.

Tuned With Passion

Hundreds of hours of thoughtful Sound Master tuning ensure the exquisite detail and musicality Marantz always delivers.

Fully Discrete And Accurate Detailing

Marantz HDAM-SA3 technology is comprised of dozens of independent parts, each hand-selected for pure, detailed Marantz sound.

Extraordinary Sensitivity

Designed to replicate the sensitivity and feel of a vintage analog amplifier even when simply adjusting the volume.

Specifications:

Features

Aluminium extrusion heat sink: Yes (Separate)
Balance / Bass / Treble / Loudness: Yes / Yes / Yes / No
Channels: 2
Current Feedback Topology: Yes
Customised Components: Yes
Digital in: USB-B / optical / coaxial / USB-A: No / No / No / No
HDAM version: SA3, SA2
High Grade Audio Components: Yes
Phono EQ: Standard / Marantz Musical / Marantz Musical Premium: No / No / Yes
Power Transformer: Toroidal / El: SMPS
Symmetric PCB Layout: Yes


Inputs/Outputs

Audio Inputs: 6
Audio Outputs: 1
Balanced In / Out: No / No
D-Bus: Yes
Digital in: USB-B / optical / coaxial / USB-A: No / No / No / No
Floating Control Bus (3.5 mm mono jack x 2): No
Gold Plated Cinch: Yes
HDMI: inputs / outputs: No
Headphone Gain Control (low / mid / high): No
Headphone Out: Yes
Number of terminals: 2
Phono Input: MM / MC: Yes / Yes
Power Amp Direct IN: Yes
Pre-out / Main-in: Yes / No
Speaker A / B: No
Speaker Terminals: Marantz SPKT-100+


Others

5mm aluminium top plate: No
BI-AMP and Multichannel option: No
Double Layer Bottom Plate: Yes
Input buffer amp (all inputs / CD only): No / No
Linear Drive Power Supply: Yes (pre-amplifier stage)
Liniear volume control: Yes
Low noise LCD display: No
Low Noise OELD display: Yes
Marantz Musical Digital Filtering: No
Power Amp direct: No
Shottky diodes: Yes
Source Direct: No
System block shielding: Copper / metal / none: Yes / No / No


Specifications

Damping Factor: 500
Frequency response: 5 Hz - 50kHz
Input Sensitivity: Balanced High level: No
Input Sensitivity: High level: 220 mV / 13 kohm
Input Sensitivity: MC: 250
Input Sensitivity: MM: 2.3 mV / 39 kohm
Input Sensitivity: Power Amp Direct IN: No
Power Output (8 / 4 Ohm RMS): 100 W / 200 W
Signal to Noise Ratio: High level: 107 dB(2V input/Rated output)
Signal to Noise Ratio: MM/MC: 88 / 75 dB
Signal to Noise Ratio: Power Amp Direct IN: No
Total Harmonic Distortion: 0.005%


General

Auto Power off: Yes
Carton Maximum Dimensions (W x D x H) in mm: 534 x 522 x 255
Carton Weight (inc. product) in kg: 17.6
Detachable Power Cable: Yes
Maximum Dimensions (W x D x H) in mm: 443 x 431 x 130
Metal Front Panel: Yes
Power Consumption in W: 130

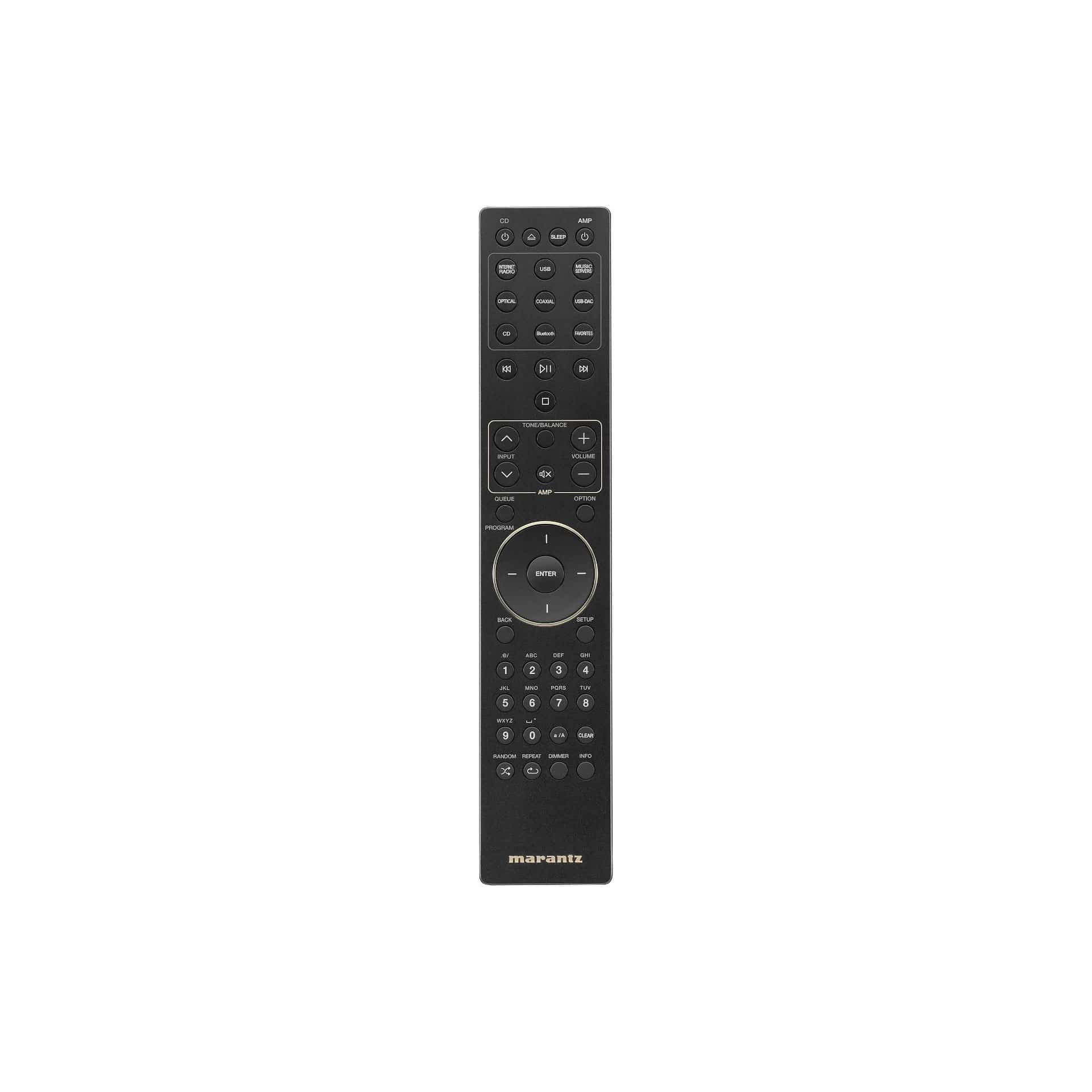

Remote Control: RC002PMND
Standby Consumption in W: 0.2
System Remote Function: Yes
Weight in kg: 14.8



*2 Years Warrant (3 Years with Registration)
