Marantz MM7025 Power Amplifier

  • Sale
  • Regular price $1,890.00

*This product cannot be purchased online. Please call, email or message using any of the buttons below to get in touch and place an order.*

Living Entertainment North Coast


Marantz MM7025 Power Amplifier

The MM7025 is expertly crafted to meet all your high powered needs and drive even the most demanding speakers by designing the entire unit to deliver consistent and precise power wherever and however you need it.

Manufacturers Details:

The Power Supply

As befits a Marantz amplifier, the high-capacity power supply begins with an oversized EI-core transformer feeding carefully chosen capacitors capable of storing 30,000 µF of energy. This combination instantaneously delivers peak power to all amplifier stages for distortion-free reproduction of the most complex sources.

Output Devices

In the final amplification stage, specially selected LAPT Hyper-Power output transistors, originally selected for Reference Series use, deliver fortissimo and pianissimo passages with equal aplomb. To make sure they’re always operating at ideal temperatures, these transistors are mounted on a forced-air “thermal tunnel.”

Engineered With Care:

Marantz Sound Quality

The MM7025’s advanced technology serves all your listening needs. Current feedback circuits, also used in Marantz’s Reference Series amps, insure the purest sonic reproduction regardless of source.  Another MM7025 virtue, and one directly traceable to its substantial current capability, is the control it establishes over difficult speakers to reproduce both dynamic musical peaks and whispered dialog without blemish.

Remote Control, Too

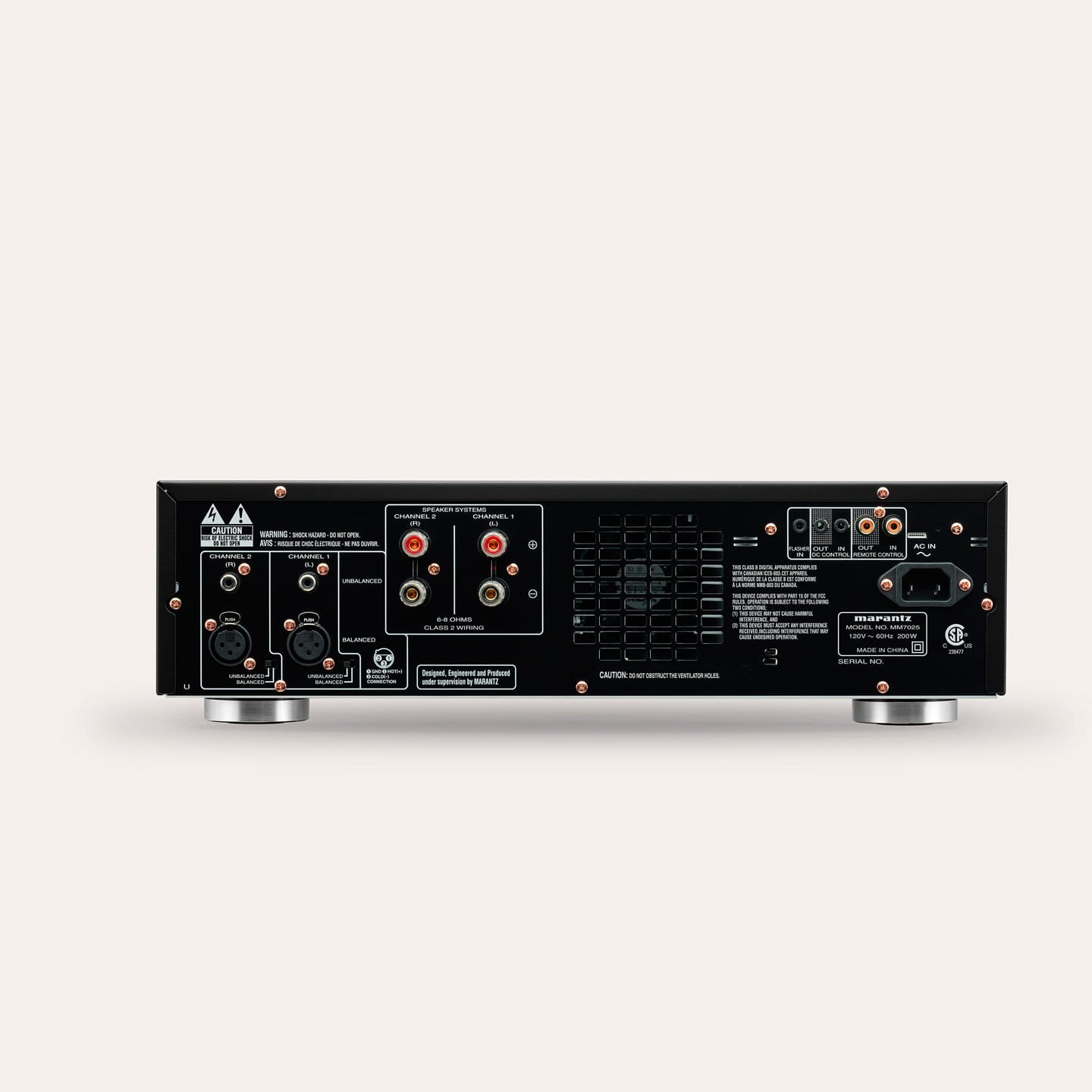

You’ll find rear panel connections for a “flasher” input that conveys On/Off commands from an infrared (IR) remote controller. There’s a DC trigger input (and output) that lets you ”daisy chain” one or several MM7025s to turn on and off in synchronization with your preamplifer or surround processor. If you’re going to use the MM7025 with legacy Marantz products, there are RC-5 connectors to give you a level of operating convenience you might not have thought possible.

Key Features:

First Impressions
If you’re impressed by elegantly restrained industrial design, the MM7025 is guaranteed to make a lasting – and very positive – impression.

Getting Connected
Both single-ended RCA and balanced XLR inputs assure system compatibility regardless of your preamplifier or processor.

Your System, Your Way
The MM7025 encourages various system configurations. Use one for dedicated two-channel listening, or use two to as zone amplifiers to power speakers in different rooms.

Specifications:

FEATURES
Number of Channels 2
THX No
DTS No
Dolby No
DSD(SA-CD)/NEURAL No
SRS No
HDCD Decoder No
Current Feedback Topology Yes
Discrete Amplification Yes
Power Transformer Large Capacity EI
D/A Conversion No
Digital Signal Processing No
Video Off (Pure Direct) No
Source Direct No
Chassis Steel
Variable X-over No
Display Off Blue LED Illumination off mode available
Video Up-conversion No
Auto Calibration by MIC No
Satellite Radio Ready No
AM/FM Tuner No
Bass Redirection No
Software Upgradable No
INPUTS / OUTPUTS
HDMI In No
Component In No
S-Video In No
Composite In No
HDMI Out No
Component Out No
S-Video Out No
Composite Out No
Analog L&R In No
Analog L&R Out No
Digital Optical In No
Digital Coaxial In No
Digital Optical Out No
Digital Coaxial Out No
Other No
Pre-Amplifier Out No
Main Amplifier In Balanced & Unbalanced: 8ch (Exclusive use by a selector switch.)
Multi-Channel In No
Multi-Room Audio Out No
Multi-Room Video Out No
Multi-Room Speaker Out No
Networking No
External control No
DC Triggers 1 In / 1 Out
D-Bus Remote (RC-5) In/Out 1 - 1
Flasher In/IR Receiver In/Emitter out 1 - 1
Front Panel A/V Inputs No
Headphone Out No
AC Outlets (Switched/Unswitched) No
SPECIFICATIONS
Power Output 140W (20Hz-20kHz, 0.08%)
S/N Ratio 105dB
Freq. Response (Analog In) 8Hz-100kHz (+/- 3dB)
Freq. Response (Dig In) No
Frequency Range No
S/N Ratio (Mono/Stereo) No
Frequency Range No
S/N Ratio No
Video Freq. Response (Component) No
Video Freq. Response (Composit, S-Video) No
Signal to Noise No
GENERAL
Front Panel Aluminum/Glass-reinforced resin
Remote Control No
Power Requirement AC 120V 60Hz
Power Consumption 330W (Standby: 0.2W)
Dimensions W x H x D
Weight
