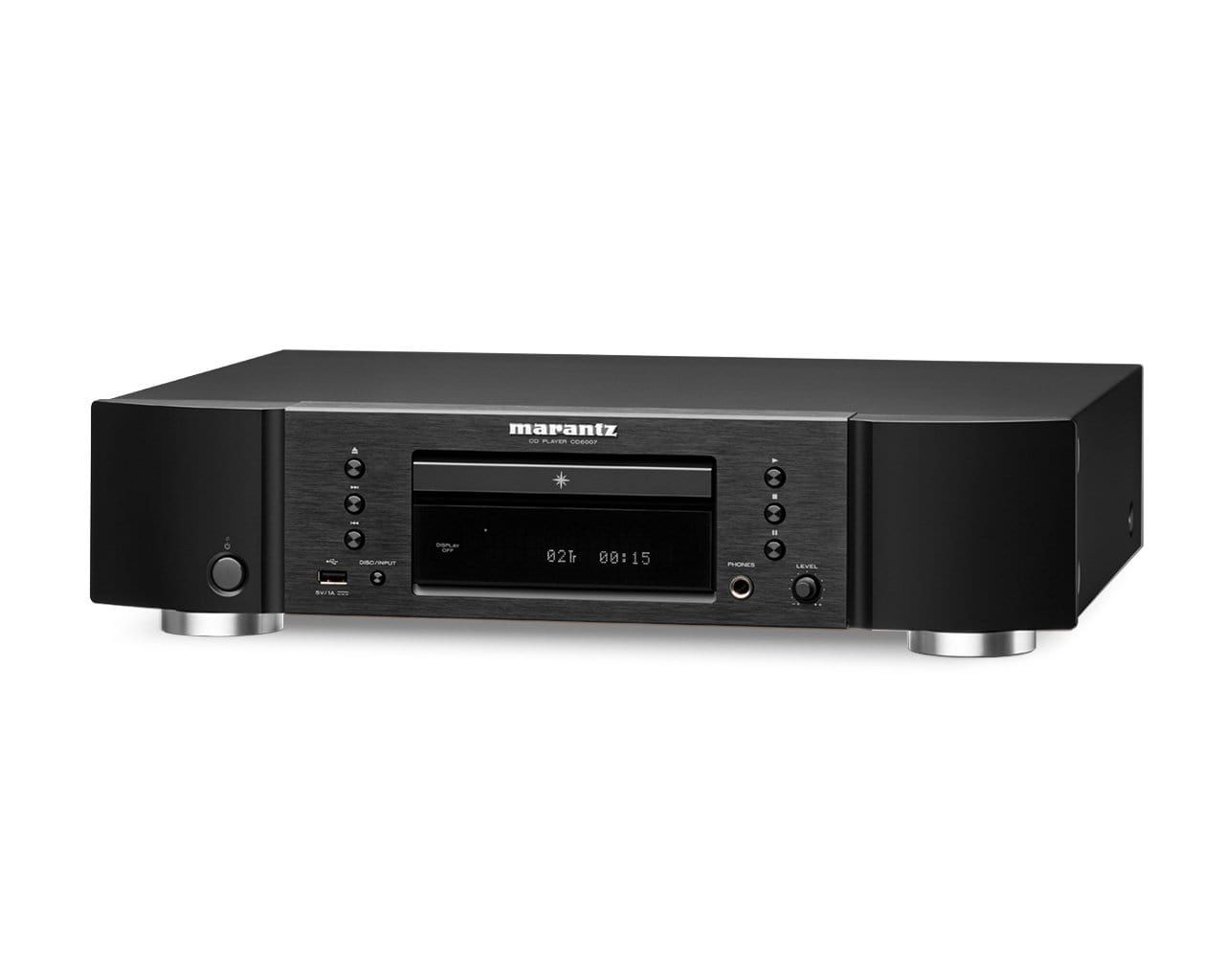

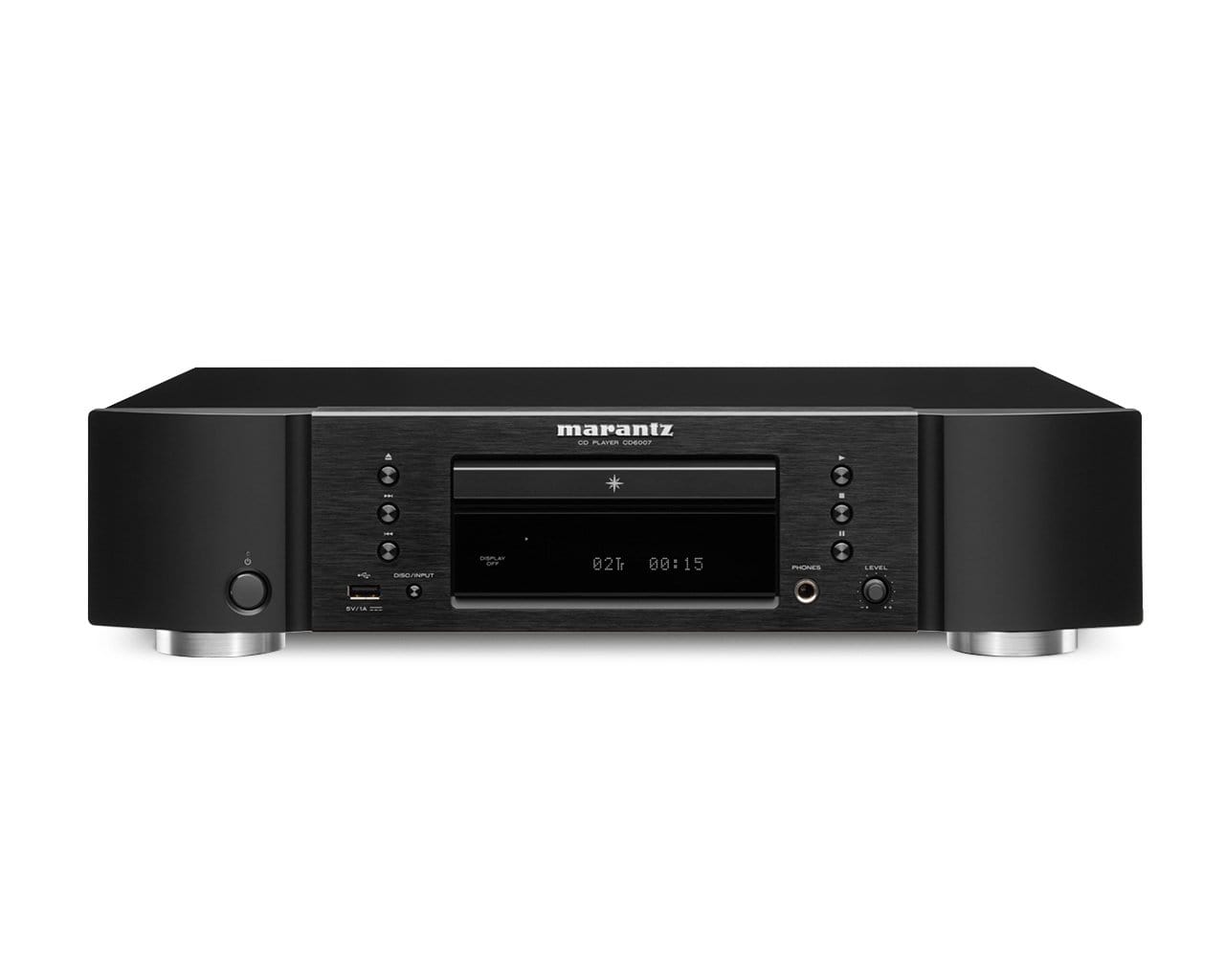

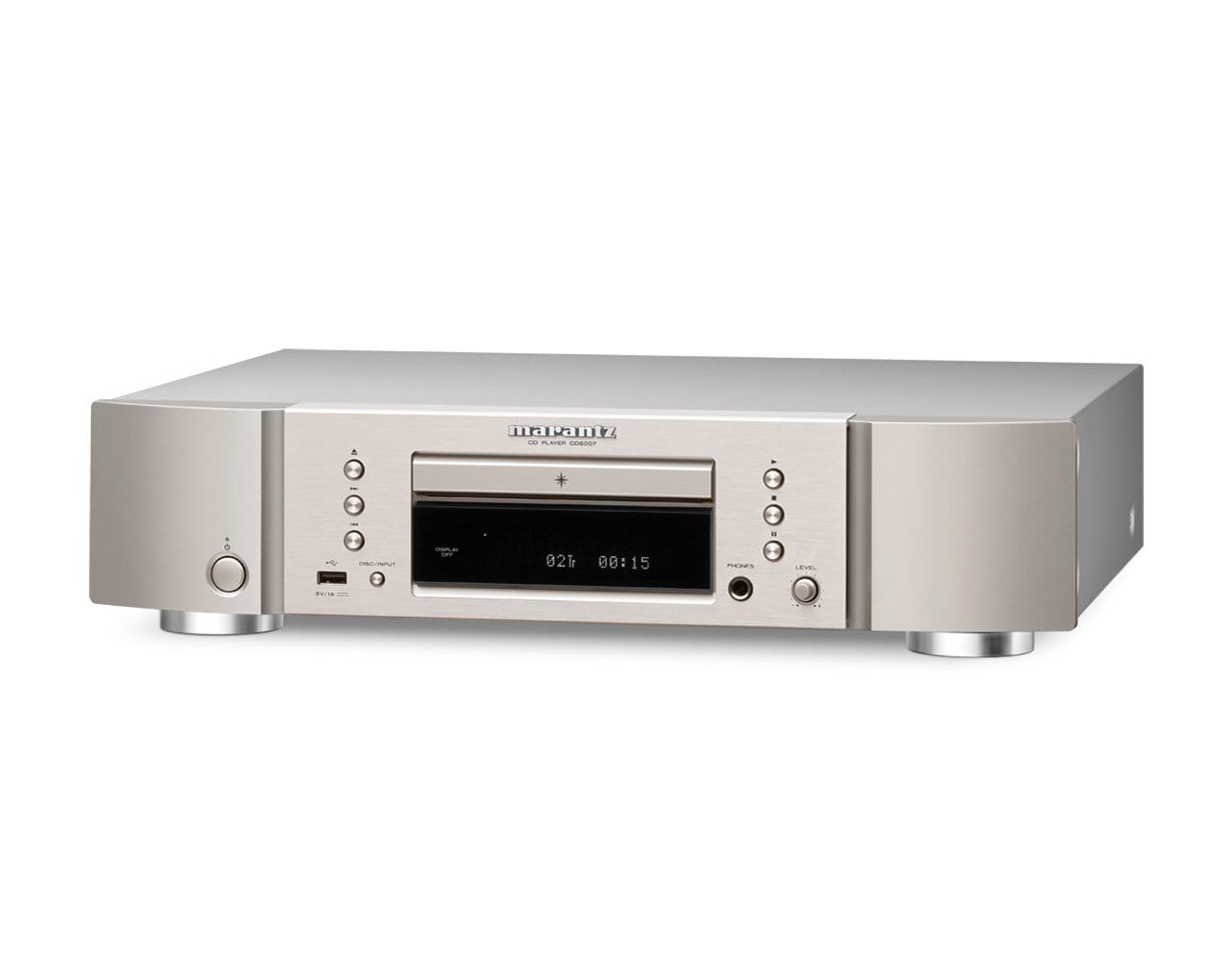

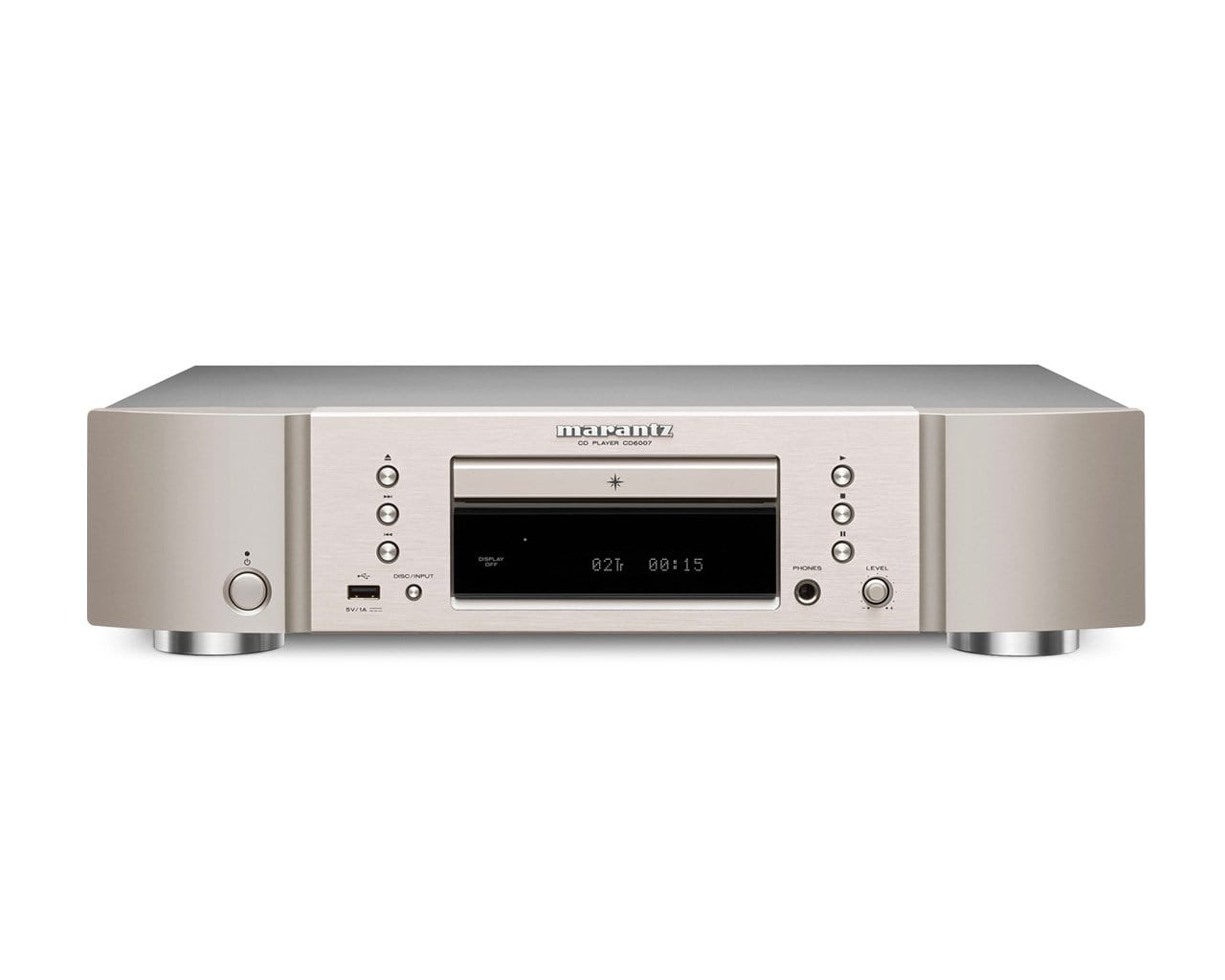

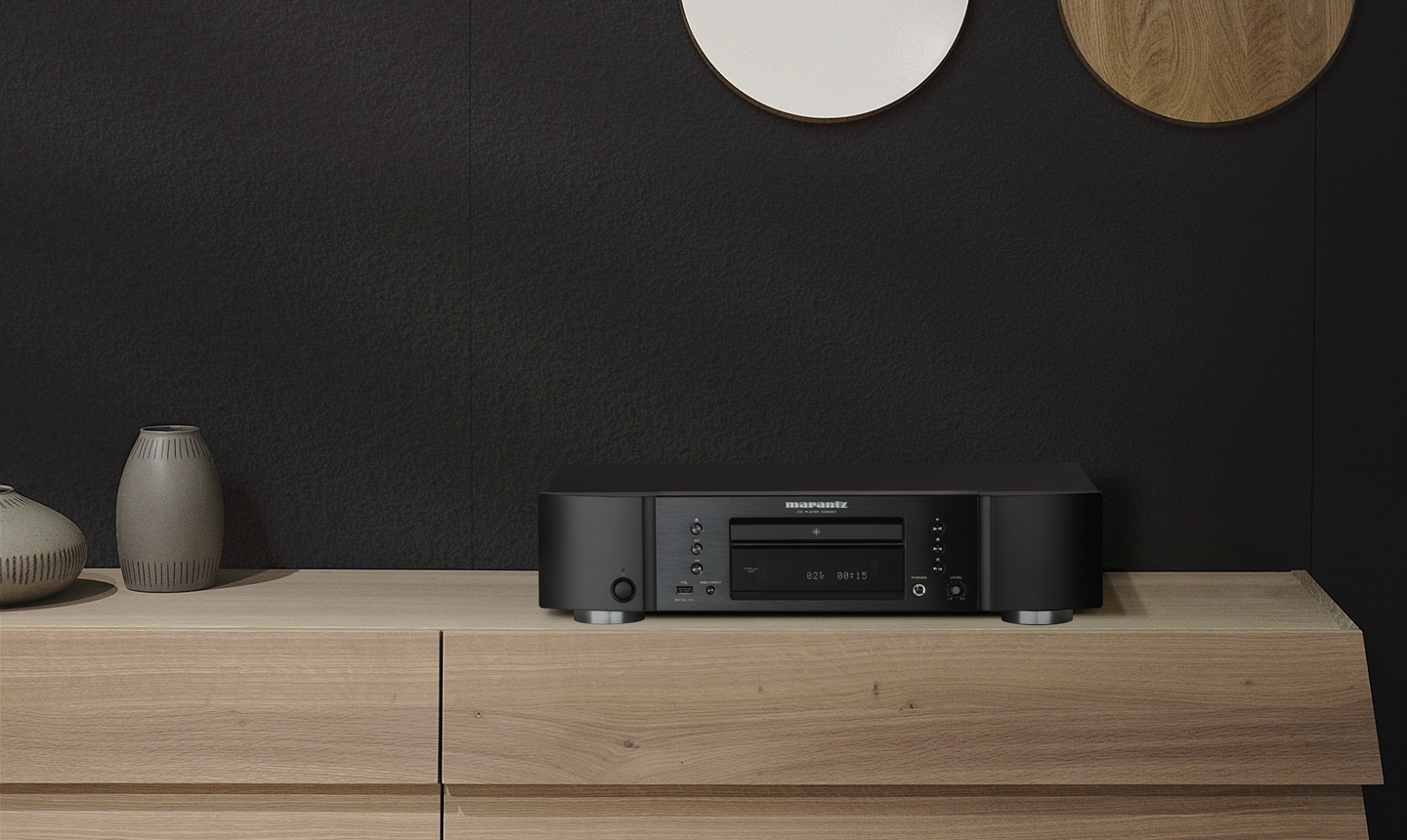

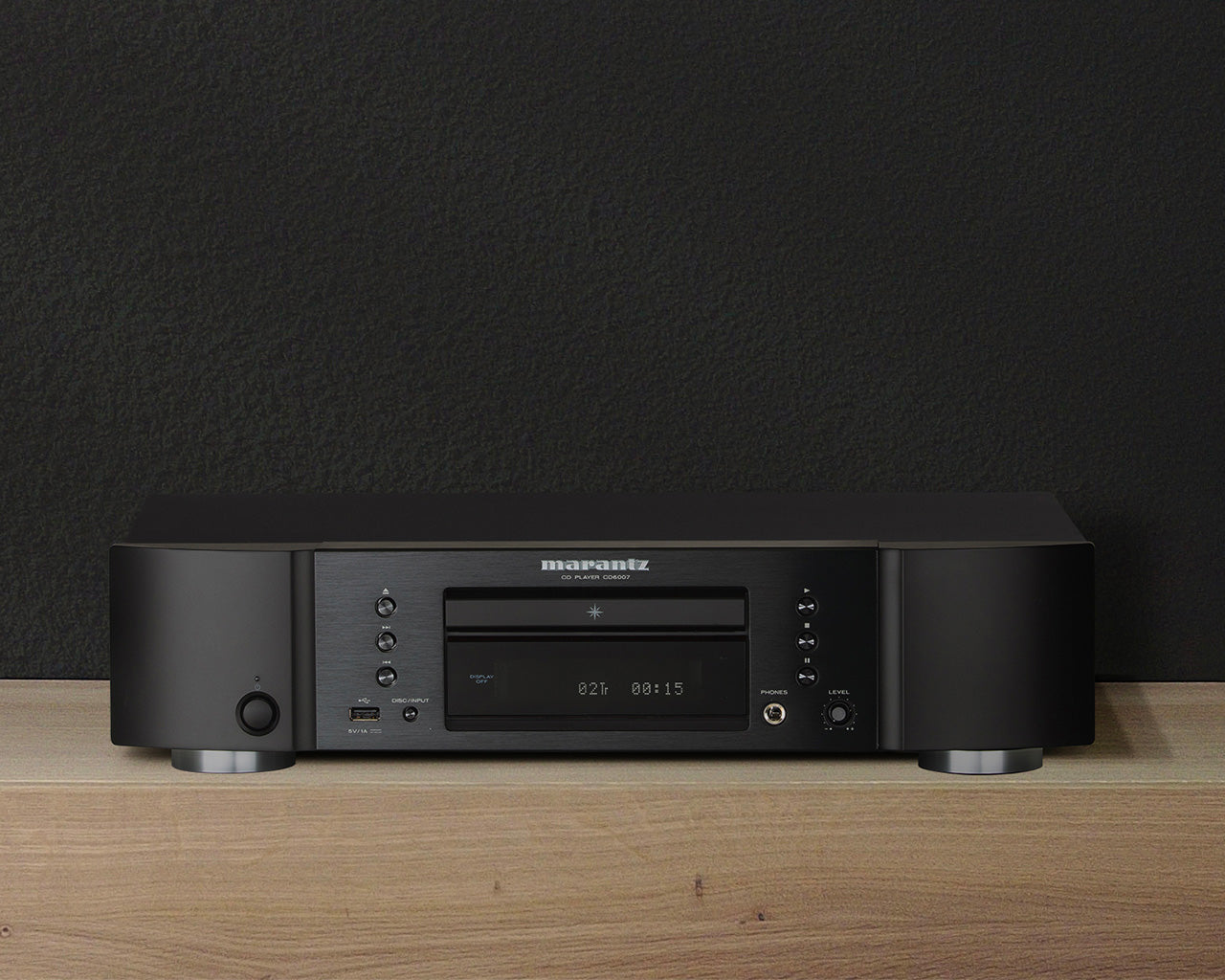

Marantz CD6007 CD Player

Designed for the aspiring audio enthusiast, the new Marantz CD6007 lets you enjoy masterfully-recreated audio from CD and USB.



Manufacturers Details:



Marantz HDAM Technology

Marantz developed its own discrete circuit boards to replace standard ICs. These HDAMs consist of discrete surface mount components with short mirror image L/R signal paths. These devices do exactly the same thing as the Op-Amps but outperform the regular IC Op-amps dramatically in terms of the Slew Rate and reduced noise level, resulting in more dynamic, accurate and detailed sound. In the CD6007, the proprietary HDAM-SA2 circuit improves on its previous HDAM module for a more stable power supply. The idling current stability is less influenced by power transistor temperatures to maintain sound performance even at high level output.

Reference Quality D/A Conversion

The CD6007 features a new Hi-Res D/A conversion. It is equipped with a reference class AK4490 D/A converter, offering two selectable filter options, and provides up to 192-kHz/24-bit and DSD 5.6MHz resolution for optimum musical fidelity with tight bass, pleasant mids and smooth extended highs for CD playback and Hi-Res formats from USB memory stick.

Engineered With Care:



High Current Power Supply

The audio power supply employs high speed, high current Shottky Barrier Diodes and new higher value current storage capacitors compared to the previous model. The size of the power supply capacitors has been increased by 120% for improved current stability and reduced AC noise during high demanding listening sessions.

High Slew Rate Op-Amp + HDAM-SA2

Compared to the CD6006, the CD6007 offers an improved and redesigned headphone amplifier section. The CD6007 inherits the exclusive Marantz HDAM-SA2 circuit with three gain settings (Low/Mid/High) for a perfect match with almost any brand of headphones for an optimal solo listening experience.

Key Features:

Specifications:

CD Compatibility CD / CD-R/RW / WMA / MP3
CD Text ID3 Tag / WMA Meta Tag / AAC Meta data
HDAM version HDAM+HDAM SA2
Power Transformer El
Headphone (HDAM-SA2)
Display Dimmer / Off

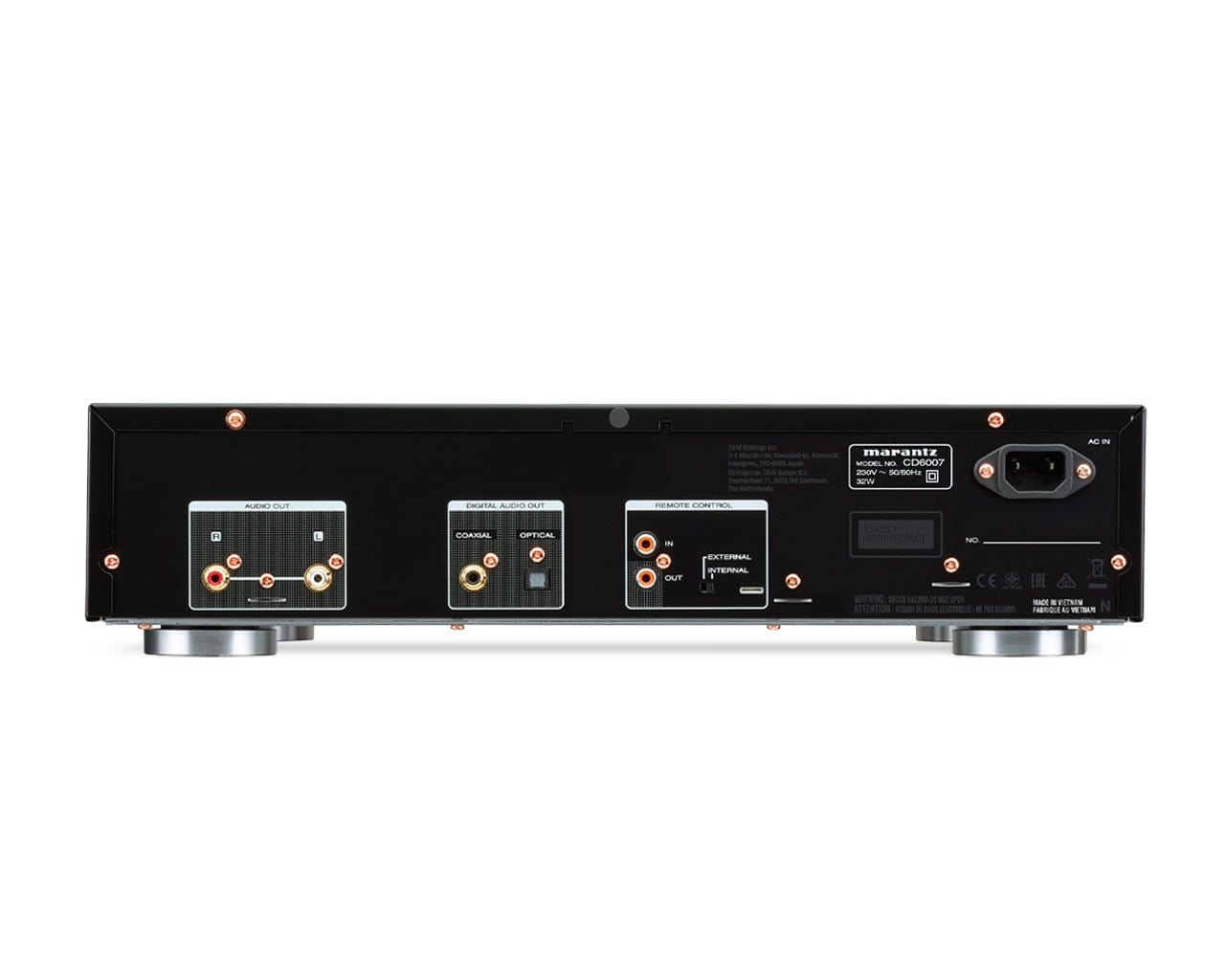

Analogue Out (Cinch) 2 ch
Digital Optical Out 1
Digital Coaxial Out 1
USB-A FLAC / WAV / AIFF / ALAC / DSD
Mechanism JTL-101Y
D/A Conversion Multi-bit, Delta-Sigma
DAC IC AK4490
Digital Filter AK4490
Noise Shaper AK4490
Low Pass Filter stage HDAM
Output buffer HDAM SA2
Headphone amp HDAM-SA2buffer+OPAMP
Frequency Response 2 Hz - 20 kHz
Dynamic Range 100 dB
Signal to Noise Ratio 110 dB
Total Harmonic Distortion 0.00002
Channel Separation 98dB
Power Consumption in W 32
Standby Consumption in W 0.3
Maximum Dimensions (W x D x H) in mm 440 x 340 x 105
Weight in kg 6.5
