Krix MX-20 Modular Behind Screen Speaker System

Krix MX-20 Modular Behind Screen Speaker System

Name: Krix MX-20 Modular Behind Screen Speaker System
Brand: Krix
SKU: EXT MX-20.C
Price: 14995.0 AUD
Availability: InStock

Designed for dedicated home cinemas with an acoustically transparent screen, the MX-20 will deliver your favourite movie soundtracks with supreme definition and accuracy, right through the picture and into your seat.

$14,995.00

Colour:

Black

Low Frequency Absorption Spacer Pair:

No thanks

No thanks Yes the 200mm Spacers Yes the 325mm Spacers

Variant

Purchase in-store or give us a call

Specifications

LCR Speaker Modules
Frequency Range:	40Hz-20kHz in room response
Power Handling:	100 – 500 Watts RMS recommended amplifier power
Sensitivity:	97dB for 2.83 volts at 1 metre
Impedance:	8 Ohms
Configuration:	2-way
Enclosure Type:	Bass reflex, front vented
Low Frequency Drivers:	Single 255mm (10”) paper cone driver. 50mm (2”) voice coil wound on high powered kapton former, with ventilated magnet assembly and copper shorting ring for low distortion
High Frequency Driver:	26mm (1”) doped fabric dome with large roll surround. Ferro fluid cooled. Coupled to a Krix designed 90 x 40 short throw waveguide
Input Terminals:	Gold plated spring terminals
Dimensions:	1220mm high x 365mm wide x 295mm deep (2210mm wide including subwoofer modules)
Weight:	31kg each
Subwoofer Modules
Frequency Range:	25Hz-200Hz in room response
Power Handling:	200 – 1400 Watts RMS recommended amplifier power
Sensitivity:	96dB for 2.83 volts at 1 metre
Impedance:	8 Ohms
Enclosure Type:	Bass reflex, front vented
Low Frequency Drivers:	Single 380mm (15”) paper cone driver. 100mm (4”) edge-wound copper voice coil, dual spider assembly and vented magnet assembly
Input Terminals:	High level gold plated spring terminals
Dimensions:	1220mm high x 550mm wide x 295mm deep (2210mm wide including LCR modules)
Weight:	45kg each
System Recommendations	Recommended room depth 4m – 7m Minimum screen size 16:9 105″ (2324mm x 1308mm) Minimum screen size 21:9 130″ (3035mm x 1301mm)

Warranty

All Krix speakers are Australian designed and Australian made. Krix are so confident in the quality of their products that they provide a 5 Year Warranty with all new Krix speakers. To claim your warranty, please register your product with Krix within 90 days of the purchase date.

Shipping & Returns

We offer free shipping on any product over $99. For full details please see our Shipping Policy.

Our returns policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately, we may not be able to offer you a refund or exchange. For full details please see our Refund Policy.

Key features

Made in Australia

Easy to Install

Behind screen installation

For medium rooms

Award-winning design

TELL ME MORE ABOUT THE

Krix MX-20 Modular Behind Screen Speaker System

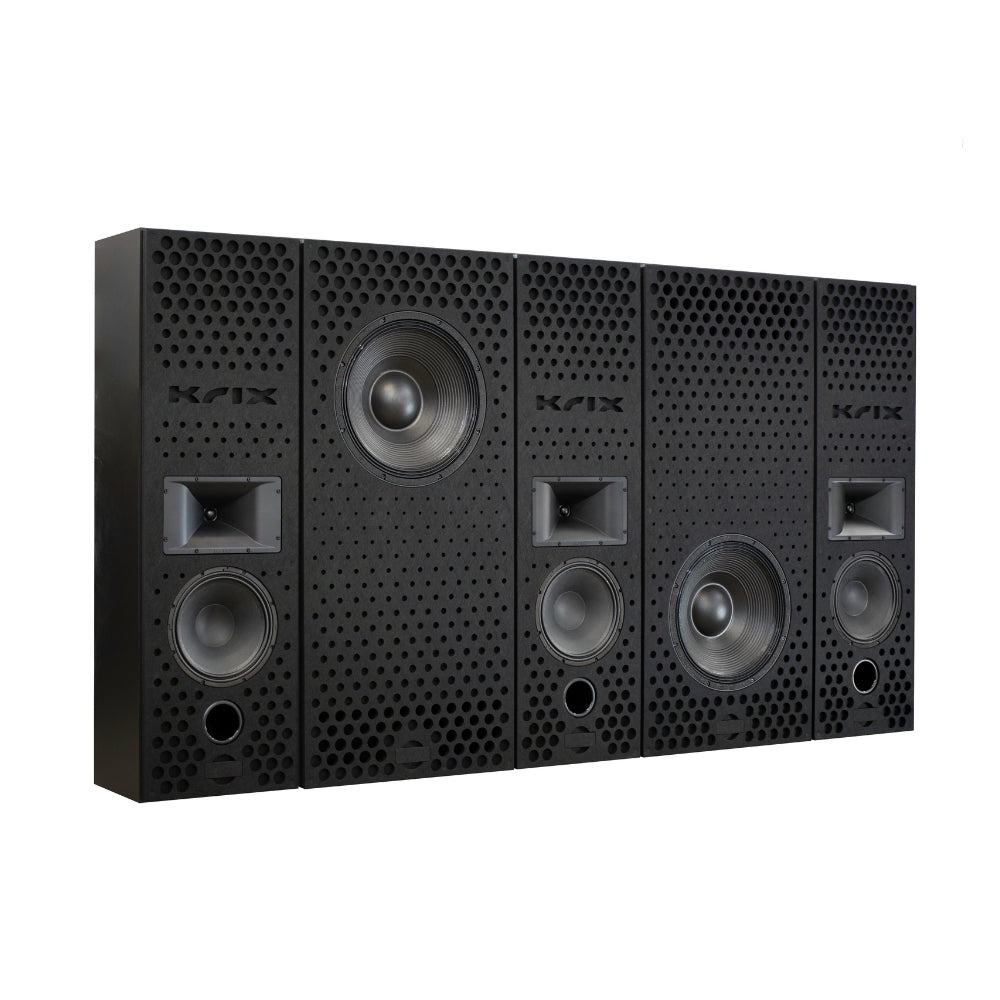

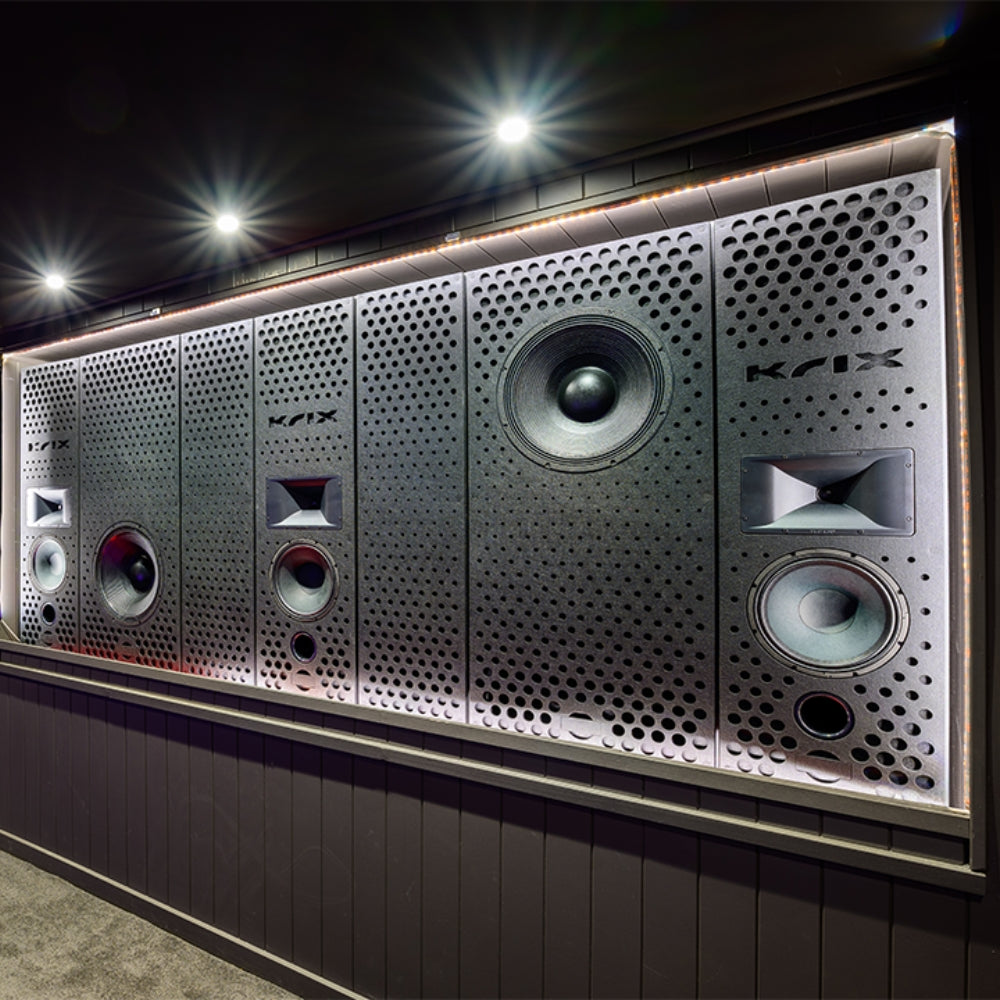

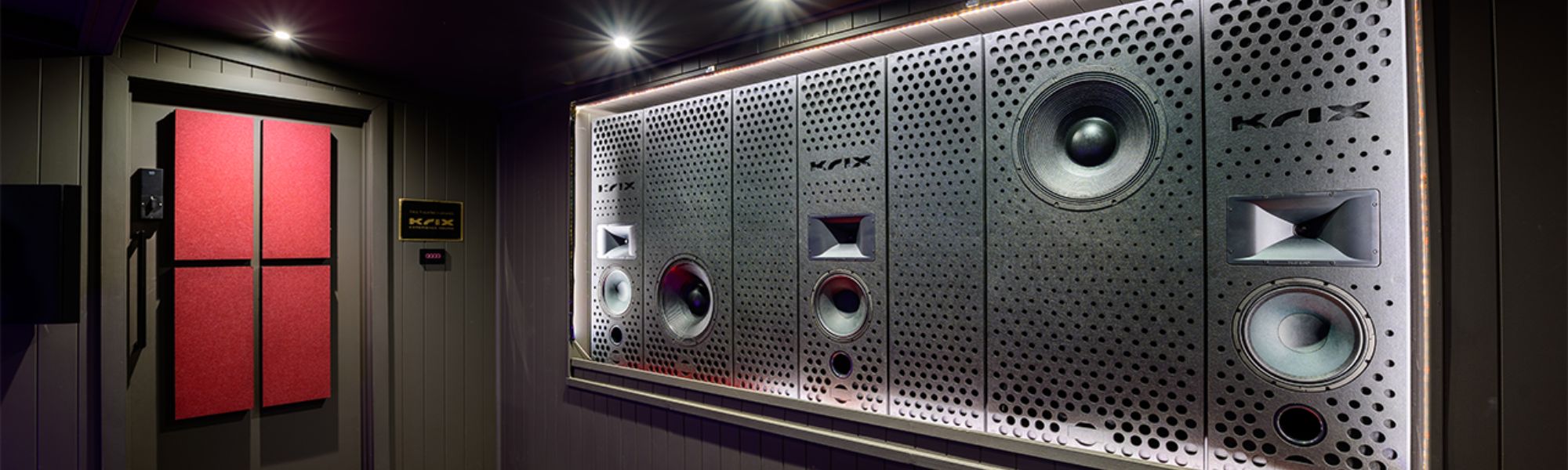

For a wall of sound that plunges through the big screen, the MX-20 will provide the impact you’re looking for. With every aspect optimised to deliver the most faithful reproduction of movie soundtracks, from a whisper to the explosion immediately after, these modules provide a true commercial cinema experience at home.

The MX-20 is designed for cinema rooms four to seven metres long. This system comprises five modules, all of which are the same height and a slim line depth of just 295mm for simple installation into a wall cavity. The front baffle of each module is covered with an acoustic absorbent material to absorb any sound reflecting off the back of the screen or the room itself. This assists greatly with the acoustic treatment of the room to ensure better intelligibility and overall sound performance.

LCR Speakers

The main speakers feature a 255mm mid-bass driver which has a 50mm voice coil developed to offer low harmonic distortion, especially in the critical midband.

The high frequency drive unit is a damped, high power, 26mm doped fabric dome tweeter, coupled with a proprietary Krix waveguide, for optimum dispersion over the entire working bandwidth.

Dual Behind Screen Subwoofers

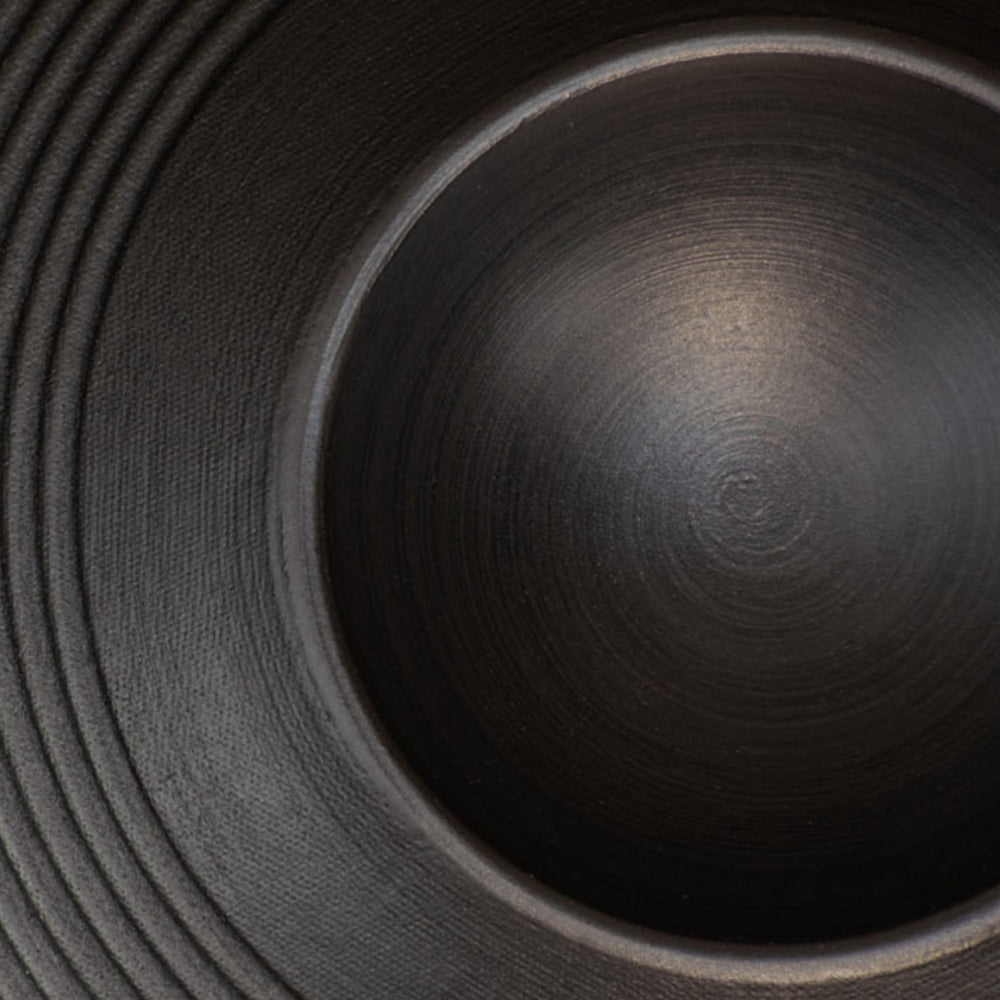

Each subwoofer contains a large 380mm paper cone driver with a 100mm edge-wound copper voice coil, dual spider assembly, and vented magnet assembly.

The specially engineered bass drivers are professional low frequency loudspeakers and offer superb bass performance, high peak program power handling and high efficiency, capable of extreme sound pressure levels. The smooth response, wide frequency and dynamic range are features not often achieved in one woofer.

The bass drivers have an oversized ferrite magnet structure with components engineered to achieve maximum efficiency. Symmetrical gap geometry, combined with the large linear voice coil travel, ensures minimum distortion at all levels.

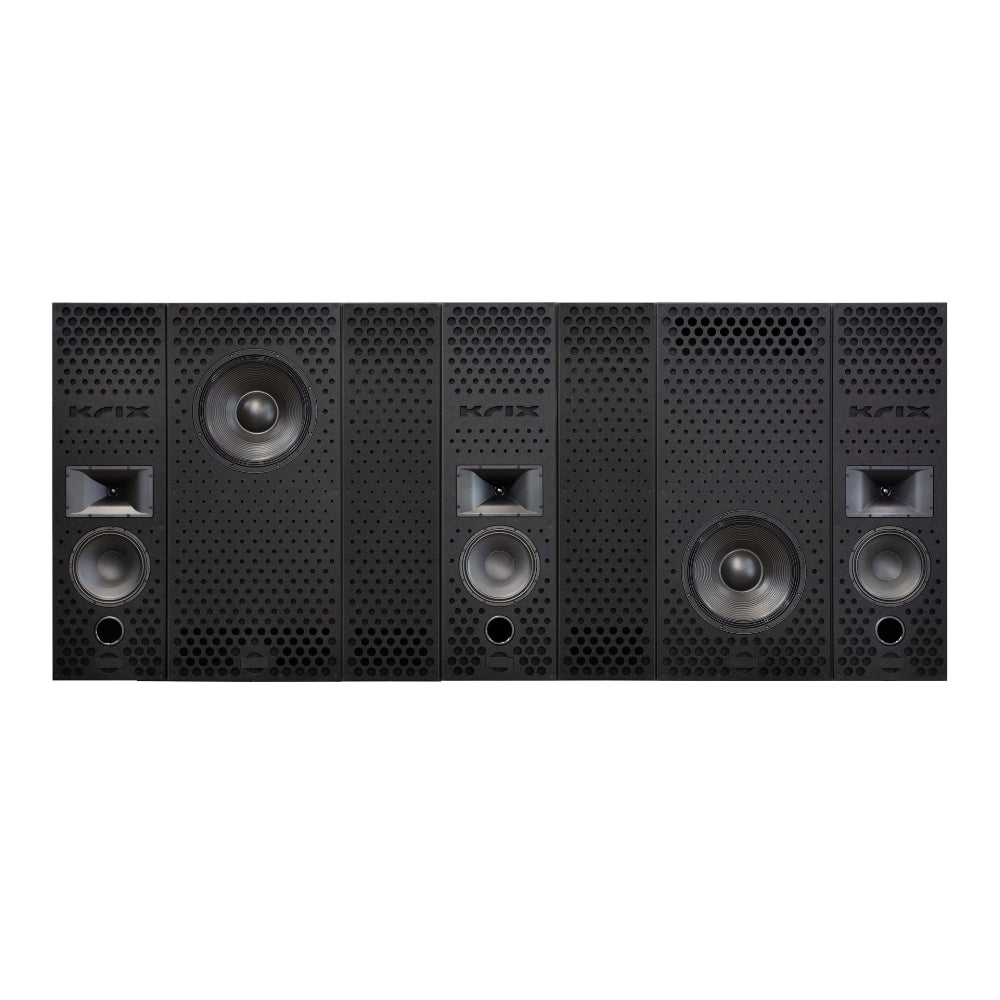

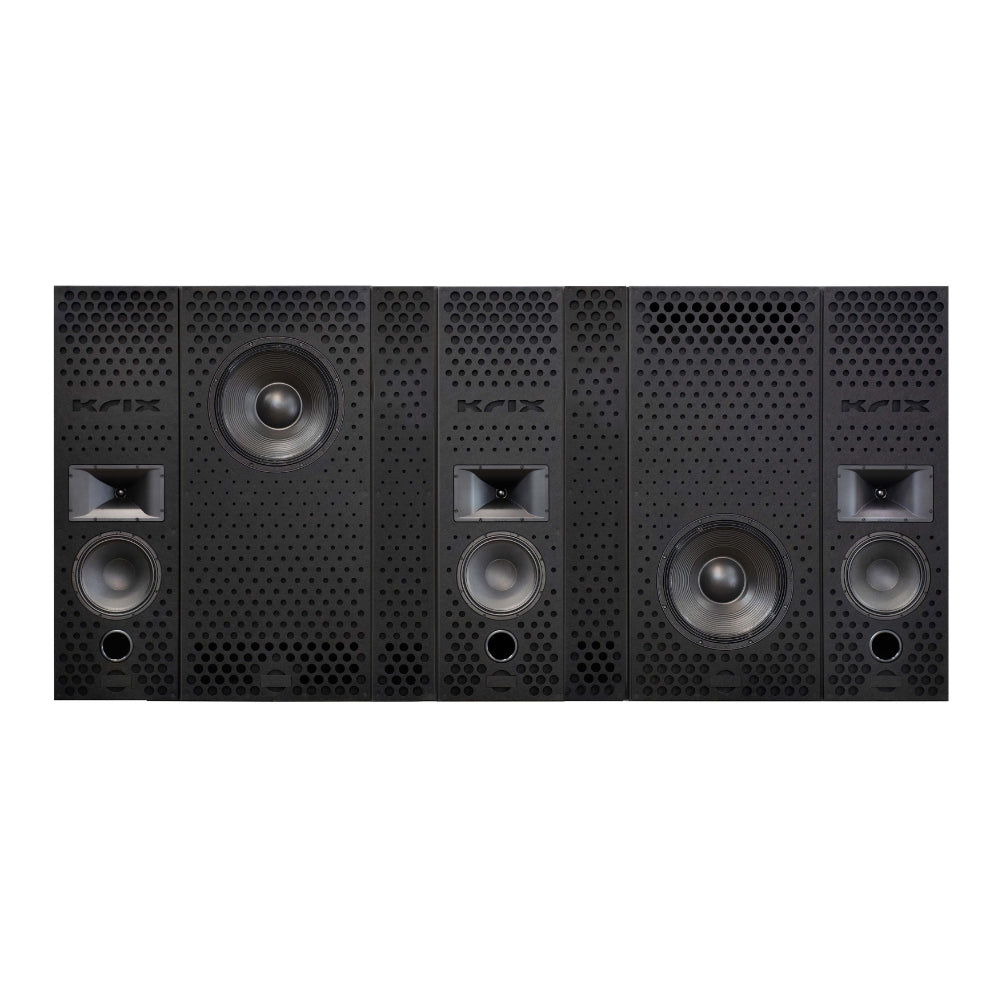

Low Frequency Absorption Spacer Modules

These modules can be positioned between the main and subwoofer channels to increase the overall width of the MX-20 system, providing flexibility in matching the size of the woven/perforated screen. The modules have also been designed to assist in absorbing unwanted low frequency reflections, therefore enhancing the overall acoustic performance of the system. The modules incorporate specially positioned openings in the front baffle (underneath the acoustic treatment) and are filled with acoustic absorbing material.

Two modules are available, 200 mm wide and 325 mm wide, and are purchased as pairs to ensure that the complete system is symmetrical.

Easy to Install

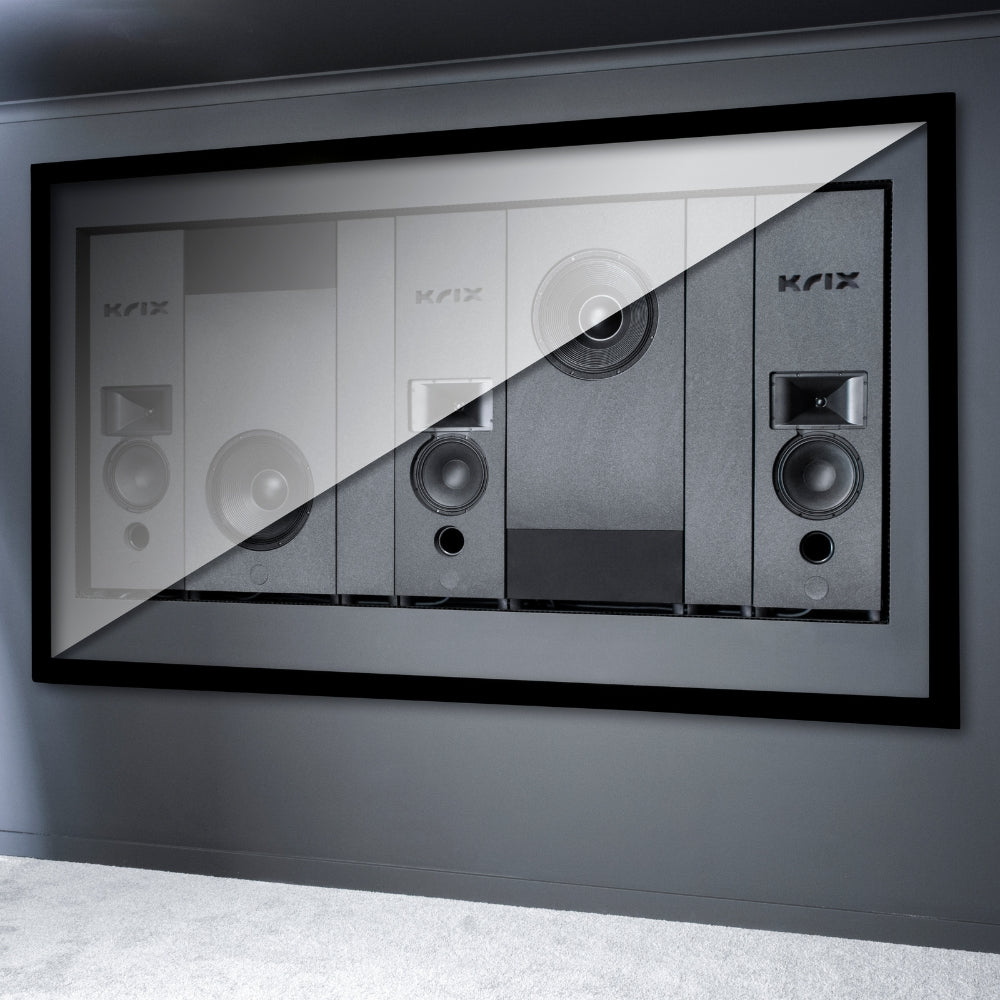

These speaker systems are designed to be installed behind an acoustically transparent screen, just like the speakers in a commercial cinema. They create a wall of sound directly from the picture, so everyone gets the full movie experience and impact.

The five speaker modules (left, centre, right and two subwoofers) in each system are all the same height and depth, making the design of the room and installation of the speaker system much simpler.

Room Recommendations

Room depth for the MX-20 should be between 4-8 metres for Performance level 102dB.

The minimum screen size for 16:9 HDTV is 100” (2210x1243mm), and for 21:9 Scope it is 120” (2806x1184mm).
