Krix MX-10 Modular Behind Screen Speaker System

Krix MX-10 Modular Behind Screen Speaker System

Name: Krix MX-10 Modular Behind Screen Speaker System
Brand: Krix
SKU: EXT MX-10.C
Price: 10995.0 AUD
Availability: InStock

Designed for dedicated home cinemas with an acoustically transparent screen, the MX-10 is a superb choice for those seeking an involving cinema experience with crystal clear intelligibility, large dynamic range and powerful bass.

$10,995.00

Colour:

Black

Low Frequency Absorption Spacer Pair:

No thanks

No thanks Yes please

Variant

Purchase in-store or give us a call

Specifications

LCR Speaker Modules
Frequency Range:	40Hz-20kHz in room response
Power Handling:	100 – 500 Watts RMS recommended amplifier power
Sensitivity:	97dB for 2.83 volts at 1 metre
Impedance:	8 Ohms
Configuration:	2-way
Enclosure Type:	Bass reflex, front vented
Low Frequency Drivers:	Single 255mm (10”) paper cone driver. 50mm (2”) voice coil wound on high powered kapton former, with ventilated magnet assembly and copper shorting ring for low distortion
High Frequency Driver:	26mm (1”) doped fabric dome with large roll surround. Ferro fluid cooled. Coupled to a Krix designed 90 x 40 short throw waveguide
Input Terminals:	Gold plated spring terminals
Dimensions:	940mm high x 315mm wide x 205mm deep (2040mm wide including subwoofer modules)
Weight:	15kg each
Subwoofer Modules
Frequency Range:	25Hz-200Hz in room response
Power Handling:	200 – 500* Watts RMS recommended amplifier power * The use of a power amplifier with high pass filter and soft limiter function is strongly recommended on MX subwoofers.
Sensitivity:	92dB for 2.83 volts at 1 metre
Impedance:	4 Ohms
Enclosure Type:	Bass reflex, down-firing vent
Low Frequency Drivers:	Nominal 305mm (12”) diameter paper cone driver with 50mm (2”) long throw voice coil developed for high level, low frequency reinforcement
Input Terminals:	High level gold plated spring terminals
Dimensions:	940mm high x 540mm wide x 205mm deep (2025mm wide including LCR modules)
Weight:	26kg each
System Recommendations	Minimum screen size 16:9 95″ (2103mm x 1183mm) Minimum screen size 21:9 100″ (2335mm x 1001mm)

Warranty

All Krix speakers are Australian designed and Australian made. Krix are so confident in the quality of their products that they provide a 5 Year Warranty with all new Krix speakers. To claim your warranty, please register your product with Krix within 90 days of the purchase date.

Shipping & Returns

We offer free shipping on any product over $99. For full details please see our Shipping Policy.

Our returns policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately, we may not be able to offer you a refund or exchange. For full details please see our Refund Policy.

Key features

Made in Australia

Easy to Install

Behind screen installation

For medium rooms

Award-winning design

TELL ME MORE ABOUT THE

Krix MX-10 Modular Behind Screen Speaker System

Designed for medium size dedicated cinema rooms, the MX-10 presents the next level of modular home cinema performance, housing the same Krix waveguide and mid-bass driver of its bigger brother, the MX-20.

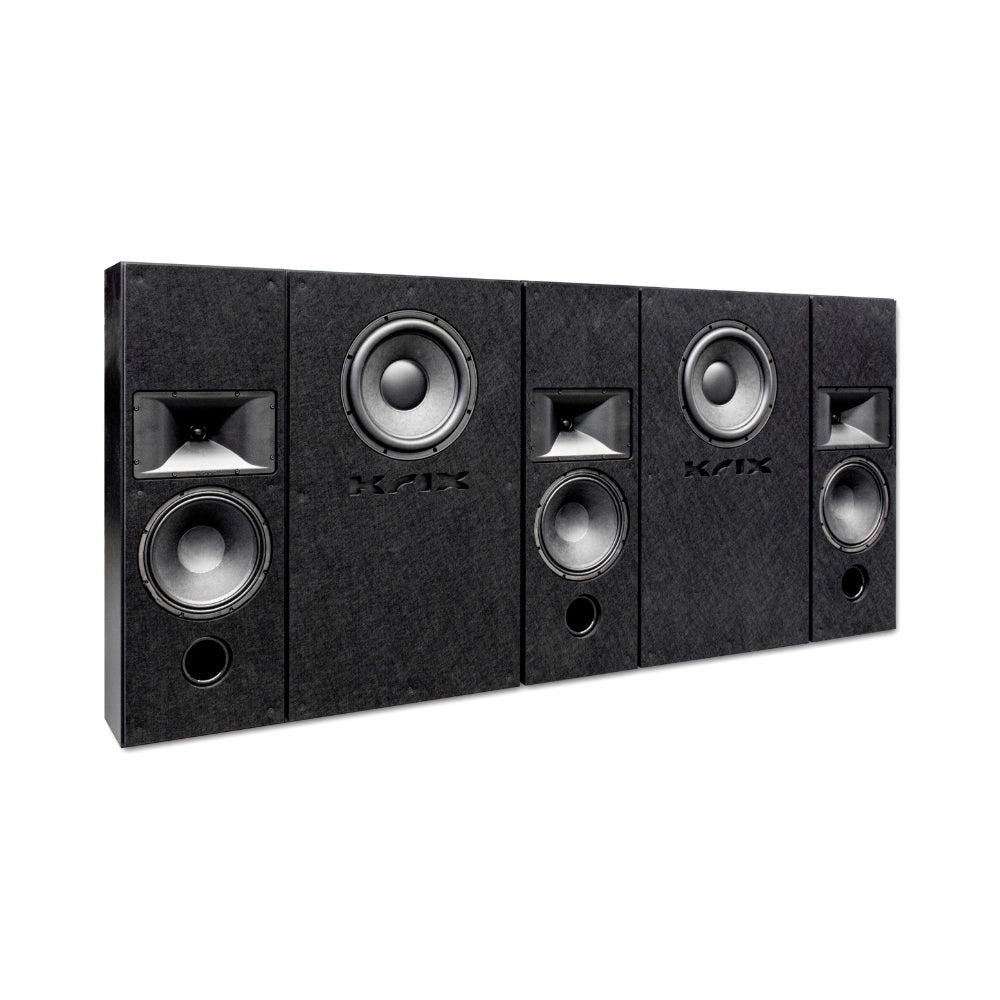

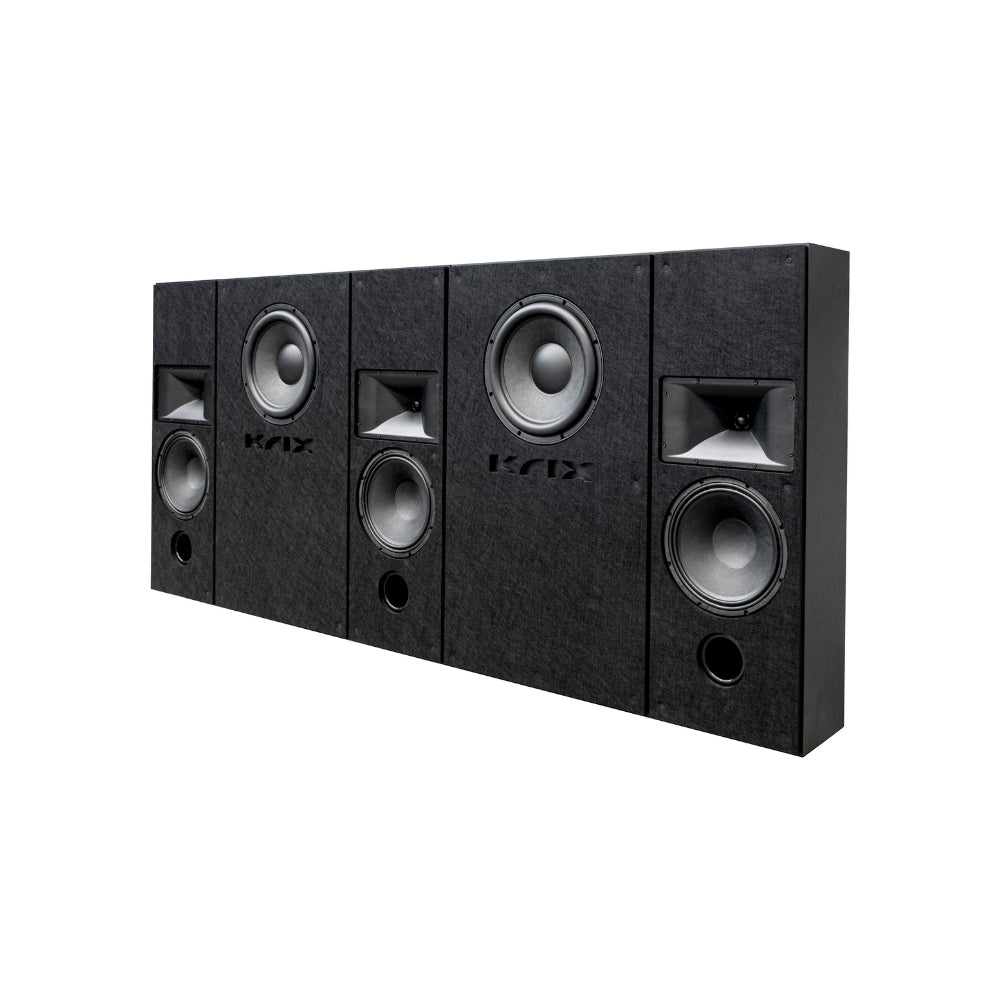

The MX-10 comprises of five modules, all of which are the same height and a slim depth of just 205mm for simple installation into a wall cavity. The front baffle of each module is covered with an acoustic absorbent material to absorb any sound reflecting off the back of the screen or the room itself. This assists greatly with the acoustic treatment of the room to ensure better intelligibility and overall sound performance.

LCR Speakers

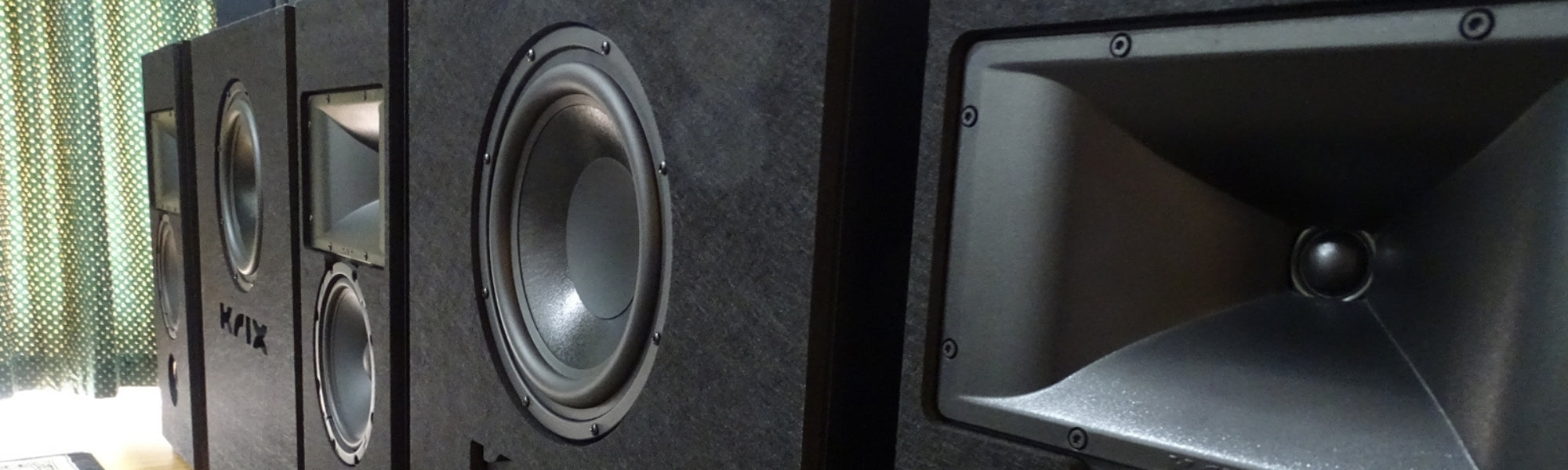

The main speakers feature a 255mm bass-mid driver which has a 50mm voice coil developed to offer low harmonic distortion, especially in the critical midband.

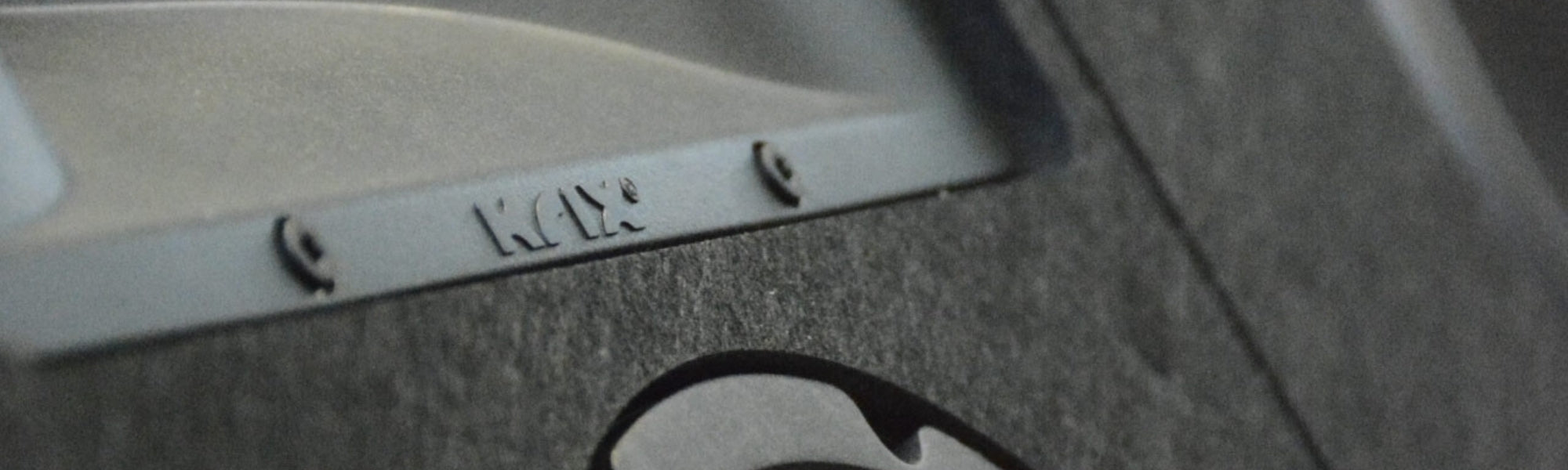

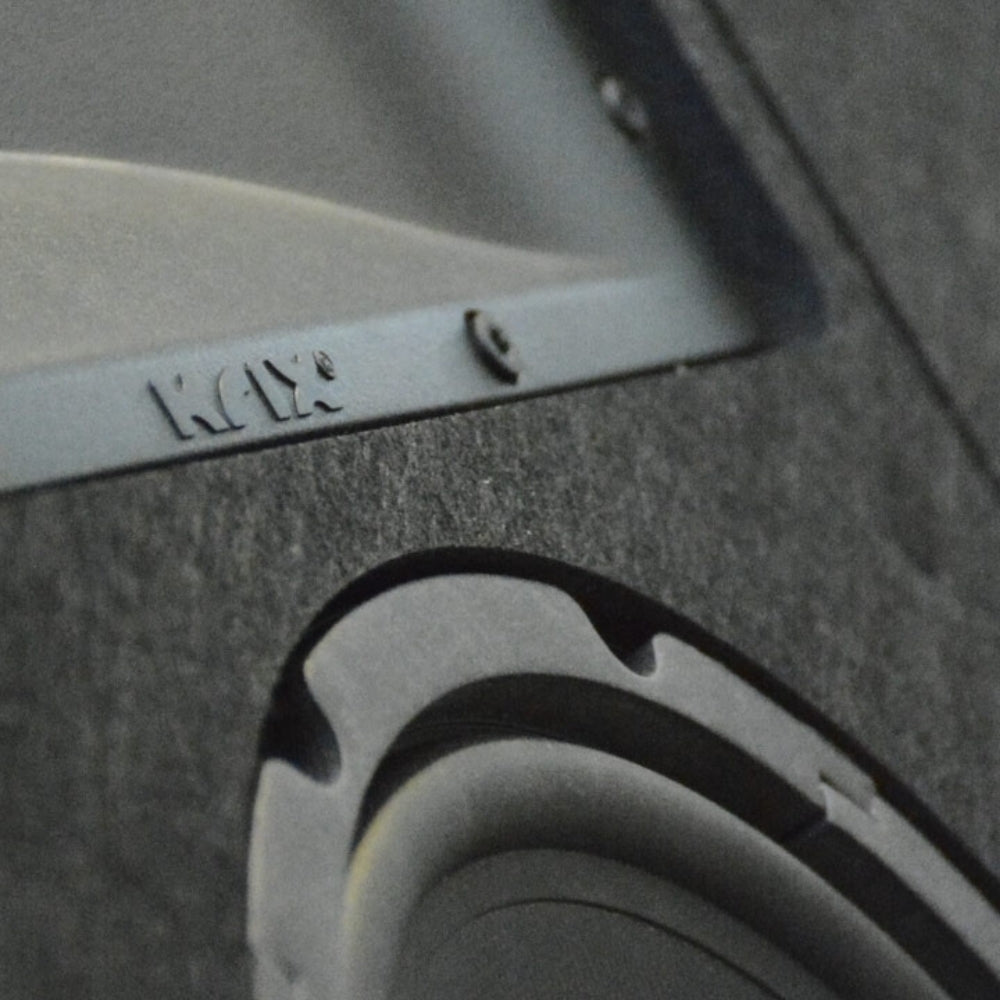

The high frequency drive unit is a damped, high power, 26mm doped fabric dome tweeter, coupled with a proprietary Krix waveguide, for optimum dispersion over the entire working bandwidth.

Dual Behind Screen Subwoofers

Each subwoofer contains a large 305mm paper cone driver with a 50mm long throw voice coil developed for high level, low frequency reinforcement.

The specially engineered bass drivers are professional low frequency loudspeakers and offer superb bass performance, high peak program power handling and high efficiency, capable of extreme sound pressure levels. The smooth response, wide frequency and dynamic range are features not often achieved in one woofer.

The bass drivers have an oversized ferrite magnet structure with components engineered to achieve maximum efficiency. Symmetrical gap geometry, combined with the large linear voice coil travel, ensures minimum distortion at all levels.

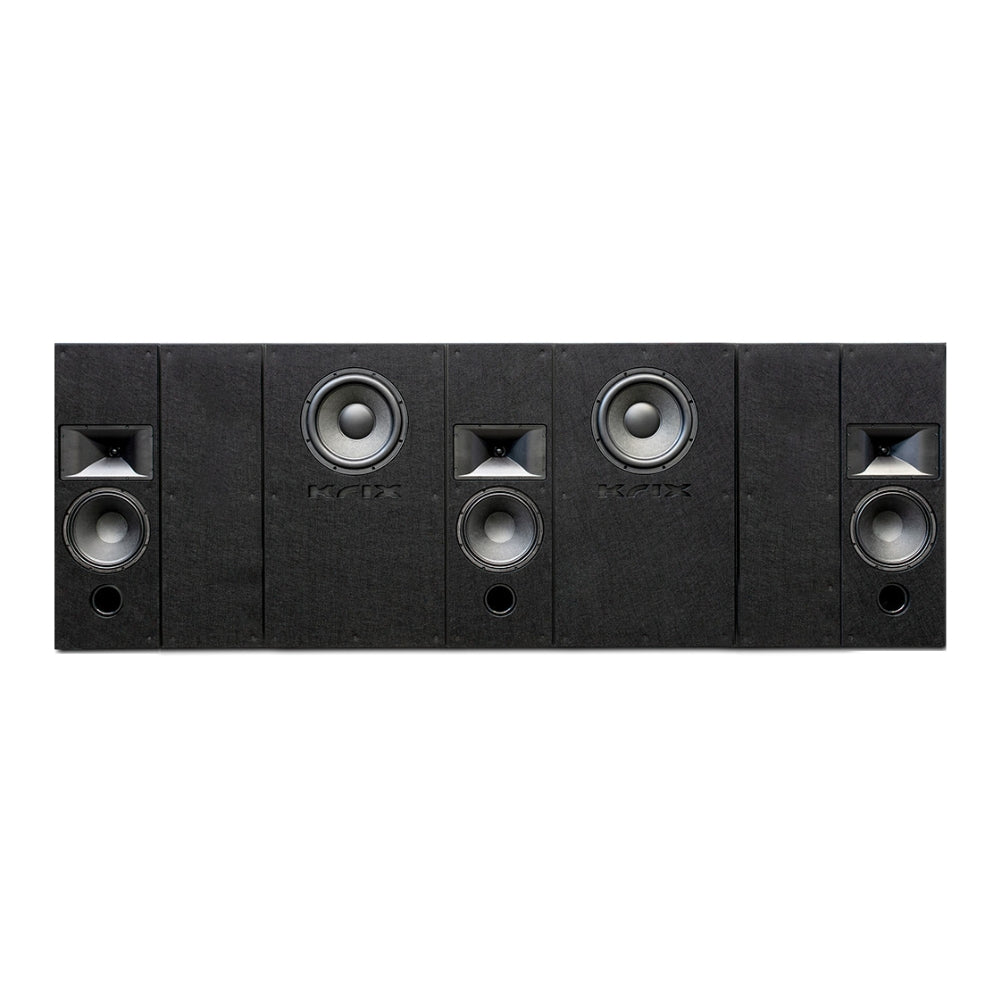

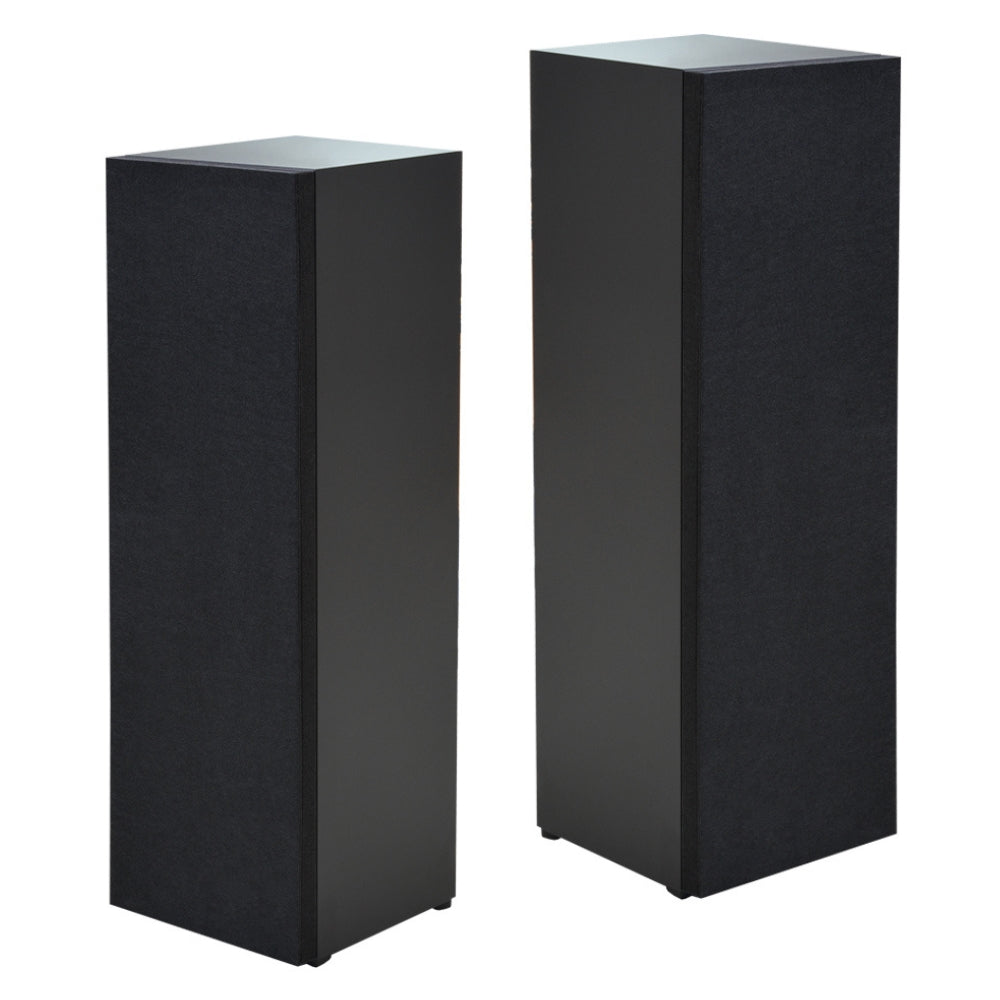

Low Frequency Absorption Spacer Modules

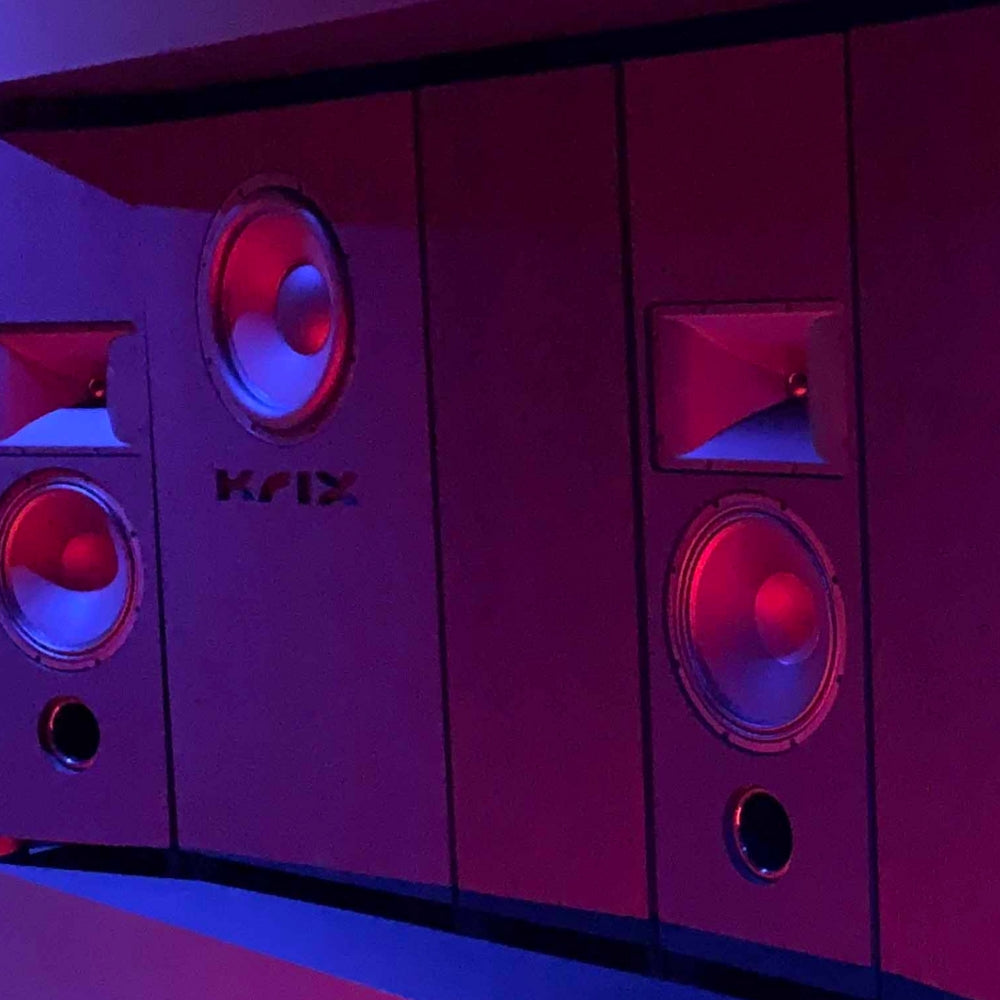

These speaker systems are designed to be installed behind an acoustically transparent screen, just like the speakers in a commercial cinema. They create a wall of sound directly from the picture, so everyone gets the full movie experience and impact.

The five speaker modules (left, centre, right and two subwoofers) in each system are all the same height and depth, making the design of the room and installation of the speaker system much simpler.

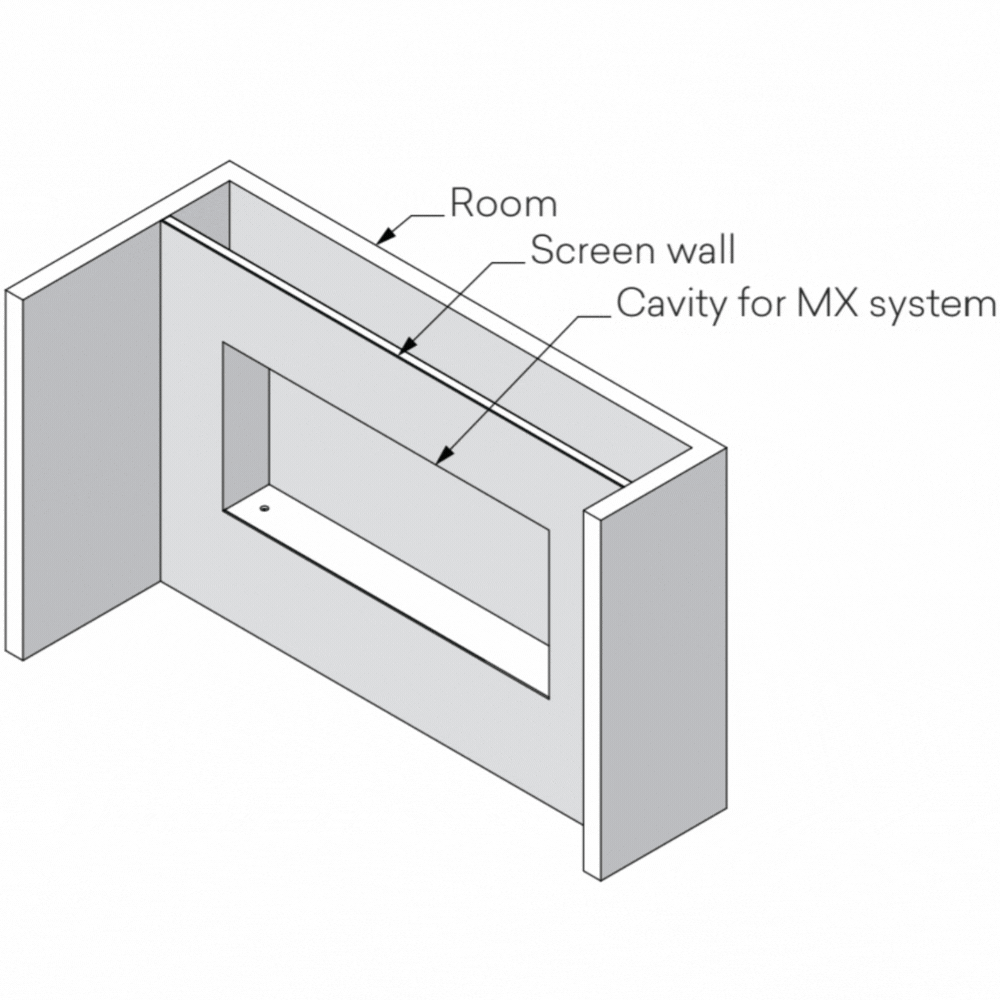

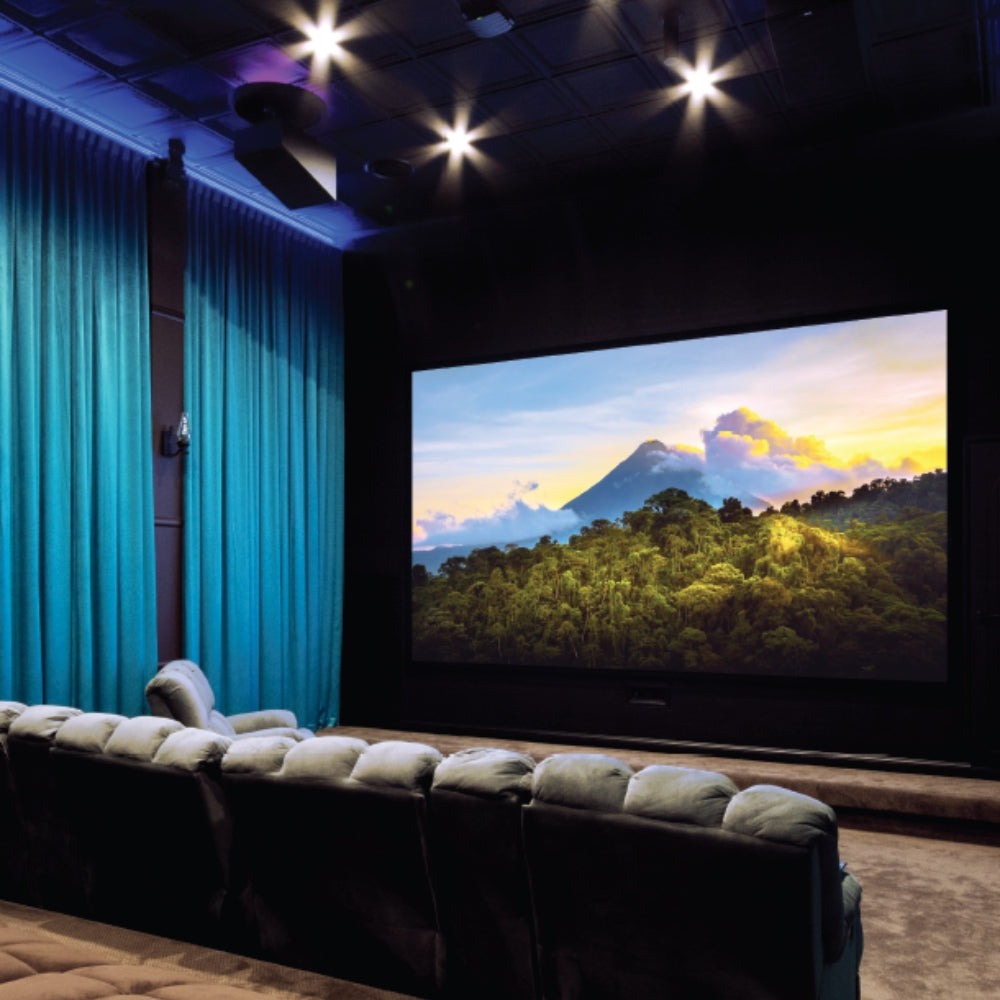

Easy to Install

These speaker systems are designed to be installed behind an acoustically transparent screen, just like the speakers in a commercial cinema. They create a wall of sound directly from the picture, so everyone gets the full movie experience and impact.

The five speaker modules (left, centre, right and two subwoofers) in each system are all the same height and depth, making the design of the room and installation of the speaker system much simpler.

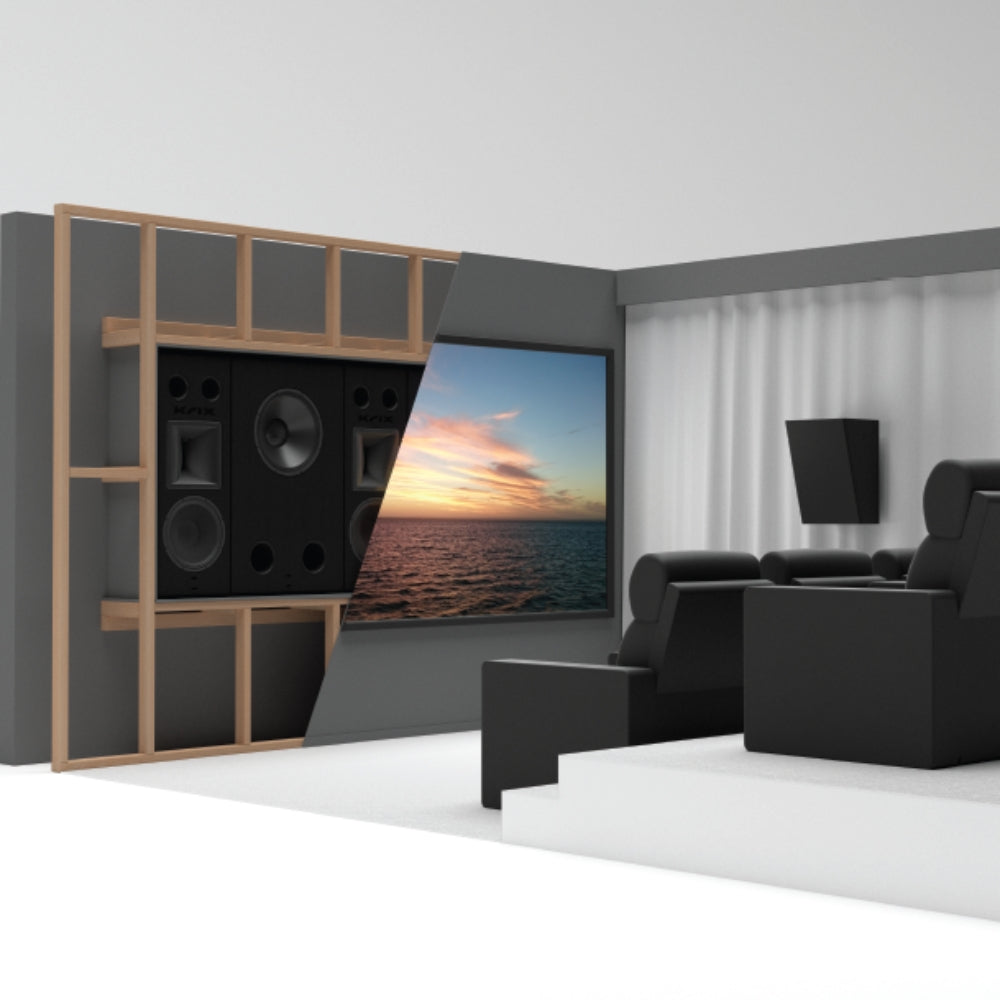

Room Recommendations

Room depth for the MX-10 should be between 3-8 metres for Performance level 102dB.

The minimum screen size for 16:9 HDTV is 92” (2037x1146mm), and for 21:9 Scope it is 100” (2335x1001mm).
