Krix Epix In-Wall Speaker
Appreciate the stunning realism of a high-end floorstanding or centre channel speaker with this uniquely designed in wall speaker.
For those who are serious about their sound experience, the Epix provides the high fidelity of Krix’s award-winning Neuphonix Mk2 and Epicentrix Mk2 speakers, in a uniquely designed package.
Designed to fit into a standard 90mm frame, you can enjoy the stunning realism of high-end floorstanding speakers without the clutter.
Engineered With Care:

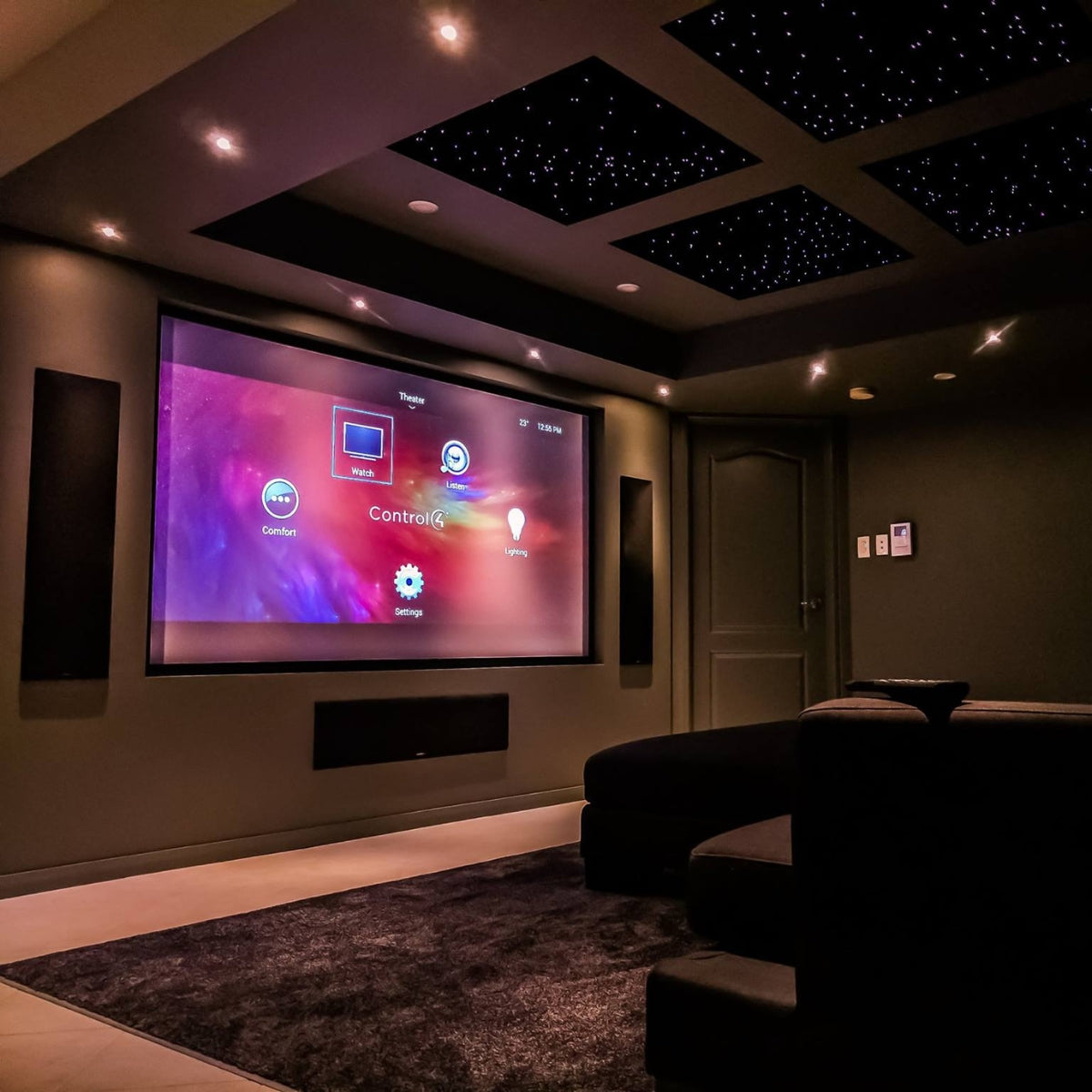

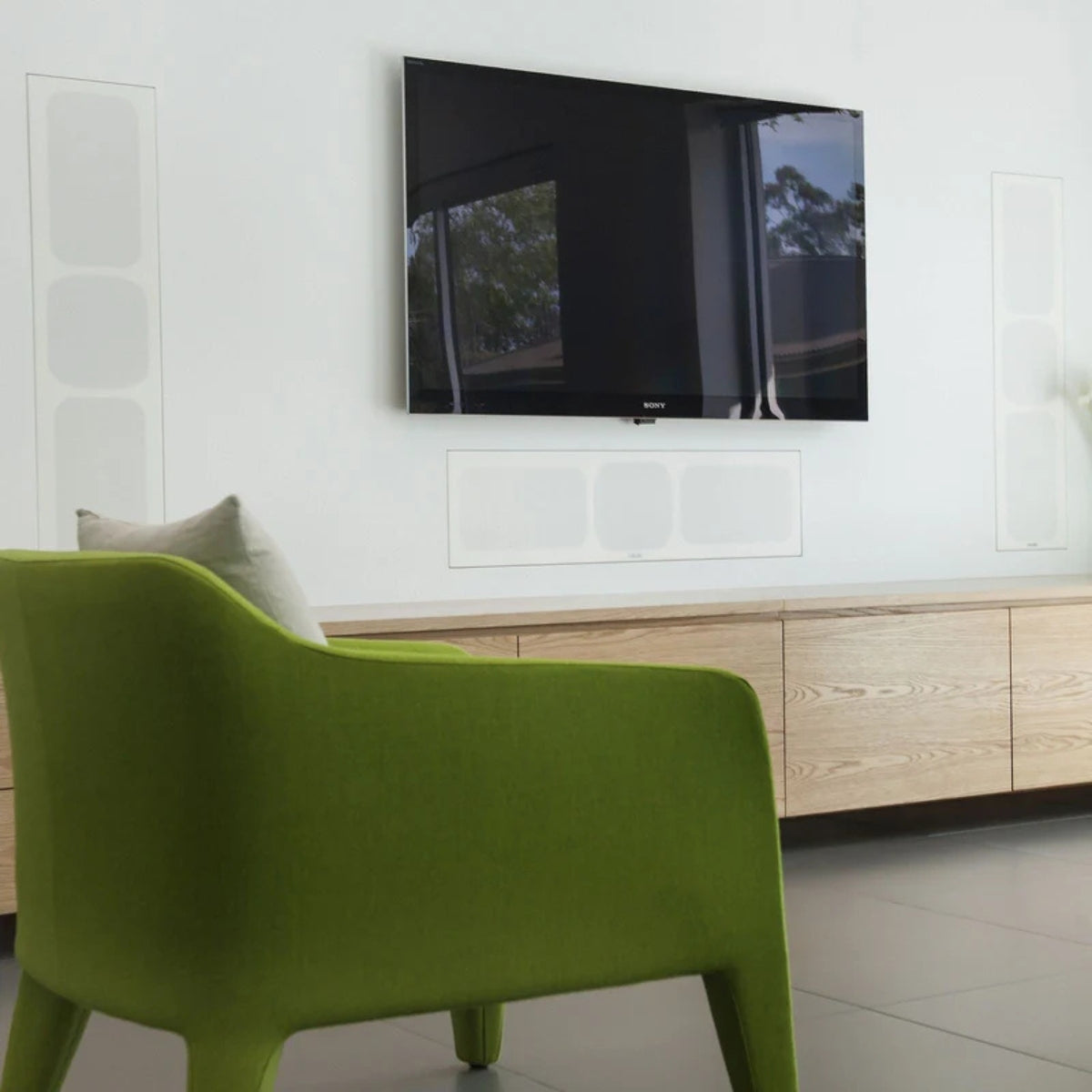

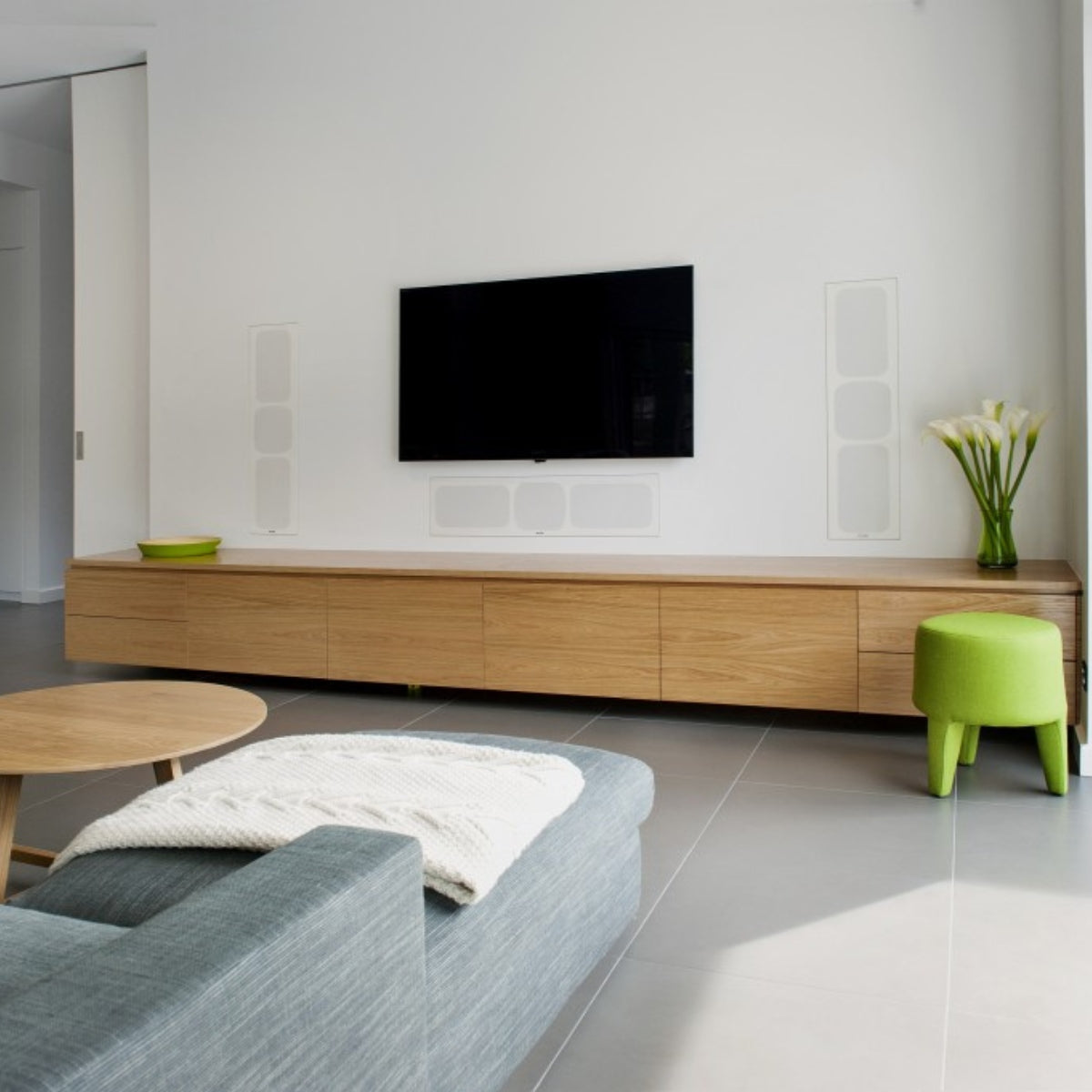

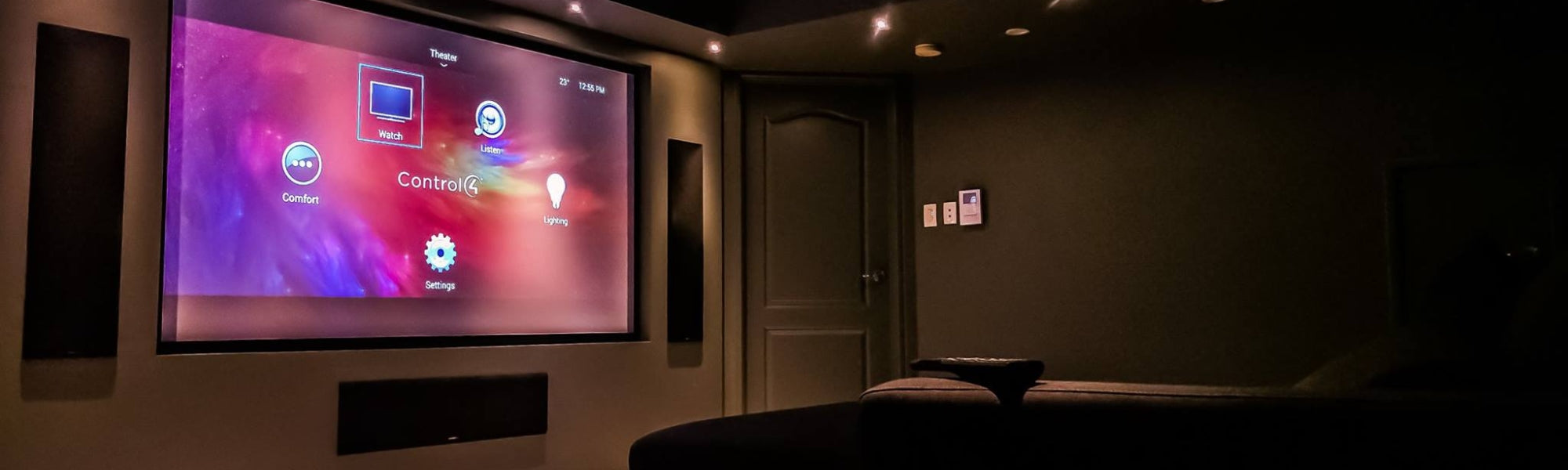

With a fully enclosed back box that maintains acoustic integrity and stops rear sound radiation from the drivers transferring to adjoining rooms, the Epix can be used in home theatre rooms, or multi-functional living environments in both stereo and surround sound systems.

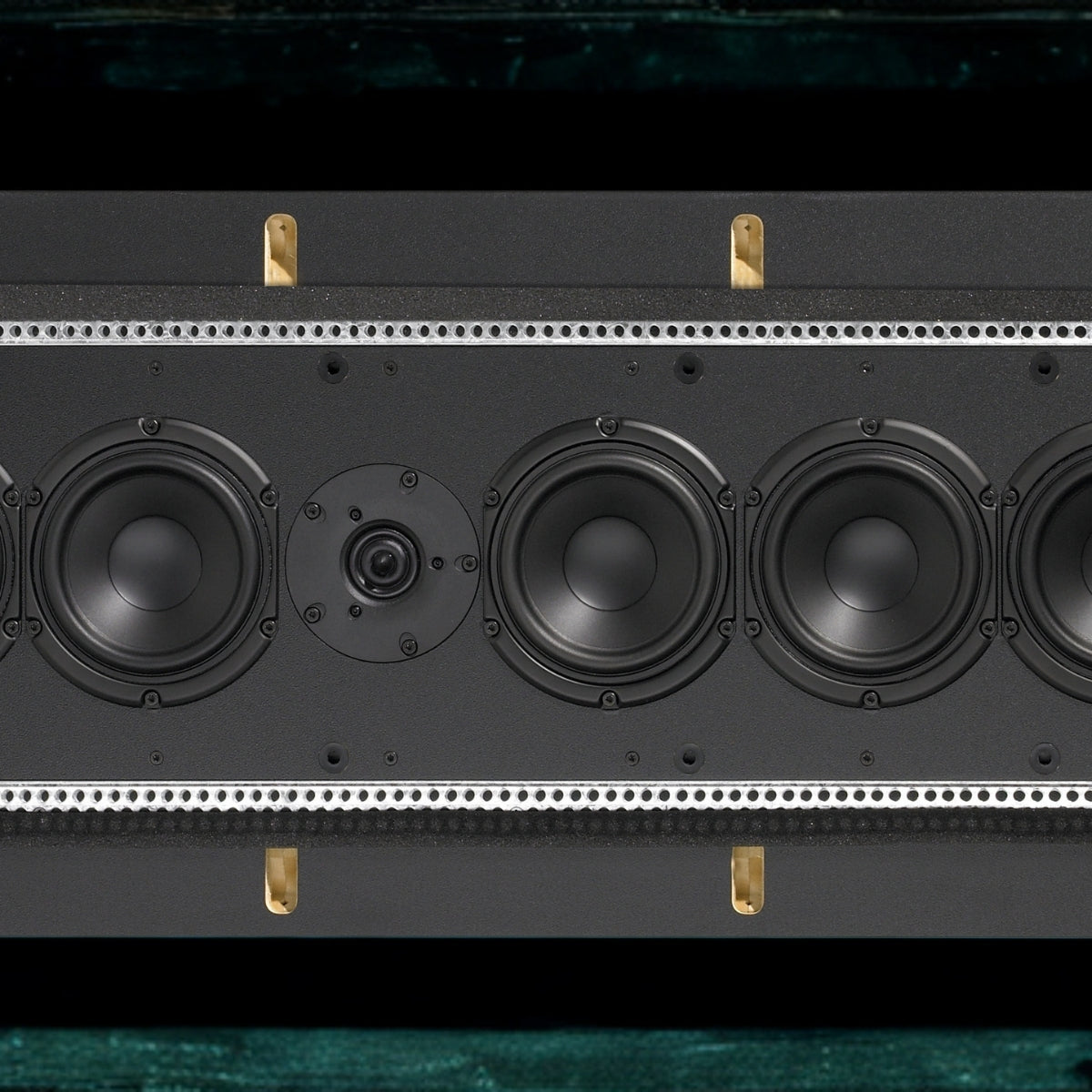

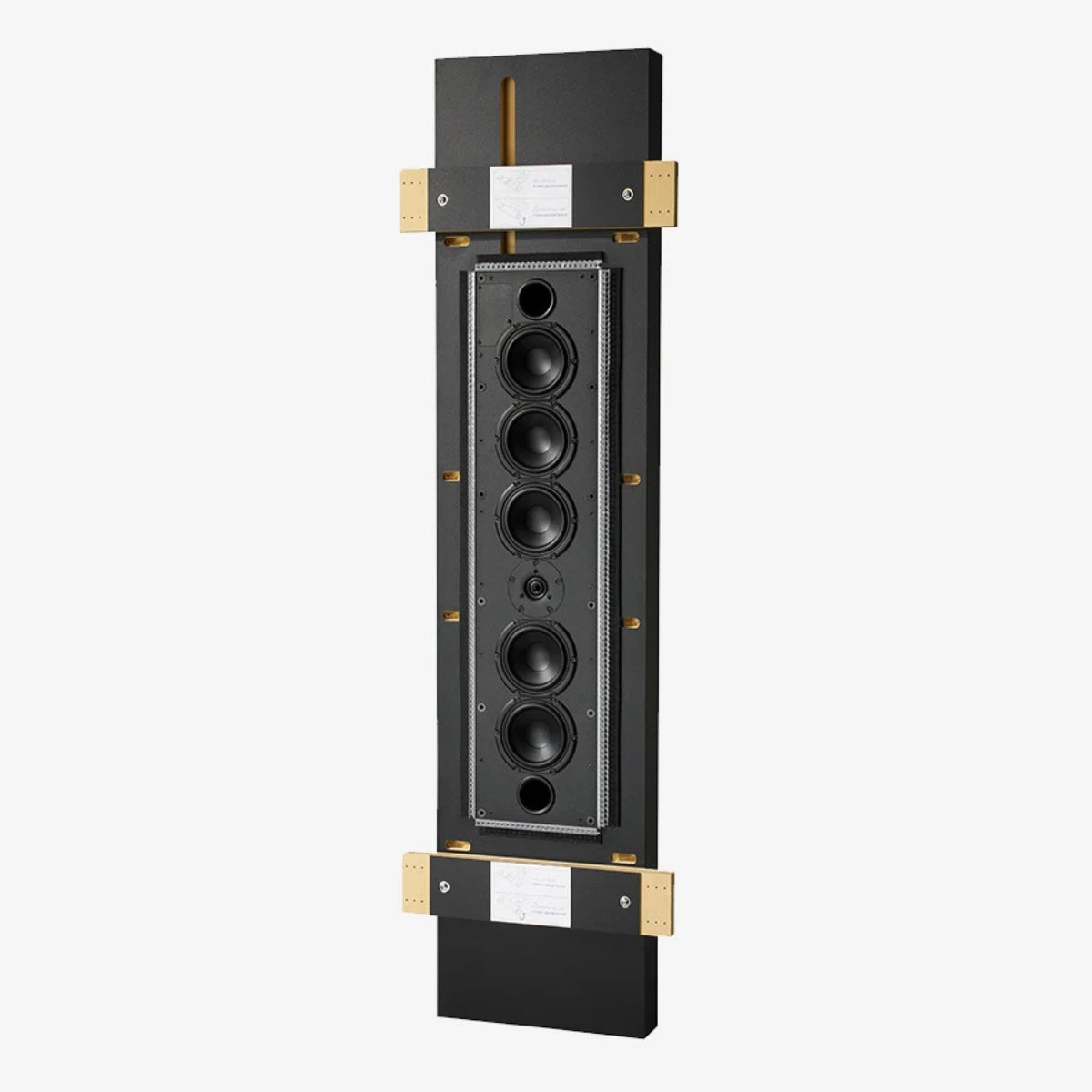

Its 3 way design features four custom-designed 130mm bass drivers, each with oversized magnets. An extensive crossover network – featuring only low tolerance, high grade components – beautifully matches the 130mm dedicated midrange and the high-grade 26mm ring radiator tweeter, which delivers an extended frequency response to 40kHz.

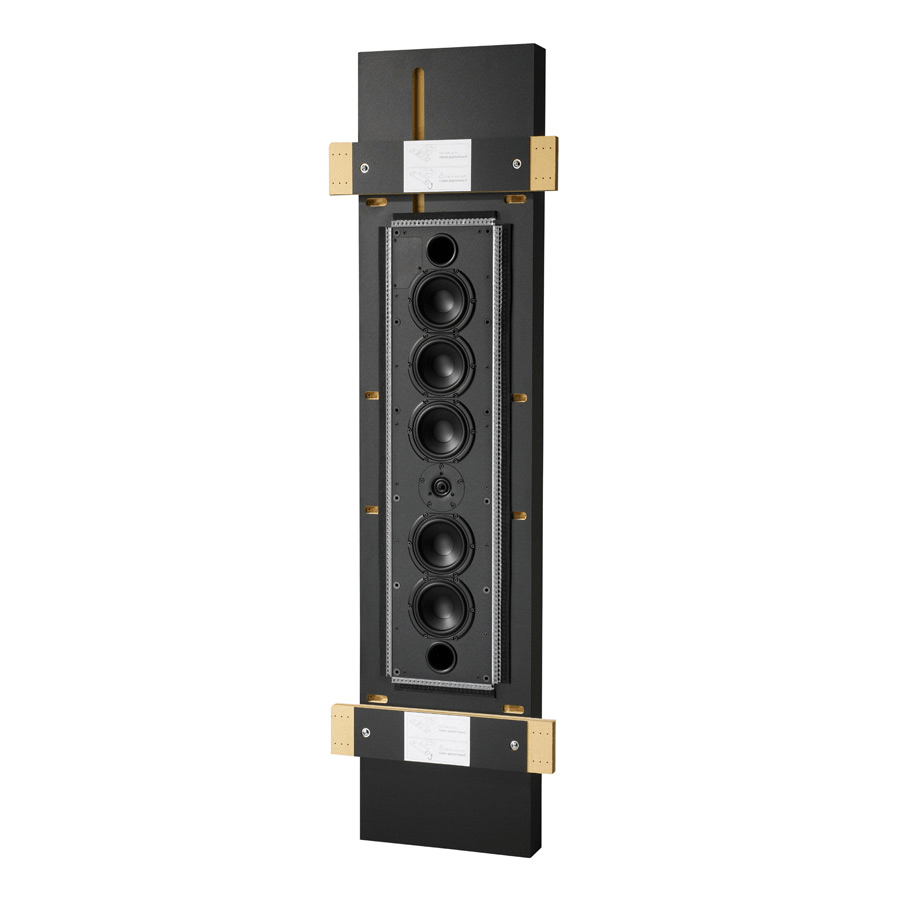

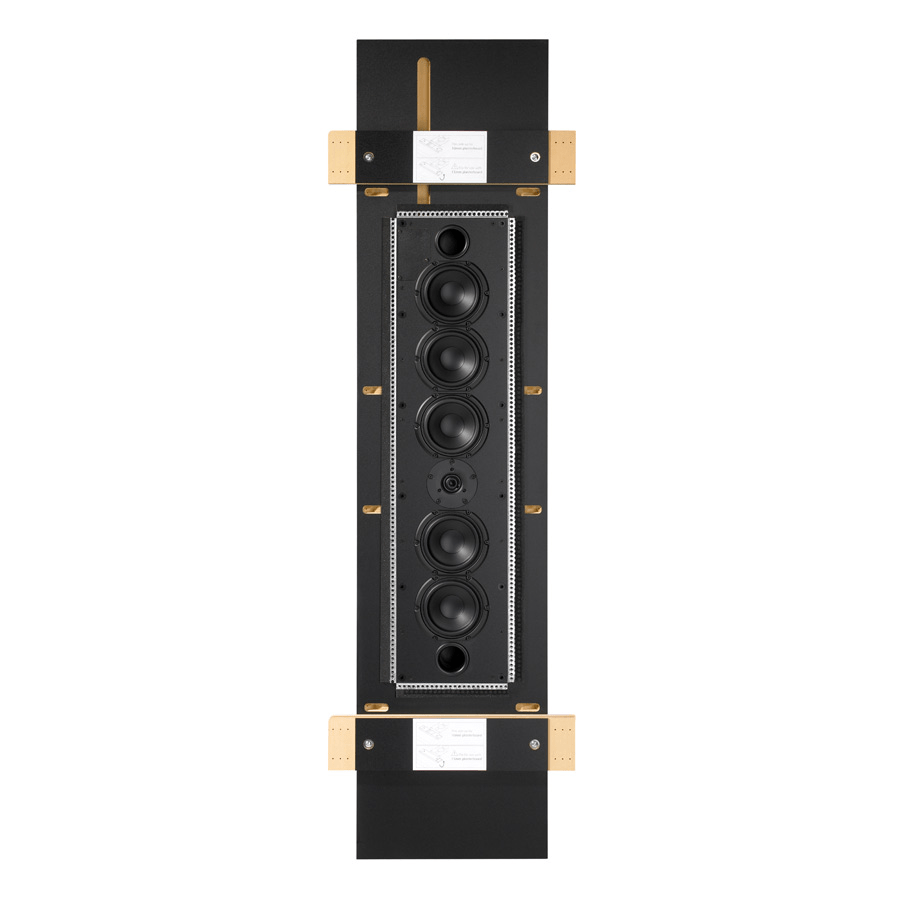

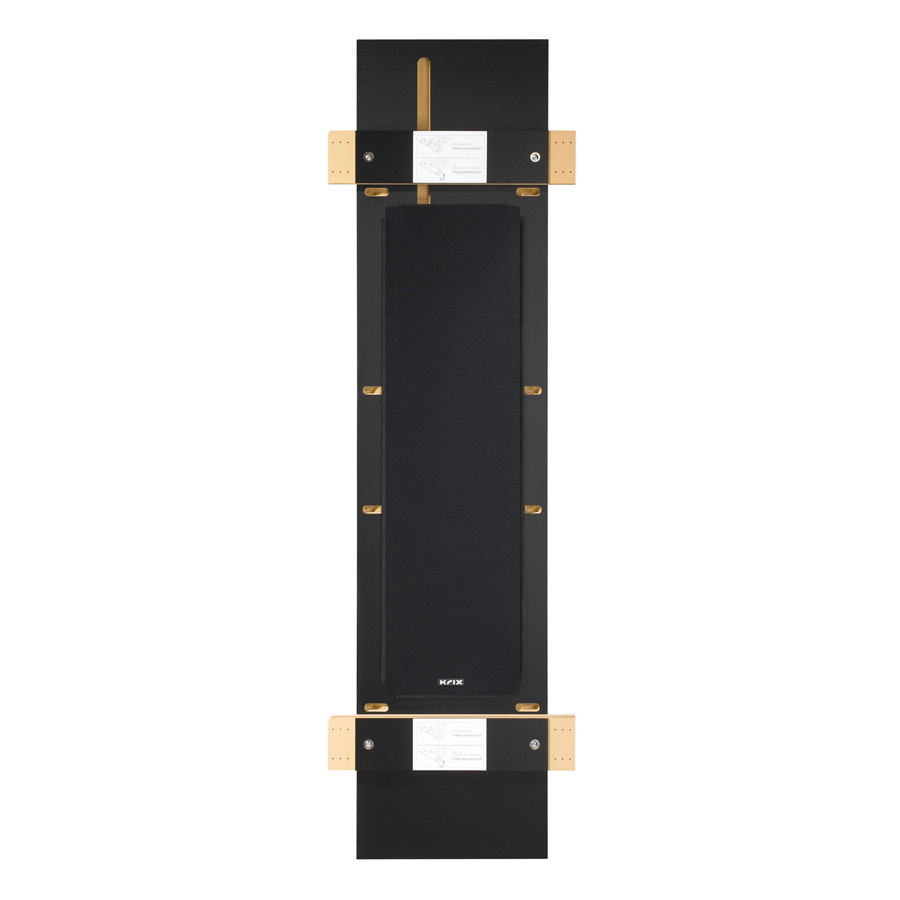

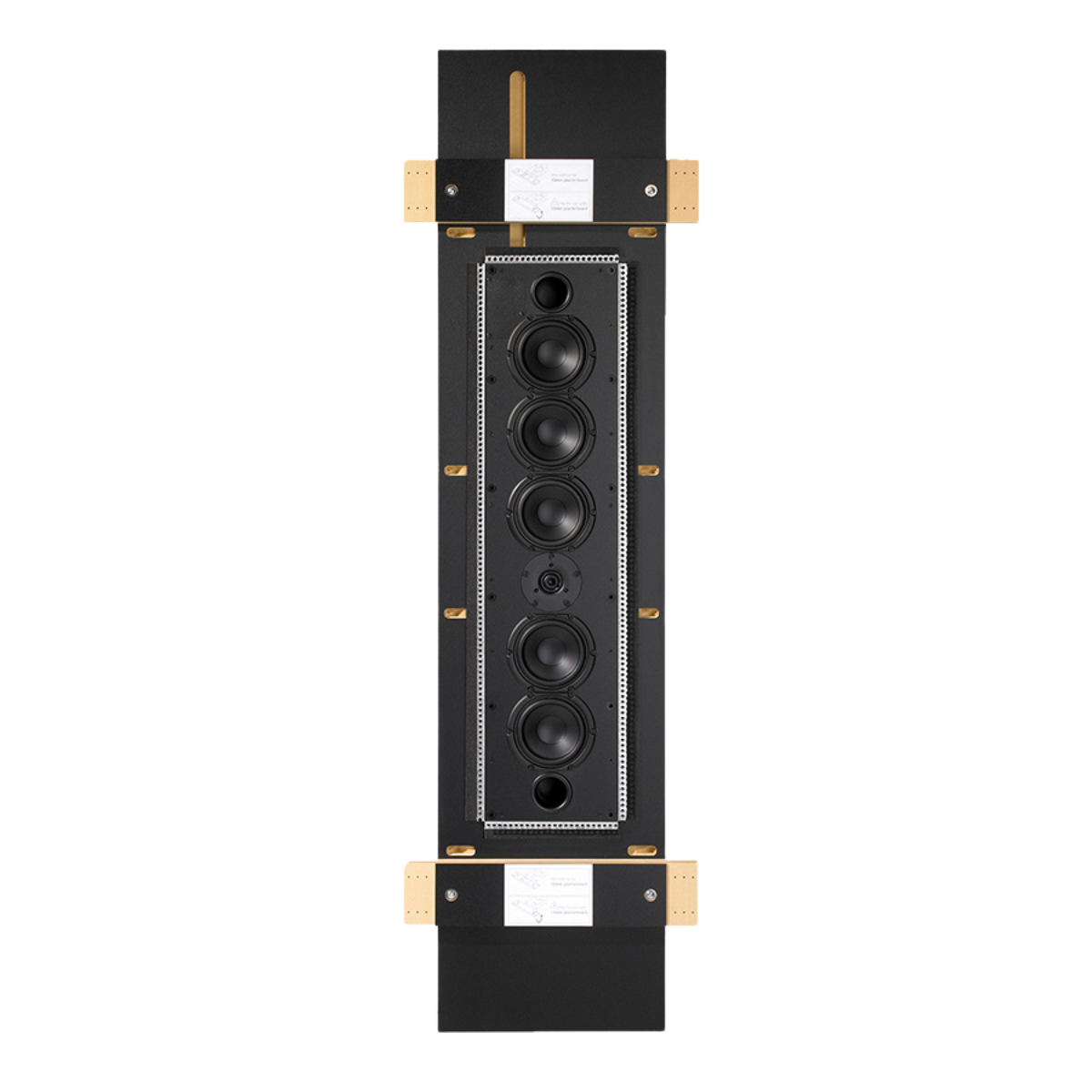

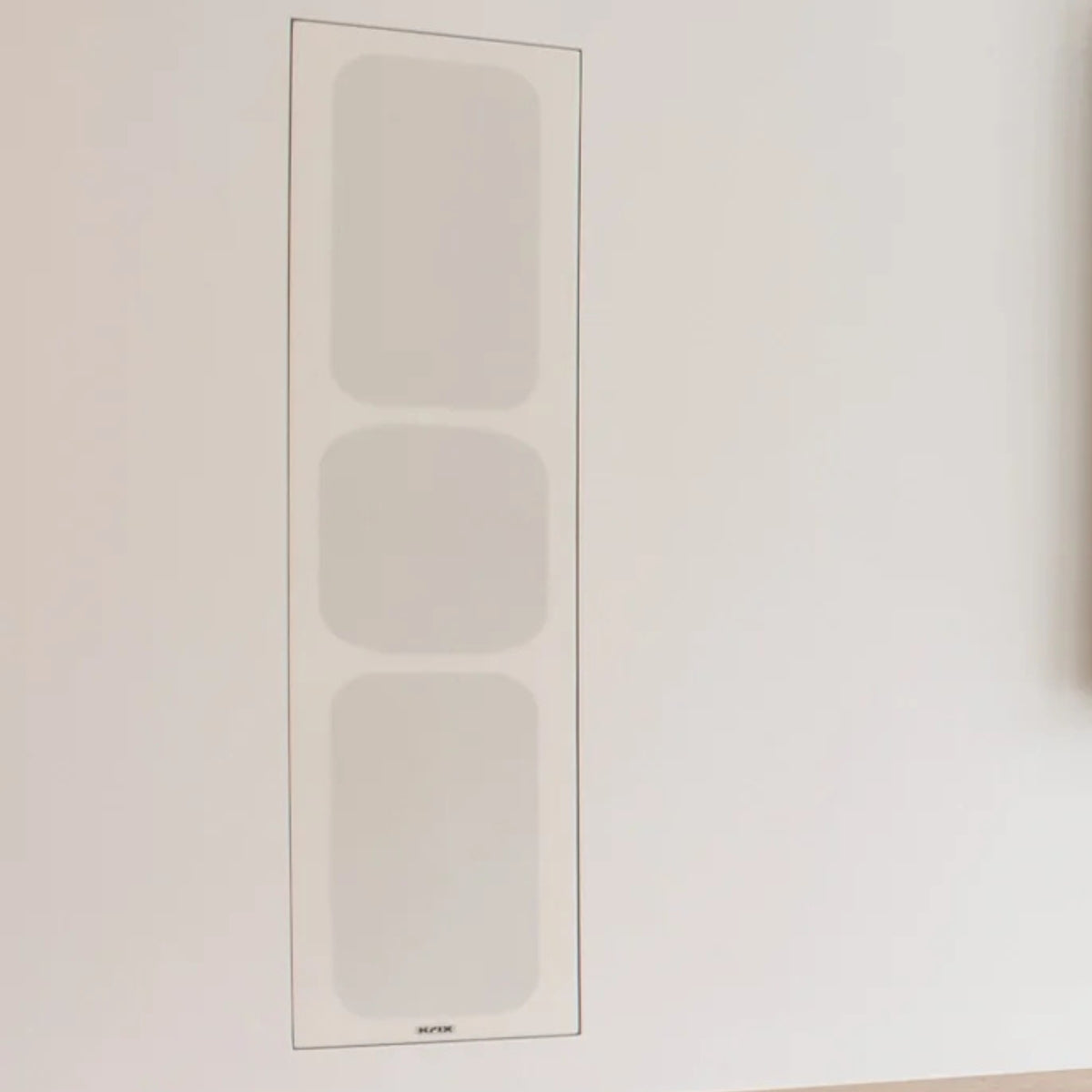

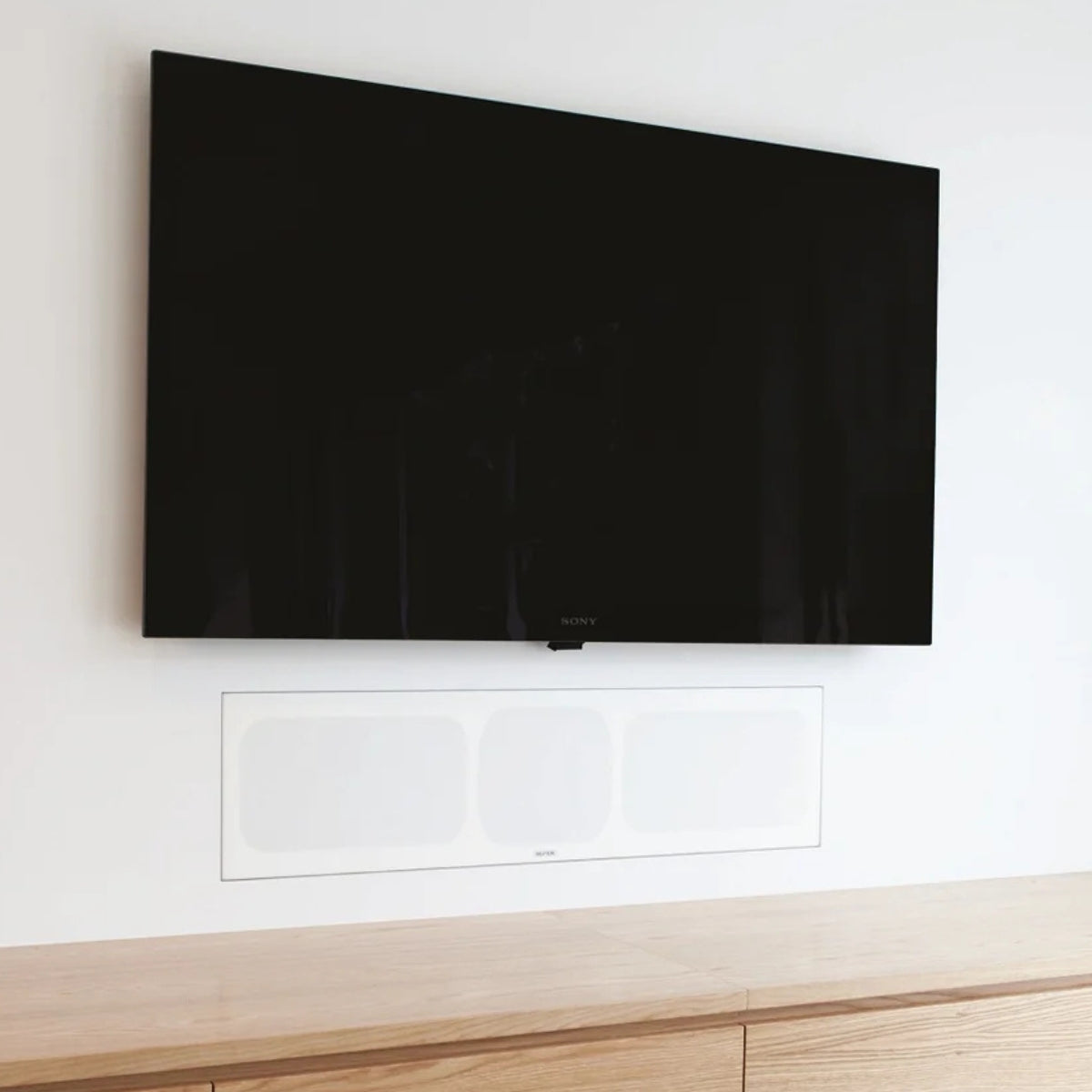

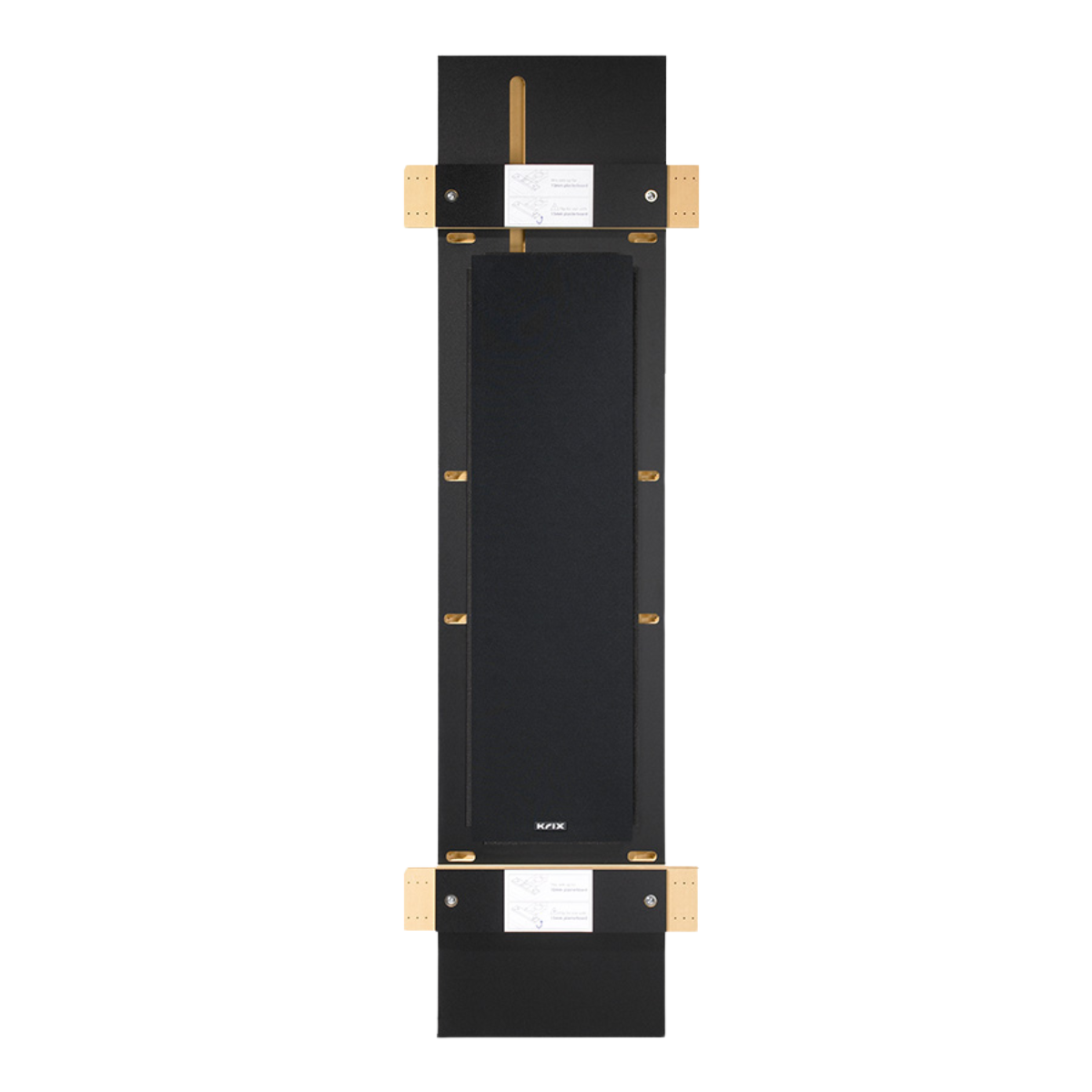

The Epix provides the complete in-wall speaker for discerning listeners, available in vertical or horizontal configurations. Complete with mounting hardware, plasterboard edging, and a solidly braced enclosure, installation is in two stages. The back enclosure is supplied with a fake baffle so it can be installed at frame stage. Once the room is finished and dust-free, the fake baffle is removed and the baffle housing the drivers and crossover is mounted into the back enclosure.
For the ultimate sound experience at home, play it through Krix.
||40Hz-40kHz in room response
||50 – 300 Watts RMS recommended amplifier power
||90dB for 2.83 volts at 1 metre
||Nominally 6 Ohms (minimum 4.3 Ohms)
||Bass reflex, front vented
|Low Frequency Driver:
||4 x nominal 130mm (5”) coated paper cones. 26mm (1”) voice coil wound on high powered aluminium former provides enhanced linearity. Over-sized magnet delivers low distortion
|Mid Frequency Driver:
||1 x nominal 130mm (5”) coated paper cone. 26mm (1”) voice coil wound on high powered aluminum former, using copper shorting ring and oversized magnet for low distortion
|High Frequency Driver:
||26mm (1″) dual concentric diaphragm with wave-guide centre plug for controlled directivity. Non-reflective dual chambered magnet structure with copper shorting ring to lower distortion
||Concealed spring terminals
Back Box – 1700mm high x 390mm wide x 80mm deep
Front Baffle – 962mm high x 225mm wide x 18mm deep
Grille – 995mm high x 258mm wide x x 13mm deep
||27 kg each
