JL Audio Fathom® IWSv2-SYS-113

In-Wall Subwoofer System with Single 13.5-inch Subwoofer, 1000 watts

Manufacturers Details:

The same minds that engineered JL Audio’s reference-grade Fathom® and Gotham® powered subwoofers have created an amazing in-wall subwoofer solution, centered on an innovative, thin-line driver with groundbreaking technologies.

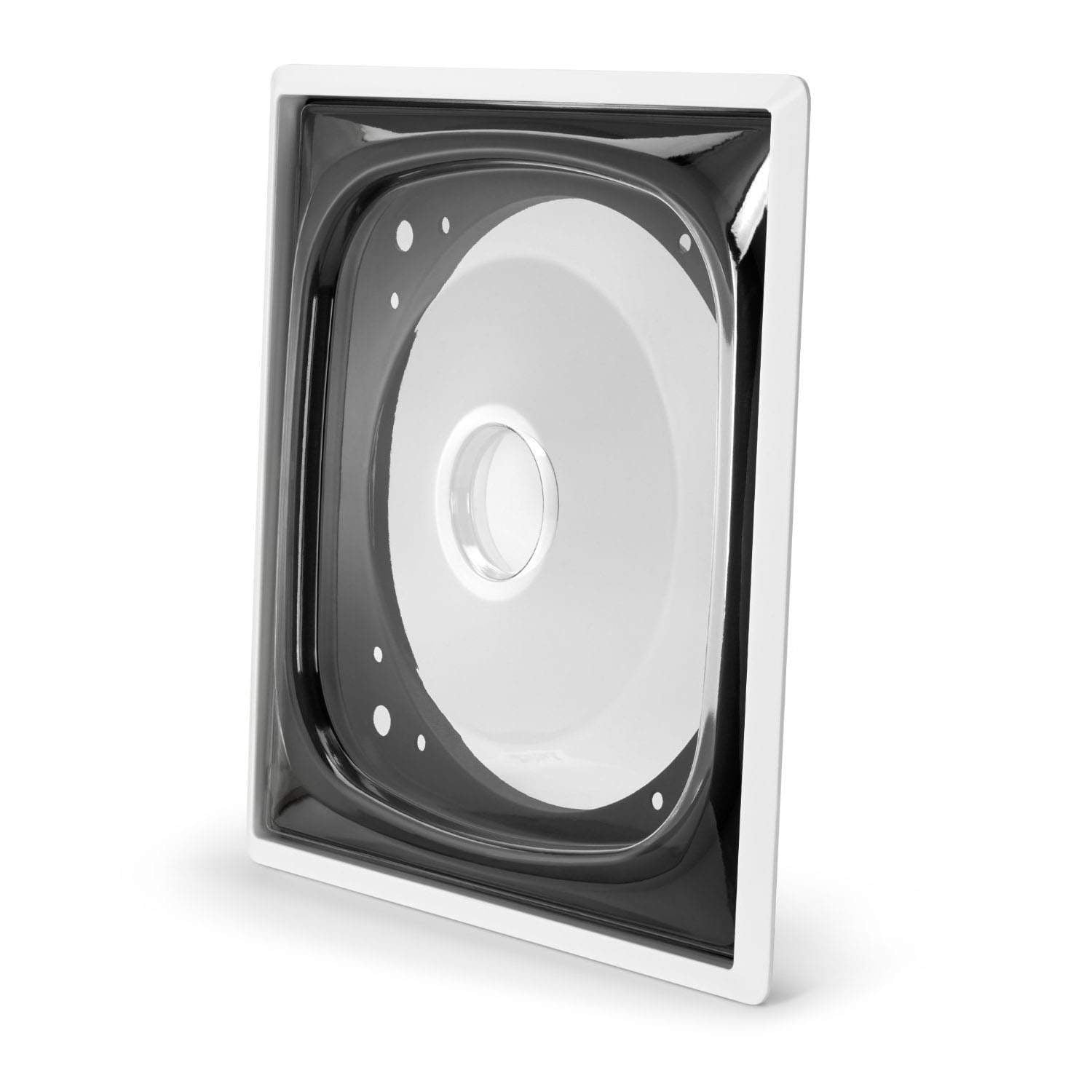

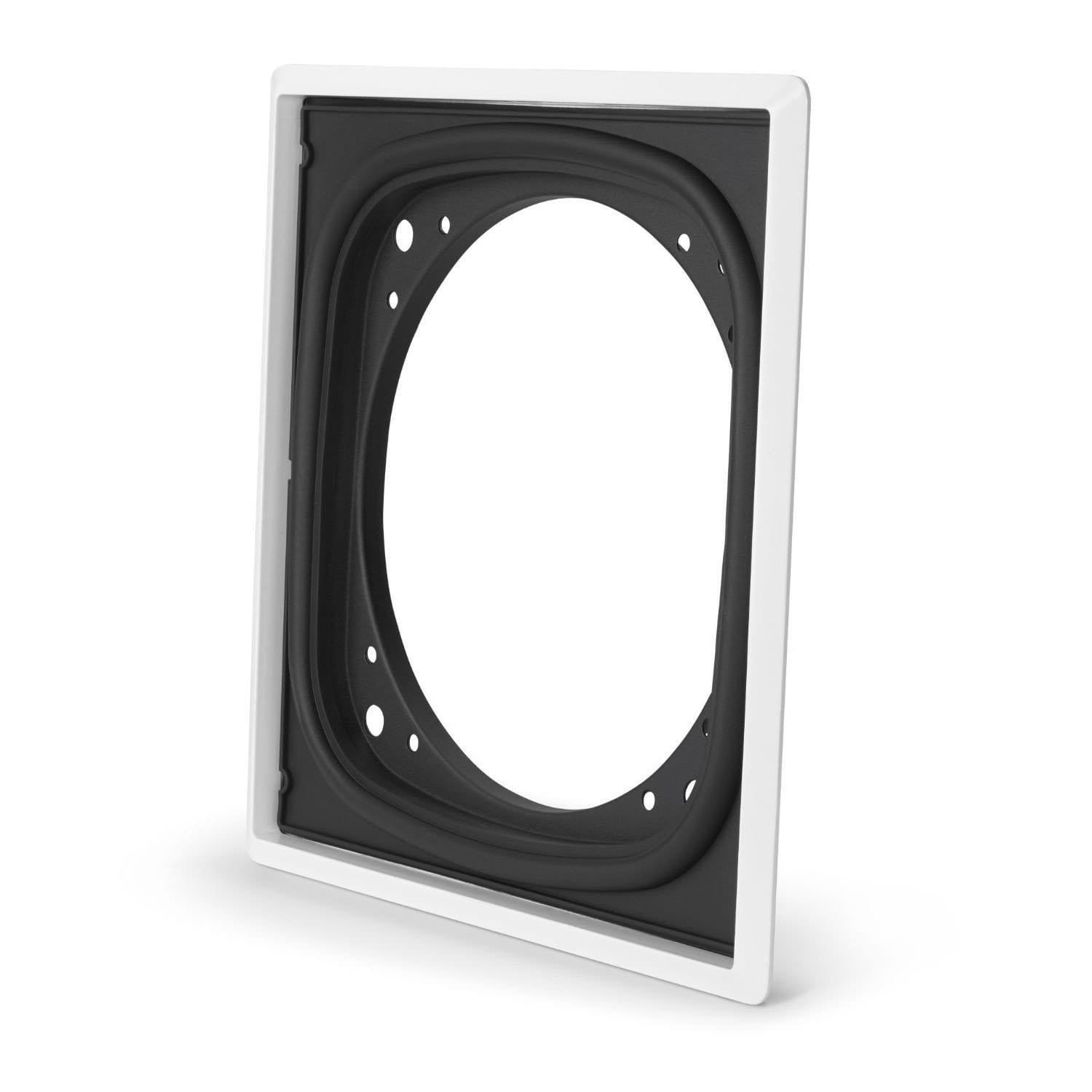

Housing this exotic driver is a critically engineered enclosure with a unique floating mount design to minimize wall excitation. The enclosure features extensive architectural features aimed at improving rigidity while keeping a very low profile and minimal wall thickness.

Engineered With Care:

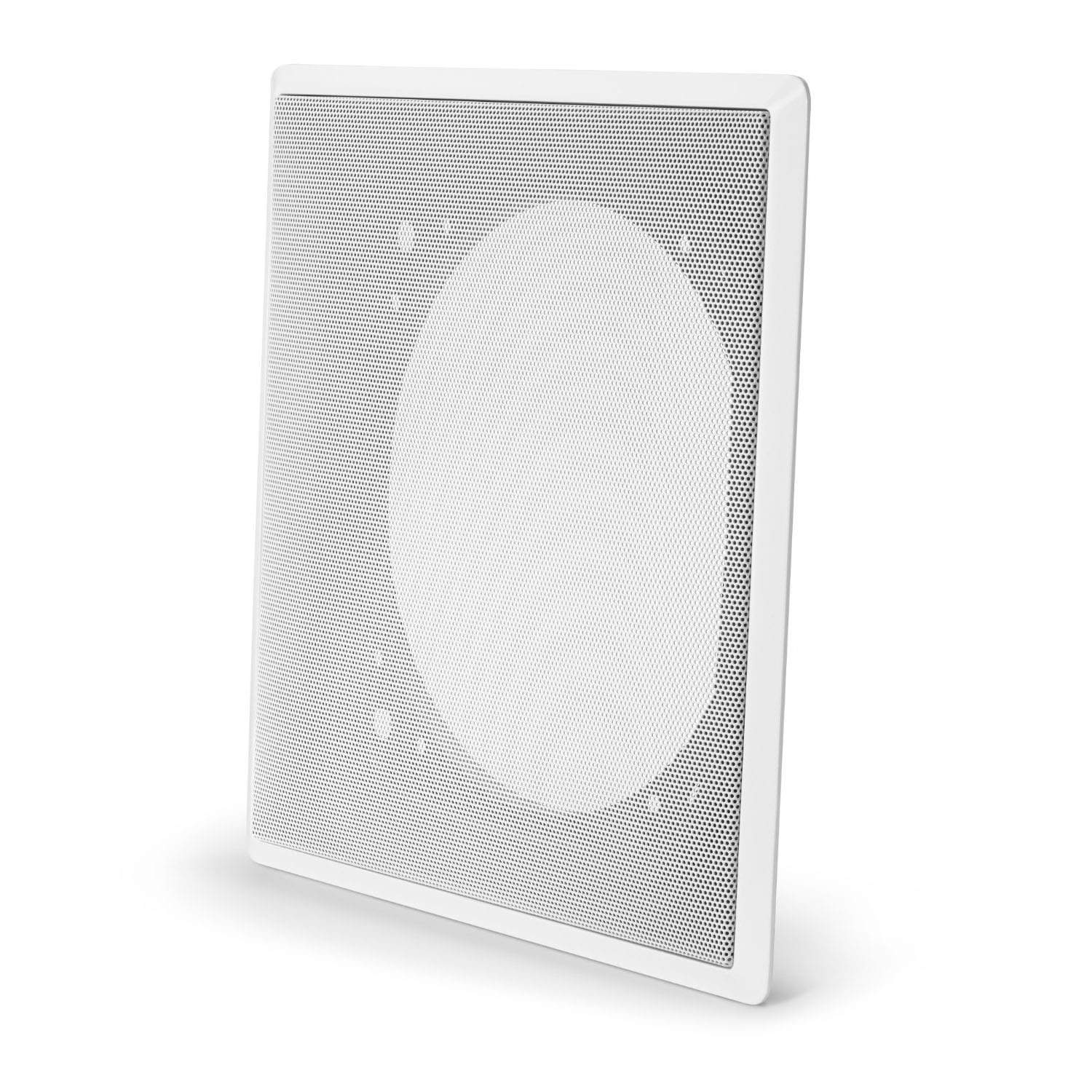

A paintable, fine steel-mesh grille, also designed to control vibration, is included for each enclosure in a system.

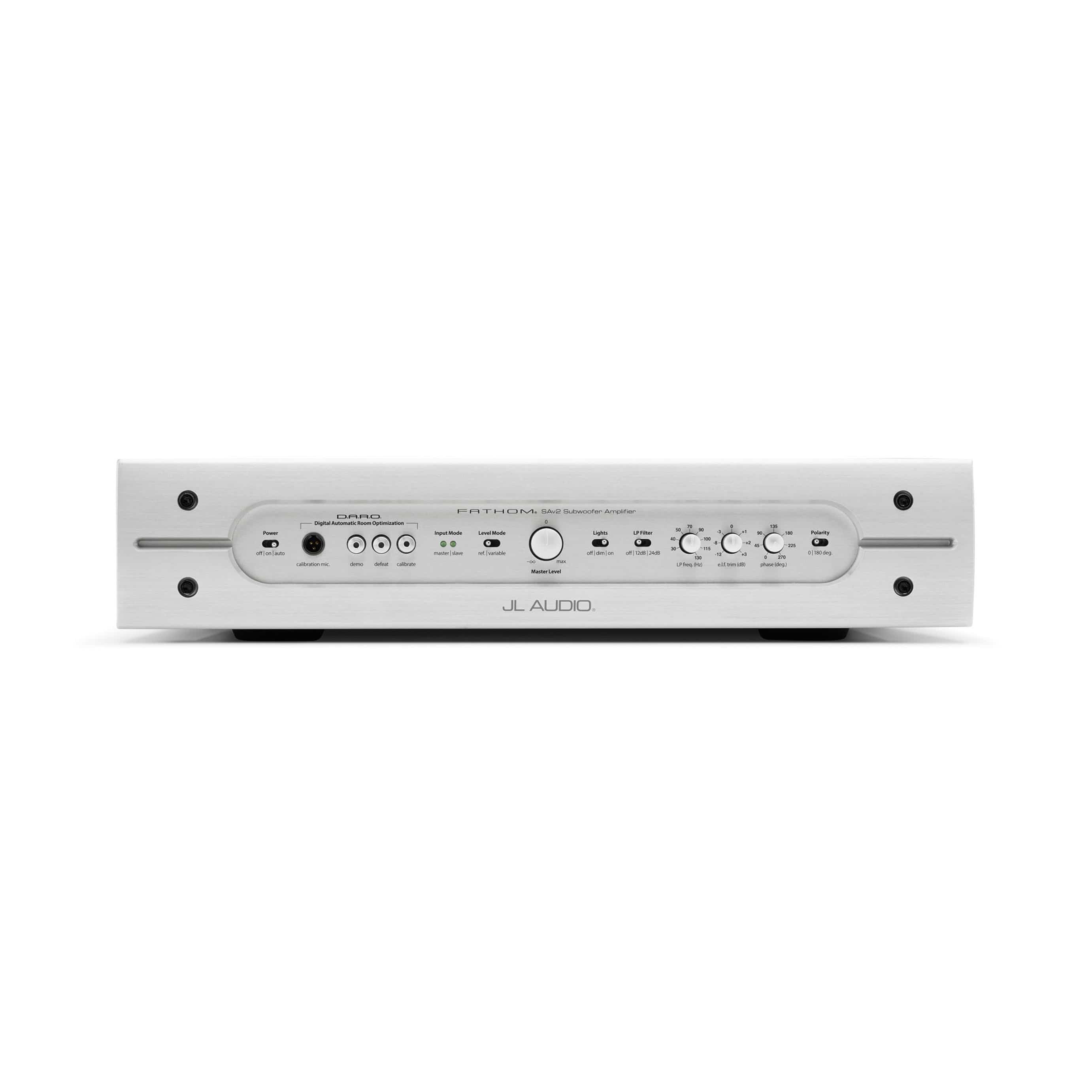

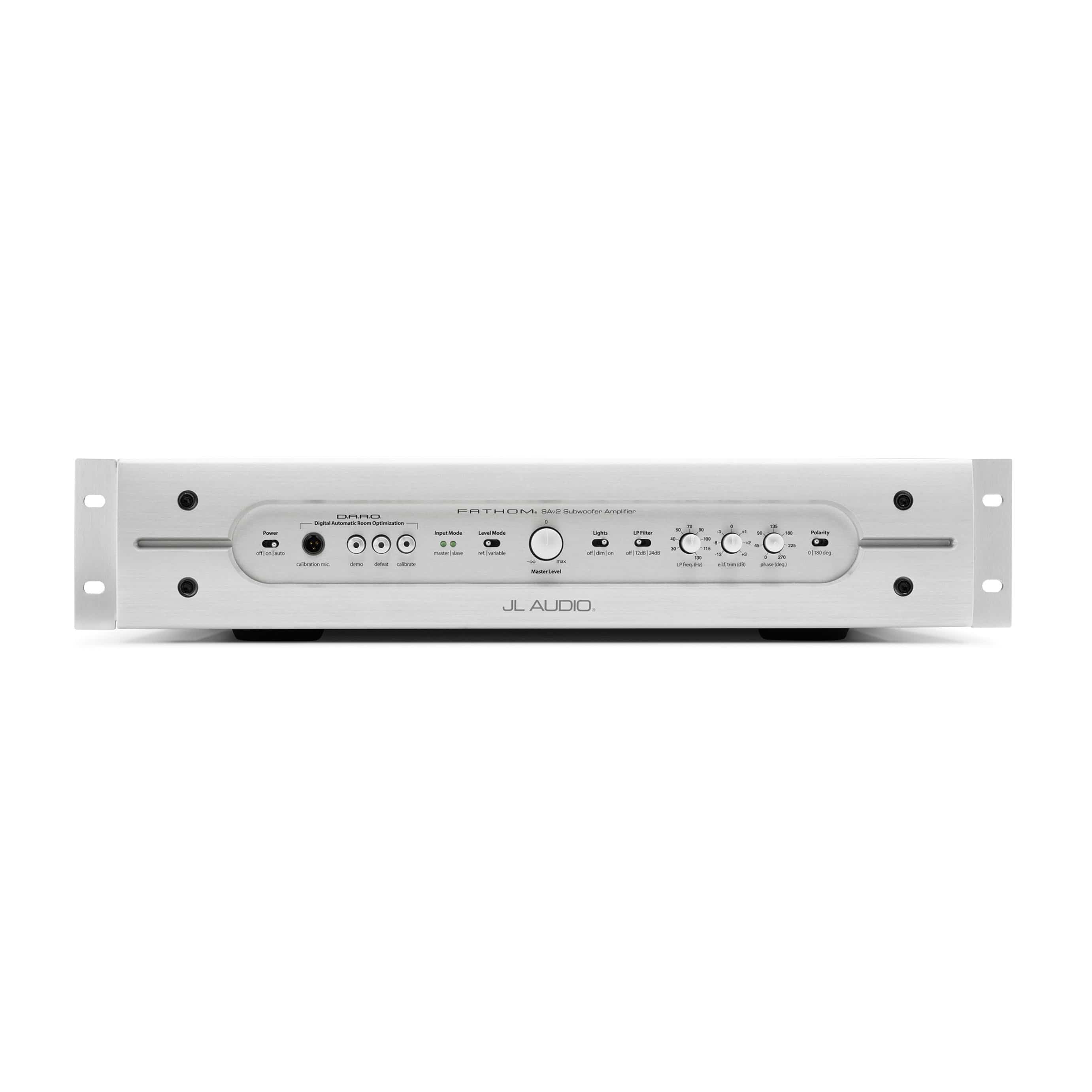

The IWSv2-SYS-113 is driven by a rack-mountable, purpose-tuned amplifier, capable of delivering up to 1 kW of clean power, and armed with serious processing features, including our acclaimed Digital Automatic Room Optimization system.

Key Features:

There is no need to lower your expectations when selecting this remarkable in-wall solution... it's a real Fathom®.

The IWSv2-SYS-113 is available to fit a variety of 2" x 4" and 2" x 6" wall studs. Consult your Authorized JL Audio Dealer for specific application information.

Specifications:

GENERAL SPECIFICATIONS
Enclosure Type Sealed
Enclosure Finish Black Texture-Coated
Frequency Response (anechoic) 26 Hz - 101 Hz (± 1.5 dB) -3dB at 25 Hz / 112 Hz -10dB at 22 Hz / 150 Hz
Effective Piston Area (Sd) 98.26 sq in / 0.0634 sq m
Effective Displacement 147.3 cu in / 2.41 L
Amplifier Power 1000 W RMS short-term
Power Mode(s) Off, On or Automatic (Signal-Sensing)
Light Modes Off, On or Dim
SIGNAL PROCESSING

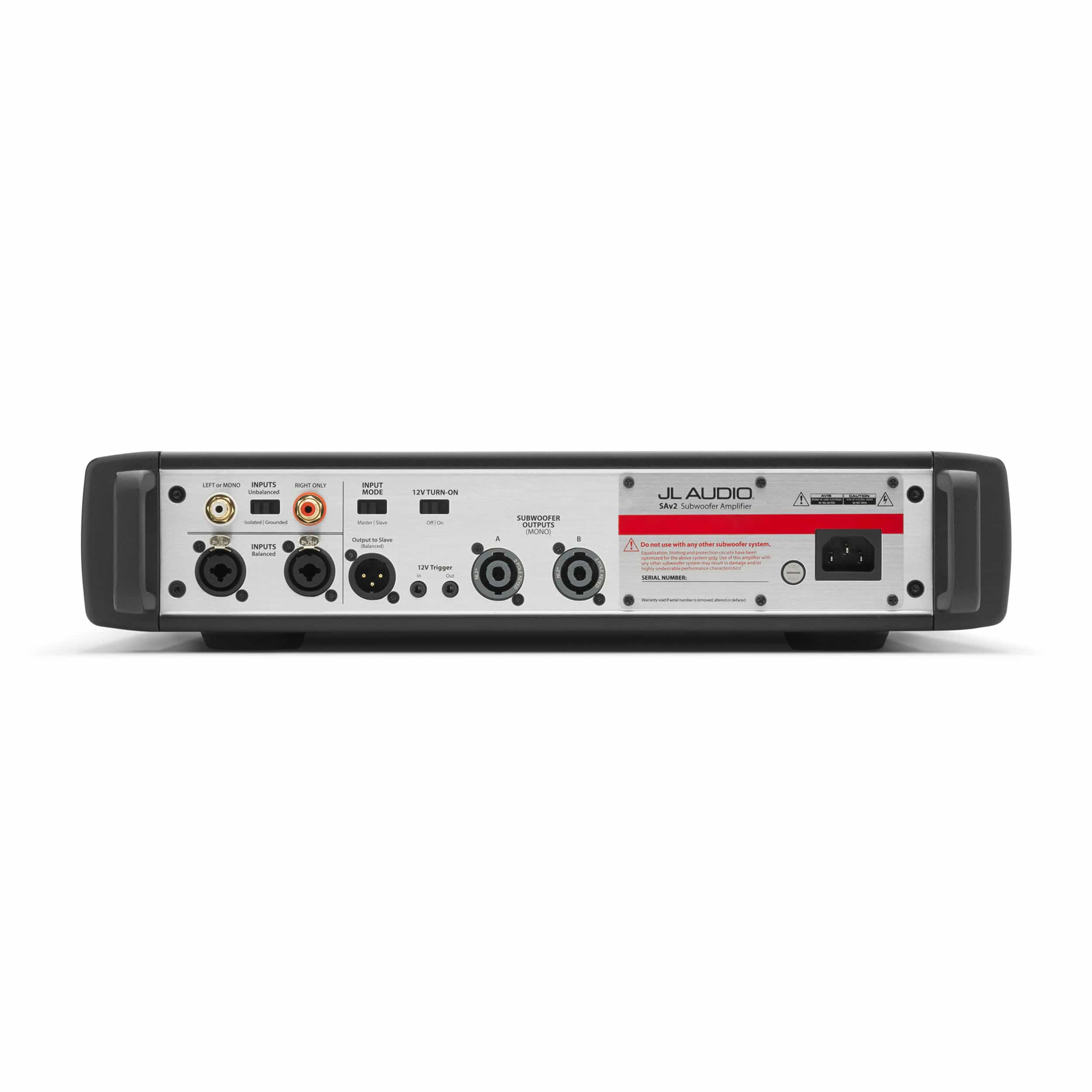

Unbalanced Inputs Stereo or Mono (two RCA jacks - Input Impedance of 50k Ohms)
Balanced Inputs Balanced Inputs
Speaker/High-Level Inputs  N /A
Input Grounding Isolated or Grounded
Input Modes Master or Slave
Level Control Reference (fixed gain) or Variable, from full mute to +15dB over reference gain
Filter Mode(s) Low-Pass
Filter Slope(s) 12/24 dB/octave
Filter Frequency Range 30 Hz - 130.1 Hz
Filter Defeat Function Yes
Polarity 0 or 180 degrees
Phase Variable, 0- 270 degrees, referenced to 80 Hz
Extreme Low Frequency (E.L.F.) Trim Variable, -12 dB to +3 dB at 23 Hz
Line Outputs N/A
Output to Slave Balanced (one male XLR jack)
Calibration Mode Digital Automatic Room Optimization (D.A.R.O.), includes laboratory-grade microphone
2 x 4-inch Wall Stud Enclosure Physical Specifications
Wall Cavity Width Minimum: 14.375 in / 365 mm Maximum: 14.875 in / 378 mm
Wall Cavity Height Minimum: 93.625 in / 2,378 mm
Dimensions W x H x D 349 x 1778 x 75mm
2 x 6-inch Wall Stud Enclosure Physical Specifications
Wall Cavity Width (W) Minimum: 14.375 in / 365 mm Maximum: 14.875 in / 378 mm
Wall Cavity Height (H) 93.625 in / 2,378 mm
Dimensions W x H x D 349 x 1397 x 119
Grille Physical Specifications
Grille Height 448mm
Grille Width 435mm
Wall Opening Height 419 mm
Wall Opening Width 406 mm
