JL Audio Fathom® IWS-SYS-208

In-Wall Subwoofer System with Dua8-inch Subwoofer, 600 watts

Manufacturers Details:

Born from the same groundbreaking technologies used to develop our free-standing powered subwoofers, the Fathom® IWS in-wall subwoofer systems deliver remarkable bass performance, while remaining largely concealed within most home audio/theater environments.

The 8-inch Fathom® IWS systems are smaller and easier to integrate than our larger in-wall Fathoms, fitting in all standard, 16-inch, on-center stud openings, and operating through very small grilles. These grilles accommodate all common drywall thicknesses, and can be easily painted to match the wall.

Engineered With Care:

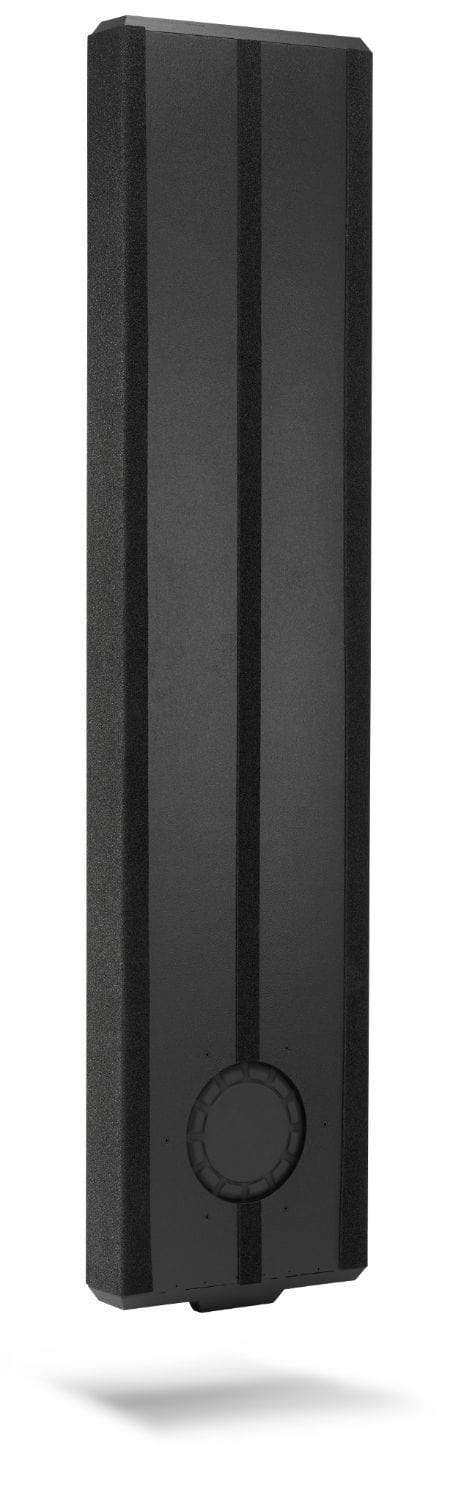

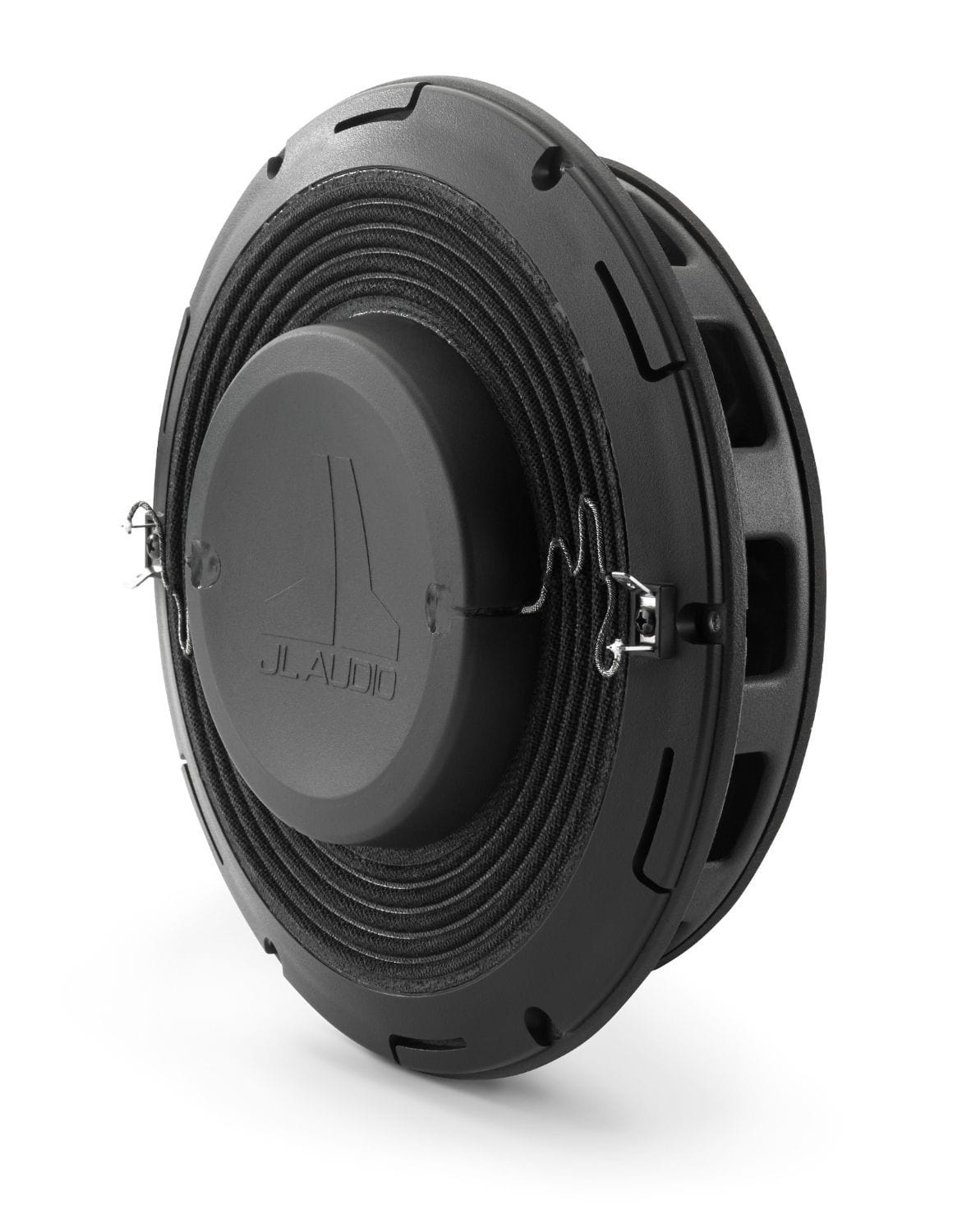

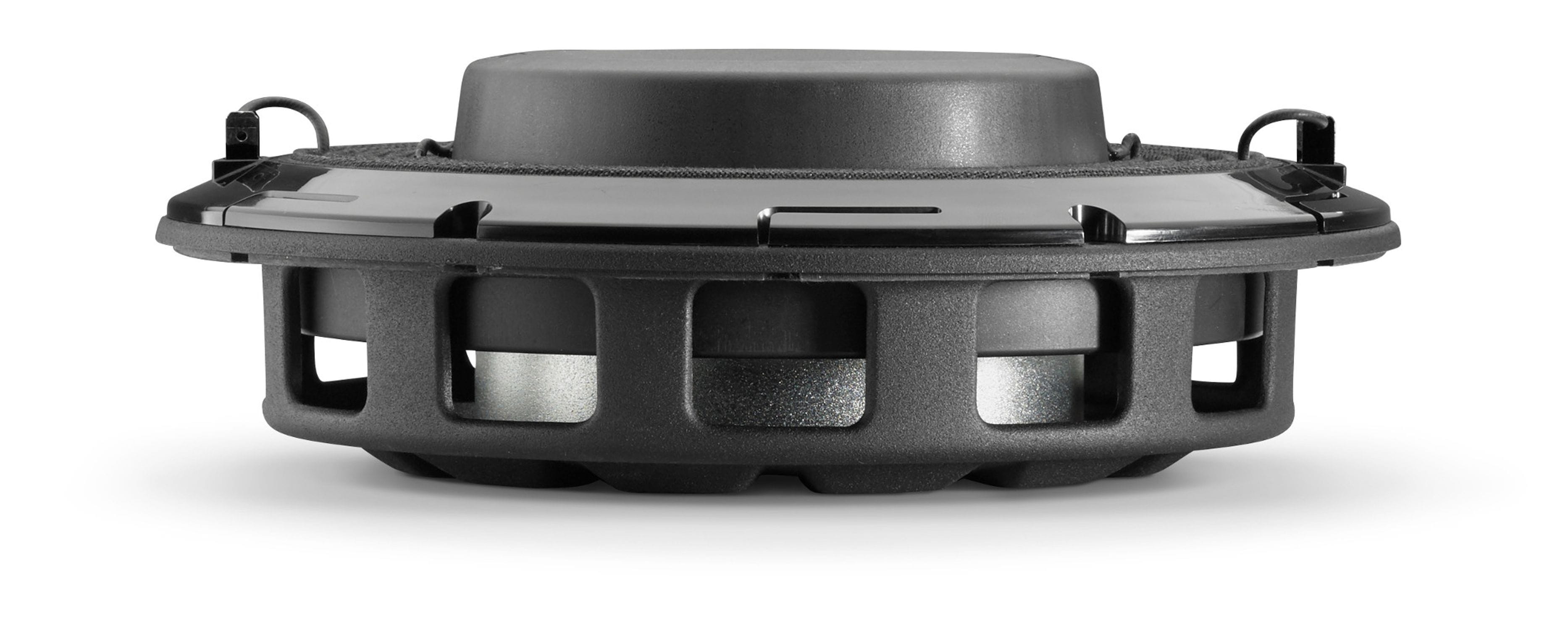

The subwoofer enclosures utilize extensive architectural features aimed at improving rigidity while keeping a very low profile and minimal wall thickness. A unique port design vents through a slot located at the perimeter of the driver mount to enhance efficiency and low-bass output. Inside the enclosure is a long-excursion, 8-inch thin-line woofer, built to exacting standards by JL Audio for the Fathom® IWS products.

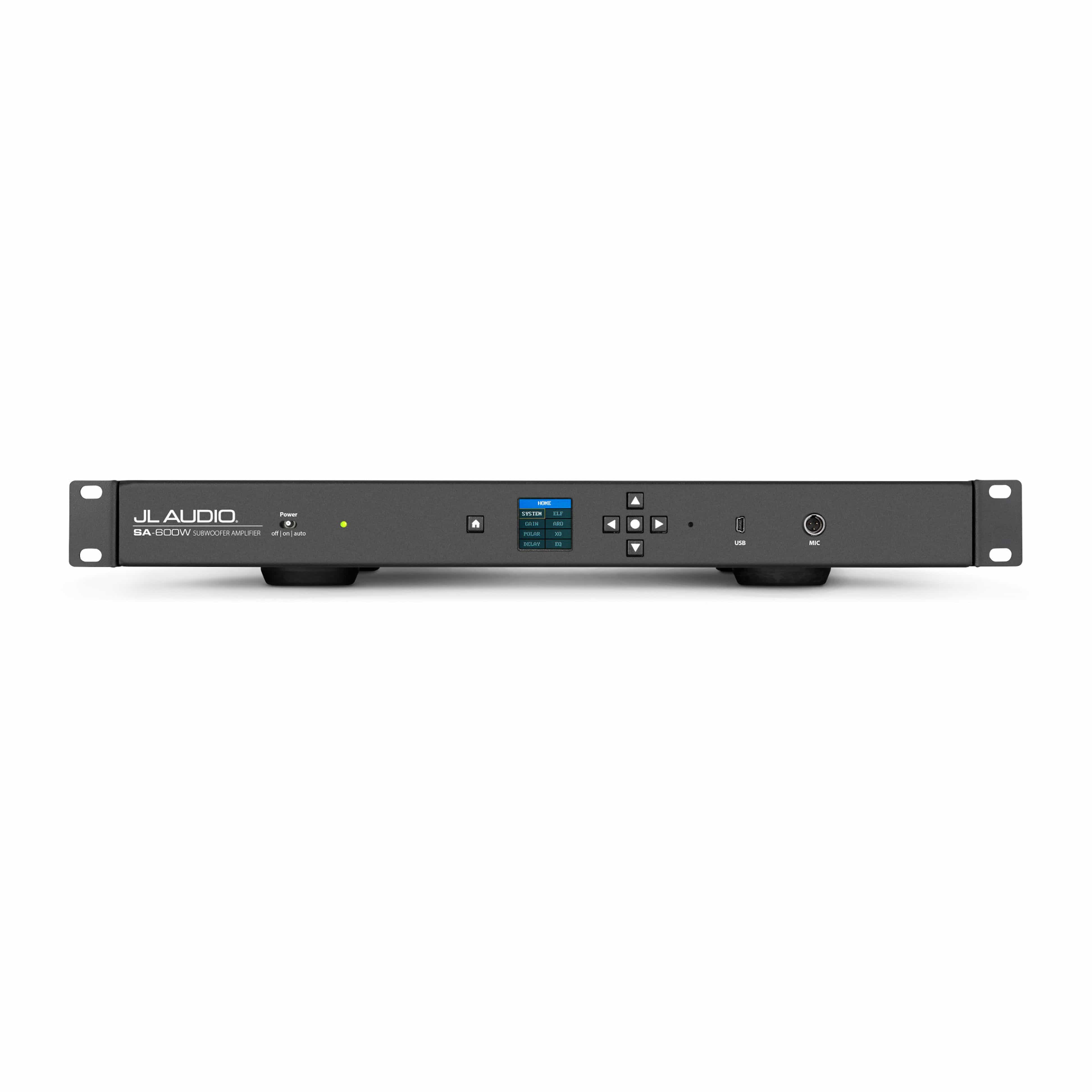

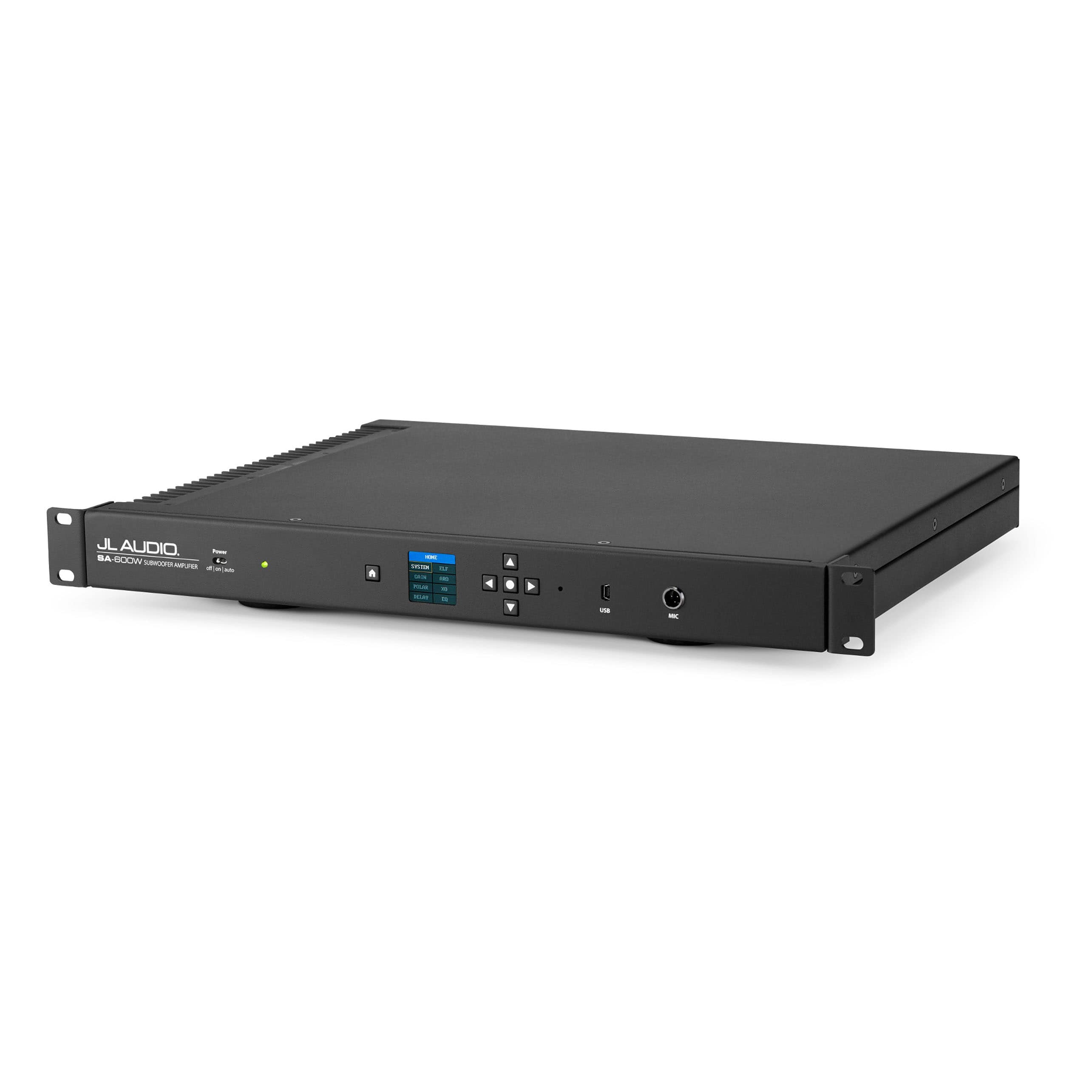

Each 8-inch Fathom® IWS system is powered by a rack-mountable amplifier, capable of generating up to 600 watts of clean power and can drive up to two enclosures. A complete set of Fathom® signal processing features is also onboard, including our powerful, 18-band Digital Automatic Room Optimization (D.A.R.O.) system, all managed via an easy-to-use, menu-driven interface and LCD display. Note: D.A.R.O. functionality requires optional calibration microphone (sold separately).

Key Features:

The IWS-108 System fits 2" x 4" wall studs or larger. Consult your Authorized JL Audio Dealer for specific application information.

Specifications:

GENERAL SPECIFICATIONS
Enclosure Type Ported
Enclosure Finish Black Texture-Coated
Frequency Response (anechoic) 24.9 Hz - 109 Hz (± 1.5 dB) -3dB at 24.6 Hz / 111 Hz -10dB at 23.4 Hz / 118 Hz
Effective Piston Area (Sd) 63.24 sq in / 0.0408 sq m
Effective Displacement 95.0 cu in / 1.56 L
Amplifier Power 600 W RMS short-term
Power Mode(s) Off, On or Automatic (Signal-Sensing or 12V Trigger)
12V Trigger Output Capacity 150 mA (1/8-inch/3.5mm mini jack)
Light Modes N/A
SIGNAL PROCESSING
Unbalanced Inputs Stereo or Mono (two RCA jacks - Input Impedance of 50k Ohms)
Speaker/High-Level Inputs  Stereo or Mono (removable plug - Input Impedance of 4.4k Ohms)
Input Grounding Isolated or Grounded
Level Control Reference (fixed gain) or Variable from -50dB to +15dB over reference gain (0.5 dB increments)
Filter Mode(s) Low-Pass, with tracking High-Pass Outputs
Filter Slope(s) 12/24 dB/octave
Filter Frequency Range 30 Hz - 130.1 Hz
Filter Defeat Function Yes
Polarity 0 or 180 degrees
Delay (Phase) Variable from 0 – 25 ms
(0.1 ms increments, Sub and HP outputs)
Extreme Low Frequency (E.L.F.) Trim Variable, -12 dB to +3 dB at 25 Hz (0.5 dB increments)

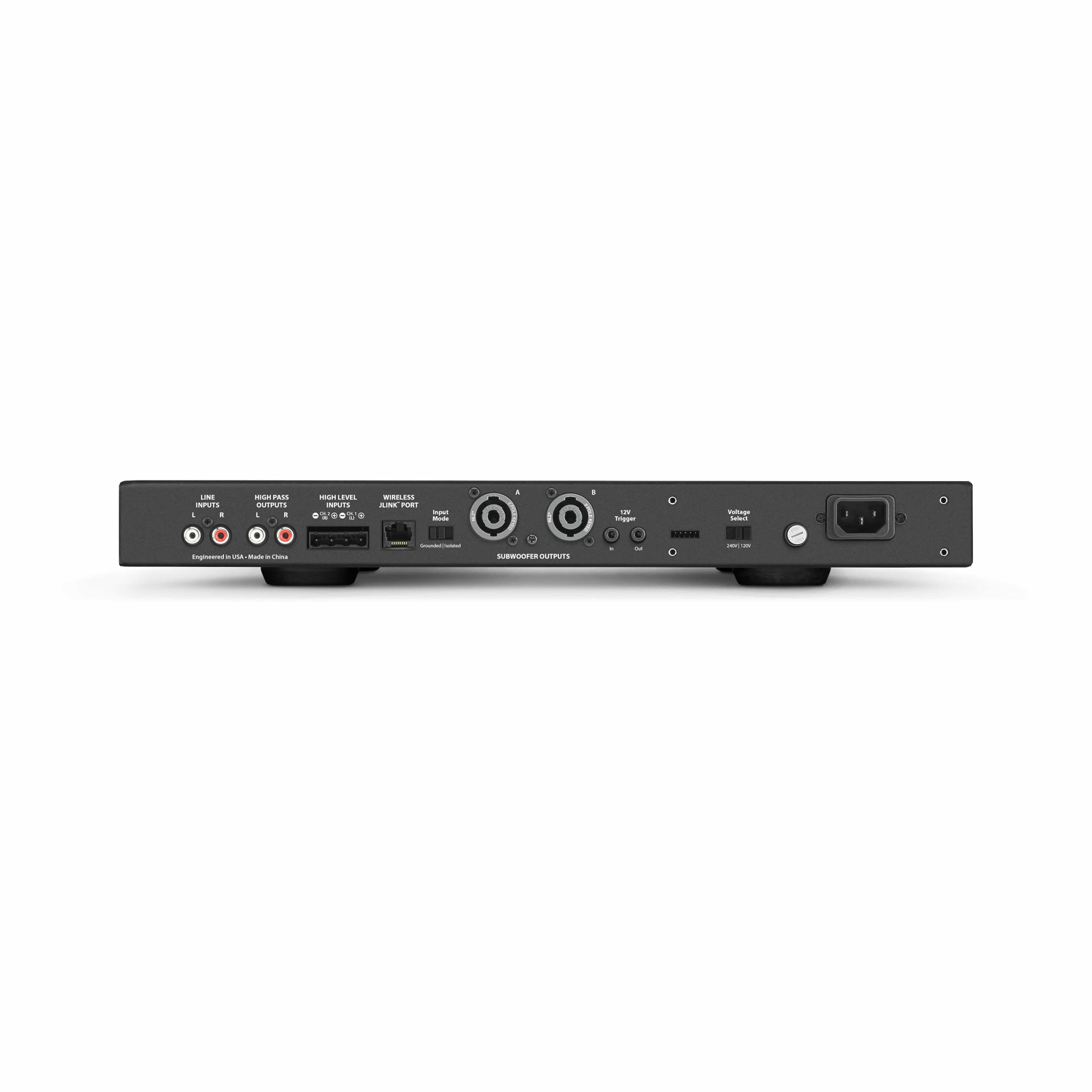

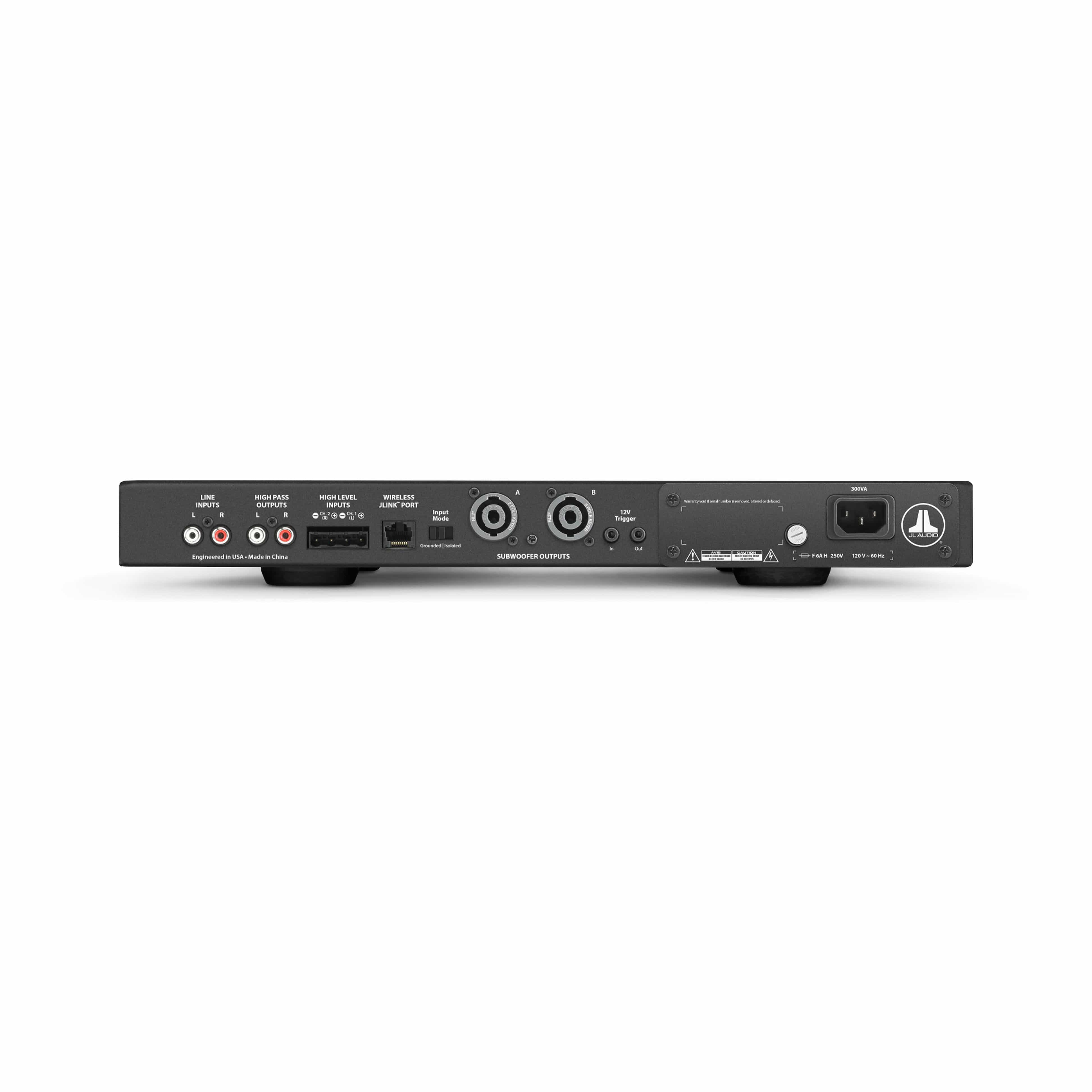

Line Outputs Stereo or Mono (two RCA jacks - Pass-Through or High-Pass)
Subwoofer Outputs Neutrik speakOn® 2-Pole Connectors
(uses Neutrik part: NL2FX)
Calibration Mode Digital Automatic Room Optimization (D.A.R.O.), requires microphone (sold separately)
Equalizer Bands 3
Equalizer Frequency Range 20 to 160 Hz (1 Hz increments)
Equalizer Gain Range -12 dB to +12 dB (0.2 dB increments)
Equalizer Q Range 0.7 to 5.0 (0.1 increments)
2 x 4-inch Wall Stud Enclosure Physical Specifications
Wall Cavity Width Minimum: 14.375 in / 365 mm Maximum: 15.500 in / 394 mm
Wall Cavity Height Minimum: 75 in / 1,905 mm
Dimensions W x H x D 355 x 1565 x 83mm

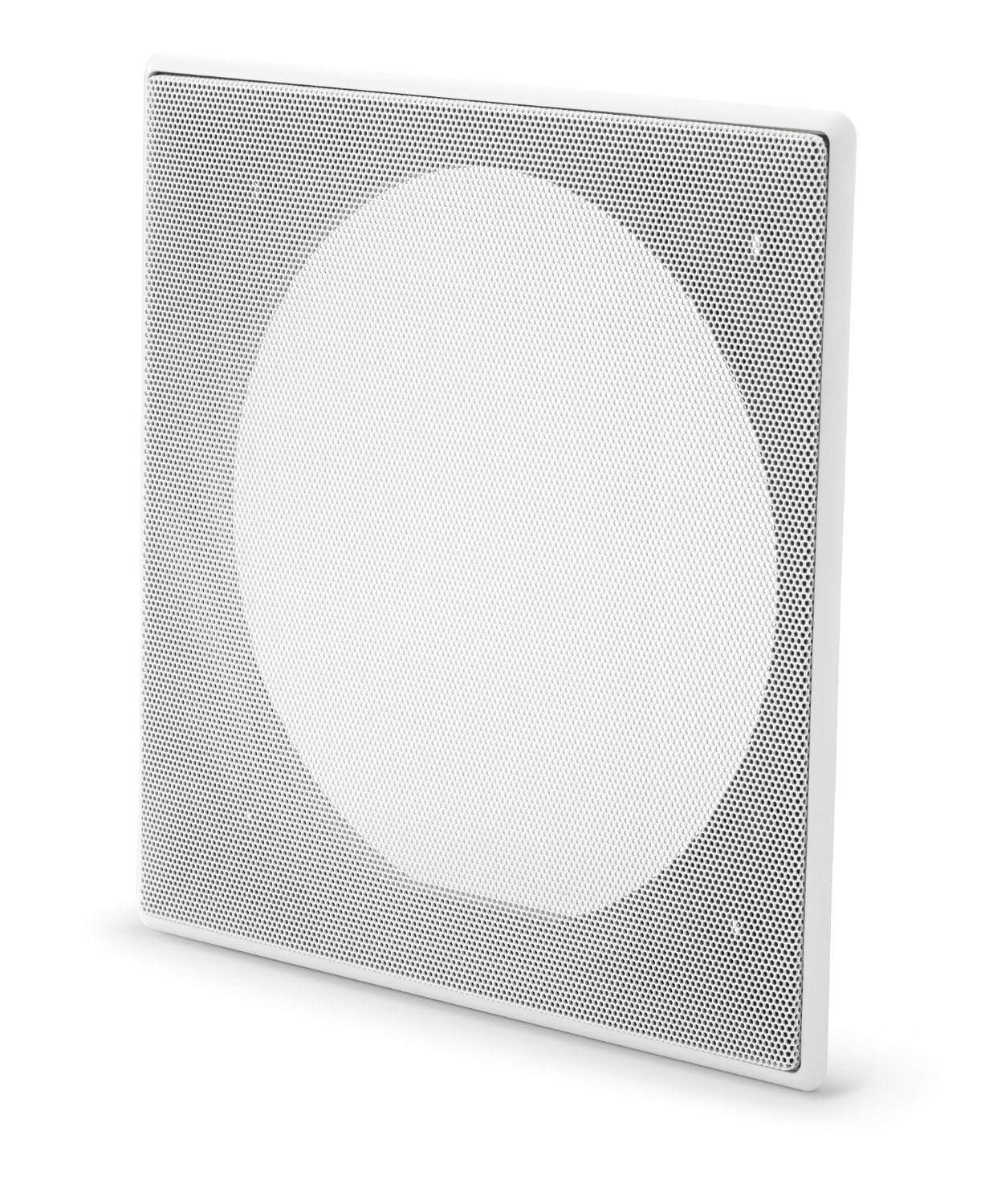

Grille Physical Specifications
Grille Height 267mm
Wallboard Thickness Compatibility 13 mm to 44 mm
Grille Width 267mm
Wall Opening Height 248 mm
Wall Opening Width 248 mm
