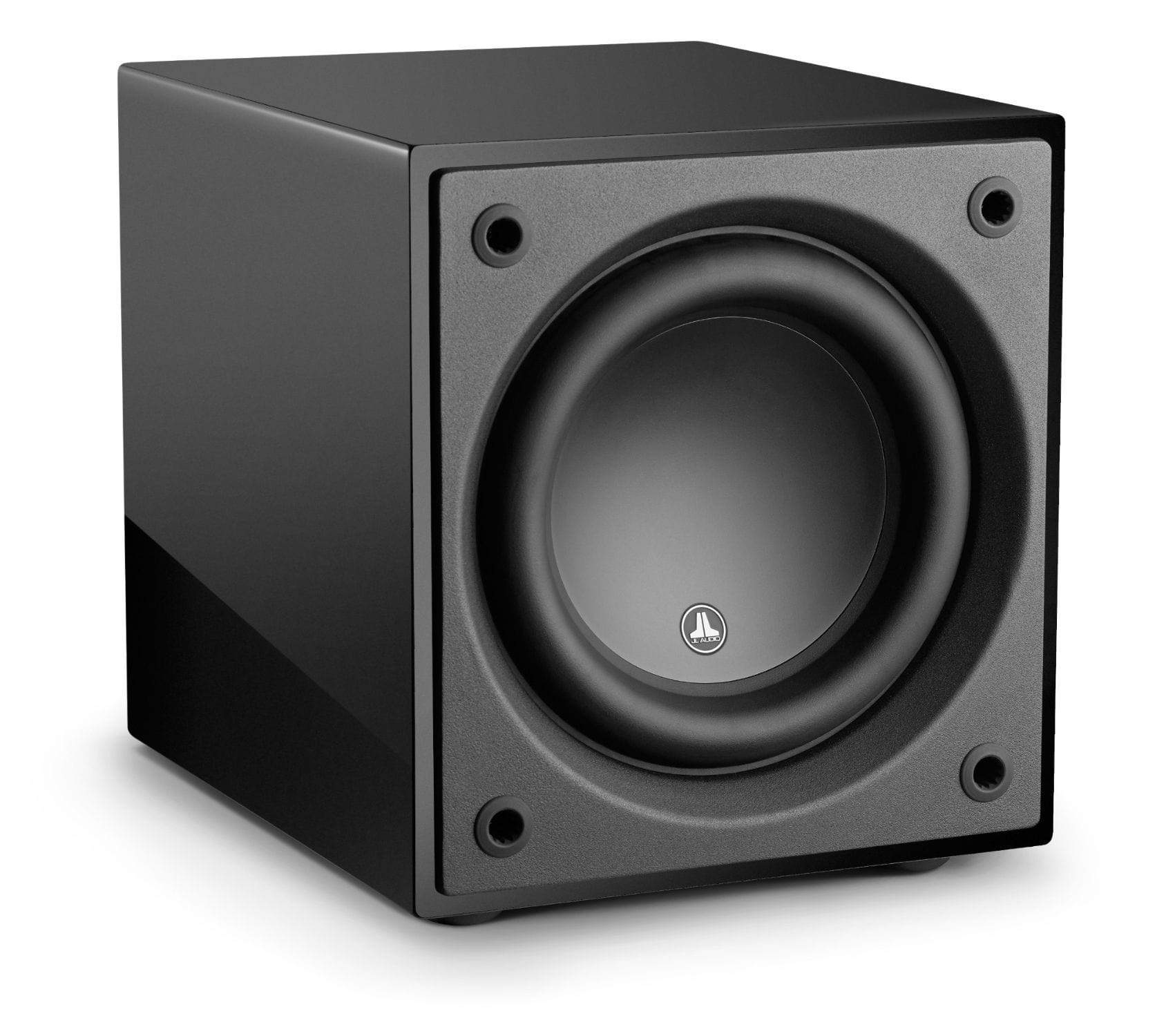

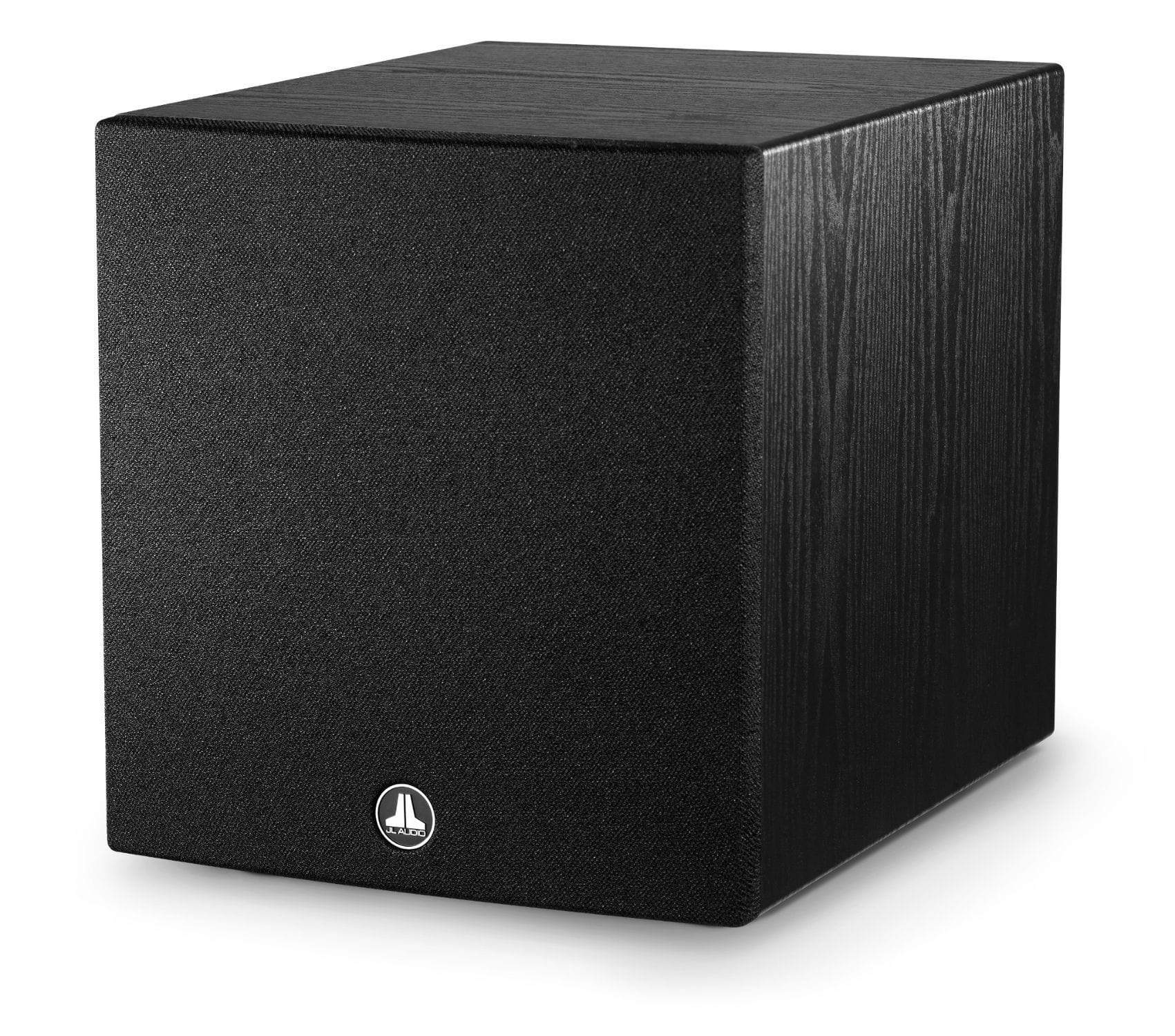

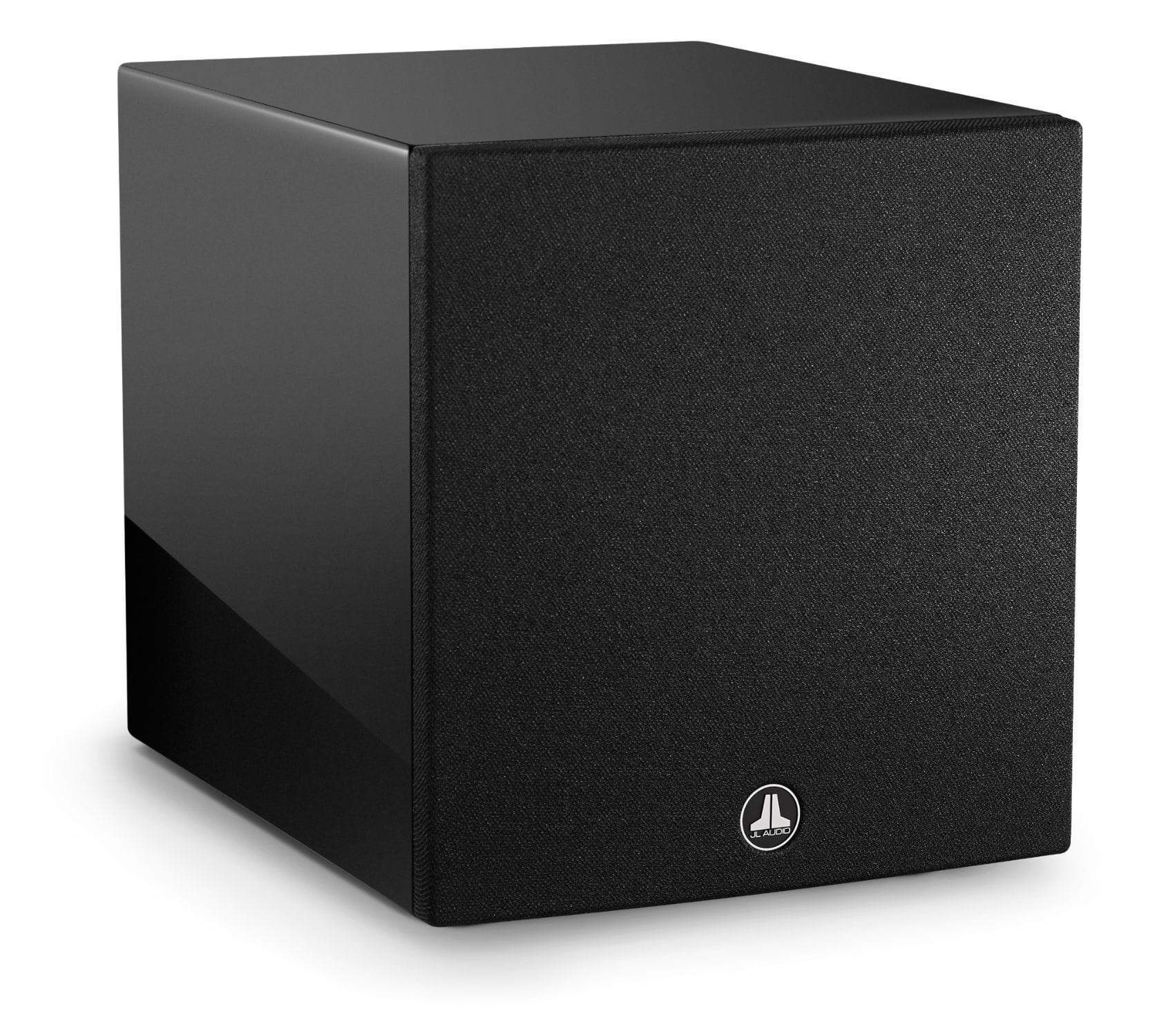

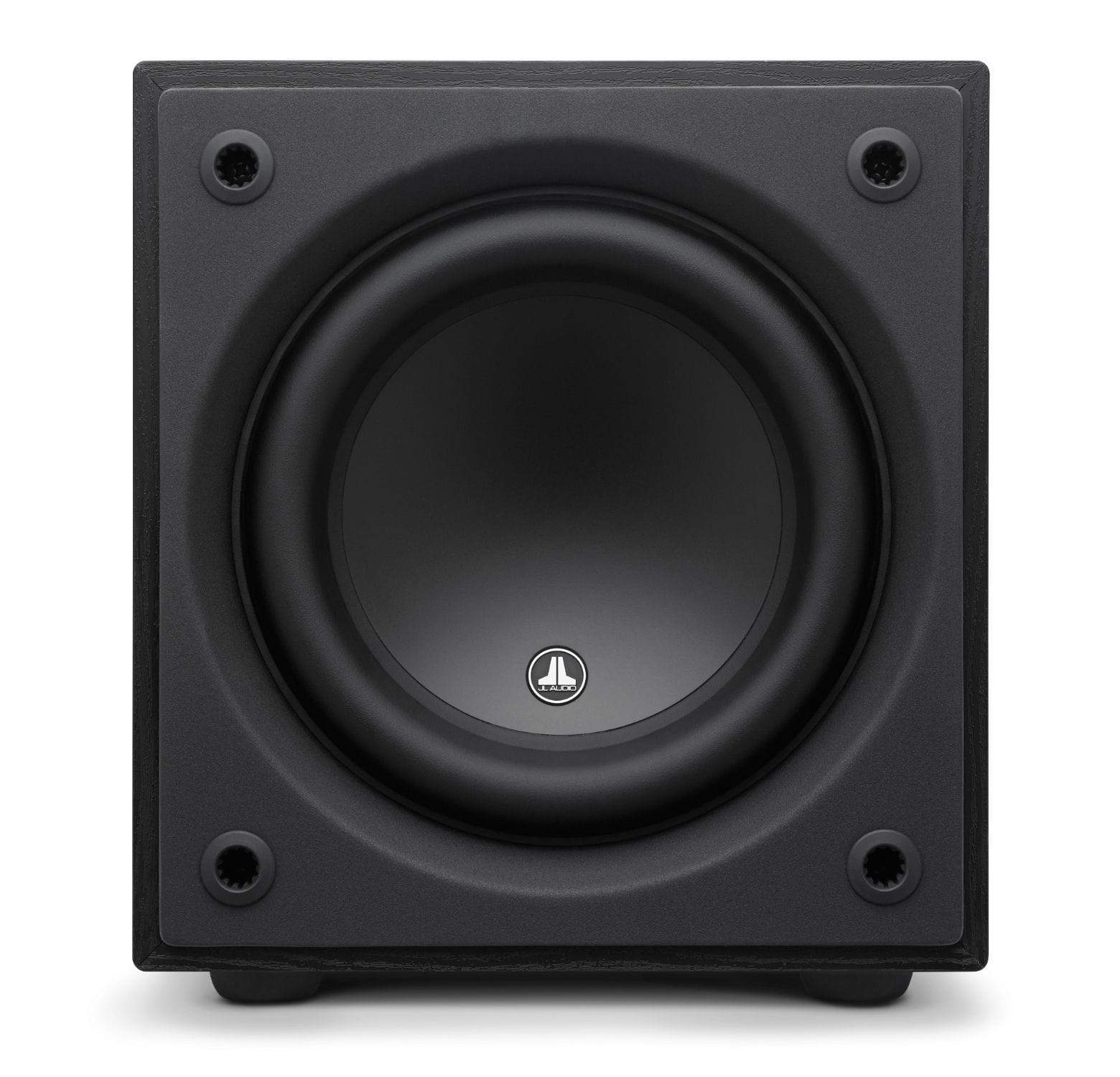

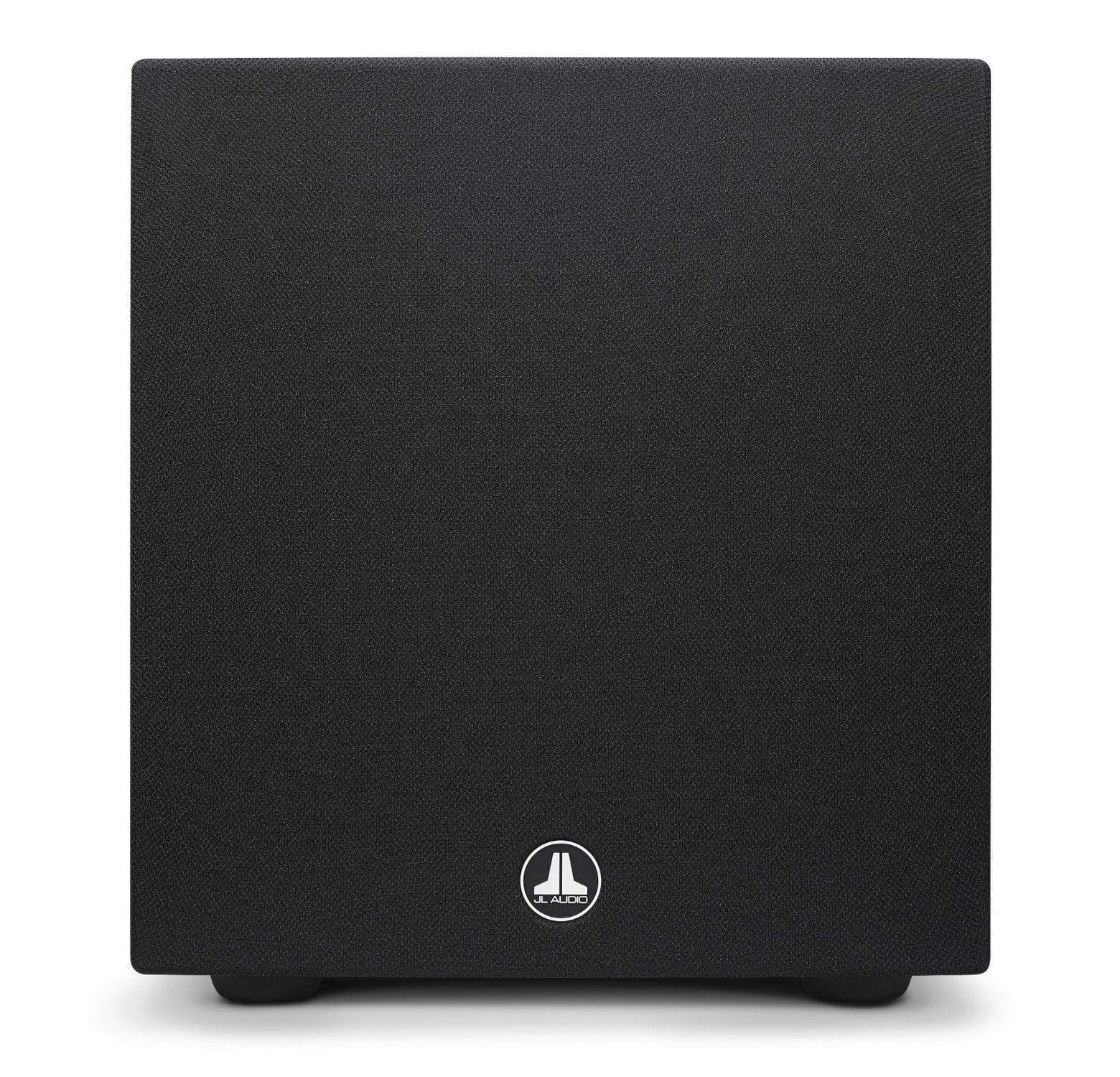

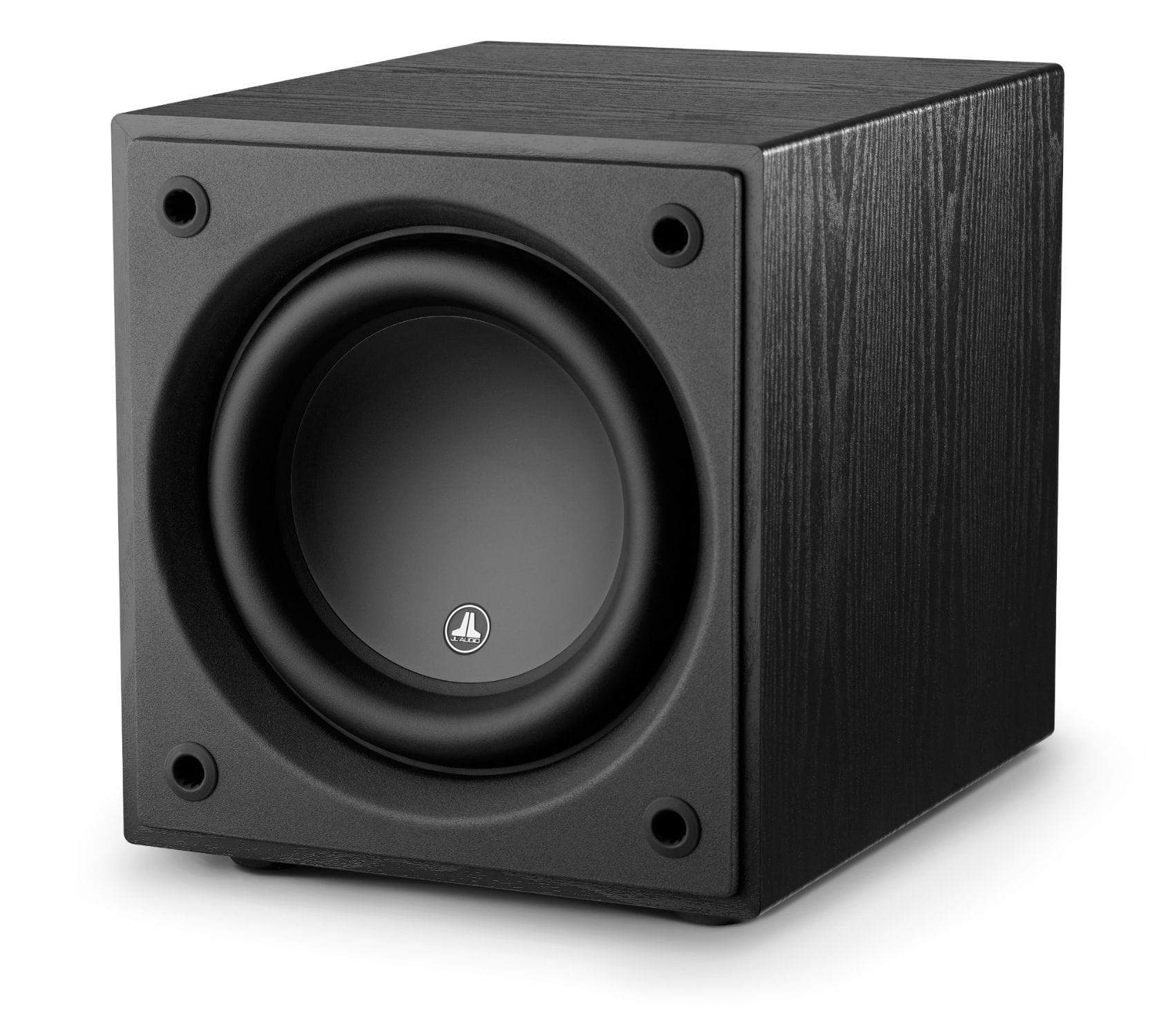

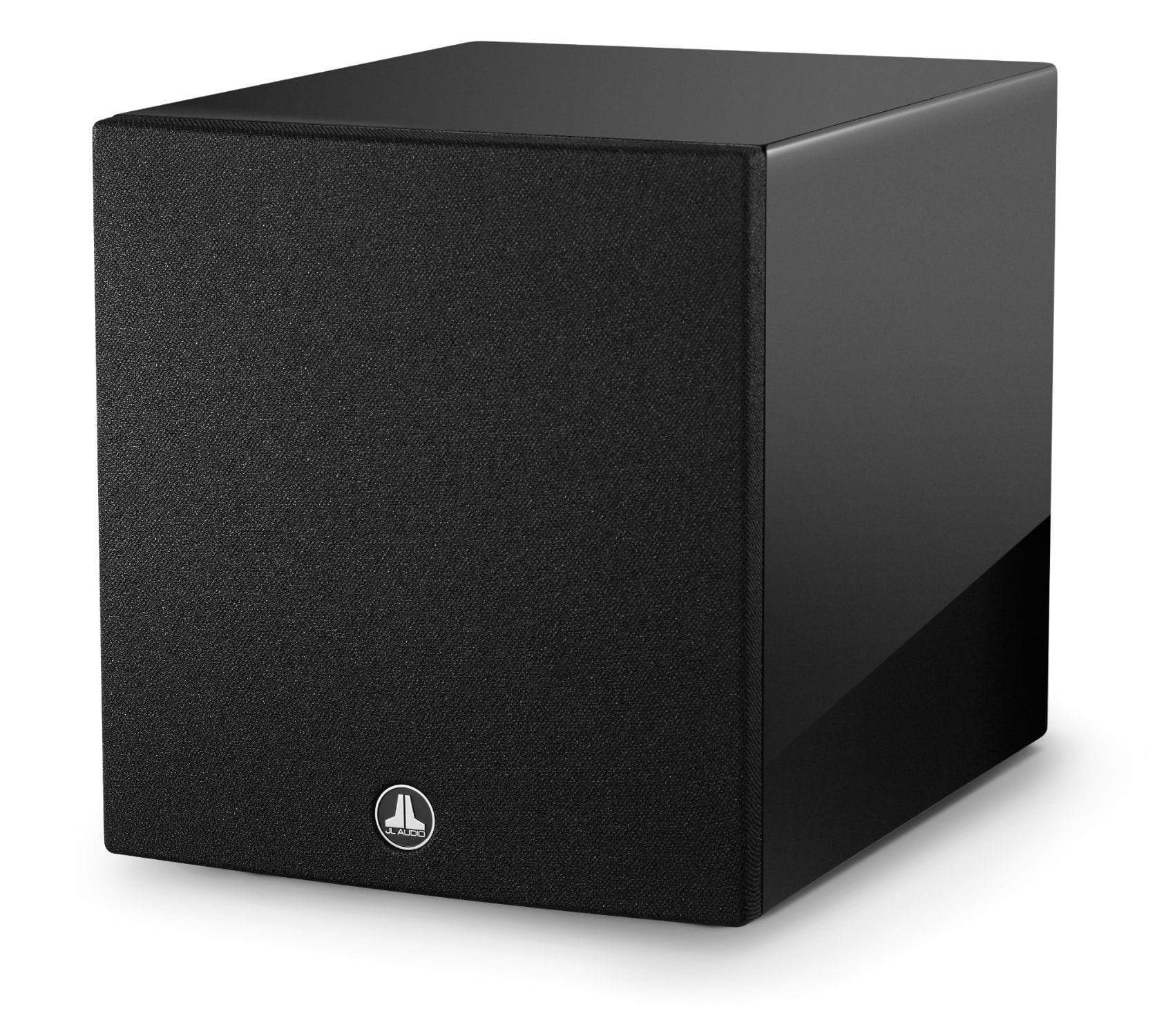

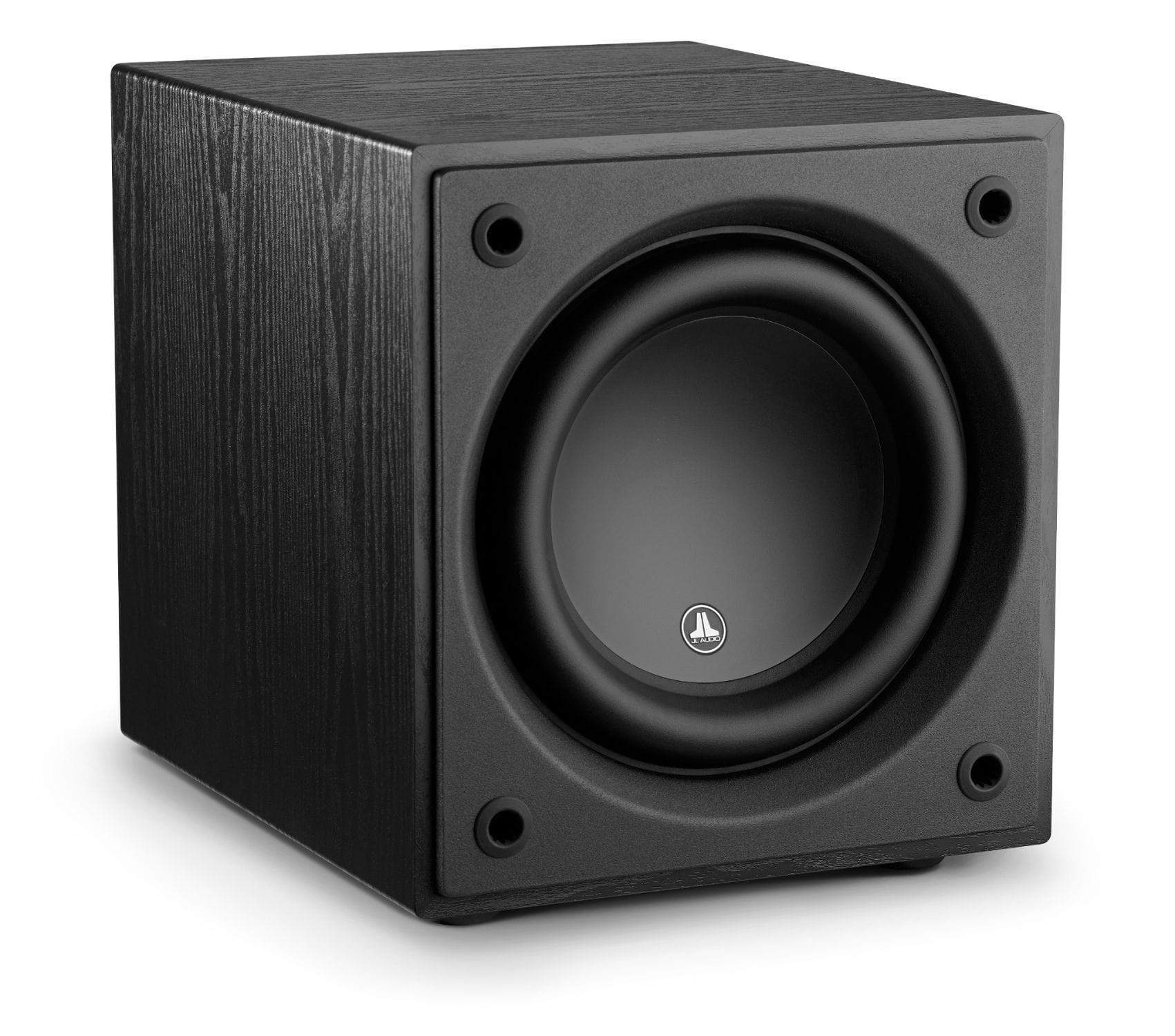

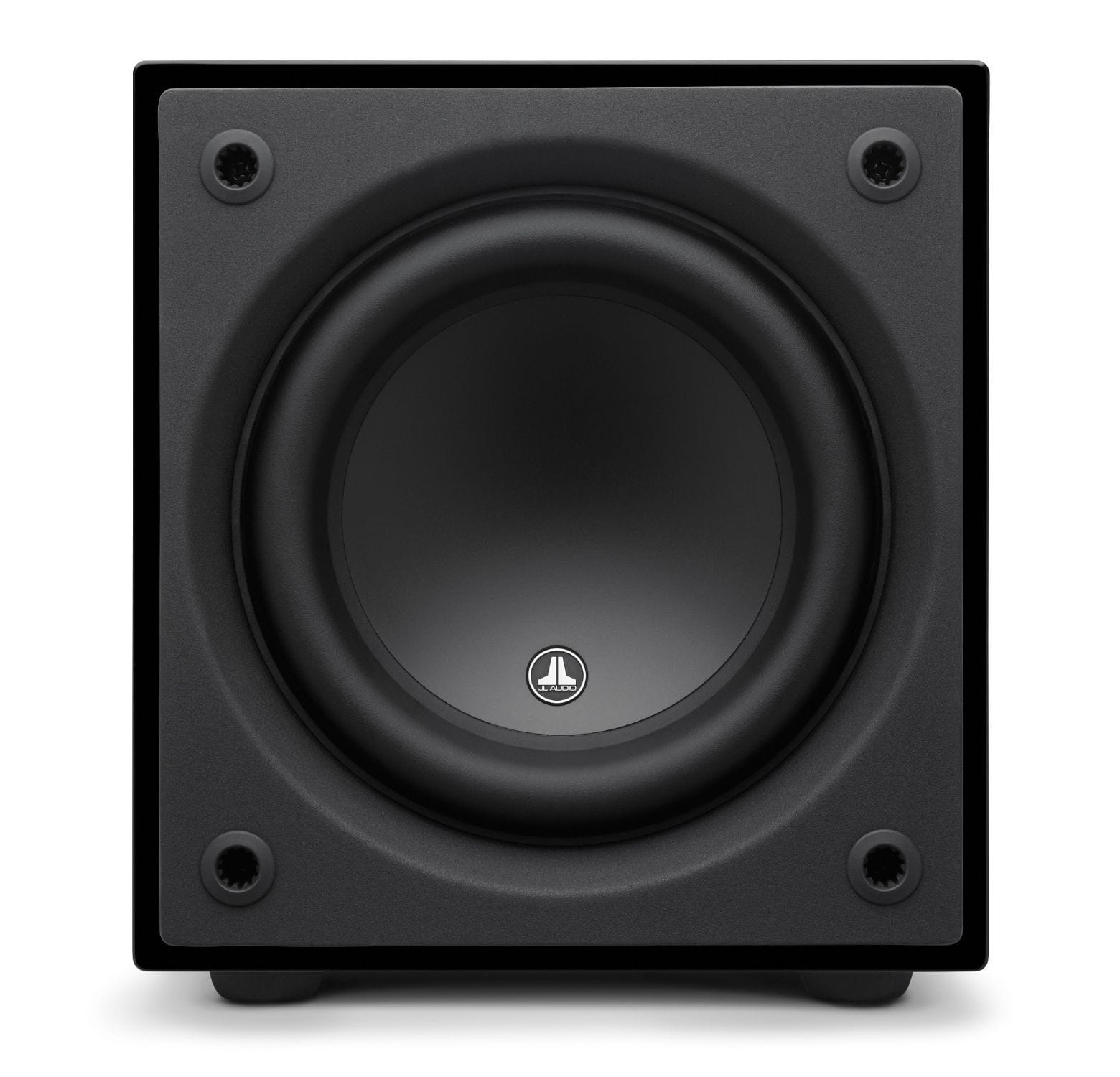

JL Audio Dominion® d110
Powered Subwoofer with 10-inch Subwoofer, 750 watts
Born from JL Audio’s vast collection of advanced technologies, Dominion® powered subwoofers combine a state-of-the-art Subwoofer and an advanced Class D amplifier to deliver unmatched performance and value for a wide variety of compact applications.

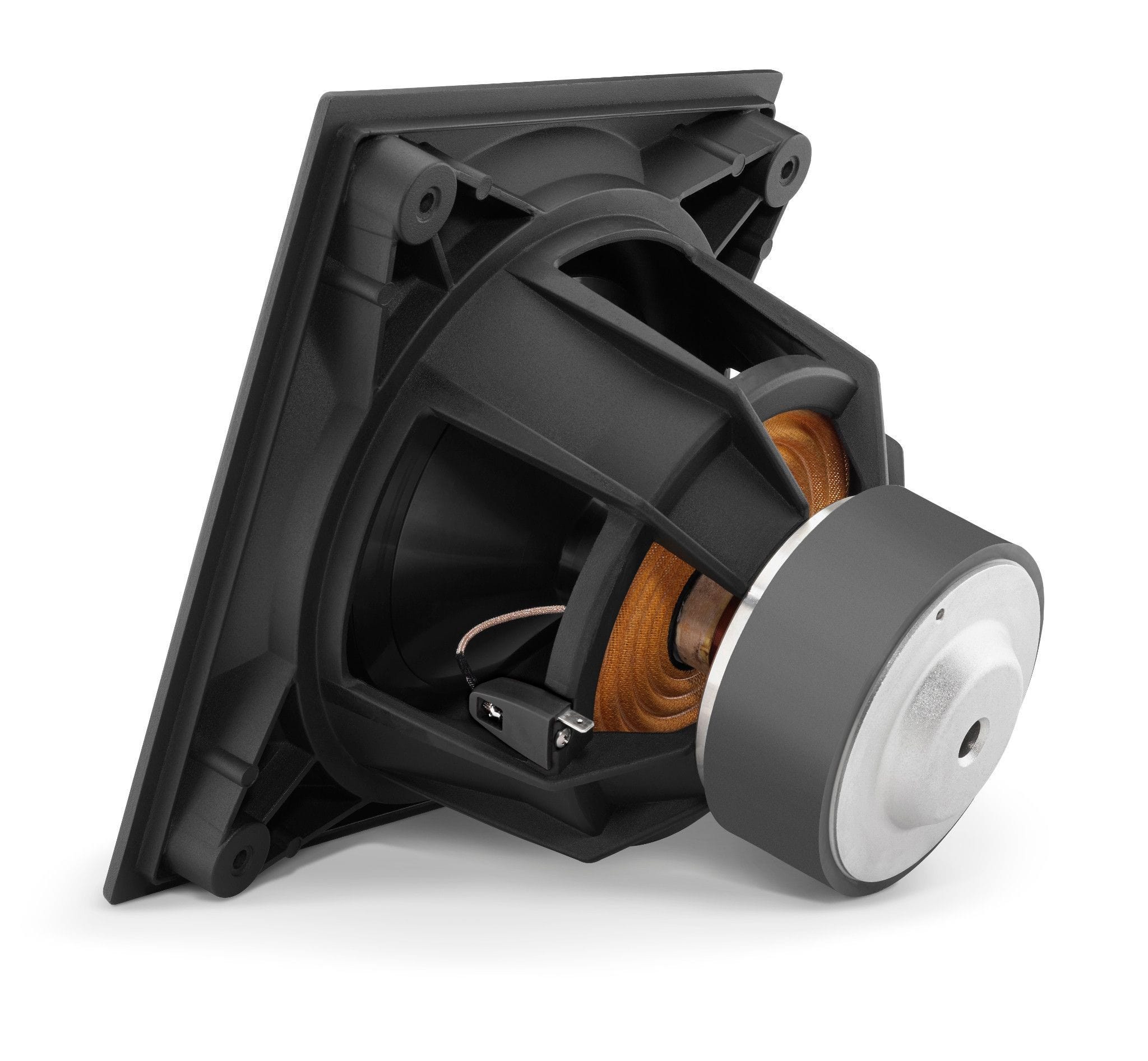

Purpose-built to reproduce powerful low-frequency events with stunning impact and precision, the Dominion® driver employs JL Audio’s exclusive DMA (Dynamic Motor Analysis) technology to produce higher output levels with reduced distortion, as well as improved dynamic tracking and resolution. As a result, Dominion® subwoofers are capable of peak-to-peak excursions well in excess of 2.5-inches (63 mm - d108), and 2.7 inches (68 mm – d110), without distress or audible distortion.
Engineered With Care:
Dominion® amplifiers utilize an advanced Class D design in order to extract the most from the long-excursion driver platform. This design features a tightly regulated switching power supply, allowing the amplifier to generate prodigious amounts of unclipped output voltages. These technologies ensure that the Dominion® powered subwoofers remain in their comfort zone, which is well beyond the point where most small subwoofers run out of power or driver capability.

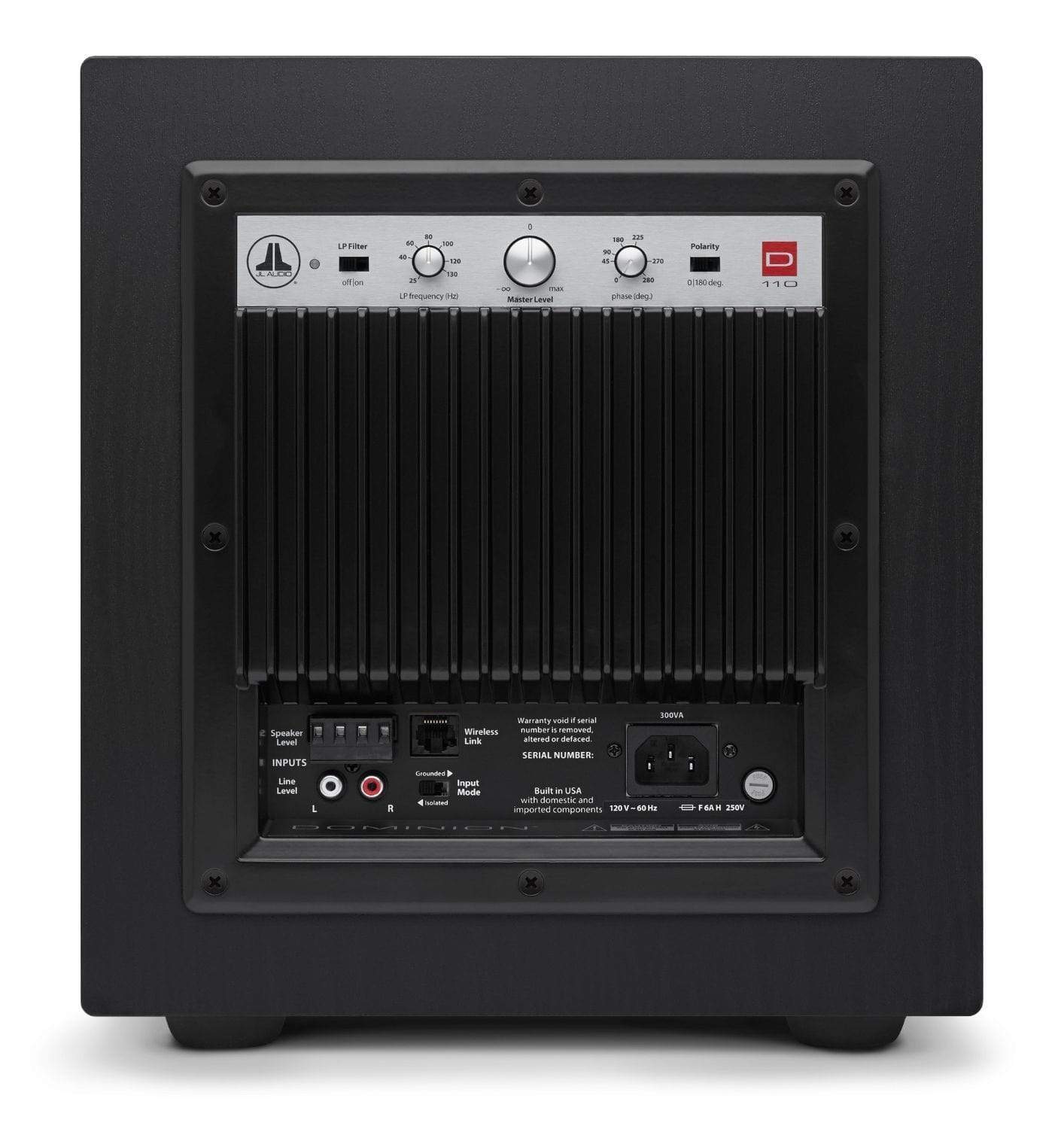

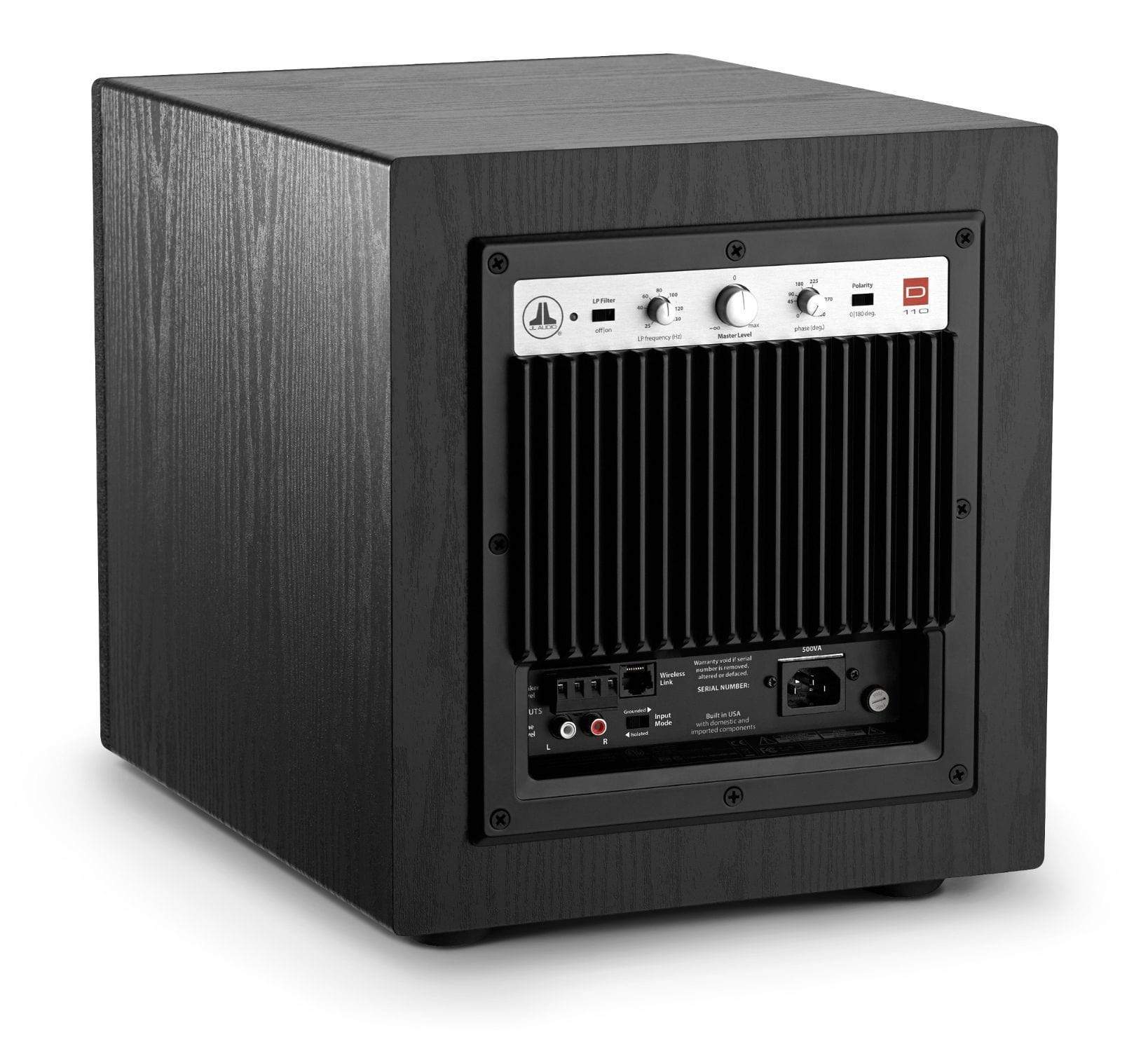

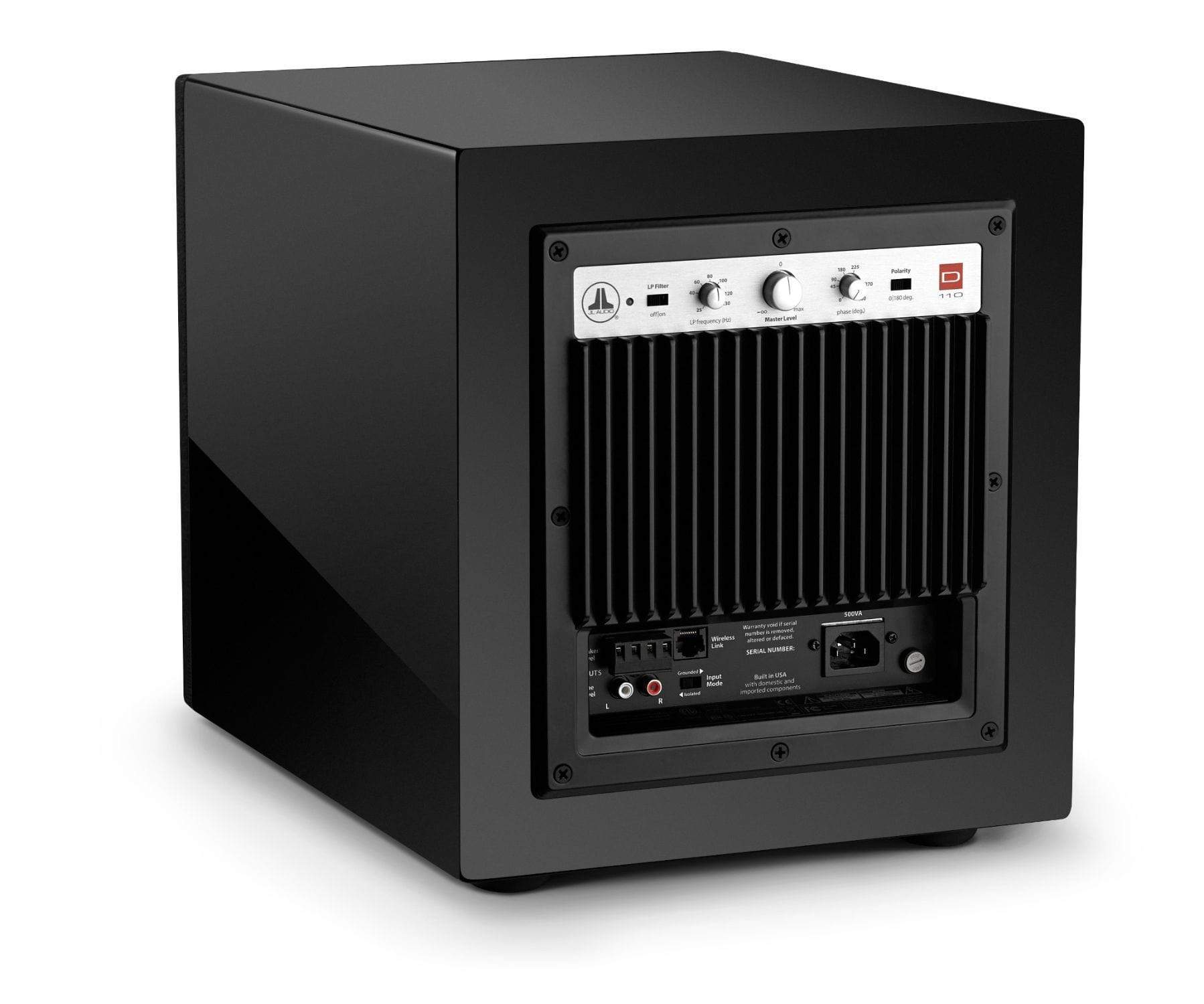

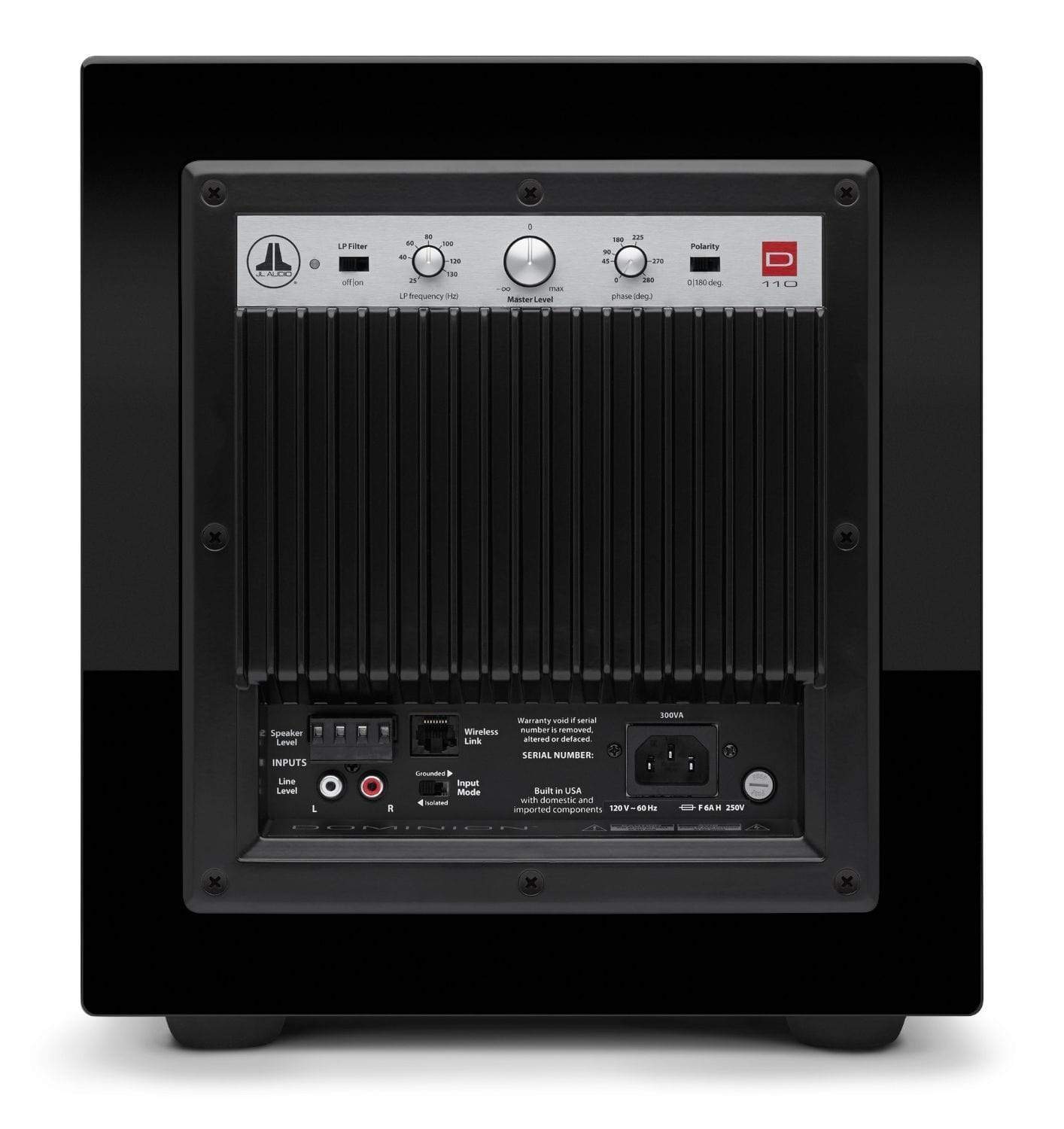

With a host of signal processing features included, Dominion® powered subwoofers can be integrated into most systems with ease. Low-pass signals are precisely guided, thanks to the onboard crossover’s 24 dB/octave Linkwitz-Riley alignment. Phase and polarity controls are onboard to aid in achieving the optimal acoustic transition between the subwoofer(s) and main speakers. Flexible input options are on-hand to accept either line-level or speaker-level signals. Connect a JLINK™ TRX system (sold separately) to the onboard Wireless Link port and enjoy the freedom to position your Dominion® almost anywhere, up to 100 feet (30 meters) away from your source unit.

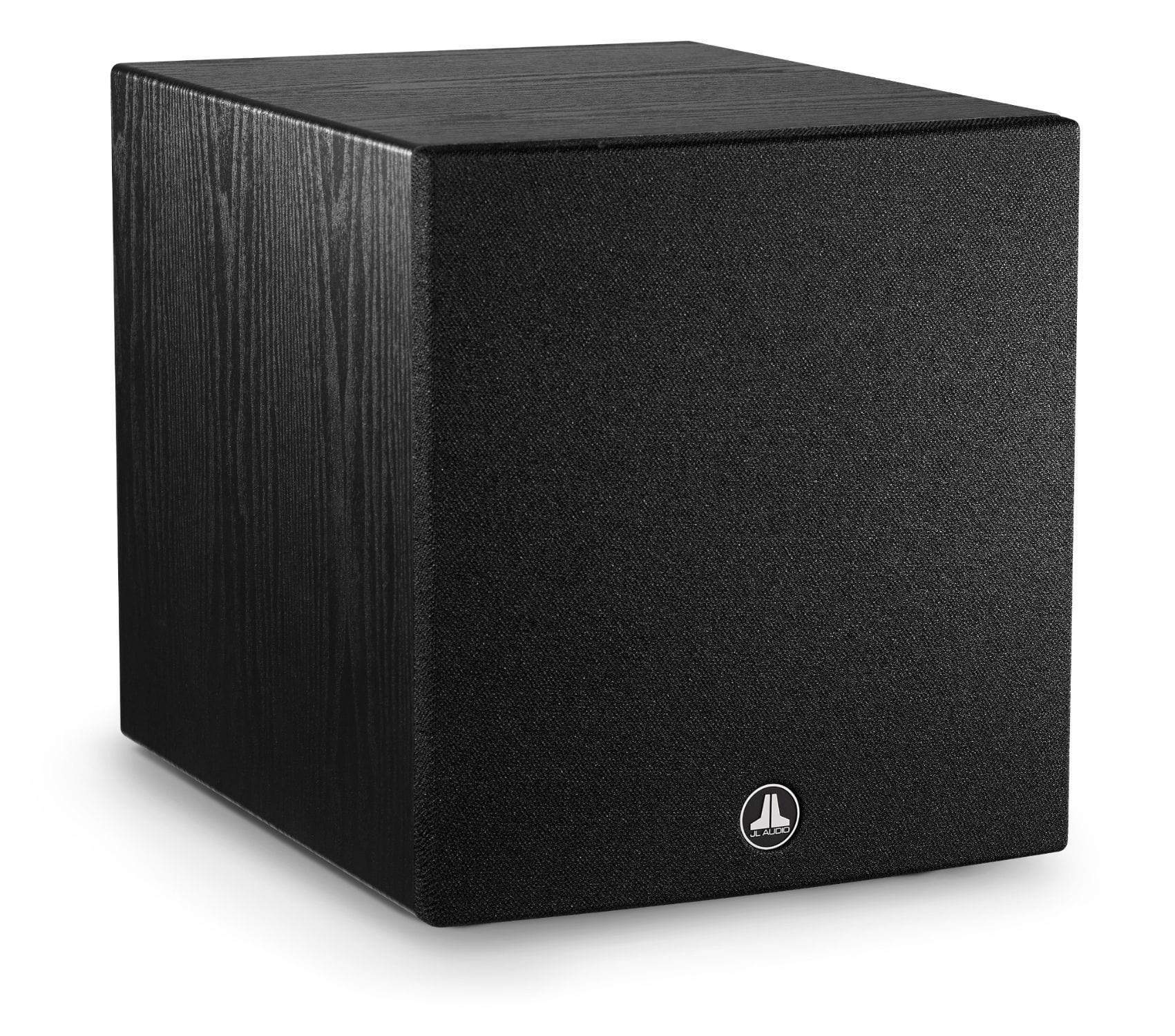

To contain the immense pressures created by the Dominion® driver, each beautiful cabinet is carefully engineered and constructed using solid, CNC-cut, MDF material with extensive internal bracing and advanced assembly techniques. All Dominion® powered subwoofers are built with pride and precision in JL Audio’s U.S. factory to deliver years of listening enjoyment.
|Enclosure Finish||Black Ash / Gloss|
|Frequency Response (anechoic)||
27 - 111 Hz (±1.5dB)
-3 dB at 25 Hz / 118 Hz
-10 dB at 21 Hz / 143 Hz
|Effective Piston Area (Sd)||48.71 sq in / 0.0314 sq m|
|Effective Displacement||127 cu in / 2.08 L|
|Amplifier Power||750 W RMS short-term|
|Power Mode(s)||Automatic (Signal-Sensing)|
|Unbalanced Inputs||Stereo or Mono (two RCA jacks)|
|Speaker/High-Level Inputs||Stereo or Mono (removeable plug)|
|Input Grounding||Isolated or Grounded|
|Level Control||Variable, from full mute to +15dB over reference gain|
|Filter Slope(s)||24 dB/octave|
|Filter Frequency Range||25 Hz - 130 Hz|
|Filter Defeat Function||Yes|
|Polarity||0 or 180 degrees|
|Phase||Variable, 0- 280 degrees, referenced to 80 Hz|
|Extreme Low Frequency (E.L.F.) Trim||N/A|
|Line Outputs||Stereo or Mono (two RCA jacks), High-Pass or Pass-Through|
|Output to Slave||N/A|
|Output to Slave||N/A|
|Dimensions W x H x D||305 x 340 x 403mm|
