IsoTek System Link Cable

IsoTek System Link Cable

Several IsoTek products contain a System Link outlet (Neutrik powerCON), this is designed to connect multiple units together, maintaining a stared earth reference, and preserving the need for multiple wall outlet sockets.

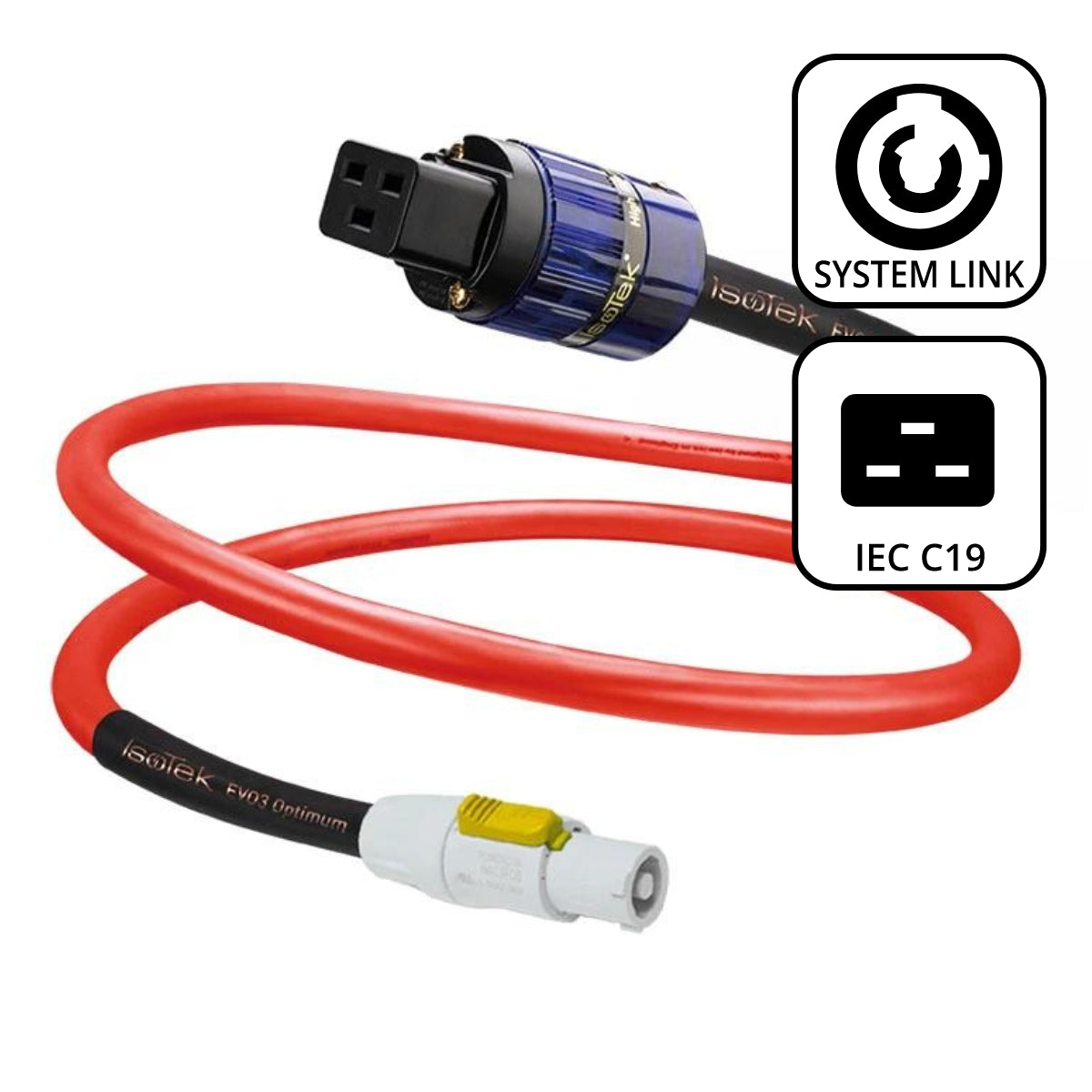

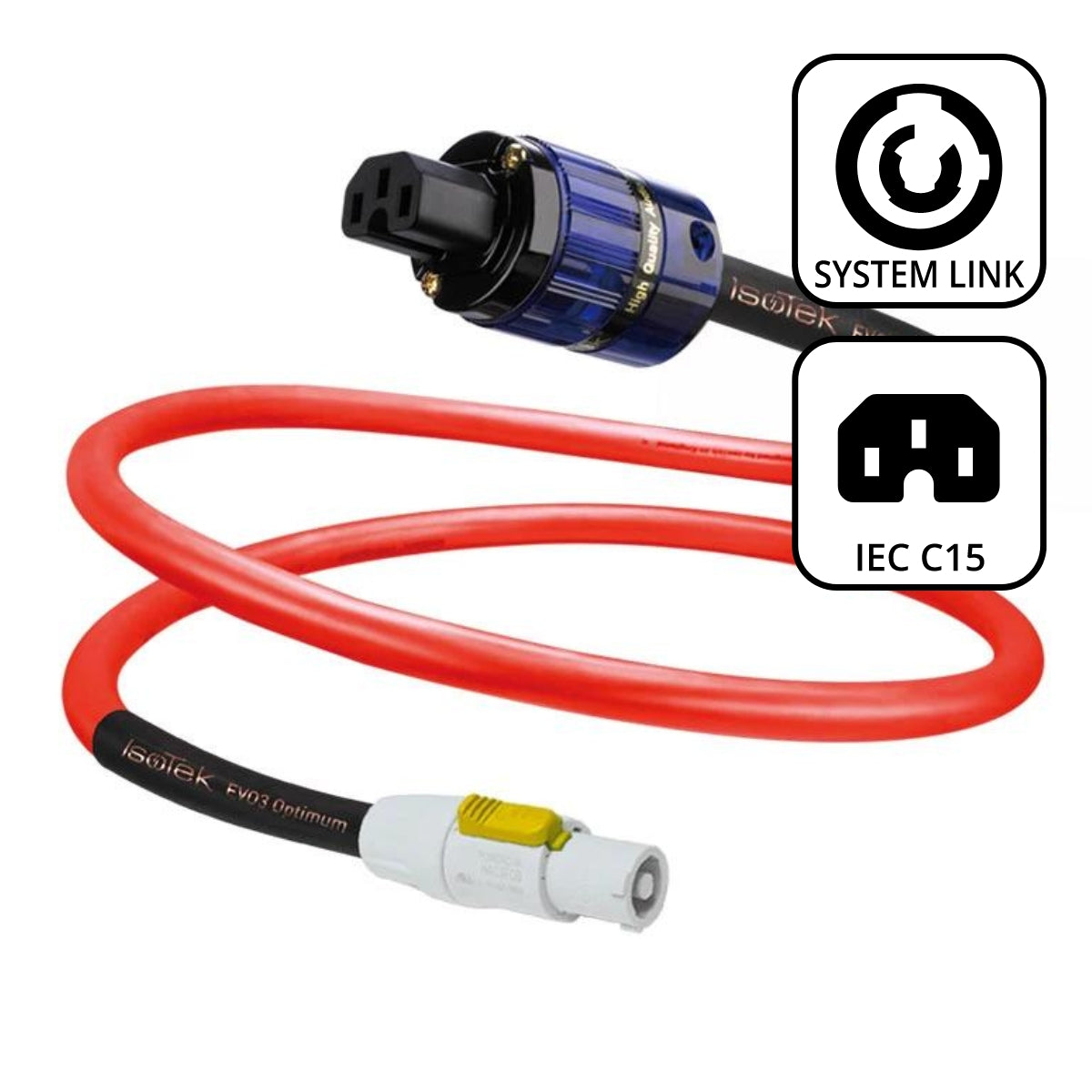

IsoTek Optimum Cable

At the Optimum’s core are three silver plated Ohno Continuous Cast (OCC) copper conductors, with each conductor strand being of a square configuration for tighter bunching. The OCC offers a vastly superior level of purity with outstanding electrical conductivity, improved flexibility, resistance to fatigue and corrosion.

A high quality FEP provides a very low dielectric constant over a wide frequency range. The three conductors are given a slight rotational twist to aid RFI and EMI rejection, and are then surrounded by a cotton filler which give internal strength and reduce microphony. The whole construction is enclosed in a Mylar wrap to provide an additional dielectric buffer, before applying an active OFC shield for maximum rejection of high frequency interference. A durable PVC outer jacket gives a high degree of flexibility and mechanical strength.

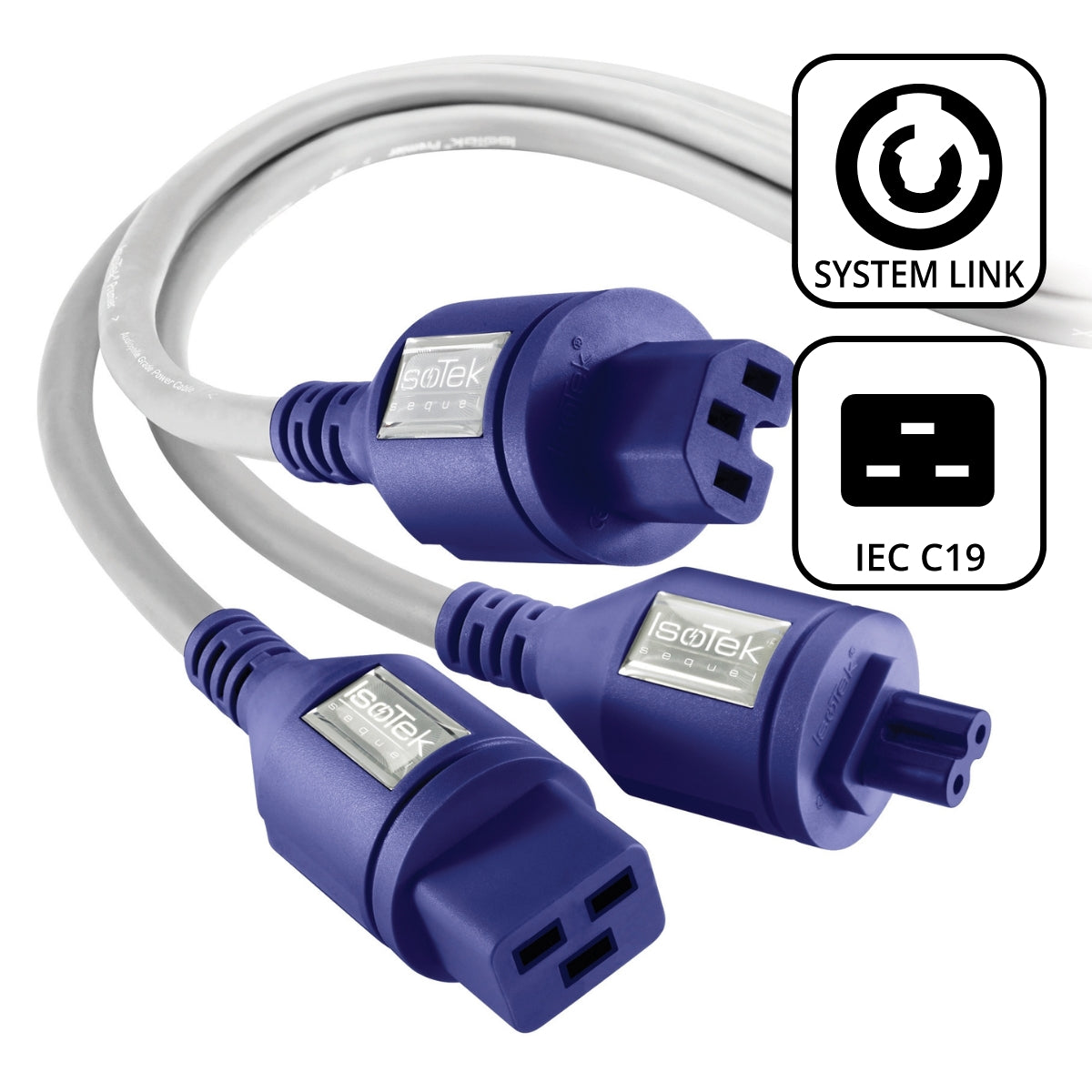

IsoTek Sequel Cable

EVO3 Sequel power cable offers increased performance over IsoTek’s multi-award winning Premier, featuring optimised conductor strand geometry and active shielding.

Sequel comes in a standard length of 2 metres.

CONSTRUCTION: The conductors are in a parallel construction with slight rotational twist. This established technique remains the first line of defence against RFI and EMI rejection.

A) Conductors: Silver plated 99.9999% OFC conductors offer an exceptional level of purity with enhanced conductivity. They are less likely to fracture or degrade over time. Silver is an excellent conductor and when combined with a high purity copper provides impressive electrical properties.

B) Dielectric: Teflon FEP dielectric (insulation) is chemically inert and has a very low dielectric constant over a wide frequency range. FEP possesses a very high degree of stress crack resistance and a low coefficient of friction making it an exceptional dielectric. FEP is the first choice for safety in both temperature and electrical insulation.

C) Filler: Cotton filler has been used to give the cable internal strength and reduce microphony. Cotton also possesses excellent dielectric properties, the best of a solid material.

D) Wrap: A mylar wrap is used to secure the construction and offer a barrier shield prior to the application of a flexible PVC jacket. The addition of the mylar and cotton form a buffer with the PVC so as to maintain exceptional dielectric properties.

E) Shield: An earthed OFC shield insures maximum RFI rejection, thus preventing Common Mode noise effecting the live and neutral conductors.

E) Jacket: PVC is used as an outer jacket to give a high degree of flexibility and mechanical strength.

TERMINATION: Sequel cable is terminated using IsoTek’s bespoke Audiophile grade moulded connectors of solid OFC with 24ct gold plated conductors. These offer the highest quality performance and are less prone to tarnish.
