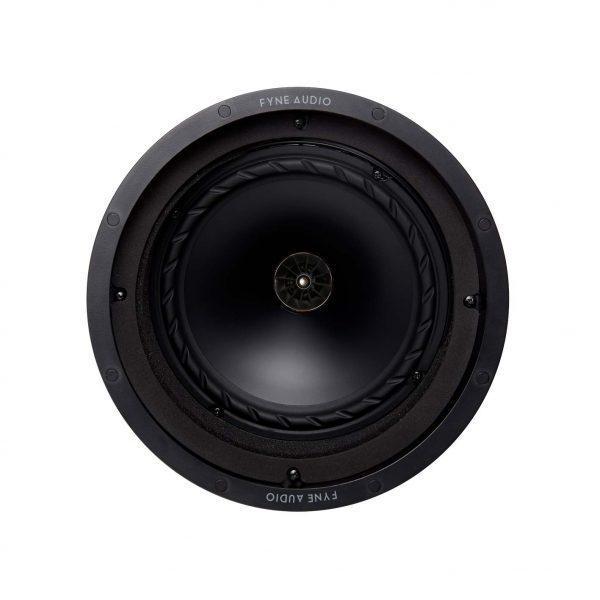

Fyne Audio - FA502iCLCR - 8" Isoflare LCR In-Ceiling Speaker
Specifications
System Type | 2 way IsoFlare loudspeaker for in-ceiling or in-wall application angled dispersion for LCR applications |
Recommended amplifier power (Watt RMS) | 30 - 150 |
Continuous power handling (Watt RMS) | 75 |
Sensitivity (2.83 Volt @ 1m) | 91dB |
Nominal impedance | 8 Ohm |
Frequency response (-6dB typical in room) | 35Hz - 34kHz |
Drive unit complement | 1 x 200mm (8”) IsoFlare point source driver, multi-fibre bass / midrange cone, FyneFlute surround with 25mm titanium dome compression tweeter |
Crossover frequency | 1.7kHz |
Crossover type | Passive 2nd order low pass, 1st order high pass |
Peak power handling (Watt) | 300 |
Dimensions - Dia x Depth | 278 x 157mm (10.9 x 6.2”) |
Square grille dimensions | Not Available |
Cut-out diameter | 255mm (10.0”) |
Depth behind mounting surface | 155mm (6.1”) |
Clamp travel | 0 - 26mm (0 - 1.0”) |
Round grille diameter | 288mm (11.3”) |
Suggested min volume | 18 L |
Warranty
Shipping & Returns
We offer free shipping on any order over $150. For full details please see our Shipping Policy.
Our returns policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately, we may not be able to offer you a refund or exchange. For full details please see our Refund Policy.
Find out more on the Fyne Audio Australia Website

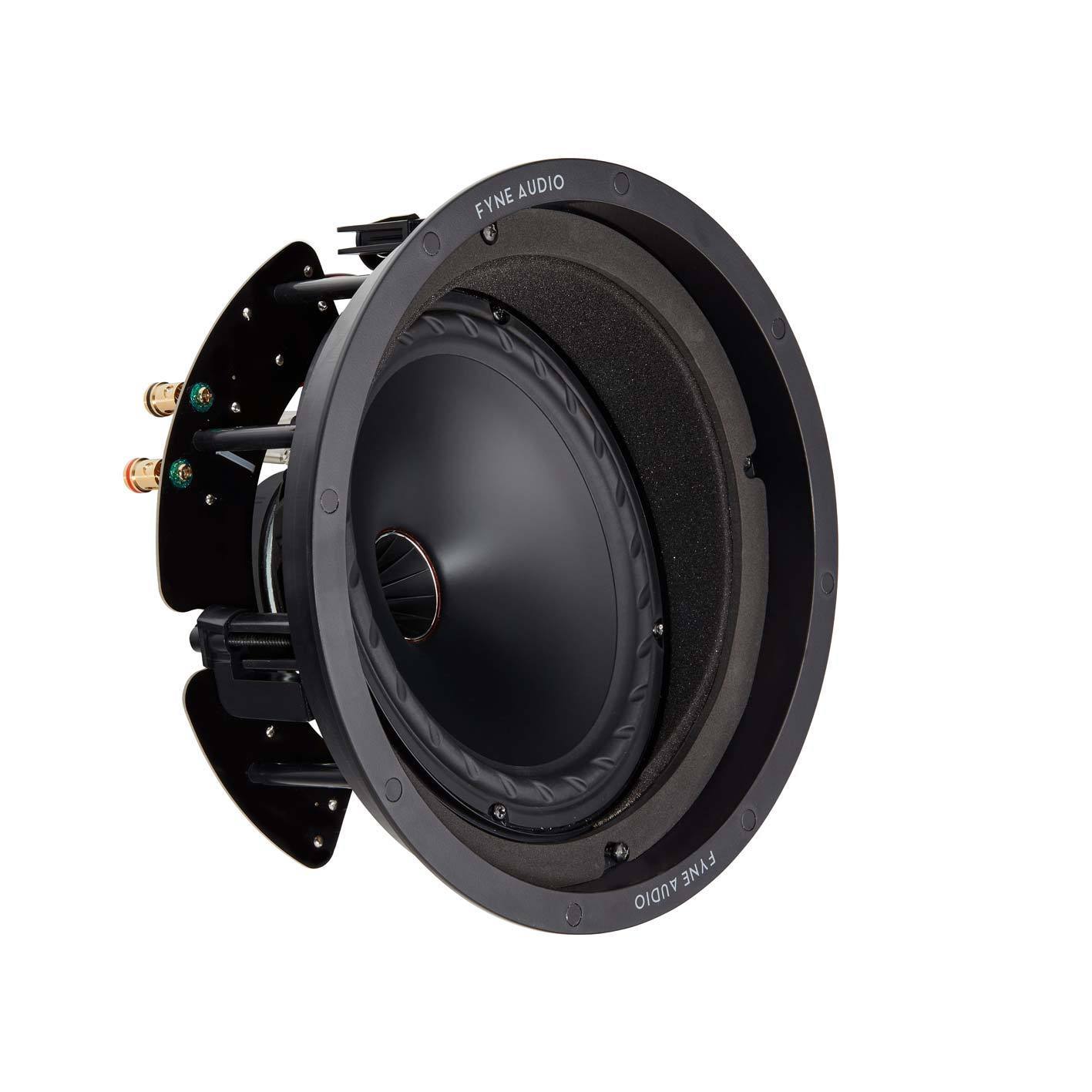

The LCR version of the prestigious FA502iC home install loudspeaker has been designed for installations where speaker placement is offset from the listening position. Ideal for Left, Centre and Right channels of home theatre systems, the 200mm (8”) IsoFlare™ driver is angled at 15 degrees to the mounting surface. The driver can be orientated in the round cut-out to angle the output directly towards the main listening position. With the same easy fitment, power and performance benefits of the standard FA502iC, the LCR model builds on the range’s versatility and is supplied with a magnetic, paintable, low profile round grille.
