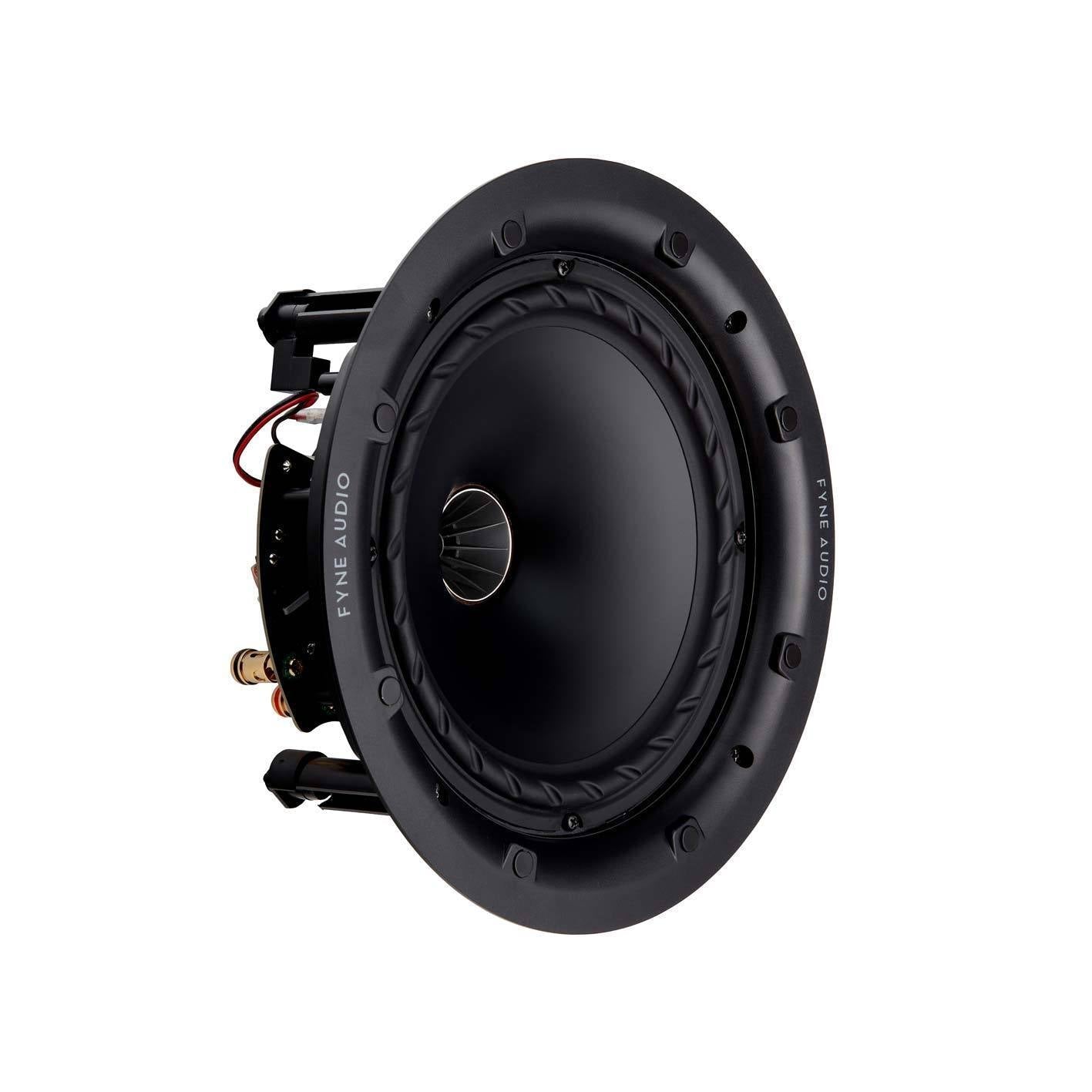

Fyne Audio - FA502iC - 8" Isoflare In-Ceiling Speaker
Specifications
| System Type | 2 way IsoFlare loudspeaker for in ceiling or in wall application |
| Recommended amplifier power (Watt RMS) | 30 - 150 |
| Continuous power handling (Watt RMS) | 75 |
| Sensitivity (2.83 Volt @ 1m) | 91dB |
| Nominal impedance | 8 Ohm |
| Frequency response (-6dB typical in room) | 35Hz - 34kHz |
| Drive unit complement | 1 x 200mm (8”) IsoFlare point source driver, multi-fibre bass / midrange cone, FyneFlute surround with 25mm titanium dome compression tweeter |
| Crossover frequency | 1.7kHz |
| Crossover type | Passive 2nd order low pass, 1st order high pass |
| Peak power handling (Watt) | 300 |
| Dimensions - Dia x Depth | 273 x 123mm (10.6” x 4.8”) |
| Square grille dimensions | 281 x 281mm (11.1 x 11.1”) |
| Cut-out diameter | 248mm (9.8”) |
| Depth behind mounting surface | 120.5mm (4.7”) |
| Clamp travel | 5 - 50mm (0.2 - 2.0”) |
| Round grille diameter | 281mm (11.1”) |
| Suggested min volume | 18 L |
Warranty
Shipping & Returns
We offer free shipping on any product over $99. For full details please see our Shipping Policy.
Our returns policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately, we may not be able to offer you a refund or exchange. For full details please see our Refund Policy.
Find out more on the Fyne Audio Australia Website
Delivering all the detail, impact and class-leading imaging of Fyne’s regarded F500 series loudspeakers, the FA502iC brings true high performance to home install loudspeaker design. Built around the F500 series prestigious 200mm (8”) IsoFlare™ point source driver with infinite baffle tuned crossover, this design offers high efficiency, high power handling and unique full range 360degrees isotropic dispersion pattern. The result is a rich, wide and detailed soundstage, boasting perfect time alignment across the frequency spectrum. Ideal for DIY fitment in ceiling or hollow walls, the chassis offers simple self-aligning clamps, spring clamp cable terminals and comes supplied with both round and square, fully paintable low-profile magnetic grilles. The grilles are further enhanced with an acoustic scrim cloth to ensure the FA50iC blends seamlessly into the home décor.
