Krix Elektra HD2 7 Channel Power Amplifier
Specifications
Power per Channel (Watts RMS) | 7 Channel at 8 ohms 190W |
7 Channel at 4 ohms 225W | |
Damping Factor | >5000 |
Dynamic Power (Watts RMS) | 8 Ohms 200 |
4 Ohms 400 | |
Total Harmonic Distortion THD @1Khz | < 0.0001% |
THD | <0.001%20-20Khz |
PSSR | 85db |
Frequency Response | 3Hz – 250KHz +0,-3 dB |
S/N Ratio | 130 dB |
Input types and impedance | Balanced (XLR) 47K + 47K |
Unbalanced (RCA) 47K | |
Single Potted Silent Power Transformer | Yes |
Discrete Power Amplifier Circuitry | Yes |
Banana Plug Compatible Speaker Connectors | Yes |
12V Trigger | Yes |
Dimensions | 160mm (h) x 445mm (w) x 370mm (d) |
Weight | 25 kg |
Warranty
Shipping & Returns
We offer free shipping on any order over $150. For full details please see our Shipping Policy.
Our returns policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately, we may not be able to offer you a refund or exchange. For full details please see our Refund Policy.
Krix Elektra HD2 7 Channel Power Amplifier
Blu-ray has set the standard for home theatre today, bringing higher performance audio formats that surpass the CD 16bit/44.1kHz standard, including LPCM (Lossless), Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS Digital Surround, and DTS-HD Master Audio. These advancements place new demands on audio electronics to reproduce high-resolution audio available on Blu-ray. The Krix Elektra HD2 completes the audio system chain, delivering a full HD audio-visual experience.
Our product is currently the only true high-definition multi-channel amplifier designed to deliver all the audio engineering intended for your movie and surround sound home theatre system. This means you hear all the movie soundtracks as the studio mastering engineers intend—clearly and without distortion. Designed for the ultimate music and movie surround sound experience, the Krix Elektra HD2 7 Channel Power Amplifier delivers power and detail, rated at 190 watts per channel into 8 ohms, with extremely low distortion across the entire audio band from 20Hz to 20kHz.
The Krix Elektra HD2 is hand-built from custom components and specially selected, highly reliable, audio-grade parts matched in the final assembly. Unique construction techniques and innovative circuit designs separate the input and output stages to isolate nonlinear magnetic fields, eliminating induced noise and interference. This achieves ultra-low distortion and high-definition audio performance that is perceivable and measurable by an order of magnitude. The power supply features a high-current, low-noise toroidal power transformer along with high-power (80WVDC) filter capacitors with a total 40,000μF capacitance.

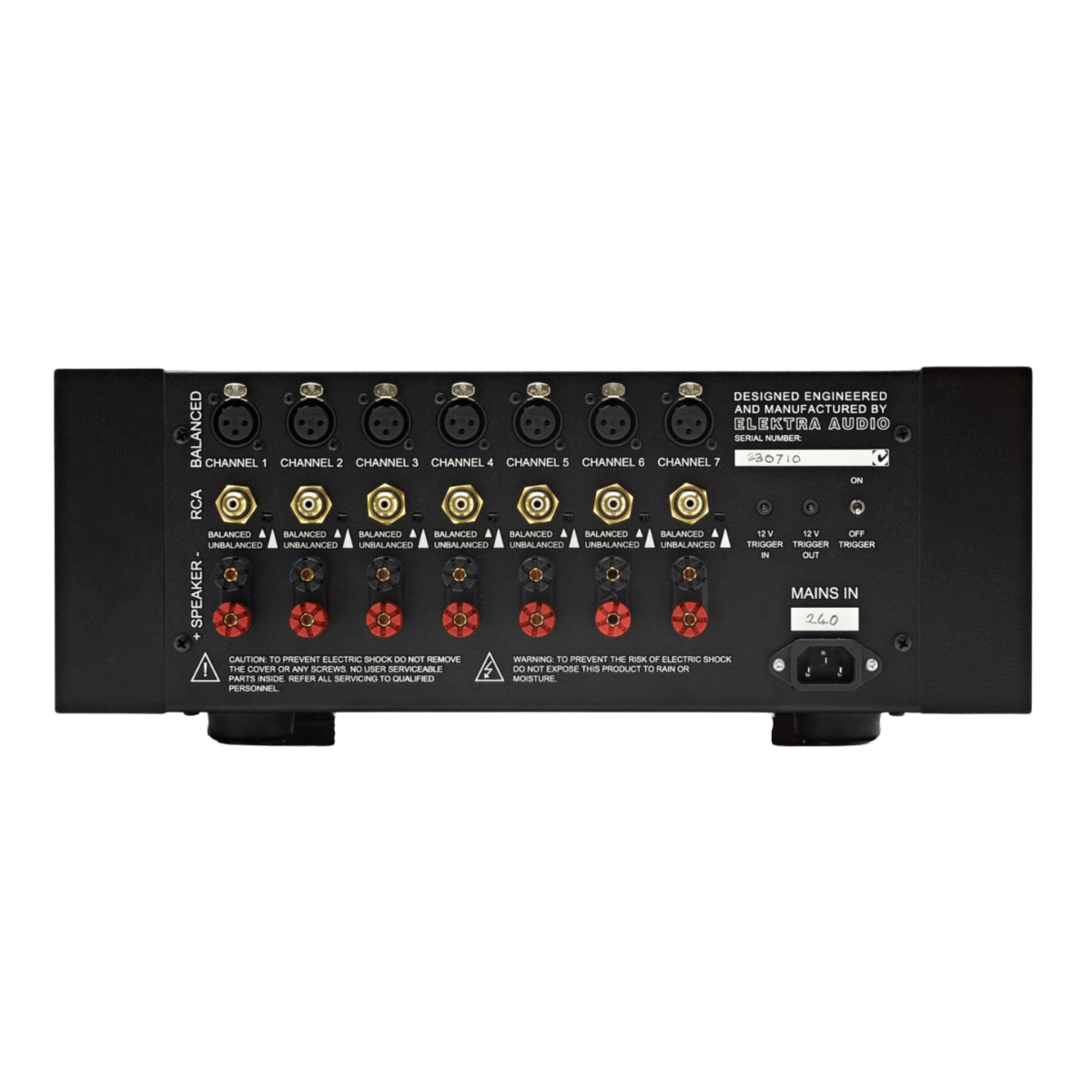

Our unique current feedback discrete power amplifier output stages, identical for all channels, use multiple high-current discrete power transistors with high slew rates and wide operating bandwidth to extract the most detail from today's high-resolution audio formats. The output devices are mounted on a unique cast aluminium alloy heat sink assembly, featuring multiple ribbed fins for large passive cooling areas, eliminating fan noise. For maximum connectivity, the Elektra HD2 features both unbalanced (RCA) and balanced (XLR) inputs, configurable for each amp channel. The loudspeaker terminals, made with audiophile-grade construction and gold-plated for maximum signal transfer, easily handle a wide range of audiophile speaker cable connectors.
The Krix Elektra HD2 includes a DC trigger input for external power on/off control. Its case is solidly constructed, integrating the heat sinks as part of the structural assembly, making the housing mechanically rigid and isolating it from extraneous noise, all elegantly finished in textured anodised matt black.
Our craftsmanship, innovative design, and construction, combined with our reputable sales and support, ensure you will be delighted with your purchase, delivering an unforgettable home entertainment experience.
