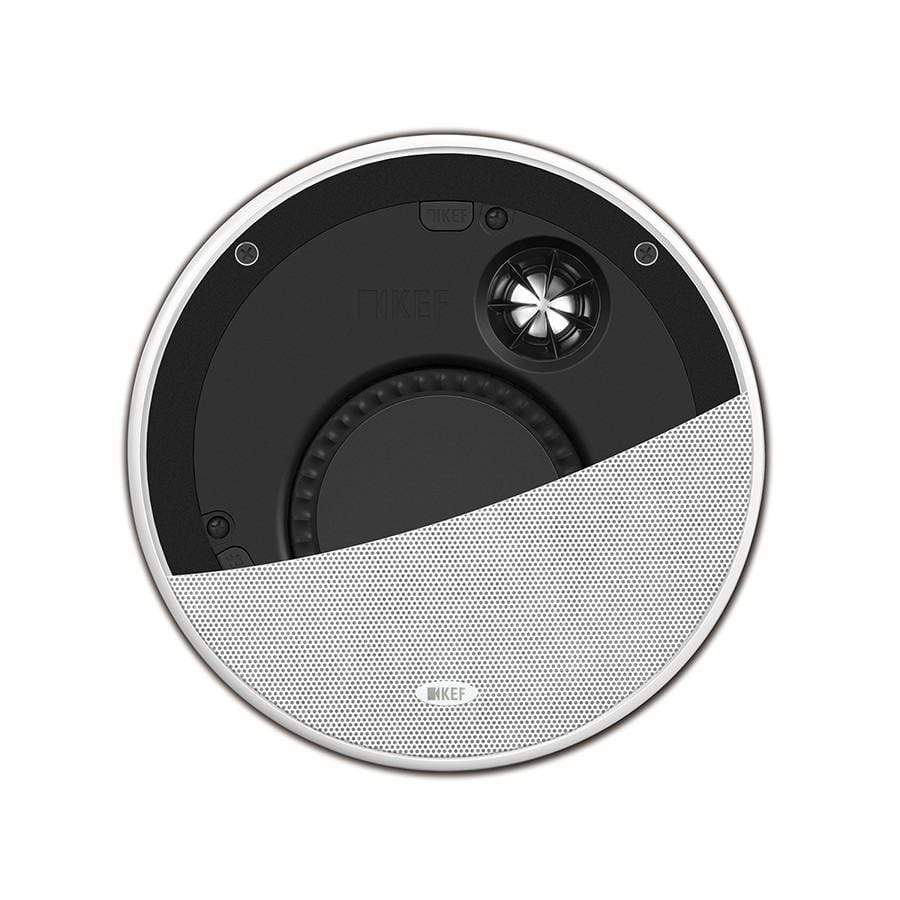

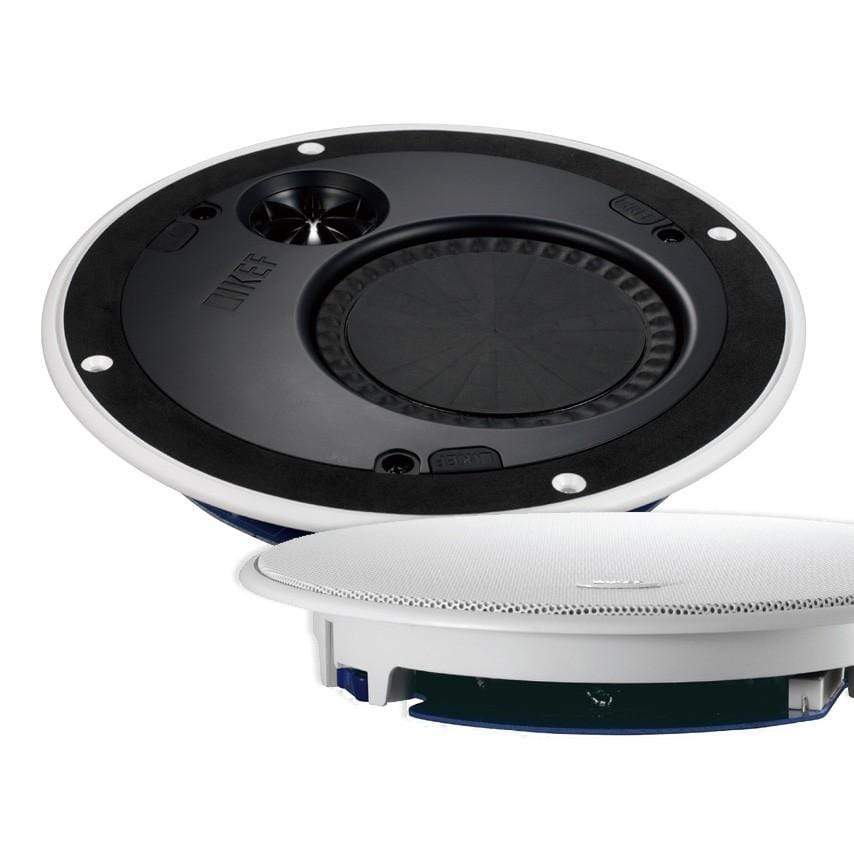

KEF Ci160TR In-Ceiling Speaker

  • Sale
  • Regular price $595.00


Requiring less than 36mm of mounting depth, the Ci160TR fits snugly in very narrow ceiling spaces and is therefore specified for demanding applications such as today’s luxury high-rise apartments and super-premium motor yachts.
Boasting the latest incarnation of our formidable 4.5in. mid/bass T Series driver and powerful 1in. tweeter, the ultra-slim new T Series Ci speakers open up new possibilities for enjoying KEF’s uncompromised sound quality where space above the ceiling is at a premium. Requiring less than 36mm of mounting depth, the Ci160TR fits snugly in very narrow ceiling spaces and is therefore specified for demanding applications such as today’s luxury high-rise apartments and super-premium motor yachts.



Key Features

  • <36mm mounting depth allows fitment to very restricted cavities
  • Ultra-low profile LF unit with excellent bass extension
  • Vented tweeter with KEF's unique 'tangerine' waveguide for natural HF response and wide, even dispersion
  • Rigid flat diaphragm assures clean upper bass and mid-range response
  • Paintable Ultra-Thin Bezel (UTB) and magnetic grille to blend unobtrusively with décor
  • Fast, versatile installation on virtually any surface via dogleg or direct screw fastening



            • Specifications

              ARRAY White
              NOMINAL IMPEDANCE 8 Ω
              SENSITIVITY 87dB (2.83V/ 1m)
              FREQUENCY RESPONSE 110Hz - 24kHz (±6dB) open backed
              CROSSOVER FREQUENCIES 1.7kHz
              DRIVE UNITS LF: 115mm (4.5 in.) dual layer MF
              HF: 25mm (1 in.) aluminium HF
              AMPLIFIER POWER 10-100W
              PRODUCT EXTERNAL DIMENSIONS Diameter: 234.6mm (9.24 in.)
              Depth: 40mm (1.57 in.)
              CUT-OUT DIMENSIONS 196mm (7.71 in.)
              MOUNTING DEPTH FROM SURFACE 36mm (1.42 in.)
              MINIMUM WALL THICKNESS 10mm (0.39 in.)
              MAXIMUM WALL THICKNESS 25.5mm (1 in.)
              OPTIONAL ROUGH IN FRAME RIF160R
              OPTIONAL REAR ENCLOSURE RNC160R
              NET WEIGHT 1 kg
