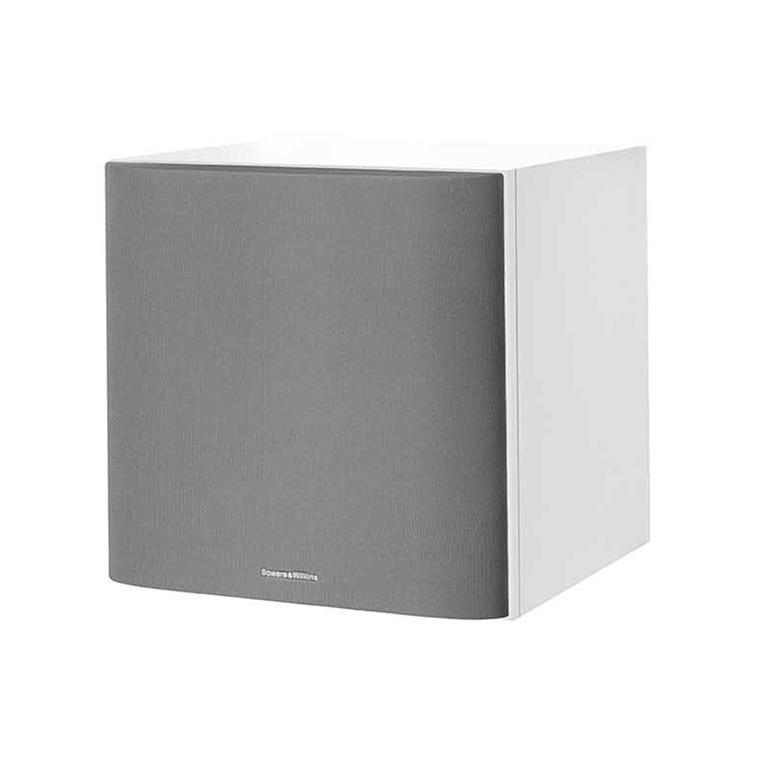

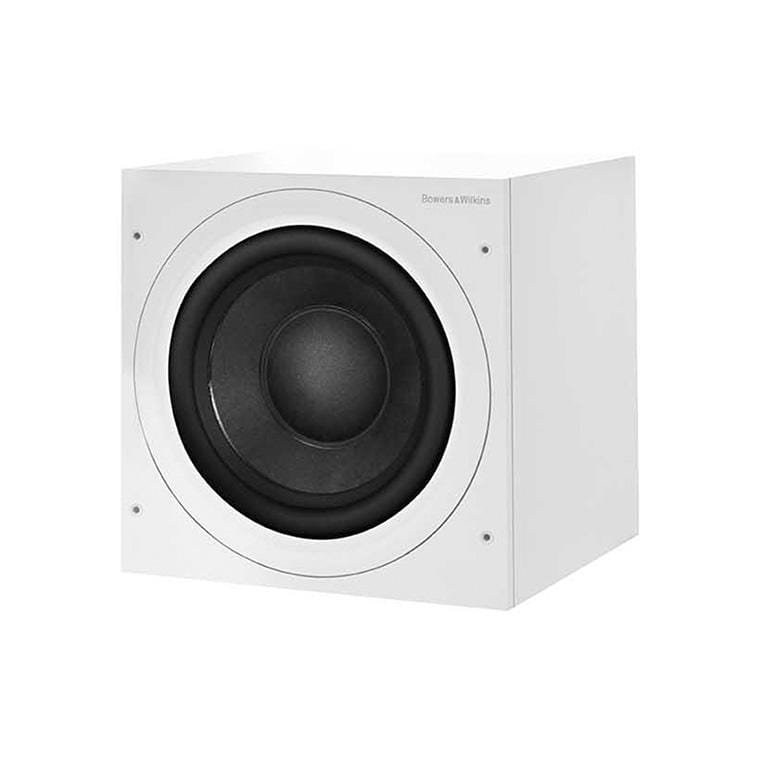

Bowers and Wilkins ASW610 Subwoofer
ASW610's long-throw 250mm driver allows it to move the large volumes of air needed for high-quality low-frequency output, and its audiophile-standard 200W Class D amplifier keeps the compact unit running cool.
Manufacturers Details:
The ASW610 subwoofer presents a very happy medium between the more diminutive ASW608 and the all-out power of the ASW610XP. Its long-throw 250mm driver allows the ASW610 to move the large volumes of air needed for high-quality low-frequency output and its audiophile-standard 200W Class D amplifier keeps the compact unit running cool even when the music or movie action is whipping up a storm.
Engineered With Care:
In all of the 600 Series subwoofers the bass driver diaphragms are constructed from a rugged finely-tuned mix of paper pulp Kevlar® fibres and resin which provides the stiffness needed to withstand the tremendous physical forces exerted by the voice coil and pressures inside the cabinet.
Key Features:
Ultra-solid construction delivers slamming bass drum kicks and special movie effects. Deformation is minimised; bass precision power and enjoyment are maximised.
Specifications:
| Description: | Active closed-box subwoofer system |
| Features: |
Input level (line in) |
| Drive unit: | ø250mm (10 in) paper / Aramid fibre cone long-throw |
| Frequency range: | -6dB at 20Hz and 25 / 140Hz adjustable (EQ at A) |
| Frequency response: | ±3dB 27Hz – 40 / 140Hz adjustable (EQ at A) |
| Sensitivity: | 87dB spl (2.83Vrms, 1m) |
| Bass extension: |
-6dB at 20Hz (position A) -6dB at 25Hz (position B) -6dB at 30Hz (position C) |
| Amplifier: | Power output: 200W |
| Rated power consumption: | 40W / 0.5W standby |
| Input impedance: | 33kΩ |
| Signal / noise: | >90dB |
| Inputs: |
Line in (RCA Phono) Speaker in (Binding post) 12v trigger (3.5mm jack) Low-pass filter Active 4th-order, variable cut-off frequency |
| Dimensions: |
Height: 310mm (12.2 in) not including feet or spikes 322mm (12.7in) including feet 338mm (13.3in) including spikes Width: 310mm (12.2 in) Depth: 347mm (13.66in) not including grilles 375mm (14.8 in) including grilles and controls |
| Net weight: | 12.5kg |
| Cabinet finishes: | Black White |
| Grille finishes: | Black Grey |
